INSTALLATION INSTRUCTIONS

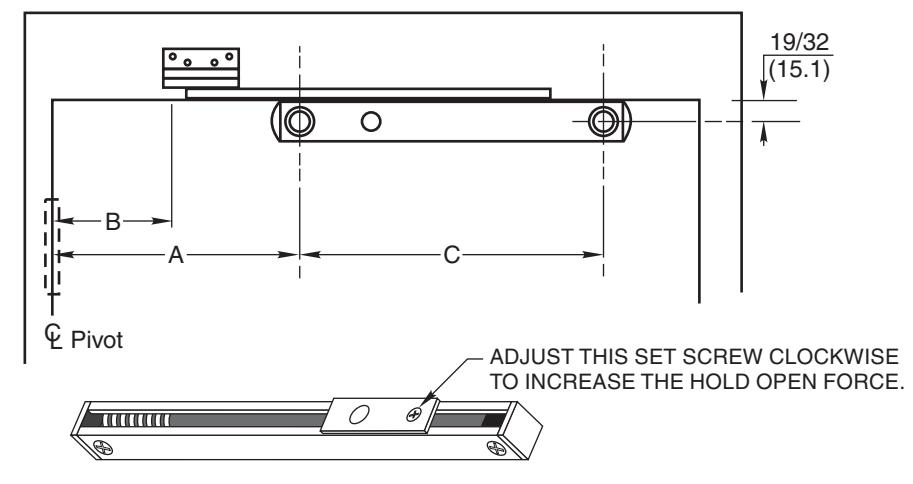

4. Install channel on door with "A" dimension and 19/32 (15.1) from top of door. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with top edge of door. Drill 1/2 (12.7) dia. sex bolt hole and finish installing holder. Install control knob on channel as shown. Install jamb bracket to angle bracket.
Notes:

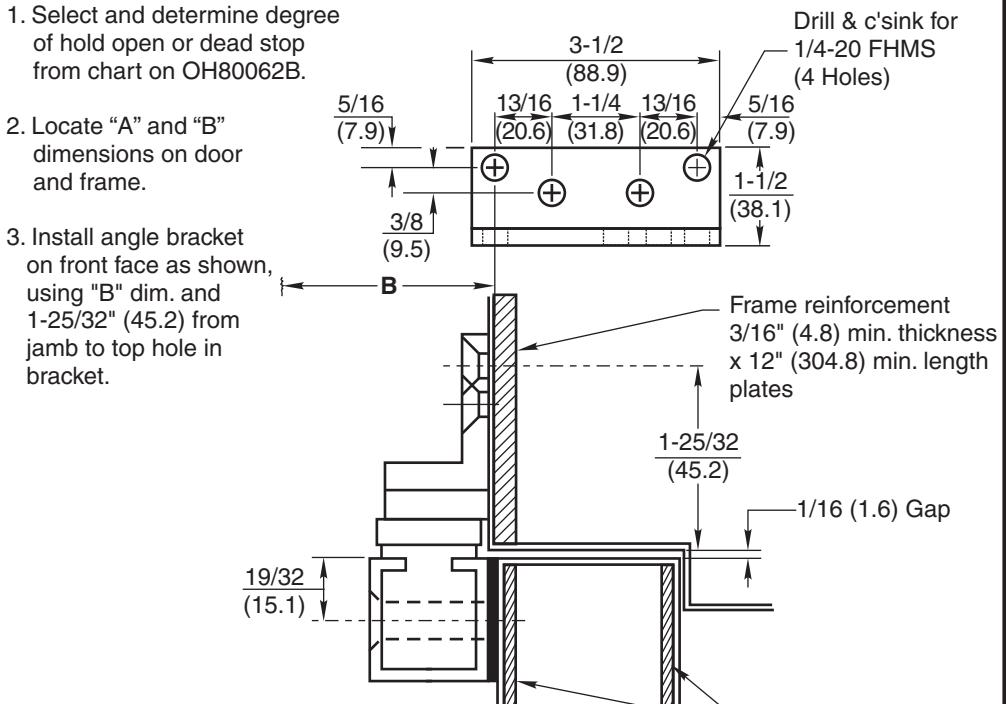

- -All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
- -All hollow metal doors should be properly reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
- -All drilling and tapping to be done by field men.
- -Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
- -Left hand shown – right hand opposite. (Note hole pattern in jamb bracket).
- All dimensions are given in inches (mm). -
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
|
S
cr ew |
D
ai l et s |
|||
|---|---|---|---|---|
|
J
b am |
D
oo r |
|||
|
/
/ S # 1 4- 2 0 3 4" F H M x |
/
S 5 1 6- 1 8 2" F H M x |
|||
| or |
d
an |
|||
|
1
4 1- 1 / 2" F H W S # x |
1
/ 2" D i S B ol t a. ex |
|||
|
(
) 4 P l ac es |
(
) 2 P l ac es |
|||
No. 9 ADJ Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders

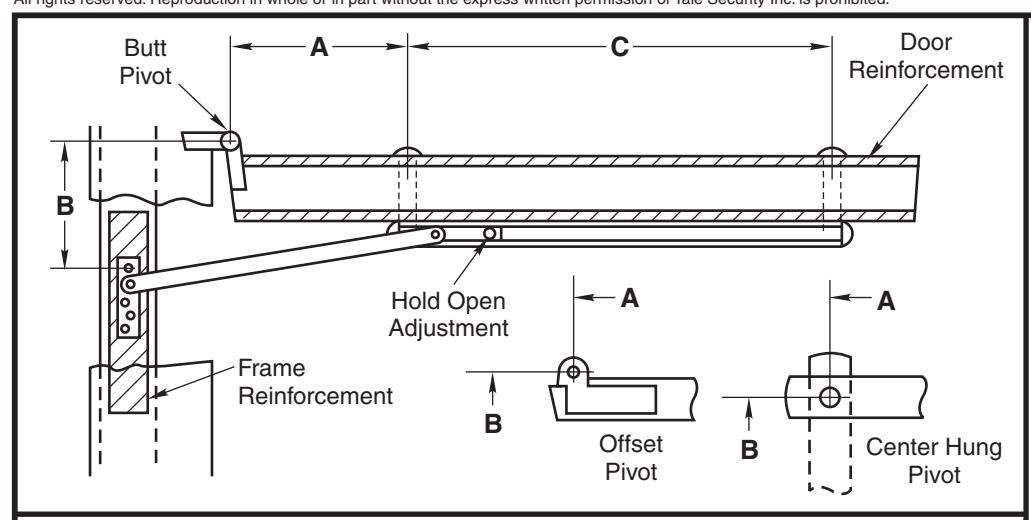

Door Reinforcements
www.rixson.com ASSA ABLOY RIXSON ® TEMPLATE NUMBER DATE 03-11 OH80092A
No. 9 Series Surface Mounted Door Stops and Holders
- 1. See OH80090A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All drilling and tapping to be done in field.
- 4. All dimensions given in inches.
Device Degree Number Max Door H.O. Multi Stop В C Opening Opening 1-3/4 to 2-1/4 9ADJ-126 9ADJ-136 9ADJ-146 24 - 28 3-1/4 3-13/16 15-15/16 100° Butts 9ADJ-226 9ADJ-236 9ADJ-246 28-1/16-33 6-1/2 4-5/16 17-3/16 110° 3/4 Offset Pivot 9ADJ-326 9ADJ-336 9ADJ-346 33-1/16- 38 9-13/16 5-3/8 18-11/16 110° 9ADJ-426 9ADJ-436 9ADJ-446 38-1/16 - 43 12-7/16 6-7/8 20-13/16 110° 9ADJ-526 9ADJ-536 9ADJ-546 43-1/16 - 48 | 15-5/8 | 7-13/16 | 22-5/16 110°
NOTE: A and B dimensions measured from centerline of pivot, not edge of door.
|
Device
Number |
Degree | |||||||
|---|---|---|---|---|---|---|---|---|
| H.O. | Stop | Multi |
Door
Opening |
Α | В | С |
Max
Opening |
|
| 1-3/4 | 9ADJ-126 | 9ADJ-136 | 9ADJ-146 | 25-1/2 - 30 | 5-1/16 | 4-3/16 | 15-15/16 | 110° |
|
to 2-3/4
Center |
9ADJ-226 | 9ADJ-236 | 9ADJ-246 | 30-1/16 - 36 | 6-11/16 | 4-15/16 | 17-3/16 | 110° |
| Hung | 9ADJ-326 | 9ADJ-336 | 9ADJ-346 | 36-1/16 - 41 | 9-15/16 | 6-1/16 | 18-11/16 | 110° |
| 9ADJ-426 | 9ADJ-436 | 9ADJ-446 | 41-1/16 - 46 | 12-1/2 | 7-1/2 | 20-13/16 | 110° | |
| 9ADJ-526 | 9ADJ-536 | 9ADJ-546 | 46-1/16 - 50 | 15-3/4 | 8-1/2 | 22-5/16 | 110° |
Reversible, non-handed.
TO SELECT DEGREE OF STOP
- 1. With a screwdriver, loosen the Set Screw in the Slide Block.
- 2. Open door to desired degree of opening.
- 3. Move Slide Block and Spring until the Spring touches Slide Cam.
- 4. Tighten Set Screw.
- 5. Verify door opening position and re-adjust, as needed.
No. 9 ADJ Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders
ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
DATE
OH80092B 03-11
