INSTALLATION INSTRUCTIONS

  • 1. Select and determine degree of opening, hold open or dead stop from chart on back side of page.

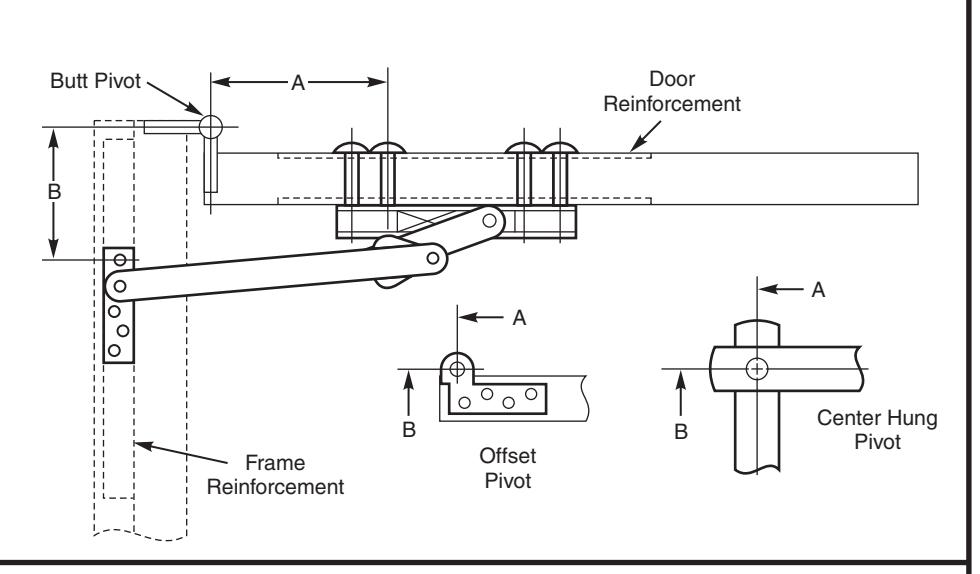

  • 2. Locate "A" and "B" dimensions on door and frame.

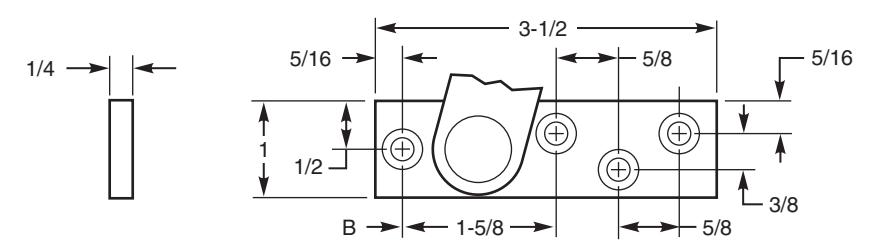

  • 3. Install jamb bracket on stop strip.

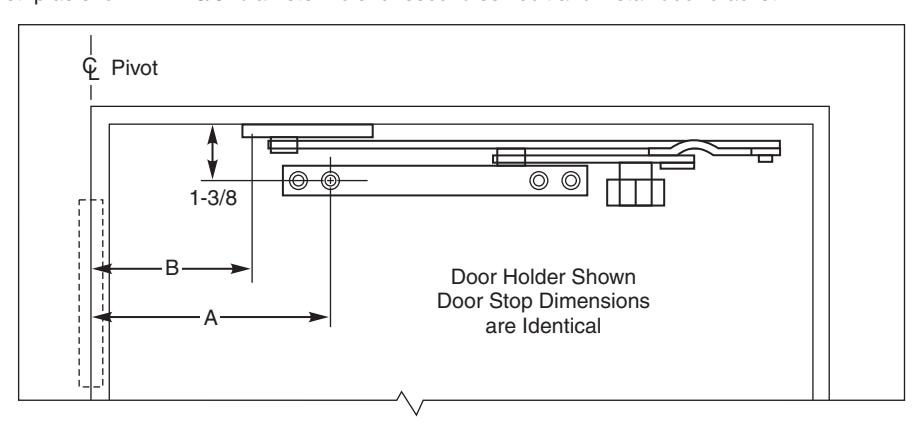

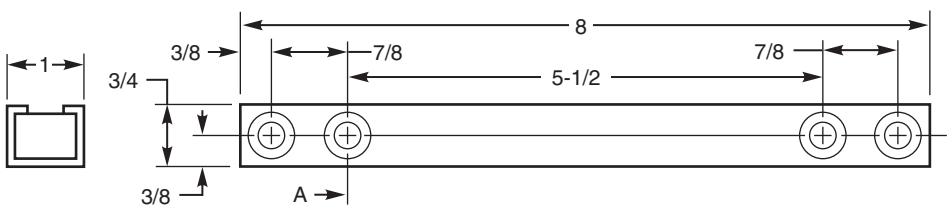

4. Position door bracket on door with shock spring located towards pivot. Drill 3/8" diameter hole for first sex bolt as shown for dimension "A".

5. Be sure that door bracket is horizontal and holes are located on door 1-3/8" down from stop strip as shown. Drill 3/8" diameter hole for second sex bolt and install door bracket.

NOTES:

  • All hollow metal doors and frames should be properly reinforced with 3/16" min. thickness x 12" min. length reinforcement plates.
  • All drilling and tapping to be done by field men.
  • Sex bolts furnished will be 3/8" diameter and will extend into door bracket.
  • Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
  • Left hand shown right hand opposite. (Note hole pattern in jamb bracket.)
  • All dimensions are given in inches.
  • Non-handed, reversible.

DOOR BRACKET COVER: If cover is provided, snap on to door bracket after screws have been tightened into sex bolts.

CONTROL KNOB: Turn control knob one half turn for hold open or stop only operation.

Screw Details
Type Qty. Description
Door Bracket 4 1/4-20 x 1-1/4" FHMS and 3/8" Dia. Sex Bolts
Jamb Bracket 4 1/4-20 x 3/4" FHMS
or
#14 x 1-1/2" FHWS

No. 8HD Series Heavy Duty Surface Mounted Door Stops and Holders

ASSA ABLOY RIXSON

www.rixson.com

TEMPLATE NUMBER DATE

®

OH80050A

07-13

No. 8HD Series Heavy Duty Surface Mounted Door Stops and Holders

  • 1. See other side for installation instructions.
  • 2. Select proper dimensions noted below.
  • 3. All drilling and tapping to be done in field.
  • 4. All dimensions given in inches.
  • 5. When using center hung pivots, check pivot manufacturer's compatibility prior to specifying.

For single acting doors only. Reversible, non-handed.

H.O. = Hold Open for Holders and Opening for Stops. D.S. = Dead Stop for Both Holders and Stops.

1% - 2%
Butts
&
% Offset
Pivot 		Device
Number 		Degree 85° 90° 95° 100° 105° 11 0°
209.00 H.O. D.S. H.O. D. S. H.O. D.S. H.O. D.S. H.O. D.S. H.O. D.S.
H.O. Stop Door
Opening 		Α В Α В Α В Α В Α В Α В А В Α В Α В Α В Α В Α В
8-226 8-236 27 1 / 16 - 32 1 / 2 10 7 8 8 8 11 15 / 16 9 1 6 10 1 6 7 9 11 8 8 5 / 8 9 7 / 8 78 10 7 8 8 1 9 1/2 6 3 10 2 7 3 9 8 6 3 / 8 10 1 / 8 7 8 8 13 / 16 6 1 9 13 7 1
8-326 8-336 32 16 - 38 3 1516 10 13 / 16 16 11 3 / 4 1416 1016 15 5 / 16 11 1 / 16 13 3 / 4 9 1 14 3 / 4 10 1 / 2 13 1 / 4 9 14 1 / 4 10 12 3 / 4 8 1 13 3 / 4 9 1 12 7 8 3 13 3 / 8 9 1
8-426 8-436 38 13 / 16 - 42 1 / 2 19 3 / 4 13 11 / 16 20 3 / 4 14 11 / 16 18 15 / 16 12 7 8 20 1 / 16 14 18 1 6 12 1 / 8 19 1 6 13 1 / 8 1716 11 1 / 2 18 1 / 2 12 7 17 1 11 17 15 / 16 11 7 / 8 1616 10 1 / 2 17 16 11 3 / 8
8-526 8-536 42 1 6 - 48 22 1 6 15 7 / 16 23 3 / 8 16 8 21 1 / 2 14 1 / 2 22 7 15 1 6 20 11 / 16 13 11 / 16 21 5 / 8 14 5 / 8 20 13 20 7 / 8 13 7 / 8 19 3 / 8 12 3 / 8 20 16 13 5 / 16 18 7 / 8 11 7 / 8 19 3 12 3 / 4
1¾ - 2%
Center
Hung 		Device
Number 		Degree Degree 85° 90° 95° 100° 105° 110°
H.O. D.S. H.O. S. Н. Н.О. D.S. H.O. D.S. Н.О. D.S. H.O. D.S.
н.о. Stop Door
Opening 		A В Α В A В A В A В Α В A В Α В Α В A В A В Α В
8-226 8-236 27 1 6 - 35 11 11 / 16 8 15 / 16 12 1 6 9 13 11 1 6 8 7 12 9 1/4 10 11 / 16 7 15 11 2 8 3 / 4 10 1 6 9
716 		11 1 / 16 8 5 / 16 9 15 / 16 7 3 10 11 / 16 7 15 9 5 / 8 6 7 / 8 10 1 6 7 16
8-326 8-336 35 1 / 16 - 41 1 / 2 15 3 / 4 11 1 / 2 16 8 12 3 / 8 15 1 10 13 / 16 15 15 / 16 11 11 / 16 14 1 / 2 10 1 / 4 1516 11 1 / 16 13 15 / 16 9 11 / 16 14 3 / 4 10 1 / 2 13 1 / 2 9 4 14 1 / 4 10 13 1 / 16 8 13 13 13 / 16 9 9
8-426 8-436 41 1 6 - 45 20 3 / 8 1416 20 1 / 4 15 1 6 19 1 6 13 1 / 2 2016 14 3 / 8 18 7 / 8 12 13 / 16 19 5 / 8 13 1 6 18 1 6 12 1 / 8 19 12 15 / 16 17 5 / 8 11 1 6 18 3 / 8 12 5 17 1 / 8 11 1 / 16 7 8 11 13 / 16
8-526 8-536 45 16 - 48 23 1 1616 23 15 16 15 22 1 / 8 15 1 / 8 22 15 / 16 15 15 21 5 14 1 6 22 1 / 8 15 8 20 5 / 8 13 5 / 8 21 3 / 8 14 3 / 8 20 13 20 3 / 4 13 3 / 4 9 7 12 7 20 16 13 1 6

No. 8HD Series Heavy Duty Surface Mounted Door Stops and Holders

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER

DATE

OH80050B

07-13
