INSTALLATION INSTRUCTIONS
1. Select proper dimensions from chart on opposite side of page.
NOTE: Add 5/8" (15.8) to "A" dimension for dead stop.

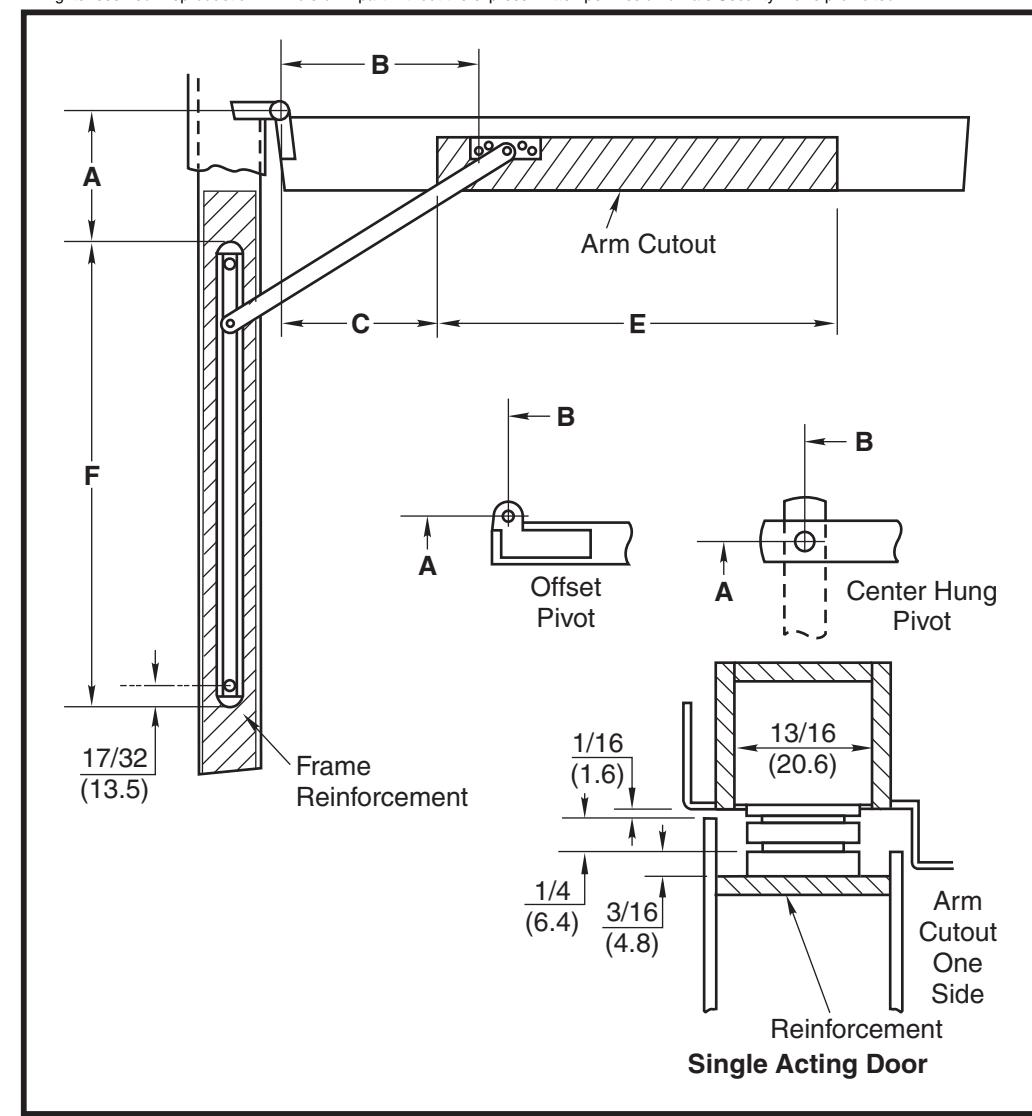

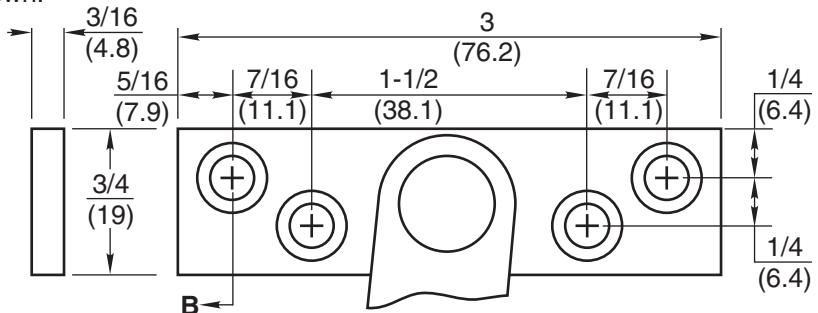

Locate "B" dimension on frame and mortise 7/16" (11) deep for jamb bracket as shown.
- 3. Locate "A" and "F" dimensions on centerline of frame and mortise 13/16" wide x 7/8" deep (20.6 x 22.2) for channel, 1/16" (1.6) head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
- 4. Locate "C" and "E" dimensions on top of door and mortise 1/4" (6.4) deep as shown for arm clearance.
- 5. Install door stop or holder with screws provided.
Notes:
- All hollow metal frames are to be provided with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" reinforcement plates.
- If dead stop is required add 5/8" (15.8) to "A" dimension as noted on opposite side of page.
- A, B and C dimensions are measured from centerline of pivot, not edge of door.
- Reversible, non-handed.
- All dimensions are given in inches (mm).
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
| Screw Details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Jamb | Door | |||||||||
| #12-24 x 1/2" FHMS | #12-24 x 1-1/2" FHMS | |||||||||
| or | or | |||||||||
| #12 x 1-1/2" FHWS | #12 x 1-1/2" FHWS | |||||||||
No. 5 Series Inverted Non Adjustable Concealed Door Stops and Holders
ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER OH80022A
04-16
No. 5 Series Concealed Door Stops and Holders
- 1. See other side for installation instructions.
- 2. Select proper dimensions noted below.
- 3. Add 5/8" to "A" dimension for dead stop.
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed.
4. All dimensions given in inches.
Metric = decimal (numerator divided by denominator) x 25.4.
|
Device
Number |
Degree | 85° H.O. | 90° H.O. | 95° H.O. | 100° H.O. | 105° H.O. | 110° H.O. | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-3/4 - 2-1/4 | H.O. | Stop |
Door
Opening |
A | B | C | E | A | B | C | E | A | B | C | E | A | B | C | E | A | B | C | E | A | B | C | E | F |
|
(44.5 - 57.2)
Butts |
5-126 | 5-136 | *18 - 24 | 2-1/2 | 4-5/16 | 3-7/16 | 13-5/8 | 1-7/8 | 4-5/16 | 3 | 13-5/8 | 1-5/8 | 3-5/8 | 1-7/8 | 13-5/8 | 2-5/8 | 3 | 1 | 13-5/8 | 2-1/4 | 3 | 1 | 13-5/8 | 3-1/16 | 2 | 7/8 | 13-5/8 | 14-3/4 |
| & | 5-226 | 5-236 | 24-1/16 - 30 | 7-15/16 | 5-1/4 | 4-1/2 | 14-7/8 | 7-13/16 | 4-5/8 | 4 | 14-7/8 | 6-3/8 | 5-1/2 | 4-3/4 | 14-7/8 | 6-1/4 | 5 | 4-1/4 | 14-7/8 | 5-11/16 | 5 | 4 | 14-7/8 | 6 | 4-1/4 | 3-7/8 | 14-7/8 | 15-7/8 |
| 3/4 (19) | 5-326 | 5-336 | 30-1/16 - 36 | 11-1/16 | 6-15/16 | 6-3/16 | 18-3/4 | 10-1/4 | 6-15/16 | 6-3/16 | 18-3/4 | 9-1/2 | 6-15/16 | 6-3/16 | 18-3/4 | 8-3/4 | 6-7/8 | 6-1/8 | 18-3/4 | 8-3/8 | 6-1/2 | 5-1/2 | 18-3/4 | 8-3/8 | 6 | 5 | 18-3/4 | 17-11/16 |
| Offset Pivot | 5-426 | 5-436 | 36-1/16 - 42 | 14-3/4 | 8-15/16 | 8-3/16 | 22-1/8 | 13-3/4 | 8-15/16 | 8-3/16 | 22-1/8 | 12-7/8 | 8-15/16 | 8-3/16 | 22-1/8 | 11-15/16 | 8-7/8 | 8-1/8 | 22-1/8 | 11-15/16 | 8 | 7-1/4 | 22-1/8 | 11-1/44 | 8 | 7-1/4 | 22-1/8 | 20-3/16 |
| 5-526 | 5-536 | 42-1/16 - 48 | 19-1/16 | 10-7/8 | 10 | 27-1/8 | 18-9/16 | 9-7/8 | 9 | 27-1/8 | 18-9/16 | 8-3/8 | 7-1/4 | 27-1/8 | 17-13/16 | 8-1/8 | 7-1/4 | 27-1/8 | 17 | 8-1/8 | 7-1/4 | 27-1/8 | 16-1/4 | 8-1/8 | 7-1/4 | 27-1/8 | 21-15/16 | |
