Rixson Checkmate No. 2 Series Concealed Door Stop and Holder Installation Instructions

NOTES:

• • All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
• • All hollow metal doors are to have minimum 3/16" reinforcement plates.
• • If dead stop is required add 5/8" to "A" dimension as noted on opposite side of page.

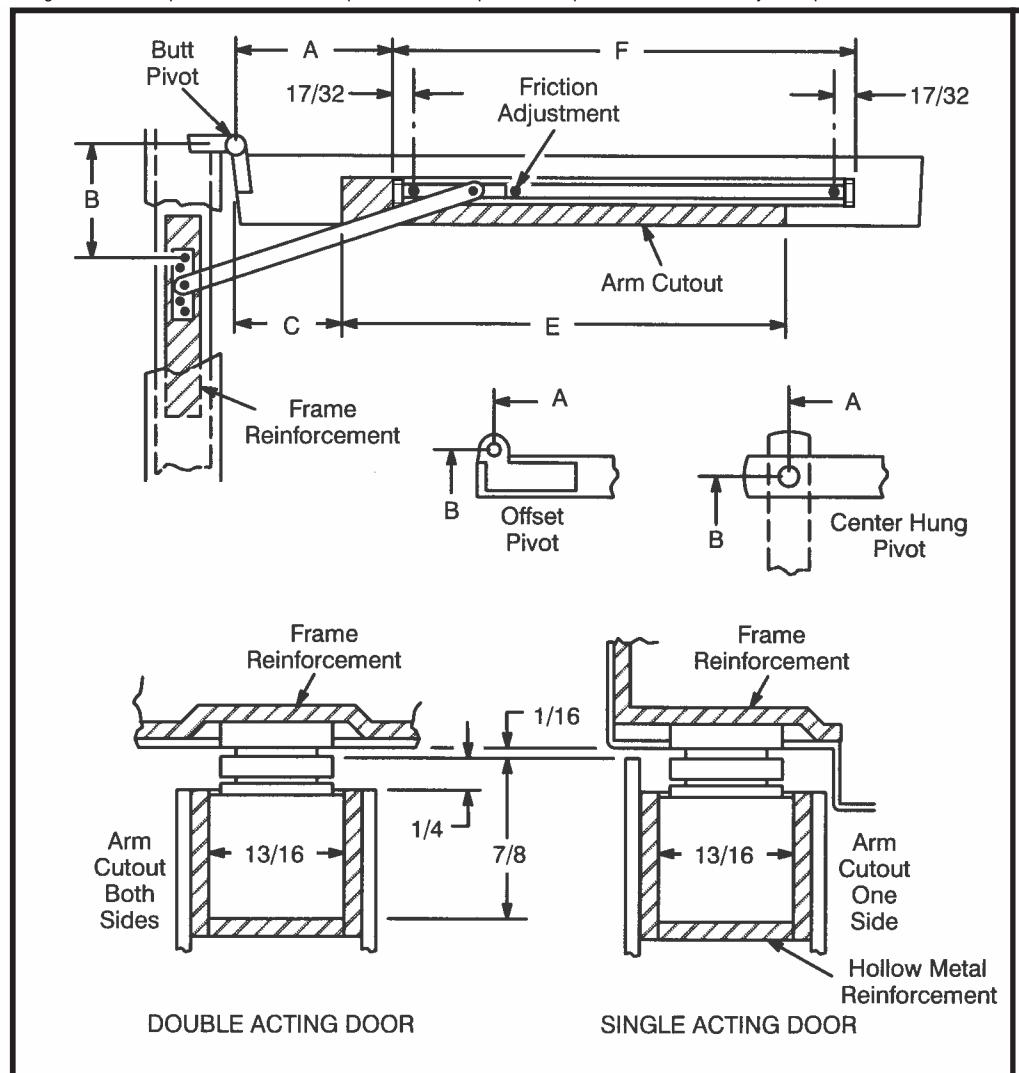

• • A, B and C dimensions are measured from centerline of pivot, not edge of door.
• • Reversible, non-handed.
• • All dimensions are given in inches.

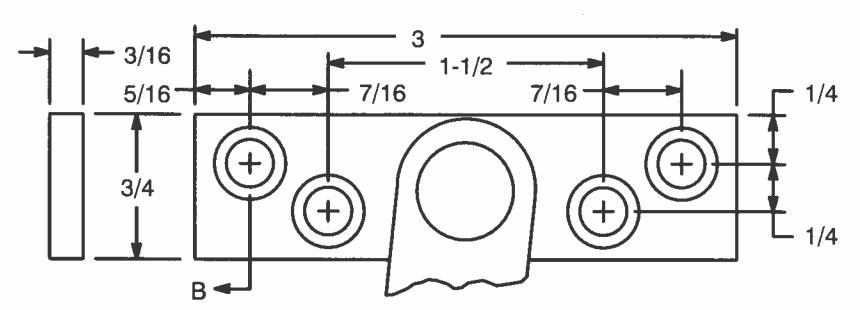

Screw Details
Jamb	Door
#12-24 x 1/2" FHMS or #12 x 1-1/2" FHWS	#12-24 x 1-1/2" FHMS or #12 x 1-1/2" FHWS

No. 2 Series Concealed Door Stops and Holders

ASSA ABLOY RIXSON

www.rixson.com

TEMPLATE NUMBER DATE

®

OH80005A

07-16

No. 2 Series Concealed Door Stops and Holders

• 1. See other side for installation instructions.
• 2. Select proper dimensions noted below.
• 3. Add 5/8" to "A" dimension for dead stop.
• 4. All dimensions given in inches.

When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying

* Butt mounting only. Reversible, non-handed.

	Device Number
$$1\backslash frac\{3\}\{4\}\; -\; 2\backslash frac\{1\}\{4\}$$ Butts & 3 Offset	Fric- tion	H.O.	Stop	Multi	Door Opening	Α	В	С	Е	F
	2-116	2-126	2-136	2-146	*18-24	$1\backslash frac\{3\}\{16\}$	3 11	0	15 5	$15\backslash frac\{7\}\{8\}$
	2-216	2-226	2-236	2-246	$24\backslash frac\{1\}\{16\}\; -\; 30$	4	4 3/8	2 9 16	$16\backslash frac\{9\}\{16\}$	17 1
	2-316	2-326	2-336	2-346	$30\backslash frac\{1\}\{16\}\; -\; 36$	6 3	5 9 16	4 11	19	18 13
Pivot	2-416	2-426	2-436	2-446	36 1 – 42	9 7/8	$7\backslash frac\{1\}\{4\}$	6 3	23	21 1 4
	2-516	2-526	2-536	2-546	42 1 /16 - 48	13 13	8 1/2	$7\backslash frac\{5\}\{8\}$	$27\backslash frac\{1\}\{2\}$	23 1
	Device Number
Center Hung	Fric- tion	H.O.	Stop	Multi	Door Opening	Α	В	С	E	F
	2-116	2-126	2-136	2-146	_		_	_	_	_
	2-216	2-226	2-236	2-246	27 — 32 90° Max. Opening	5 7 16	6 1 /8	5 1 4	15 5 8	17 1/16
	2-316	2-326	2-336	2-346	$32\backslash frac\{1\}\{16\}\; -\; 38\backslash frac\{1\}\{2\}$	$7\backslash frac\{3\}\{16\}$	6	5 9	19	18 13
	2-416	2-426	2-436	2-446	38 9 - 45	10 5	7 11	6 13	23	$21\backslash frac\{1\}\{4\}$
	2-516	2-526	2-536	2-546	$45\backslash frac\{1\}\{16\}\; -\; 48$	$14\backslash frac\{1\}\{4\}$	8 15	8 1	$27\backslash frac\{1\}\{2\}$	23 1

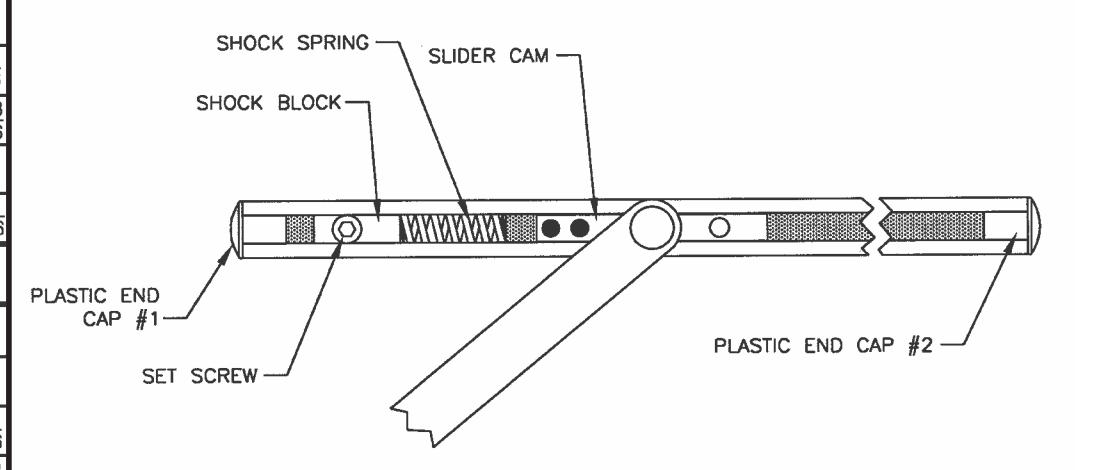

TO SELECT DEGREE OF STOP

• 1. With a 3/16 hex key wrench, loosen the set screw in the shock block
• 2. Open door to desired degree of opening.
• 3. Slide shock block and spring until the spring touches slider cam.
• 4. Tighten set screw.
• 5. Verify door opening position and re-adjust, as needed.

No. 2 Series Concealed Door Stops and Holders

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER

DATE

OH80005B

07-16
