Rixson Checkmate No. 10 Series Surface Mounted Door Stop and Holder with 5258 Bracket Angle Bracket Pull Side Installation Instructions

Open the original PDF document

Screw Details
Jamb	Door
#12 X 1-1/2" FHPMS	#12-24 X 1-1/2" FHMPS X NUL
#12-24 X 5/8" FHPMS	12-24 Sex Bolt for 1-3/4" Dr

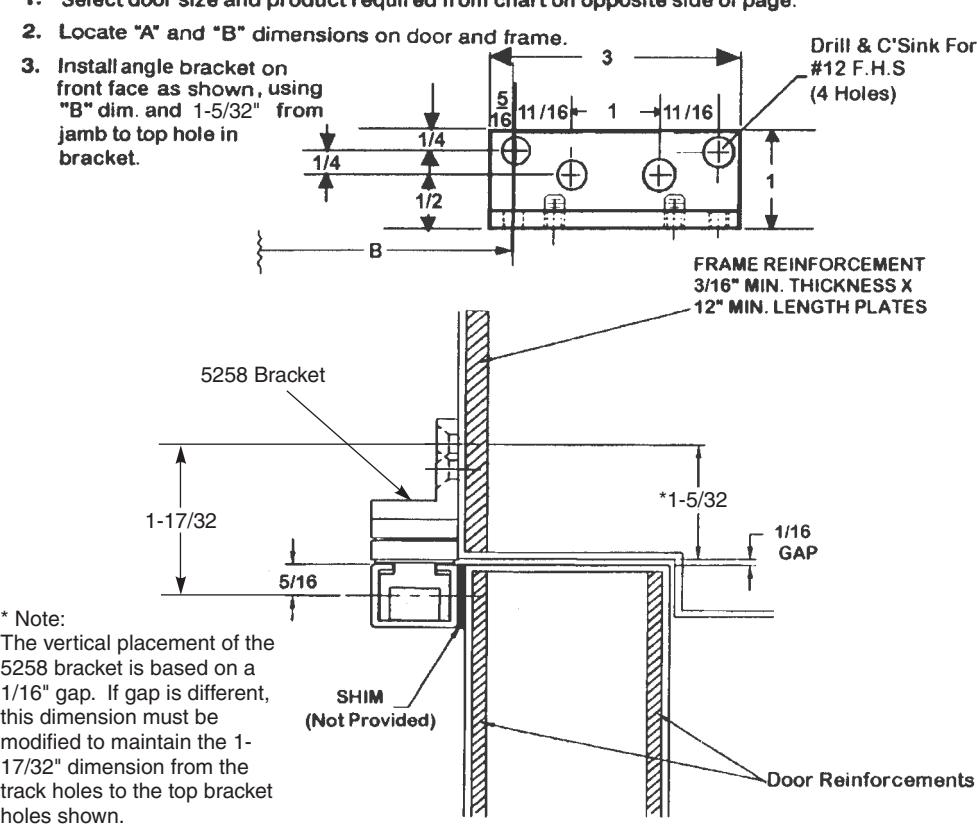

No. 10 Series x 5258 Bracket Angle Bracket Surface Mount on Pull Side of Door Door Stops & Holders

ASSA ABLOY RIXSON

www.rixson.com

TEMPLATE NUMBER DATE

®

OH80067A 06-12

		Device Numbe			Degree

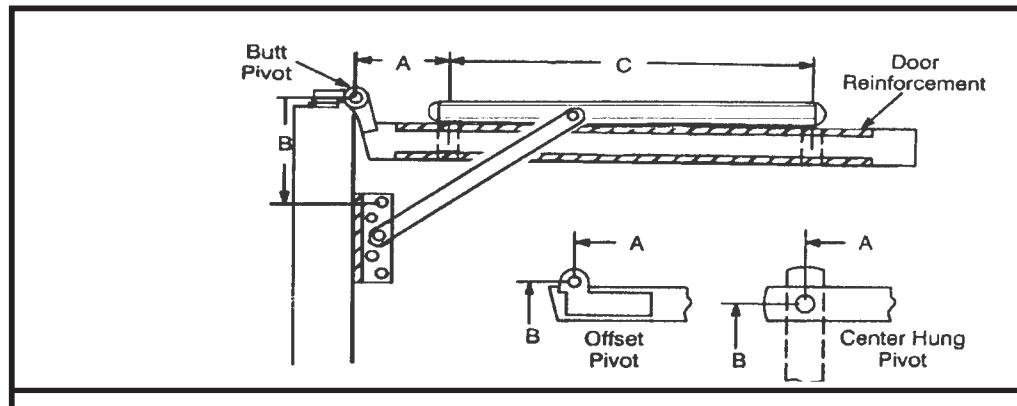

$1\frac{3}{4} - 2\frac{1}{4}$	Fric- tion	H.O.	Stop	Multi	Door Opening	Α	В	С
$1\frac{3}{4} - 2\frac{1}{4}$	10-116	10-126	10-136	10-146	*18-24	$1\frac{3}{16}$	3 9 16	14 13 16
Butts &	10-216	10-226	10-236	10-246	$24\frac{1}{16} - 30$	$3\frac{3}{4}$	4 3	16
3 Offset	10-316	10-326	10-336	10-346	$30\frac{1}{16} - 36$	6 9	5 3	$17\frac{3}{4}$
Pivot	10-416	10-426	10-436	10-446	36 1 – 42	9 13 16	7 1	20 3
	10-516	10-526	10-536	10-546	42 1 - 48	13 3/4	8 5	22
	Device Number			Degree

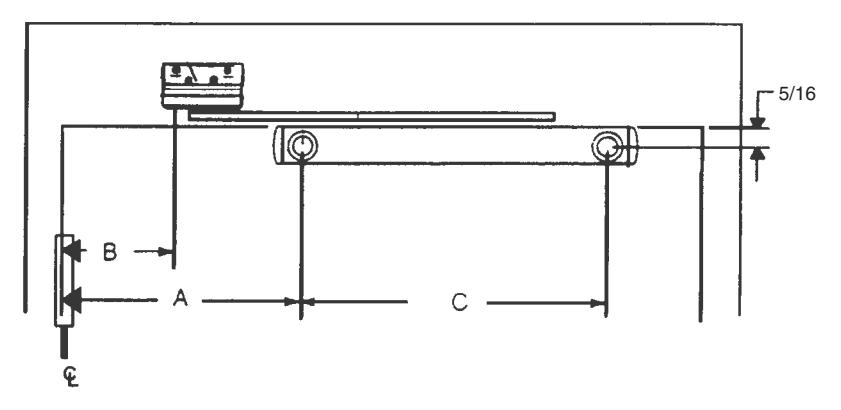

	Fric- tion	H.O.	Stop	Multi	Door	Α	В	С
					Opening	, ,	\| \|	\| ~
	10-116	10-126	10-136	10-146	$21 - 26\frac{1}{2}$	1 5/8	4	14 13 16
Center Hung		10-126 10-226	10-136 10-236	10-146 10-246
Center Hung	10-216				$21 - 26\frac{1}{2}$	1 5 8	4	14 13
	10-216 10-316	10-226	10-236	10-246	$21 - 26\frac{1}{2}$ $26\frac{9}{16} - 32$	1 $\frac{5}{8}$ 4 $\frac{7}{16}$	4 4 7 8	14 13 16

No. 10 Series x 5258 Bracket Angle Bracket Surface Mount on Pull Side of Door Door Stops & Holders

ASSA ABLOY RIXSON

www.rixson.com

TEMPLATE NUMBER DATE

OH80067B 06-12

®
