INSTALLATION INSTRUCTIONS
1. Select proper dimensions from chart on back side of page.
3/16

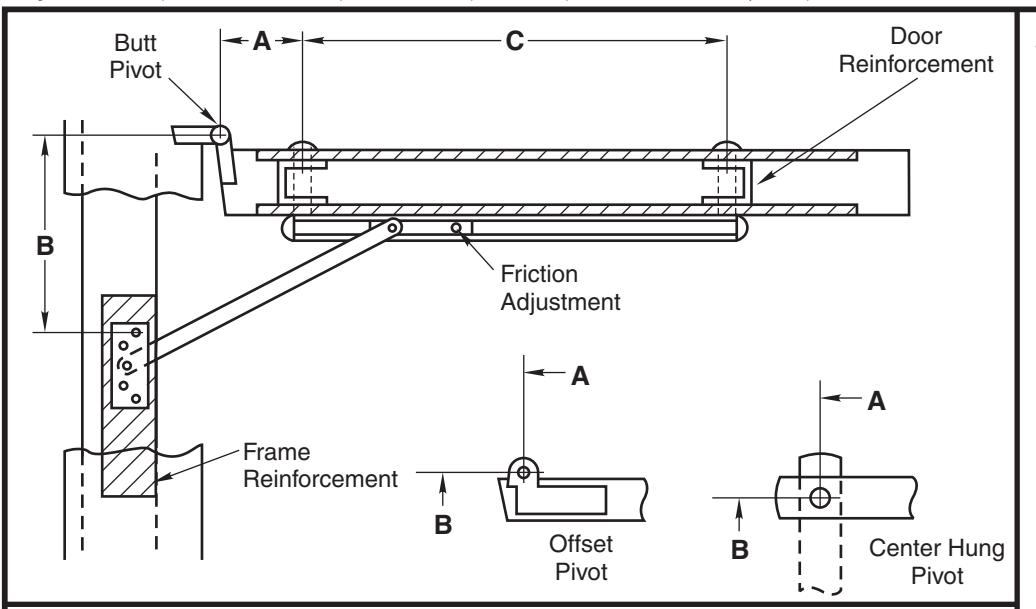

- 2. Locate "A" and "B" dimensions on door and frame.
- 3. Install iamb (76.2)(4.8) bracket on stop 7/16 1-1/27/16 1/4 5/16 strip as shown. (6.4)(7.9)(11.1) (38.1)(11.1) 3/4 (19)1/4 Frame Position channel Reinforcement on door with shock end located towards pivot. Drill 5/16 (7.9) dia. sex bolt hole, "A" dimension, 3/4 (19) down from stop strip ,3/4 as shown. (19)Reinforcement
5. Install channel on door with "A" dimension sex bolt. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with stop strip. Drill 5/16 (7.9) dia. sex bolt hole and finish installing holder.
Notes:
- All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" (4.8) reinforcement plates.
- All drilling and tapping to be done by field men.
- Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
- Jamb bracket to be on same centerline as channel.

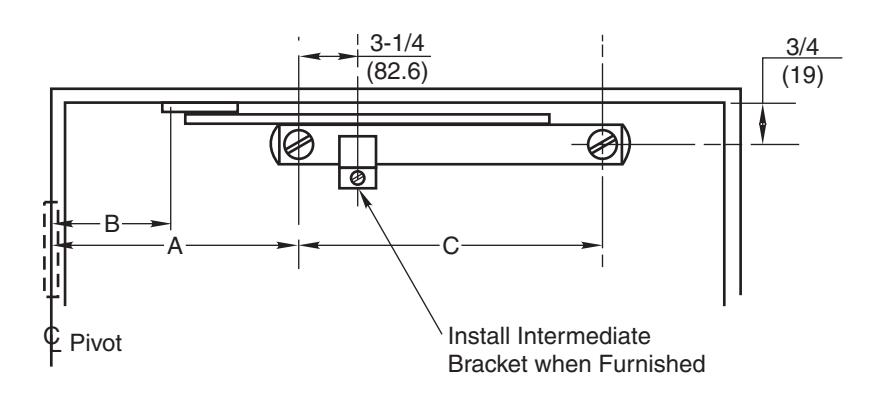

- Intermediate bracket #12 x 3/4" FSMS.
- All dimensions are given in inches (mm).
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
| Screw Details | ||||||
|---|---|---|---|---|---|---|
| Jamb | Door | |||||
| #12 x 1-1/2" FHWS | #12-24 x 1-1/2" FHMS | |||||
| or | and | |||||
| #12-24 x 1/2" FHMS | 5/16" Dia. Sex Bolt | |||||
| (4 Places) | (2 Places) | |||||
No. 10 Series Surface Mounted Door Stops and Holders
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
04-16
DATE
OH80065A
No. 10 Series Surface Mounted Door Stops and Holders
- 1. See other side for installation instructions.
- 2. Select proper dimensions noted below.
- 3. Add 5/8" to "A" dimension for dead stop.
- 4. All dimensions given in inches.
|
Device
Numbe |
||||||||
|---|---|---|---|---|---|---|---|---|
| Butts & \frac{3}{4} \text{ Offset} Pivot |
Fric-
tion |
H.O. | Stop | Multi |
Door
Opening |
Α | В | С |
| 10-116 | 10-126 | 10-136 | 10-146 | *18-24 |
3
16 |
14
13
16 |
||
| 10-216 | 10-226 | 10-236 | 10-246 |
4
3
16 |
16 | |||
| 10-316 | 10-326 | 10-336 | 10-346 | 30 1 – 36 | 5 3 | |||
| 10-416 | 10-426 | 10-436 | 10-446 | 36 1 – 42 | 9 13 | 7 1 | 20 3 | |
| 10-516 | 10-526 | 10-536 | 10-546 |
42
|
13
|
8 5 | 22 | |
|
Device
Number |
||||||||
|
Center
Hung |
Fric-
tion |
H.O. | Stop | Multi |
Door
Opening |
Α | В | С |
| 10-116 | 10-126 | 10-136 | 10-146 |
1
|
4 |
14
|
||
| 10-216 | 10-226 | 10-236 | 10-246 |
4
|
4 7 8 | 16 | ||
| 10-316 | 10-326 | 10-336 | 10-346 | 7 3 | 6 | |||
| 10-416 | 10-426 | 10-436 | 10-446 |
10
|
7
8 |
20 3 | ||
| 10-516 | 10-526 | 10-536 | 10-546 | 14 5 |
8
|
22 | ||
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed.

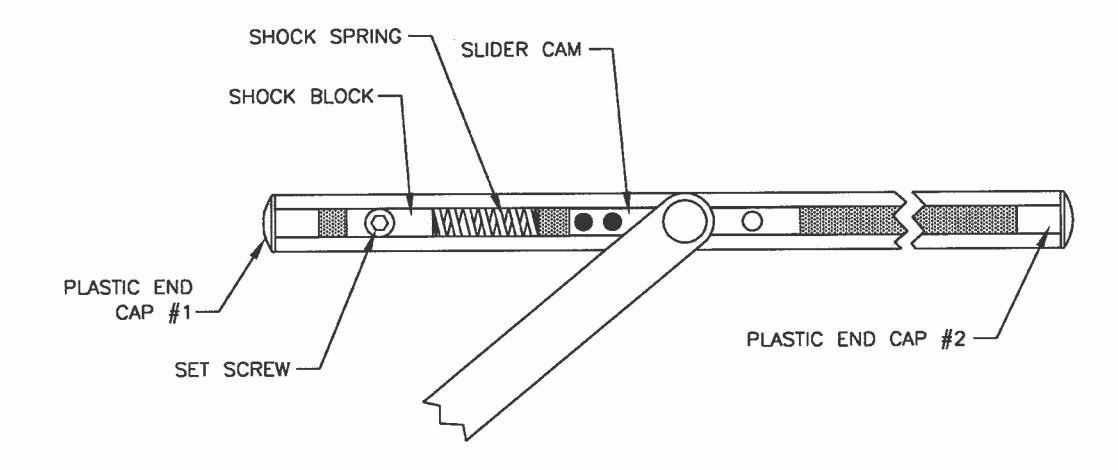

TO SELECT DEGREE OF STOP
- 1. With a 3/16 hex key wrench, loosen the set screw in the shock block.
- 2. Open door to desired degree of opening.
- 3. Slide shock block and spring until the spring touches slider cam.
- 4. Tighten set screw.
- 5. Verify door opening position and re-adjust, as needed.
No. 10 Series Surface Mounted Door Stops and Holders
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
DATE
OH80065B
04-16
