Rixson Checkmate No. 1 Series Concealed Door Stops and Holders Installation Instructions
Open the original PDF document
View PDF
INSTALLATION INSTRUCTIONS

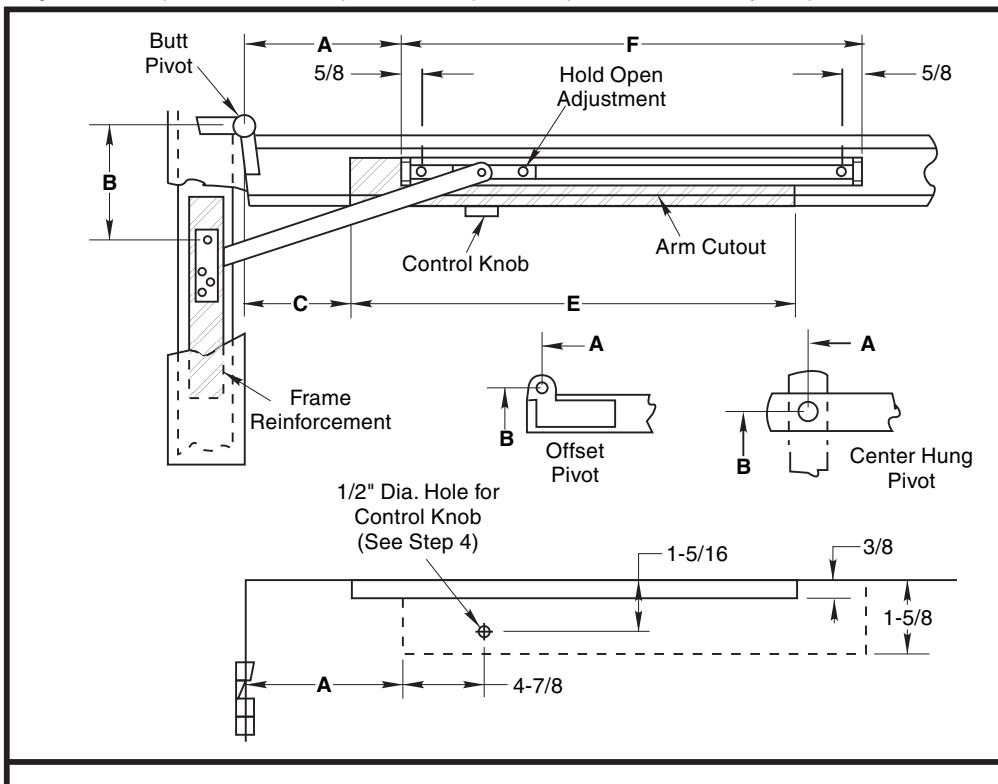

1. Determine degree of hold open or dead stop required. Then select proper dimensions from chart on opposite side of page. Add 5/8" to "A" dimension for dead stop.
NOTE: A, B and C dimensions are measured from hinge center, not edge of door.

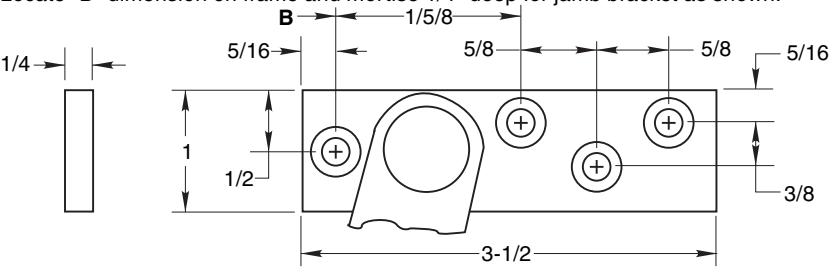

2. Locate "B" dimension on frame and mortise 1/4" deep for jamb bracket as shown.

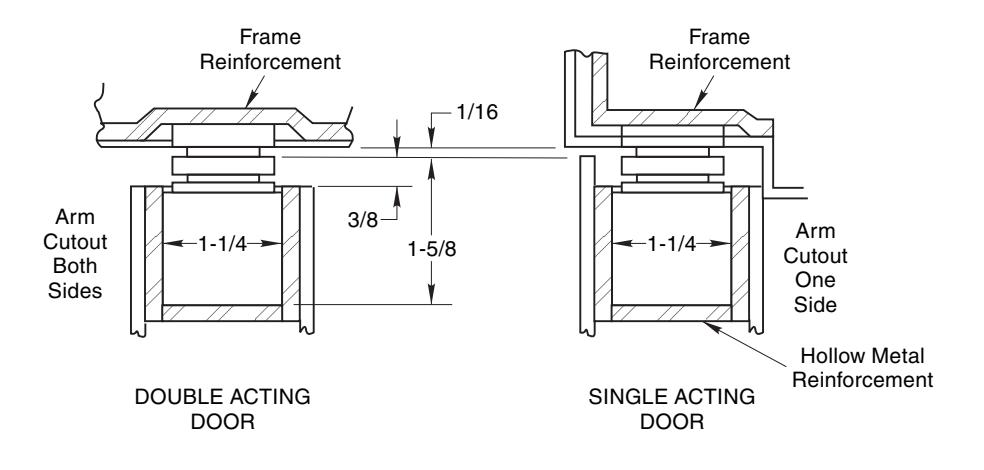

3. Locate "A" and "F dimensions on centerline of door and mortise 1-5/8" deep for channel. 1/16" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
- 4. Drill 1/2" diameter control knob hole for door holders only.
- 5. Locate "C" and "E" dimensions on top of door and mortise 3/8" deep as shown for arm cutout.
- 6. Install door stop or holder with screws provided. Install control knob last.
NOTES:
- All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" reinforcement plates.
- If dead stop is required add 5/8" to "A" dimension as noted on opposite side of page.
- A, B and C dimensions are measured from centerline of pivot, not edge of door.
- Left hand shown, right hand opposite.
- All dimensions are given in inches.
CAUTION:
Note location of swing clear hinge centerline to determine "A", "B" and "C" dimensions.
| Screw Details | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Jamb | Door | |||||||||||
|
1/4-20 x 3/4" FHMS
or #14 x 1-1/2" FHWS |
5/16-18 x 1-1/2" FHMS
or #18 x 3" FHWS |
|||||||||||
No. 1 Series Concealed Door Stops and Holders
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
DATE
OH80000A
07-16
No. 1 Series Concealed Door Stops and Holders
- 1. See other side for installation instructions.
- 2. Select proper dimensions noted below.
- 3. Add 5/8" to "A" dimension for dead stop.
4. All dimensions given in inches.
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed
| 1 |
Device
Numbe |
Degree | 85° | H.O. | 90° | H.O. | 95° | H.O. | 100° | H.O. | 105° | Н.О. | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Fric-
tion |
H.O. | Stop |
Door
Opening |
А | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | F | |
| 1 3 / 4 -2 1 / 4 Butts & 3 / 4 Offset Pivot | 1-116 | 1-126 | 1-136 | 24 - 28 | 4 7 | 5 1 | 4 3 / 4 | 11 7 / 8 | 4 1 8 |
5
|
4 2 | 13 1 / 4 |
*
316 |
* 4 7 / 8 | * 3 |
*
1416 |
* 3 1 / 2 |
*
4 9 |
*
1 1 / 2 |
*
15 5 / 8 |
* 3 1 / 4 |
*
4 5 |
* 0 |
*
16 7 8 |
*
316 |
*
4 1 / 8 |
* 0 |
*
16 8 |
17
|
| 1-216 | 1-226 | 1-236 |
28
|
6
|
6 9 | 6 | 15 3 / 4 |
5 13
5 16 |
616 | 5 1 | 15 7 / 8 | 5 7 |
5
|
4 2 | 16 1 / 2 |
*
5 1/8 |
* 5 1 / 2 |
*
3 1 / 2 |
*
1716 |
*
4 7 / 8 |
*
5 4 |
* 2 1 / 4 |
*
1816 |
*
4 5 / 8 |
* 5 | * |
*
19 1 / 8 |
18
|
|
| 1-316 | 1-326 | 1-336 |
33
|
9 3 / 4 | 7 7 8 | 7 3 4 |
19
|
9 5 / 16 |
7
716 |
71/4 | 19 1 / 8 | 8 7 / 8 | 7 |
6
|
19 1 / 8 |
8
|
6
|
6 1 | 19 1 / 4 |
8
|
64 | 5 1 | 19 5 / 8 |
7
|
6 | 4 1 | 20 5 / 8 | 19 15 | |
| 1-416 | 1-426 | 1-436 |
38
|
12 11 / 16 | 9 11 / 16 | 9 1 2 | 22 3 / 8 |
12
|
9
|
9 | 22 3 / 8 | 11 11 / 16 | 8 11 / 16 | 8 1 / 2 | 22 3 / 8 |
11
|
8
|
8 | 22 3 / 8 | 10 3 / 4 | 7 3 / 4 | 71/2 | 22 3 / 8 |
10
|
7
|
7
|
22 3 / 8 |
22
|
|
| 1-516 | 1-526 | 1-536 |
43
|
1616 |
11
|
10 3 / 4 | 26 1 / 4 | 15 11 / 16 |
10
|
10 1 / 4 | 26 1 / 4 |
15
|
9
|
9 1 / 2 | 26 1 / 4 |
14
|
9 5 | 9 | 26 1 / 4 | 14 1 / 8 | 8 7 / 8 | 8 3 / 4 | 26 1 / 4 | 13 3 / 4 | 8 1 | 8 1 / 4 | 26 1 / 4 |
23
|
NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.
|
1
3
/
4
-2
1
/
4
Center Hung |
1 |
Device
Numbe |
Degree | 85° | H.O. | 90° | H.O. | 95° | H.O. | 100° | H.O. | 105° | Н.О. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Fric-
tion |
H.O. | Stop |
Door
Opening |
Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | F |
| 1-216 | 1-226 | 1-236 | 30 - 36 | 6 8 | 7 | 6 3 / 4 | 15 3 / 8 |
6
|
6 5 / 8 | 6 8 | 15 3 | 5 7 / 8 | 6 1 / 4 | 6 | 15 3 / 8 |
5
|
5
15
516 |
5 3 / 4 | 15 3 / 8 | 5 5 | 5 11 / 16 | 5 1 | 15 3 / 8 | 19 1 / 8 | 18 7 / 16 | |||
| 1-316 | 1-326 | 1-336 |
36
|
10 3 / 8 | 8 1 / 2 | 8 1 / 4 | 19 1 / 8 |
9
|
8 | 7 4 | 19 1 / 8 |
9
|
7 9 |
7
|
19 1 / 8 | 9 1 |
7
|
7 | 19 1 / 8 | 8 11 / 16 | 6 13 / 16 | 6 2 | 19 1 / 8 | 8 3 / 8 | 62 | 64 | 19 1 / 8 | 19 15 |
| 1-416 | 1-426 | 1-436 |
41
|
13 1 / 4 | 10 4 | 10 | 22 3 / 8 | 12 5 | 9 5 / 8 | 9 3 / 8 | 22 3 / 8 | 12 1 / 8 | 9 1 | 9 | 22 3 / 8 | 11 5 / 8 | 8 5 / 8 | 8 1 / 2 | 22 3 / 8 | 114 | 8 4 | 8 | 22 3 / 8 | 10 7 / 8 | 7 8 | 7 4 | 22 3 / 8 | 22 1 6 |
| 1-516 | 1-526 | 1-536 |
46
|
17 | 11 3 / 4 | 11 1 / 2 | 26 1 / 8 | 16 1 / 4 | 11 | 10 3 | 26 1 / 8 | 15 9 | 1016 | 10 | 26 1 / 8 | 15 1 | 9 13 | 9 1 / 2 | 26 1 / 8 | 14 5 / 8 |
9
|
9 | 26 1 / 8 | 1416 | 8 15 | 8 4 | 26 1 / 8 | 23 9 / 16 |
No. 1 Series Concealed Door Stops and Holders
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
OH80000B
07-16
