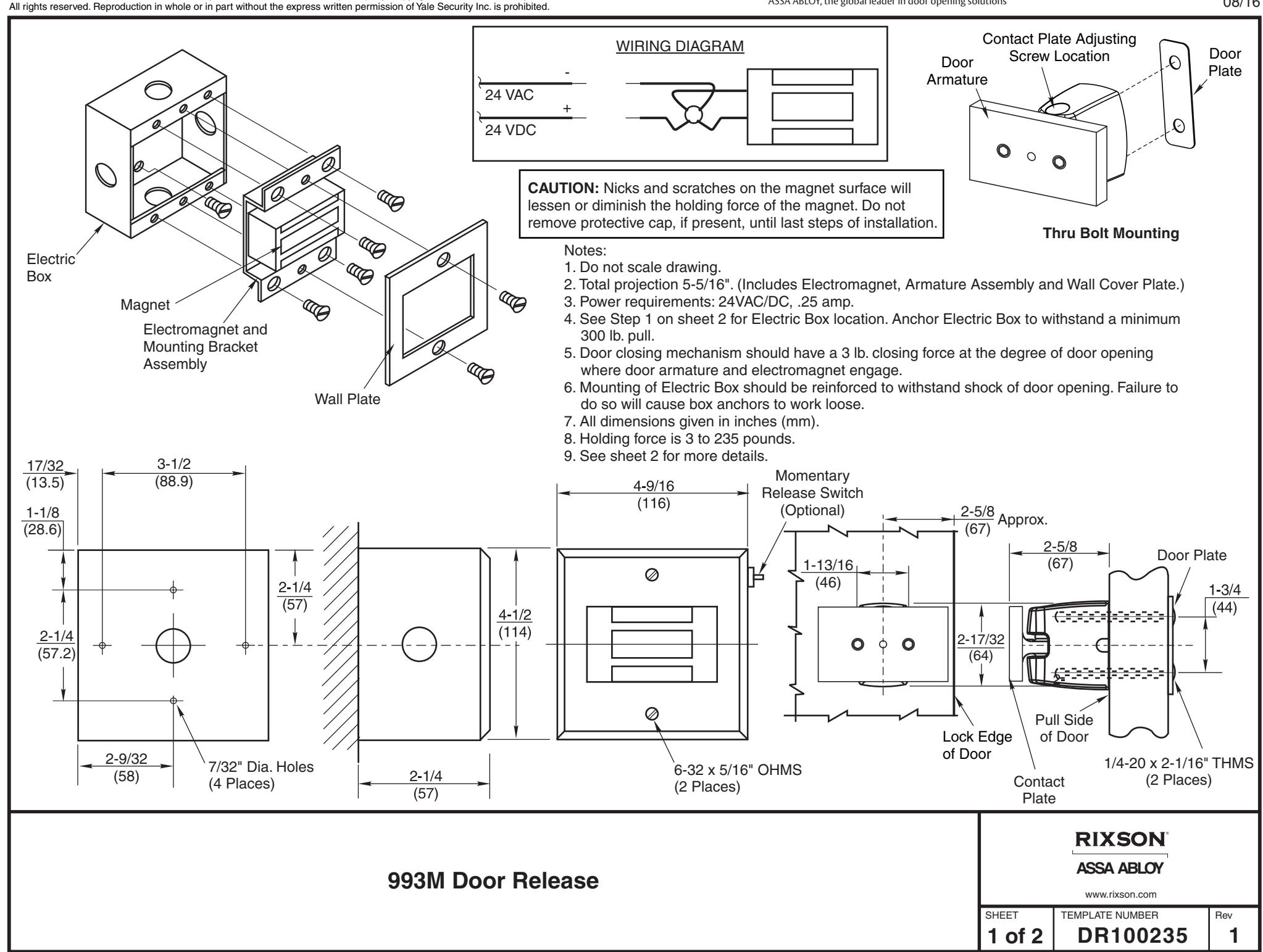

Rixson 993M Electromagnetic Door Holder & Release Installation Instructions
Open the original PDF document
View PDF
Location of Electric Box
- 1. To locate Electric Box use table below.
- 2. Determine door width (Dim. "B"). Measure pivot centerline to wall (Dim. "A"). Find dimension "C" in table.
Example: Pivot centerline to wall ("A") = 10" (25.4cm)
Door Width ("B") = 36" (91.4cm)
Electric Box Centerline ("C") = 32-1/2" (82.5cm)
3. If "A" or "B" falls between the numbers listed in table allow for difference.
Example: Pivot centerline to wall ("A") = 13" (33cm)
Door Width ("B") = 35" (88.9cm)
Electric Box Centerline ("C") = 31-1/2" (80cm)
- 4. If dimensions "A" and "B" intersect in shaded area of table DO NOT INSTALL ELECTRIC BOX . The degree of door opening will not permit proper alignment between armature and wall magnet.
- 5. Height to be determined by others. Suggested height is not over 6'0" (1.8m).
- 6. Check degree of door opening in table and coordinate with door closers and other door hardware.
- 7. Total projection of door hardware must not project more than 1-3/16" (30.2mm) on pull side of door.
| Door Width "B" | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dim. | 28" (711) | 30" (762) | 32" (813) | 34" (864) | 36" (914) | 38" (965) | 40" (1016) | 42" (1067) | 44" (1118) | 46" (1168) | 48" (1 | 219) | ||||||||||
| "A" | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. | "C" | Deg. |
| 2" (51) |
24-3/4
(629) |
84° |
2
6-3/4
(679) |
84° | 2 8-3/4 (730) | 85° |
3
0-3/4
(781) |
85° |
3
2-3/4
(832) |
85° |
3
4-3/4
(883) |
86° |
36-3/4
(933) |
86° |
3
8-3/4
(984) |
87° |
4
0-3/4
(1035) |
87° |
4
2-3/4
(1086) |
87° |
4
4-3/4
(1137) |
87° ' |
|
4"
(102) |
25"
(635) |
89° |
27"
(686) |
89° |
2
8-7/8
(733) |
89° |
30-7/8
(784) |
89° |
32-7/8
(835) |
89° |
34-7/8
(886) |
89° |
37"
(940) |
90° |
39"
(991) |
90° |
41"
(1041) |
90° |
43"
(1092) |
90° |
45"
(1143) |
90° |
|
6"
(152) |
24-3/4
(629) |
94° |
2
6-7/8
(683) |
94° |
2
8-3/4
(730) |
93° |
3
0-7/8
(784) |
93° |
3
2-7/8
(835) |
93° |
34-7/8
(886) |
92° |
3
6-7/8
(937) |
92° |
3
8-7/8
(987) |
92° |
41"
(1041) |
92° |
43"
(1092) |
92° |
45"
(1143) |
92° |
|
8"
(203) |
24-1/2
(622) |
98° |
2
6-5/8
(676) |
98° |
2
8-1/2
(724) |
97° |
3
0-5/8
(779) |
97° |
3
2-1/2
(826) |
96° |
3
4-5/8
(879) |
96° |
3
6-5/8
(930) |
96° |
3
8-5/8
(981) |
95° |
4
0-5/8
(1032) |
95° |
4
2-5/8
(1083) |
95° |
4
4-5/8
(1133) |
95° |
|
10"
(254) |
24-1/4
(616) |
103° |
26-1/4
(667) |
102° |
28-1/4
(718) |
101° |
30-3/8
(772) |
100° |
3
2-1/2
(826) |
99° |
34-1/2
(876) |
99° |
36-1/2
(927) |
98° |
38-1/2
(978) |
98° |
40-1/2
(1029) |
98° |
4
2-1/2
(1080) |
97° |
44-1/2
(1130) |
97° |
|
12"
(305) |
23-1/2
(597) |
107° |
2
5-5/8
(651) |
106° |
27-1/2
(699) |
105° |
29-3/4
(756) |
104° |
31-3/4
(806) |
103° |
34"
(864) |
103° |
36"
(914) |
102° |
38"
(965) |
101° |
40"
(1016) |
101° |
4
2-1/8
(1070) |
100° |
44-1/8
(1121) |
100° |
|
14"
(356) |
22-5/8
(575) |
113° |
24-7/8
(632) |
111° |
27"
(686) |
110° |
29-1/8
(740) |
108° |
31-1/4
(794) |
107° |
33"
(838) |
106° |
35-1/2
(902) |
105° |
37-5/8
(956) |
104° |
3
9-5/8
(1006) |
104° |
4
1-5/8
(1057) |
103° |
4
3-3/4
(1111) |
103° |
|
16"
(406) |
21-1/2
(546) |
118° |
24"
(610) |
116° |
26"
(660) |
114° |
28-3/8
(721) |
112° |
30-1/2
(775) |
110° |
32-5/8
(829) |
109° |
34-7/8
(886) |
108° |
37"
(940) |
107° |
39"
(991) |
106° |
41-1/8
(1045) |
105° |
43-1/4
(1099) |
105° |
|
18"
(457) |
20-3/8
(518) |
124° |
2
2-3/4
(578) |
120° |
25"
(635) |
118° |
27-1/2
(699) |
116° |
29-3/4
(756) |
115° |
32"
(813) |
113° |
34-1/8
(867) |
111° |
36-1/4
(921) |
110° |
38-3/4
(984) |
109° |
40-1/2
(1029) |
109° |
42-5/8
(1083) |
108° |
|
20"
(508) |
18-7/8
(479) |
129° |
2
1-1/2
(546) |
125° |
24"
(610) |
123° |
2
6-3/8
(670) |
120° |
2
8-5/8
(727) |
118° |
31"
(787) |
117° |
33-1/4
(845) |
115° |
35-1/2
(902) |
113° |
37-5/8
(956) |
112° |
3
9-3/4
(1010) |
111° |
42"
(1067) |
110° |
|
22"
(559) |
1
9-3/4
(502) |
131° |
22-1/4
(565) |
128° |
25"
(635) |
125° |
27-1/4
(693) |
122° |
29-3/4
(756) |
120° |
32-1/8
(816) |
118° |
34-1/2
(876) |
117° |
3
6-5/8
(930) |
115° |
39"
(991) |
114° |
4
1-1/8
(1045) |
113° | ||
|
24"
(610) |
2
0-1/2
(521) |
133° |
2
3-1/4
(591) |
130° |
2
5-7/8
(657) |
127° |
2
8-3/4
(730) |
124° |
31"
(787) |
122° |
3
3-1/4
(845) |
120° |
3
5-1/2
(902) |
118° |
3
7-3/4
(959) |
117° |
40"
(1016) |
116° | ||||
|
26"
(660) |
24-1/8
(613) |
132° |
26-7/8
(683) |
129° |
29-1/2
(749) |
126° |
32"
(813) |
124° |
3
4-3/8
(873) |
122° |
3
6-3/4
(933) |
120° |
39"
(991) |
119° | ||||||||
|
28"
(711) |
2
7-7/8
(708) |
130° |
3
0-1/2
(775) |
127° |
33"
(838) |
125° |
3
5-1/2
(902) |
123° |
3
7-3/4
(959) |
122° | ||||||||||||
|
30"
(762) |
3
1-3/8
(797) |
129° |
3
3-7/8
(860) |
127° |
3
6-1/2
(927) |
125° | ||||||||||||||||
|
32"
(813) |
3
2-1/4
(819) |
130° |
3
4-7/8
(886) |
128° | ||||||||||||||||||
Location of Electric Box Door Jamb Electric Box
"A" - Pivot Centerline to Wall
"B" – Door Width
"C" - Pivot Centerline to Electric Box Centerline
Dimensions given in inches (mm).
993M Door Release Location Sheet
RIXSON ASSA ABLOY
www.rixson.com
2 of 2
TEMPLATE NUMBER
DR100235
