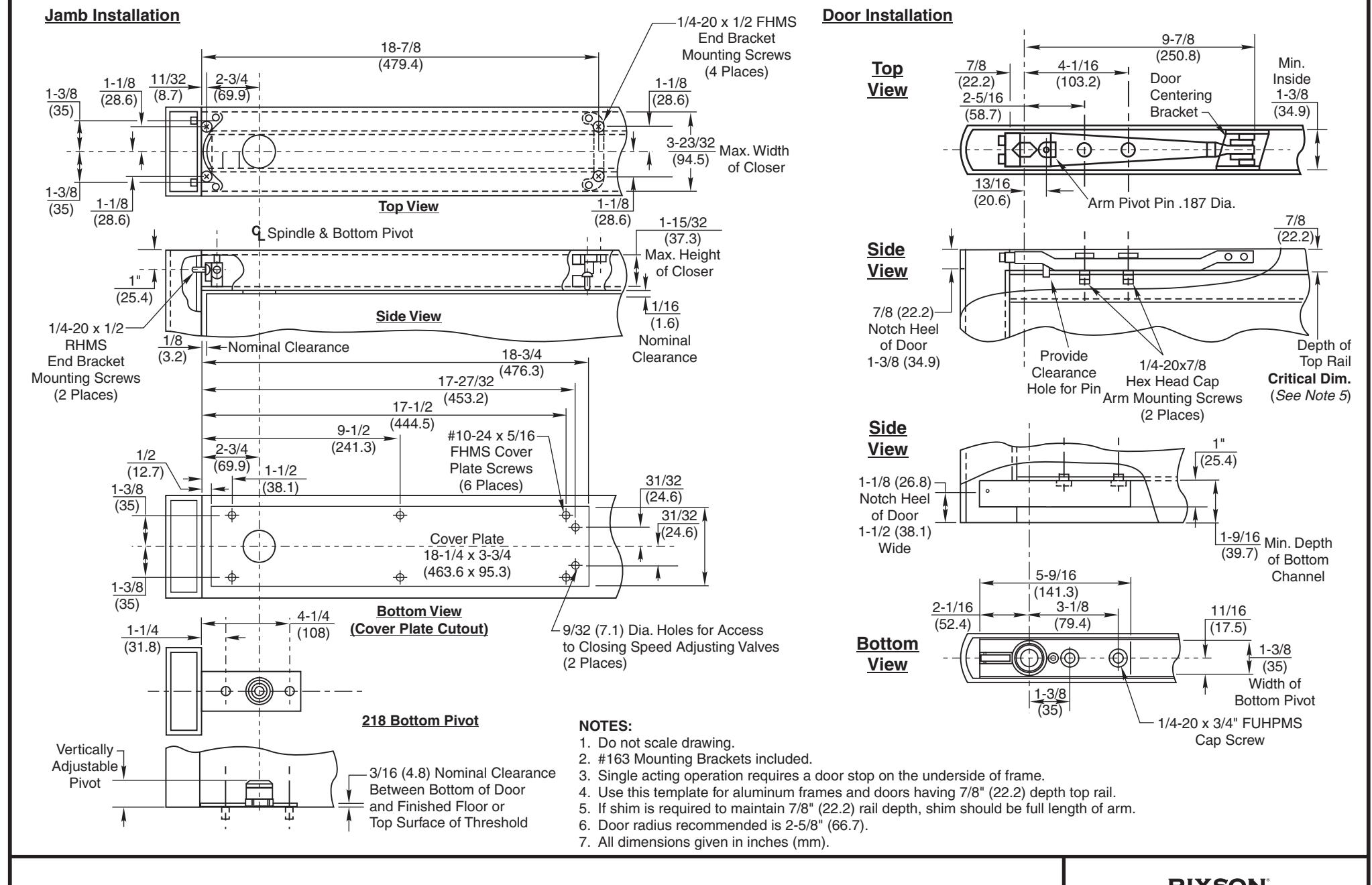

Rixson 700 & 800 Series Overhead Concealed Closer Single or Double Acting Center Hung Aluminum Door-Frame Template

700 Single Acting & 800 Double Acting Overhead Concealed Door Closer Center Hung for Aluminum Doors and Frames

ASSA ABLOY RIXSON ®

OC60100

www.rixson.com

TEMPLATE NUMBER DATE

01-11
