Rixson 608 Series Overhead Concealed Closer AW0608 Aluminum Frames Butt Hung Installation Instructions
Open the original PDF document
View PDF
Installation Instructions
I. Header Preparation
- A. Dimension "A" must be maintained from jamb to centerline of spindle.
- B. 2" (50.8) must be maintained from hinge side of header to centerline of spindle regardless of header width.
II. Door Preparation

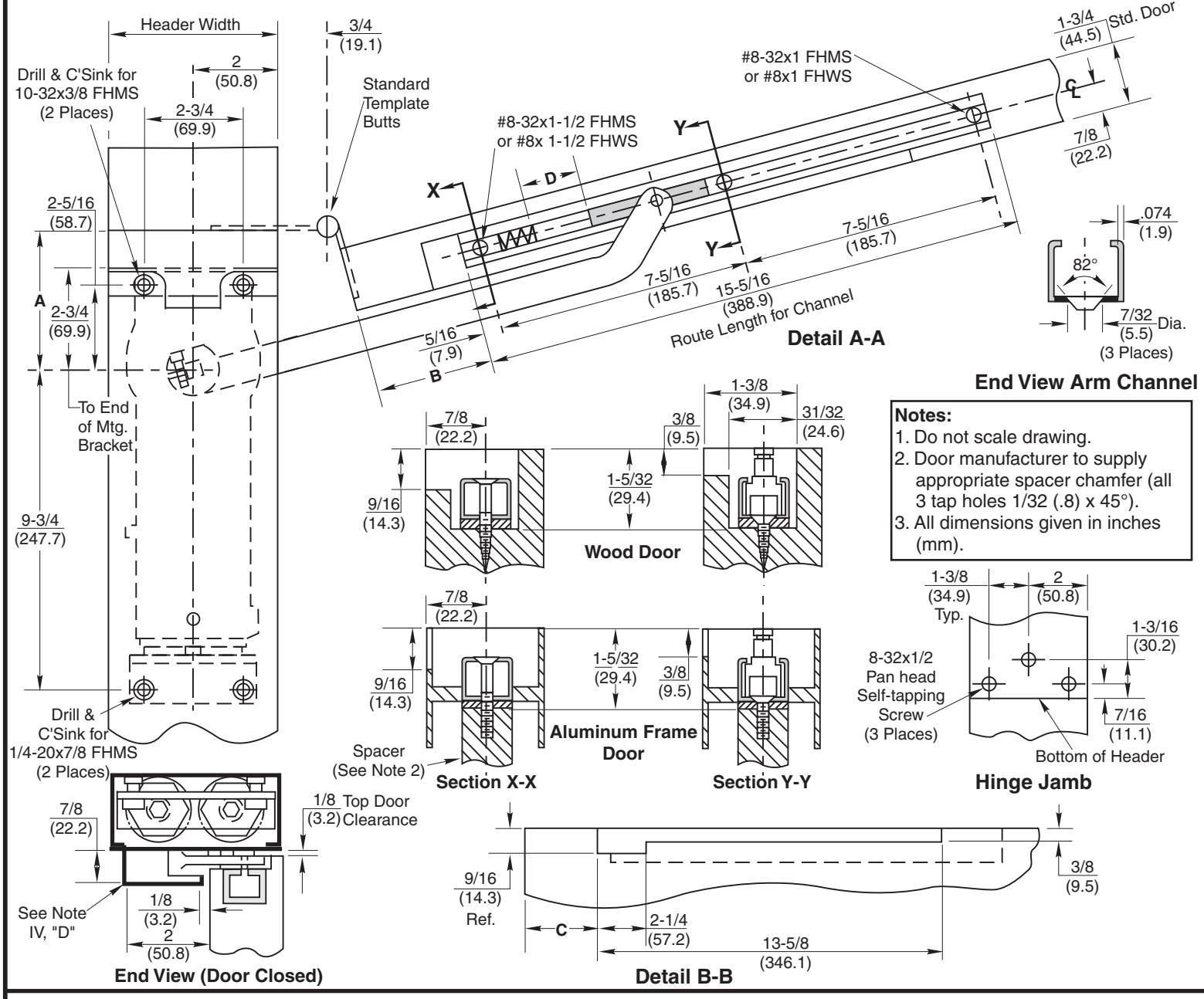

- A. Route top of door for slide channel installation (Detail A-A). On aluminum doors, spacers may be needed to maintain required 3/8" (9.5) dimension from top of door to top of slide channel (Section X-X).
- B. Routing is needed on stop side of door for arm clearance. (Detail B-B).
- C. Prepare door for butts as normal.
III. Door Installation
- A. Standard door clearances are to be maintained.
- B. Prepare framing for template butts as normal.
- C. Install "D" buffer and arm slider.
- D. Hang door.
IV. Complete Installation
- A. Mount arm on spindle and secure with 1/4-20x7/8" socket head cap screw provided.
- B. Open door and actuate arm into open position. Slip arm over slide pin and secure with e type retainer clip.
- C. Adjust closer to desired door speed.
- D. Install removable stop by others.
| Butt Hung | Α | В | С | D |
|---|---|---|---|---|
| 105° | 3-3/4 | 3-7/8 | 2-5/8 | 1-3/8 |
| (95.3) | (98.4) | (66.7) | (34.9) | |
| 90° | 2-7/8 | 4-1/16 | 1-3/4 | 2 |
| (73) | (103.2) | (44.5) | (50.8) |
0608/AW0608 Series Overhead Concealed Door Closer for Aluminum Frames Butt Hung
RIXSON° ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
DATE
OC60460
05-09
