Closer Adjustment

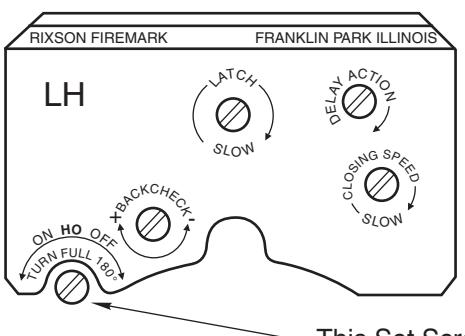

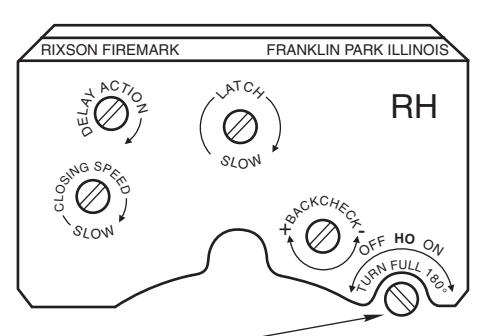

This Set Screw Is On Selector Hold-open Types Only

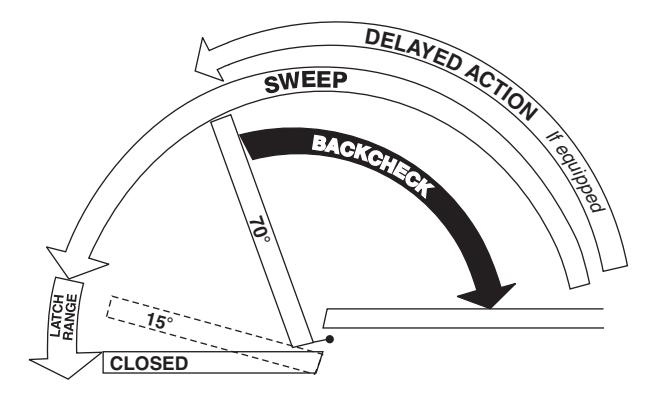

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw. Adjustments are for speed

• A. The Delay Action valve allows adjustment from full open to 65° closed position. (Optional)
• B. The Closing Speed valve allows adjustment from full open to 15° on units without the Delay Action feature.
• C. The Closing Speed valve allows adjustment from 65° to 15° closed position on closers with Delay Action feature.
• D. Latch valve allows adjustment from 15° to closed position.
• E. Important: Backcheck adjustment must be adjusted to vary resistance from light to firm at 60° of door open.

Do not use Backcheck as deadstop. This is an intensity valve not speed control.

Closer Type

This closer is one of three types as follows:

• 1. Non hold-open factory set. No hold-open adjustments.
• 2. Automatic hold-open factory set. No hold-open adjustment.
• Selective (on-off) hold-open label will indicate position of on-off selector screw. When turned "on", closer has automatic holdopen: turned "off", hold-open will not function. Turn full 180°.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited

Repairs, parts replacement or internal adjustments must be done by a Rixson authorized repair agency. Consult www.rixson.com for an authorized repair agency in your area.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience. Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2003, 2009, Yale Security Inc., an ASSA ABLOY Group company

Rixson Specialty Door Controls 866-474-9766 Technical Department www.rixson.com

RIXSON

ASSA ABLOY

Installation Instructions 42800 (05-09)

Center Hung Single Acting - Handed 74010 Top Pivot – Non Handed Patch Fitting Installation

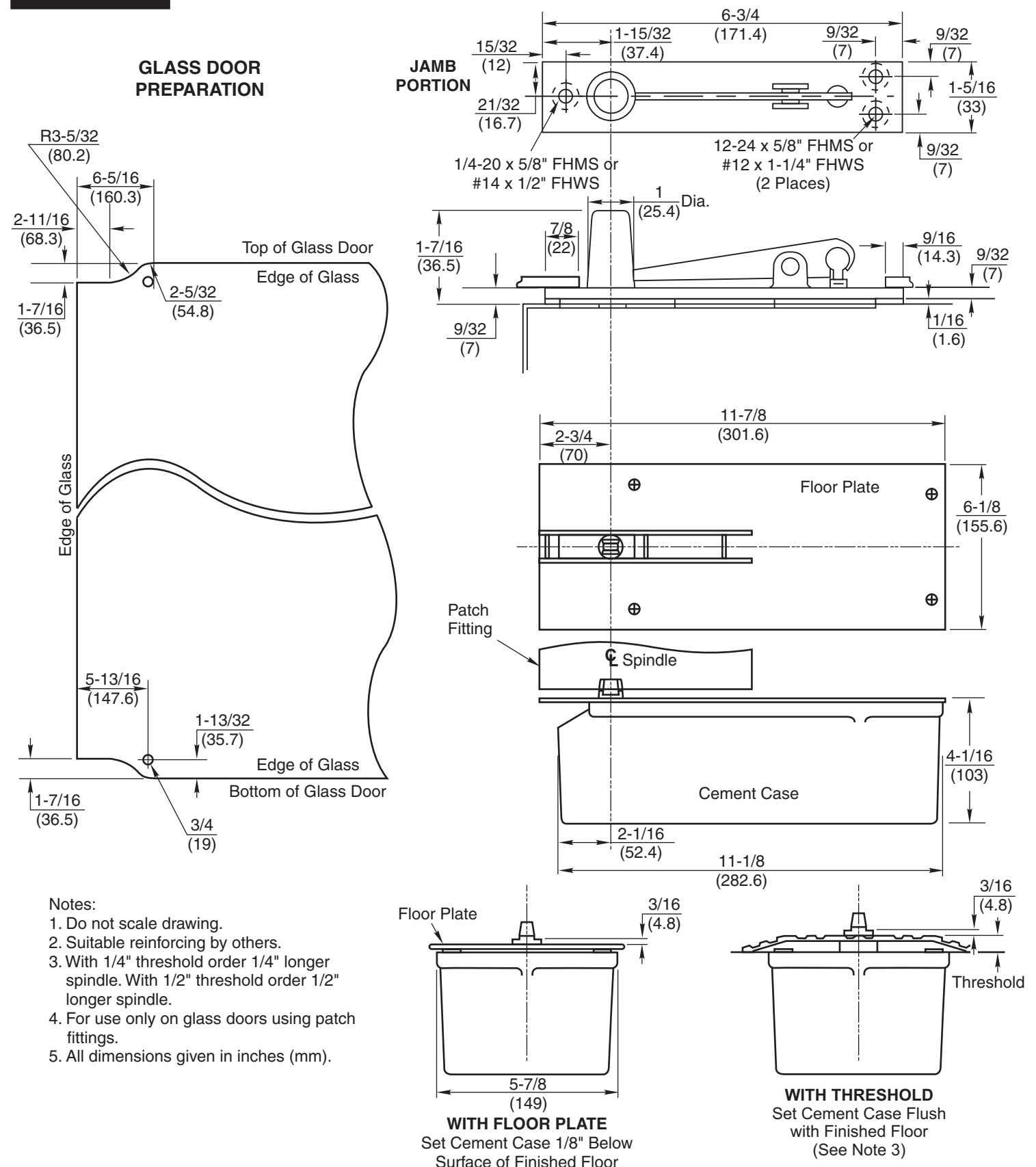

Template

PAGE 4

www.rixson.com

428 Floor Closer

Rixson Specialty Door Controls

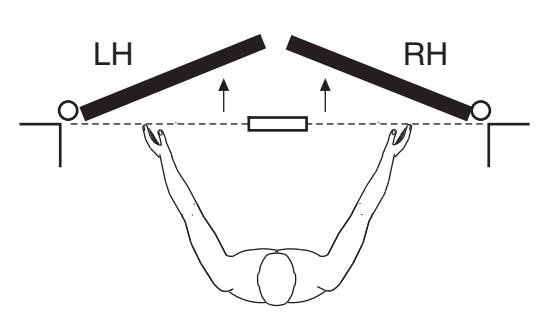

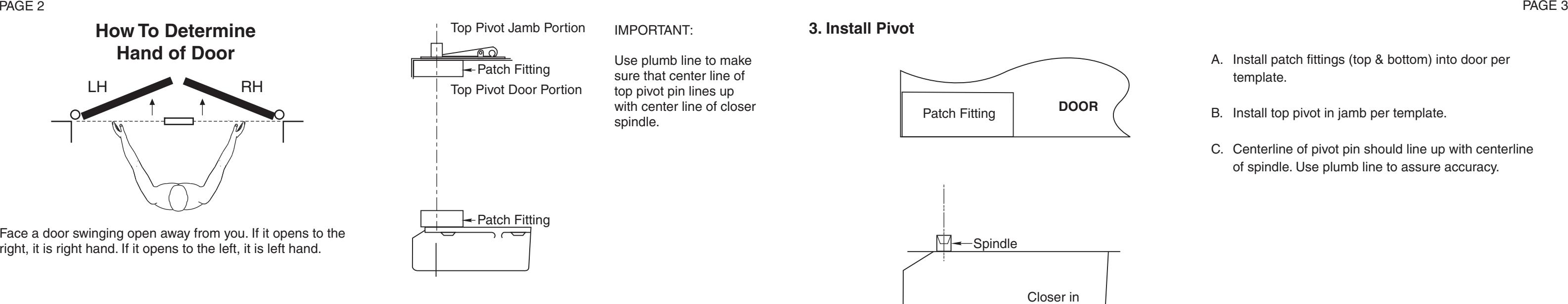

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

IMPORTANT: 3. Install Pivot

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer

spindle.

A. Install patch fittings (top & bottom) into door per template.

• B. Install top pivot in jamb per template.
• C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.

Installation Instructions

1. Locating Closer

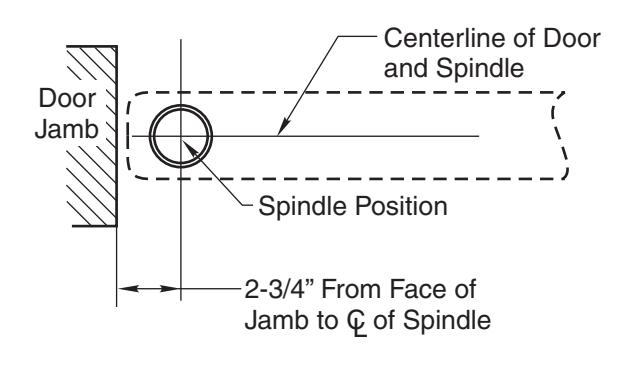

A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.

4. Hang Door

CAUTION: Closer is shipped with valve screws down. DO NOT FORCE VALVES DOWN.

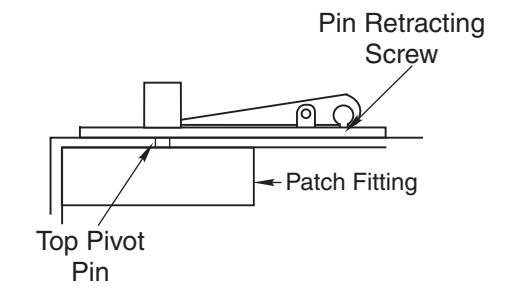

• A. Retract top pivot pin by turning retracting pin screw counterclockwise. (see illustration)

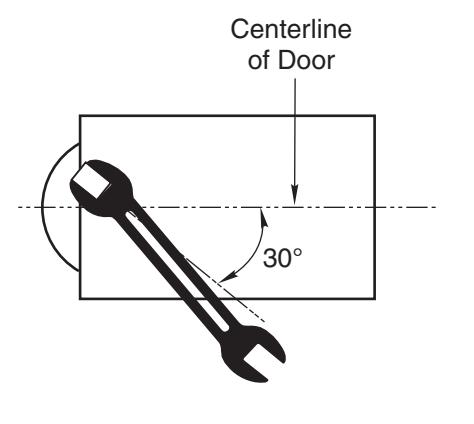

• B. Using wrench, turn until arm is in 30° open position. (see illustration)
• C. Set door on spindle. DO NOT ATTEMPT TO CLOSE DOOR.
• D. Align jamb po tion of the pivot with top patch and turn pin retracting screw clockwise. r
• E. Open door to 60° or more and open "closing speed" and "latch" valves by turning screws counterclockwise. Door will then close.

2. Install Cement Case in Floor

• A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
• B. For threshold application: Cement case is set flush with floor.
• C. Set cement case in floor and block in position.
• D. Case should be parallel with center line of door.

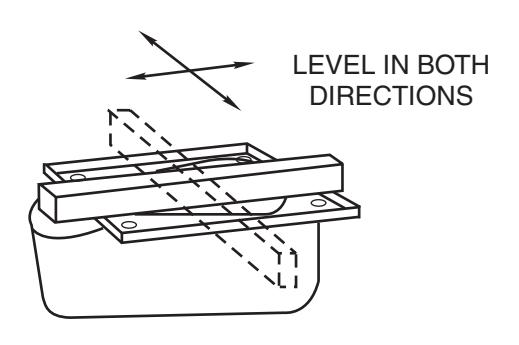

• E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
• F. Grout in cement case with closer. Cement should not get between closer and case.
