Rixson 427 Series Floor Closer Installation Instructions

Open the original PDF document

View PDF

13/16 --

Template

3/16 R

2-1/16 F

Spindle

Shoulder

Collar

1-5/16

of Door

1/8 in 2

Jamb

3/4" Offset Pivoted - Handed 180 x 102 Top Pivot – Handed

Do Not Scale Drawing

-3-55/64

<2-45/64→

3/8-

1-35/64

25/64

Bevel Edge of Door

1/8 in 2

.lamb

427 Floor Closer

180 Door Portion

- 23/64

-45/64

Installation Instructions 42700T (05-09)

6-1/8

Floor

Plate

5-7/8 Cement Case

4-1/16

1/8 Min Clearance Required

Arm

/ Floor Plate

Cement Case

10-1/4

9-13/16 Cement Case

9-7/8 Floor Plate

Between Door and Stop

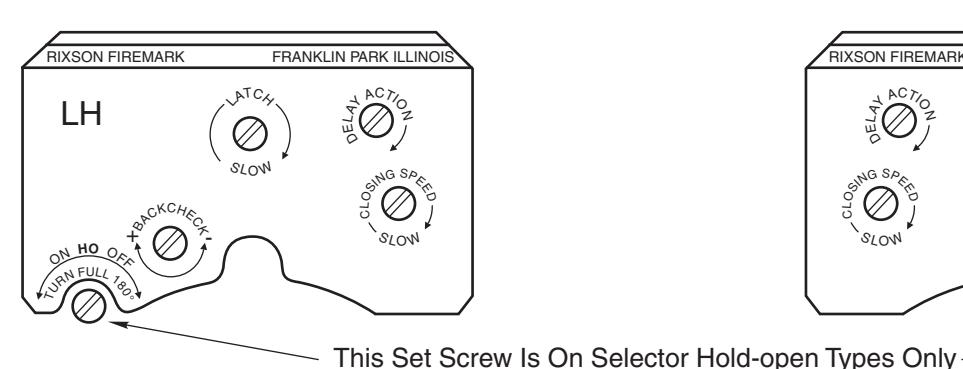

RIXSON FIREMARK ERANKI IN PARK II I INOI TA OF RH \oslash

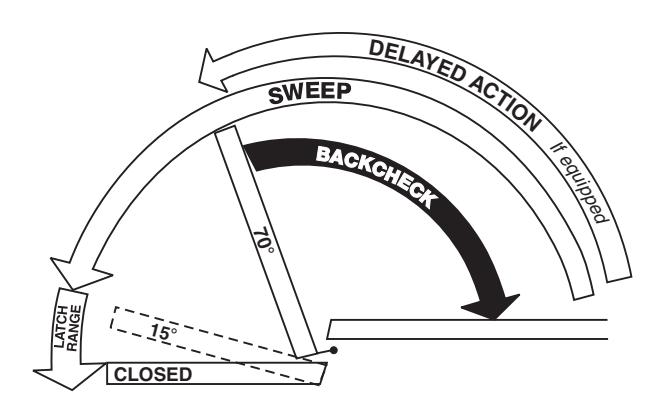

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw. Adjustments are for speed

  • A. The Delay Action valve allows adjustment from full open to 65° closed position. (Optional)
  • B. The Closing Speed valve allows adjustment from full open to 15° on units without the Delay Action feature.
  • C. The Closing Speed valve allows adjustment from 65° to 15° closed position on closers with Delay Action feature.
  • D. Latch valve allows adjustment from 15° to closed position.
  • E. Important: Backcheck adjustment must be adjusted to vary resistance from light to firm at 60° of door open.

Do not use Backcheck as deadstop. This is an intensity valve not speed control.

Closer Type

This closer is one of three types as follows:

  • 1. Non hold-open factory set. No hold-open adjustments.
  • 2. Automatic hold-open factory set. No hold-open adjustment.
  • 3. Selective (on-off) hold-open label will indicate position of on-off selector screw. When turned "on", closer has automatic holdopen: turned "off", hold-open will not function. Turn full 180°.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

Repairs, parts replacement or internal adjustments must be done by a Rixson authorized repair agency. Consult www.rixson.com for an authorized repair agency in your area.

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience. Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2006, 2009, Yale Security Inc., an ASSA ABLOY Group company All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited

Rixson Specialty Door Controls 866-474-9766 Technical Department www.rixson.com

WITH FLOOR PLATE

Set Cement Case 1/8" Below

Surface of Finished Floor

Conversion from inches to metric: inch x 25.4

3-3/4 <del>-------------------------------------</del> - 1/2 3/4 R 1/4-20 x 5/8" FHMS or Special Arm Regular Top Pivot Cap SPLO2800 #14 x 1-1/2" FHWS -3/4 Door Portion (4 Places) Door 102 Jamb Portion 1-5/8 → Mortised Door Mortised "A" <del><-</del>1-3/8 <del>>-</del>| 15/16 Deep for Arm 13/16-"A" Deep 1/4 Threshold 13/16 for Arm 1/2 Threshold 9/16 1-1/4 12-24 x 1" FHMS or 3/16 `Floor Threshold #12 x 1-1/2 FHWS Plate (4 Places)

Right Hand Shown

WITH THRESHOLD

Set Cement Case Flush

with Finished Floor

Minimum backset or reveal of door is 1-5/8".

Rixson Specialty Door Controls 866-474-9766 Technical Department www.rixson.com

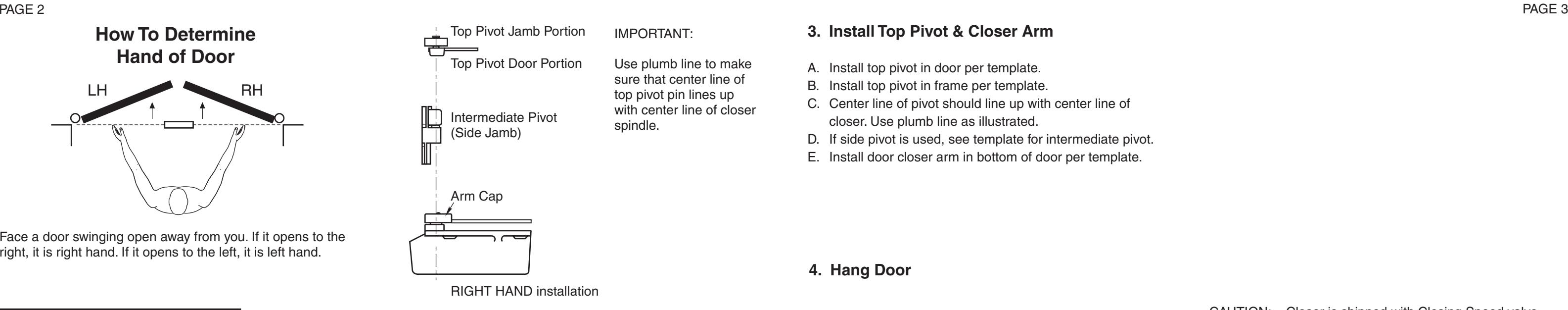

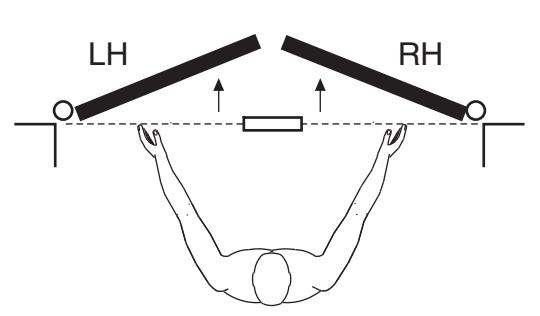

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

IMPORTANT:

Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle.

4. Hang Door

4b

A. Install top pivot in door per template. B. Install top pivot in frame per template.

3. Install Top Pivot & Closer Arm

closer. Use plumb line as illustrated.

C. Center line of pivot should line up with center line of

D. If side pivot is used, see template for intermediate pivot. E. Install door closer arm in bottom of door per template.

Right Hand Shown

CAUTION: Closer is shipped with Closing Speed valve down. DO NOT FORCE VALVE DOWN.

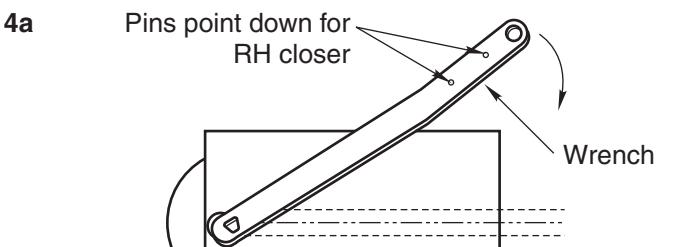

  • A. Close down Latch Speed valve. Using wrench, turn spindle until wrench is parallel with center line of closer. (Illustration 4a)
  • B. Set door on closer spindle. DO NOT FORCE DOOR CLOSED WHILE "CLOSING SPEED" VALVE IS TURNED DOWN.

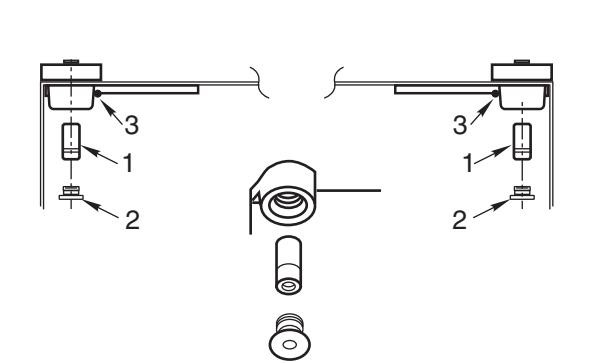

  • C. Push item 1 "top pivot pin" into place and tighten item 3 "set screw". NOTE: Undercut in pivot pin must align with set screw. Attach "cap" item 2. (Illustration 4b) CAP MUST BE TIGHTENED SECURELY.
  • D. Close door to 60° or more and turn Closing Speed valve screw counterclockwise. Door will then close.
  • E. Open Closing Speed valve (counterclockwise) one turn. To increase (speed up) closing, open Latch Speed valve (ccw) one turn.
  • F. If shimming of door is required, the shim must be placed between arm and door.
  • G. Put arm cap on closer spindle and secure TIGHTLY with cap screw furnished.
  • H. Adjust closing and latch speeds as required for proper closing.

Installation Instructions

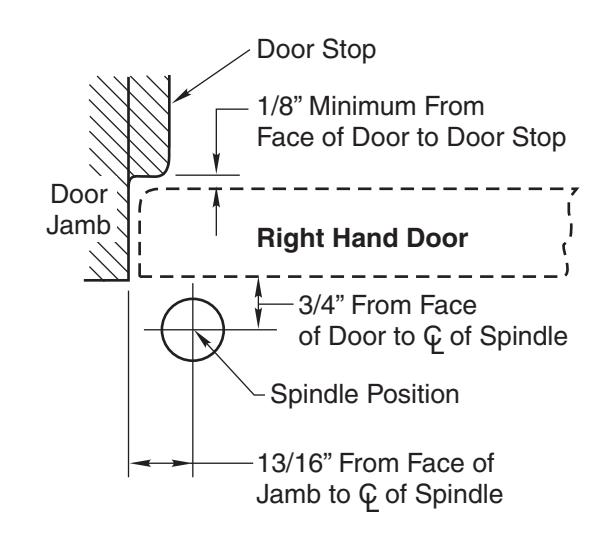

1. Locating Closer

  • A. Measure 13/16" out from door jamb.
  • B. Allow 1/16" minimum clearance from door stop to door face. Measure door thickness. Add 3/4".
  • C. Where lines meet determines center line of closer.

2. Install Cement Case in Floor

  • A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
  • B. For threshold application: Cement case is set flush with floor.
  • C. Set cement case in floor and block in position.
  • D. Case should be parallel with center line of door.

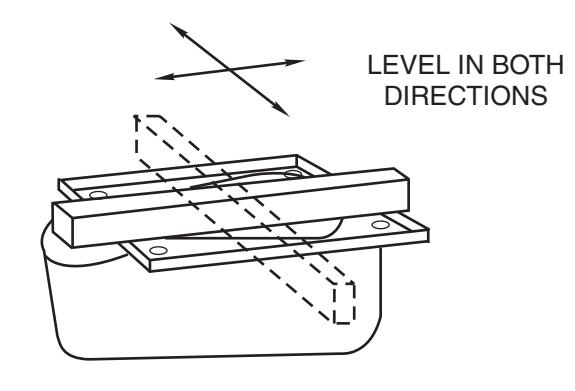

  • E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
  • F. Grout in cement case with closer. Cement should not get between closer and case.
