Rixson 327 Floor Closer Door Hung on Ball or Butt Hinges Single Acting Handed Installation Instructions

Open the original PDF document

View PDF

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose of each adjustment screw.

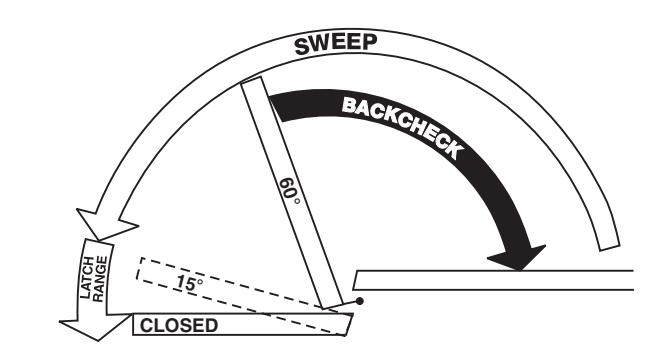

  • A. The Stroke valve allows adjustment from open position to 15°.
  • B. Latch valve allows adjustment from 15° to closed position.
  • C. Important: Backcheck adjustment must be adjusted to vary resistance from light to firm at 60° of door opening. –*
  • D. This closer is NON-HOLD-OPEN-factory set, no hold-open adjustment.
    • * FAILURE TO DO SO MAY RESULT IN DAMAGE TO THE CLOSER AND RELATED HARDWARE

NOTE: WITH INDEPENDENTLY HUNG DOORS, ON 327 CLOSER, AN OPTIONAL HEAVY DUTY DOOR STOP IS REQUIRED.

Spring Power Adjustments

  • A. Disconnect arm from spindle and swing door clear of closer.
  • B. Remove floor plate or threshold cover.

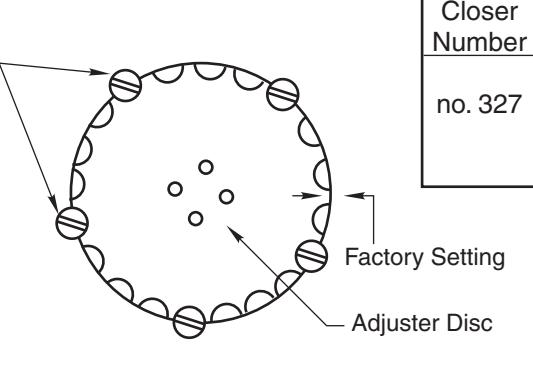

  • C. Insert wrench pins into holes in adjuster disc.
  • D. HOLD WRENCH FIRMLY WITH BOTH FOOT AND HAND.

All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

E. Loosen the adjuster locking screws enough to allow the adjusting disc to revolve.

Door Location And Function Interior Outswinging Entrance, Vestibule Inswinging Entrance

Maximum Door Width not over 4'0" not over 3'6" not over 3'2"

  • F. Wind or unwind spring one notch and never more than two beyond factory setting.
  • G. Tighten adjuster locking screws.
  • H. Replace floor plate or threshold. Attach arm securely.

RIXSON ®

RIXSON ®

ASSA ABLOY

Template

Installation Instructions

32700T (05-09)

Single Acting – Handed

Right Hand Shown

Conversion from inches to metric: inch x 25.4

Rixson designed threshold available on request.

When threshold is used, door closer furnished must have a long spindle.

1/4
Th
hol
d
res 		B=
/16
1-1 		C
=7/
8
1/2
Th
hol
d
res 		B=
13/
16 		C=
5/8

327 Floor Closer

Door Hung on Ball or Butt Hinges

DIMENSION "A" SHOWN IN THE TABLES ARE FOR 1-3/4" THICK DOORS ONLY– CONTACT THE FACTORY FOR DOORS OTHER THAN 1-3/4"

14-3/4 13-1/2

IMPORTANT

Select Correct Dim. "A" From Ta les Shown For Setting Floor Closer b

Type of Hinge

4" x 4" Butt Hinge

For 95° Door Opening on 1-3/4" Doors Door Stops and/or Holds Open at 95°

Dim "A" 3-15/16 3-3/8 3-1/4 2-15/16

35/64

RIXSON M19 side jamb pivots RIXSON M-3 side jamb pivots 4-1/2" x 4-1/2" Butt Hinge

For 90° Door Opening on 1-3/4" Doors Door Stops and/or Holds Open at 90°

of
T
Hin
ype
ge 		Dim
"A
"
RIXS
ON
M19
sid
e ja
mb
pivo
ts 		4-7
/16
RIXS
ON
M-3
sid
e ja
mb
pivo
ts 		/8
3-7
4-1
/2"
x 4-
1/2
" Bu
tt H
in
ge 		3-3
/4
4" x
4"
Butt
Hin
ge 		3-1
/2

Optional Heavy Duty Door Stop Required

Rixson Specialty Door Controls Rixson Specialty Door Controls www.rixson.com 866-474-9766 Technical Department www.rixson.com 866-474-9766 Technical Department

Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2005, 2009, Yale Security Inc., an ASSA ABLOY Group company.

Surface of Finished Floor

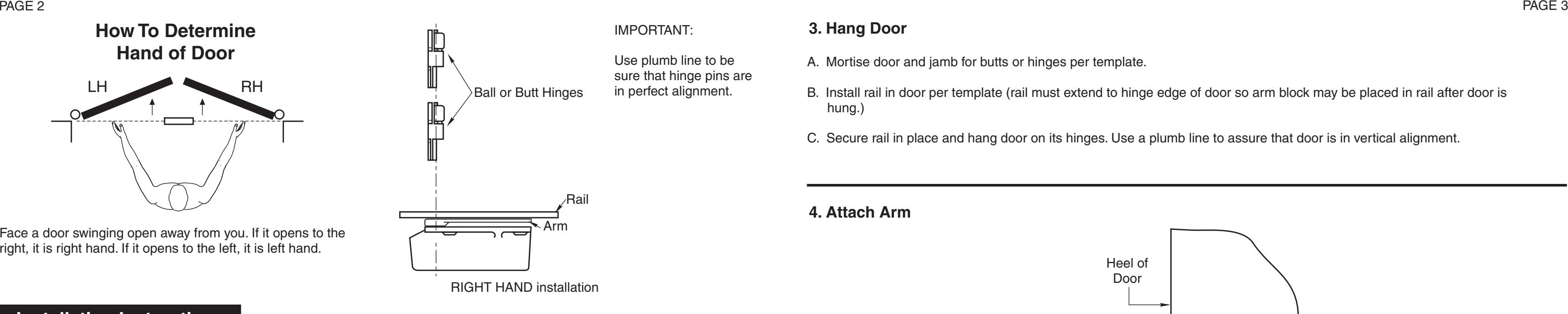

How To Determine Hand of Door

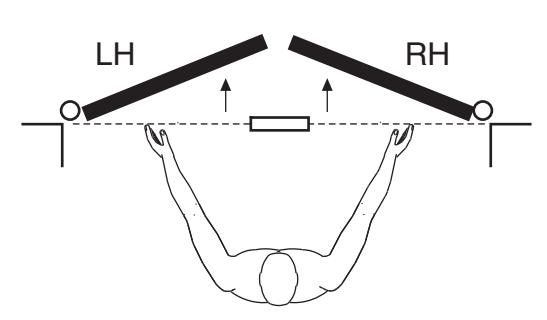

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

IMPORTANT:

Use plumb line to be sure that hinge pins are in perfect alignment.

Installation Instructions

1. Locating Closer

  • A. Measure from the door stop 1/2 the thickness of door to determine centerline of door.
  • B. To determine centerline of closer measure back towards the stop side 3/8" from centerline of door.

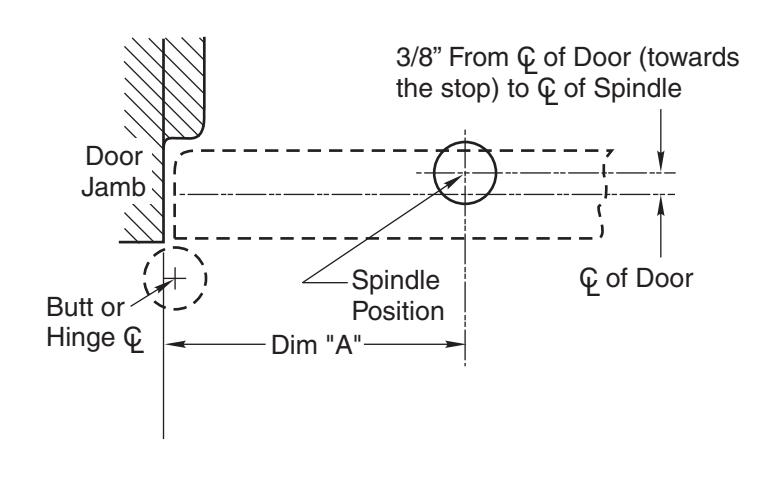

  • C. Dim "A" is the distance from the door jamb to the centerline of closer spindle. Degree of opening (90° or 95° only) and type of butts or hinges determines correct dim "A". (see tables on reverse side). From door jamb measure dim "A".
  • D. Where the dim"A" an 3/8" measurements intersect indicates the centerline of closer spindle. d

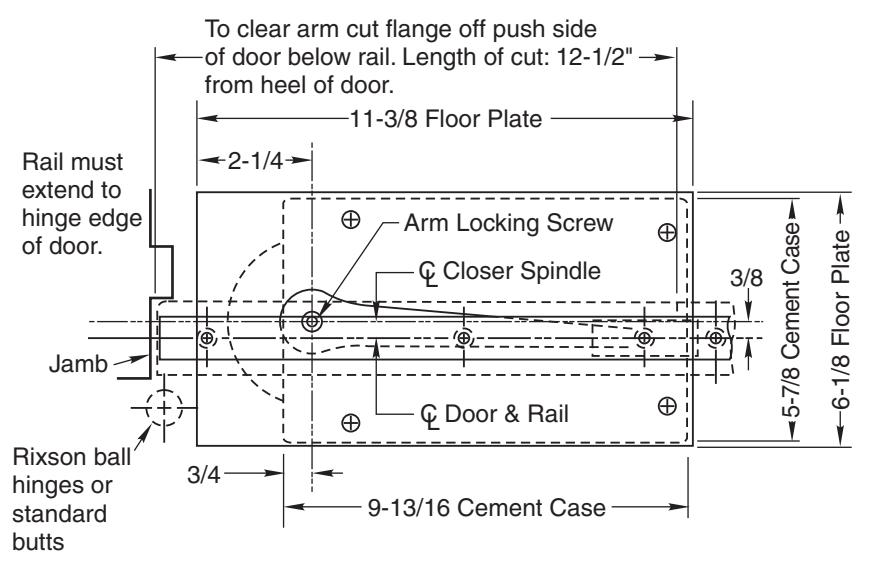

2. Install Cement Case in Floor

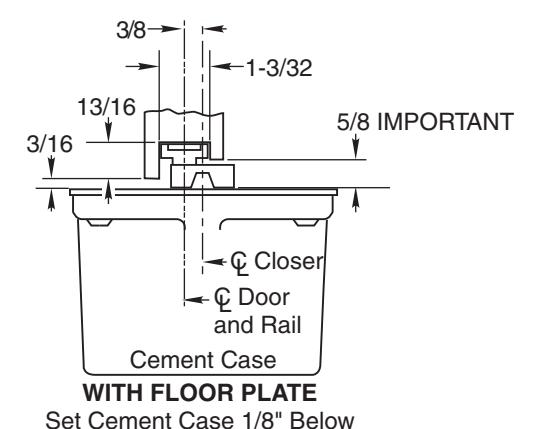

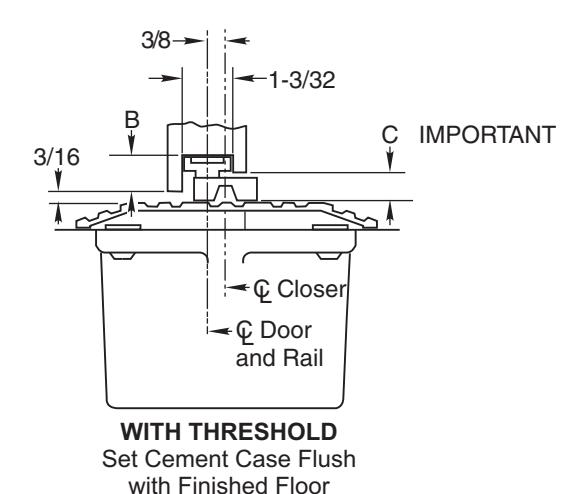

  • A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
  • B. For 1/2" high threshold application only: Cement case is set flush with floor. (Longer spindle must be used)
  • C. Set cement case in floor and block in position. LOCATE CLOSER SPINDLE USING DIM "A".
  • D. Case should be parallel with center line of door.

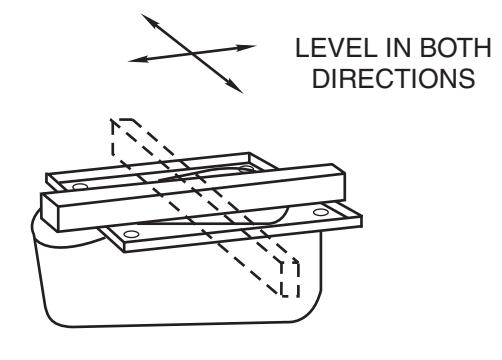

  • E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
  • F. Grout in cement case with closer. Cement should not get between closer and case.

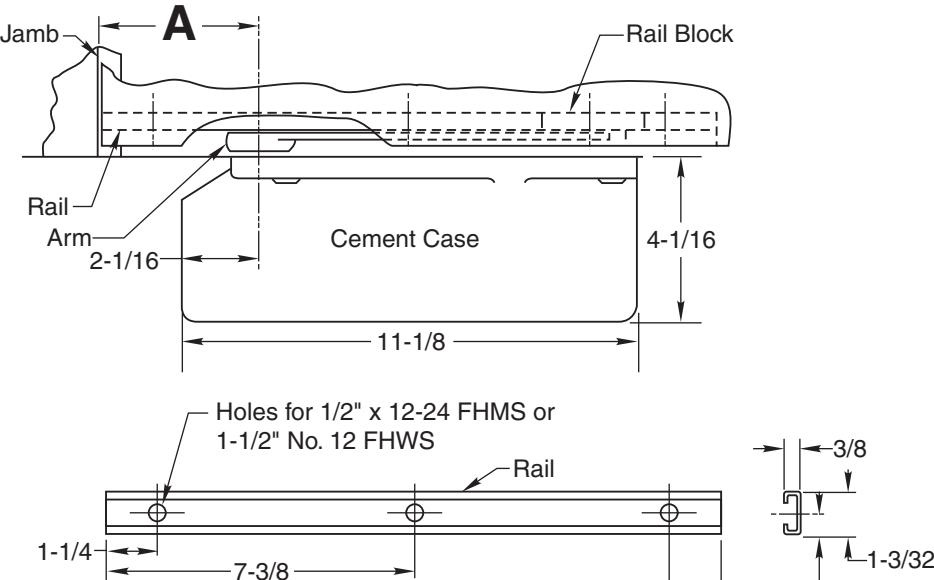

3. Hang Door

  • A. Mortise door and jamb for butts or hinges per template.
  • B. Install rail in door per template (rail must extend to hinge edge of door so arm block may be placed in rail after door is hung.)
  • C. Secure rail in place and hang door on its hinges. Use a plumb line to assure that door is in vertical alignment.

4. Attach Arm

  • A. Close latch and stroke valves (Turn Clockwise).

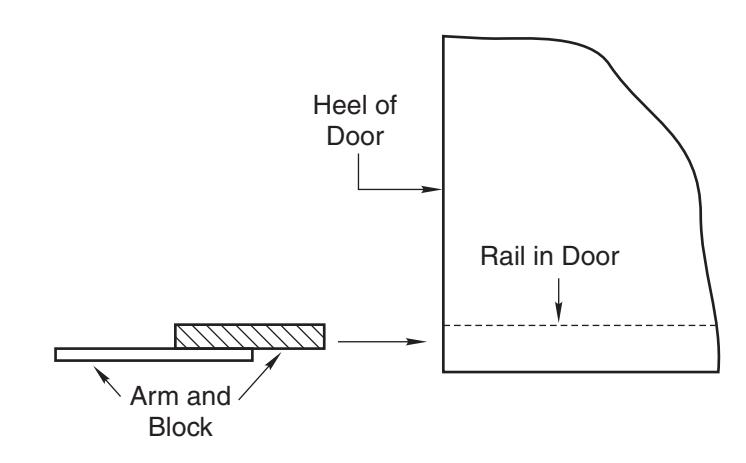

  • B. Slide arm block into rail through heel edge of door.
  • C. With door almost closed slide arm onto spindle thru notch in end of arm. (Rock door back and forth to seat arm on spindle.)
  • D. Secure arm to spindle with screw furnished. THE ARM SCREW MUST BE FASTENED SECURELY. (Tighten screw by rocking door back and forth.)
