Closer Adjustment

Closing speeds can be adjusted to suit local conditions and requirements. Label on closer face designates the purpose

of each adjustment screw. Adjustments are for speed

Closer Type

This closer is one of three types as follows:

• 1. Non hold-open factory set. No hold-open adjustments.
• 2. Automatic hold-open factory set. No hold-open adjustment.

Spring Power Adjustments

This closer can be adjusted for increased or decreased spring power.

These adjustments if required should be done by an authorized repair agency.

Repairs, parts replacement or internal adjustments must be done by a Rixson authorized repair agency. Consult www.rixsondoorcontrols.com for an authorized repair agency in your area.

866-474-9766 Technical Department

ASSA ABLOY is the global leader in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience. Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2002, 2009, Yale Security Inc., an ASSA ABLOY Group company All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited

RIXSON

PAGE 4

ASSA ABLOY

Installation Instructions

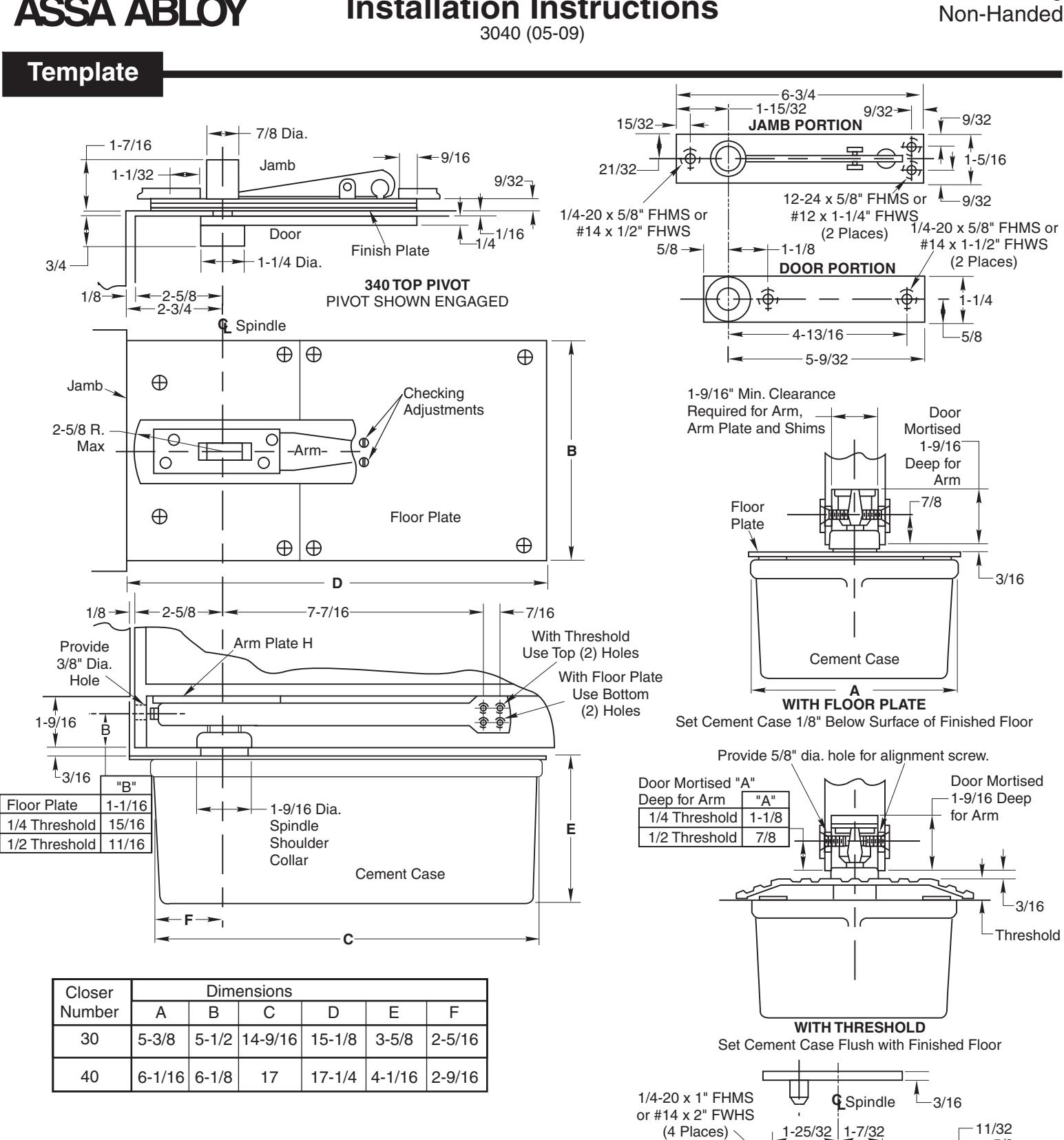

30-40 Floor Closer Center Hung Double Acting

Conversion from inches to metric: inch x 25.4. Suitable reinforcing by others.

Rixson designed threshold available on request. Auxiliary stop required.

Rixson Specialty Door Controls

866-474-9766 Technical Department

-3-13/16-

ARM PLATE H

1-19/32

2-3/32

29/32-

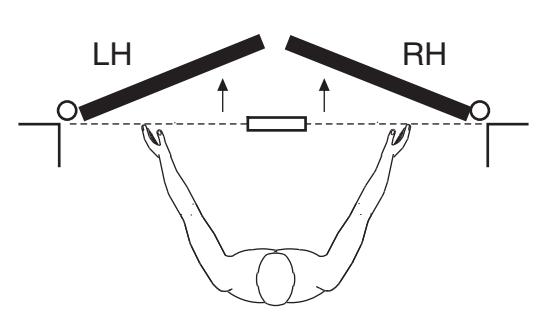

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand. NOTE: This product allows door to swing in both directions.

Top Pivot Jamb Portion Top Pivot Door Portion IMPORTANT: Use plumb line to make sure that center line of top pivot pin lines up with center line of closer spindle. Alignment Screws Arm Plate "H" Adjusting Screw

Installation Instructions

1. Locating Closer

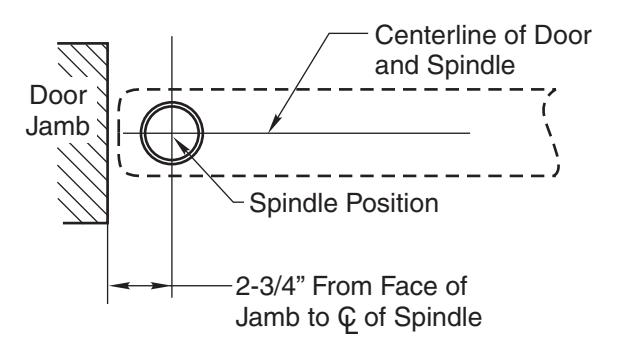

A. Measure 2-3/4" out from door jamb on centerline of door. This is the location of the spindle center.

2. Install Cement Case in Floor

• A. For floor plate application: Cement case is set 1/8" (3.2mm) below floor level.
• B. For threshold application: Cement case is set flush with floor.
• C. Set cement case in floor and block in position.
• D. Case should be parallel with center line of door.

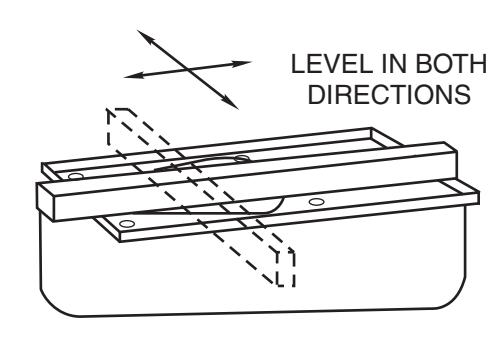

• E. CEMENT CASE SHOULD BE LEVEL. Place levels per Illustration.
• F. Grout in cement case with closer. Cement should not get between closer and case.

3. Install Pivot and Closer Arm

4. Hang Door

• A. Install top pivot in door per template.
• B. Install top pivot in jamb per template.
• C. Centerline of pivot pin should line up with centerline of spindle. Use plumb line to assure accuracy.
• D. Mortise door for arm, arm plate "H".
• E. Drill two 5/8" dia. holes for arm alignment screws. Drill 3/8" hole at heel edge of door for adjusting screw.

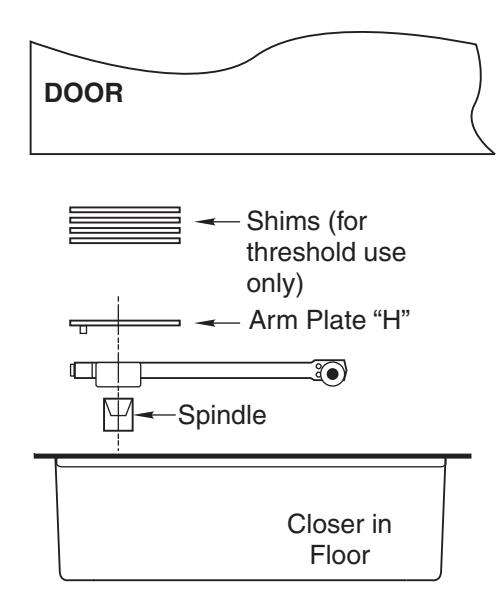

• F. Install arm, arm plate "H", and shims if required. (If 1/2" threshold is used install 4 shims above arm plate "H"–refer to template. If 1/4" threshold is used install (2) 1/16" shims above plate "H"). Attach arm alignment screws and washers to hold arm in place.

CAUTION: Closer is shipped with "valve" screws down. DO NOT FORCE VALVE DOWN.

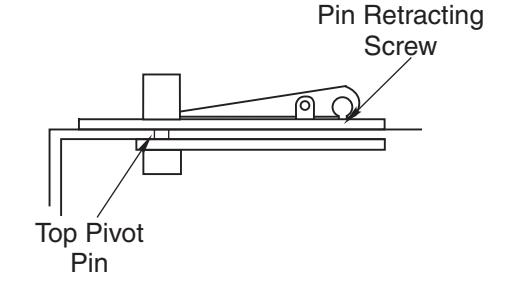

• A. Retract top pivot pin by turning retracting pin screw counter-clockwise (see illustration).

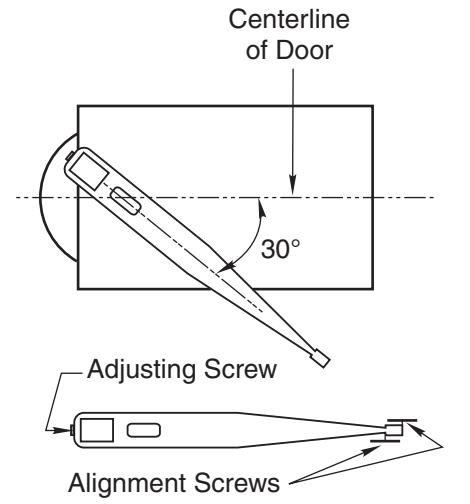

• B. With arm on spindle, turn spindle until arm is in 30° open position (see illustration).
• C. Set door on spindle arm. DO NOT ATTEMPT TO CLOSE DOOR.
• D. Align two portions of top pivot and turn pin retracting screw clockwise to engage top pivot pin.
• E. Open door to 60° or more and turn valve screws counterclockwise. Door will then close.
• F. If necessary, turn adjusting screw at bottom of heel edge of door to equalize side jamb clearances.
• G. Adjust center door in doorway. arm alignment screws equally from each side to
