Rixson 1351 Gate Closer Pull Side Template

ASSA ABLOY

1351 Gate Closer

OS19510 (06-13)

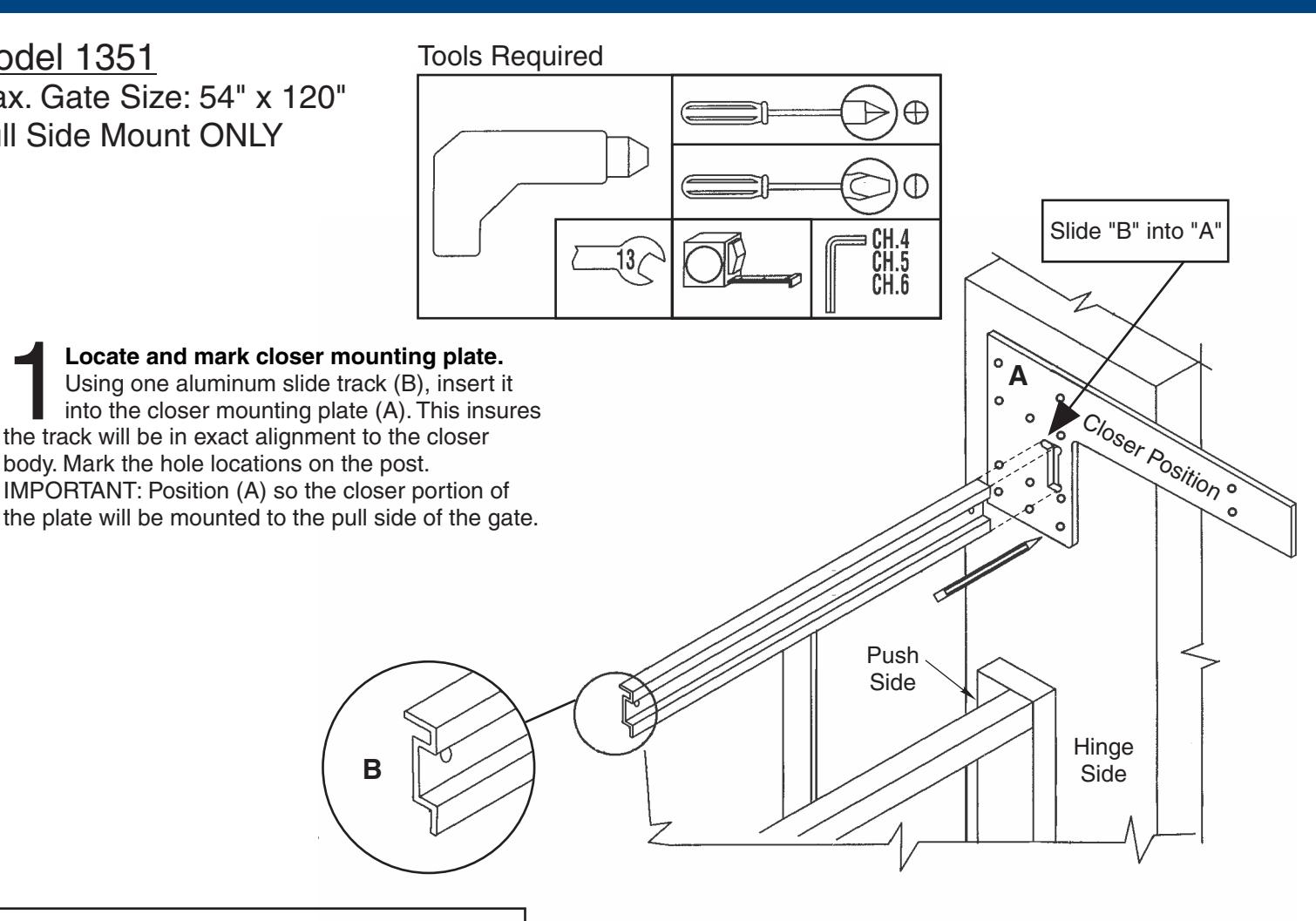

Model 1351

Max. Gate Size: 54" x 120" Pull Side Mount ONLY

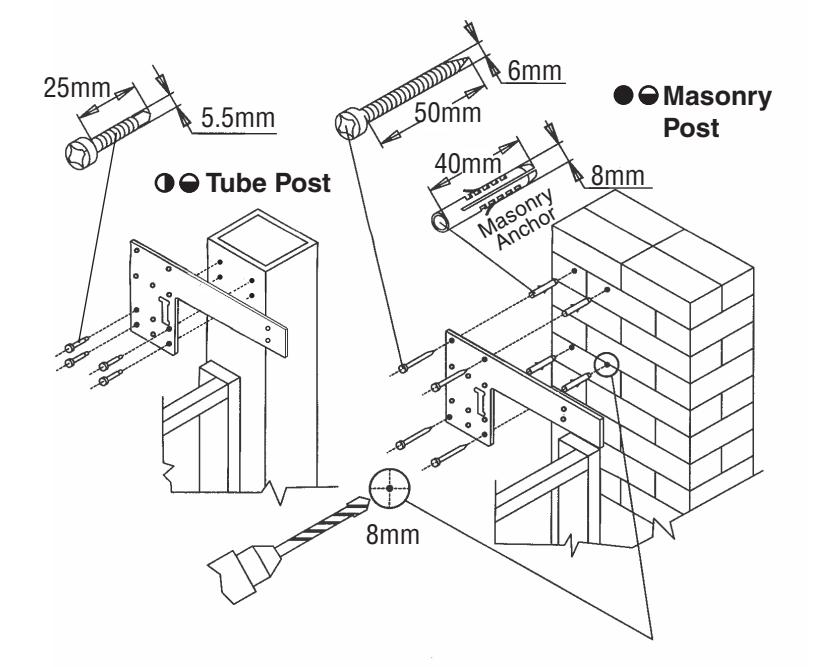

Mount plate to post on pull side of gate. (Note that this plate is not handed so it can be mounted in either orientation.) Use • and holes for masonry post mounting. Use ① and ④ holes for tubular post mounting. Attach (A) with four hex screws. If the gate post is masonry, use the longer screws with the anchors included in the package. If tube post extends above gate, use masonry hole locations.

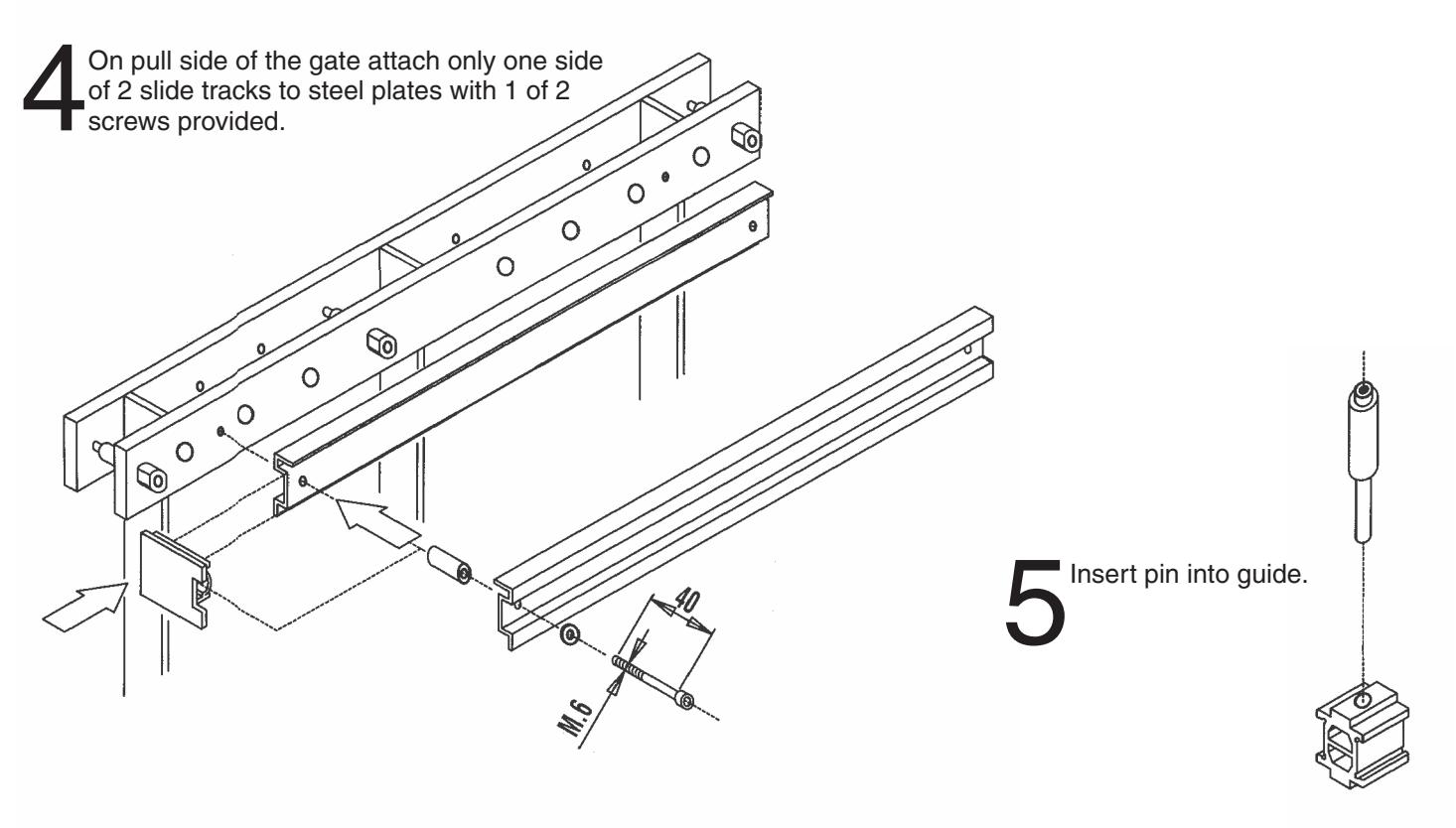

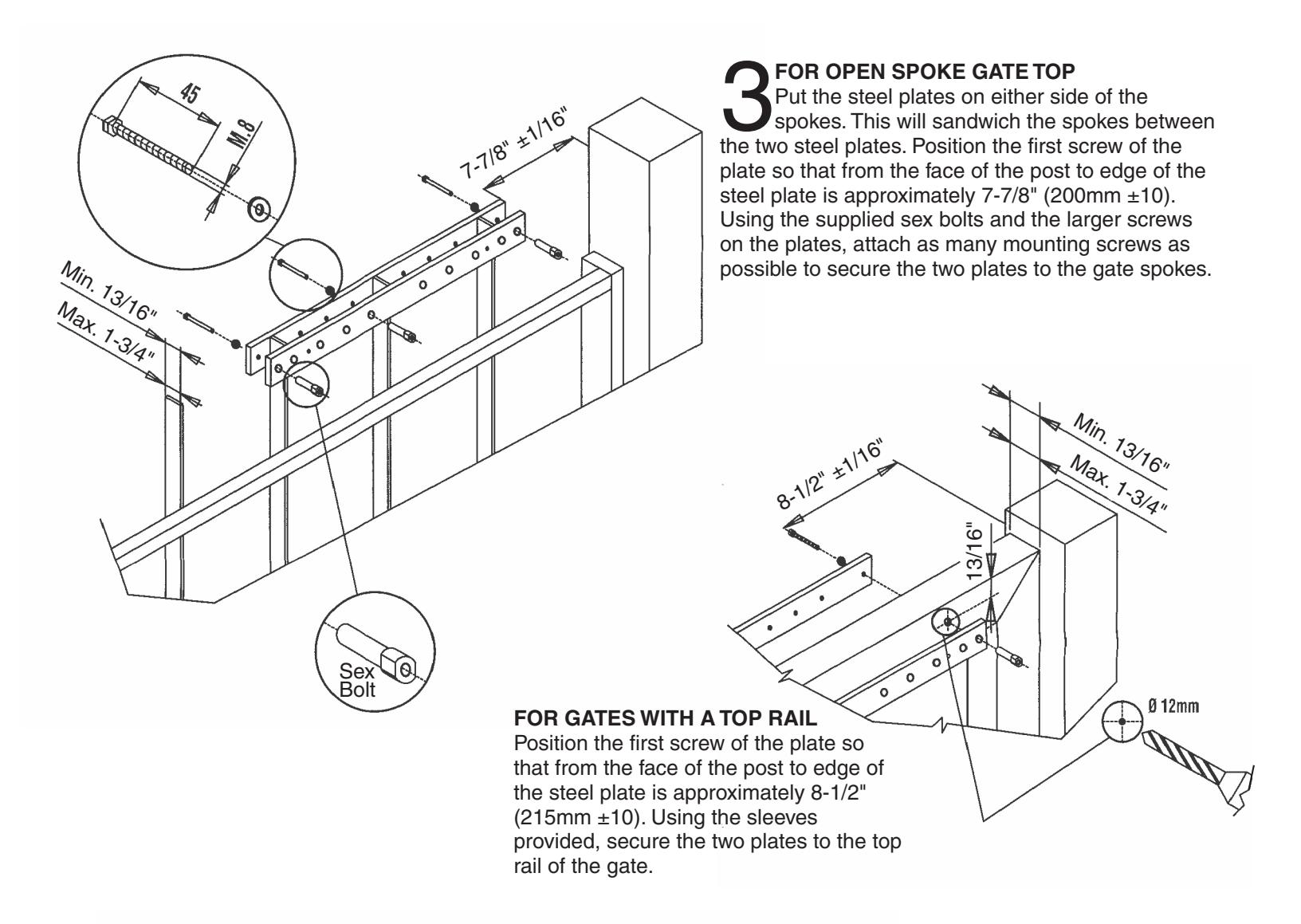

0

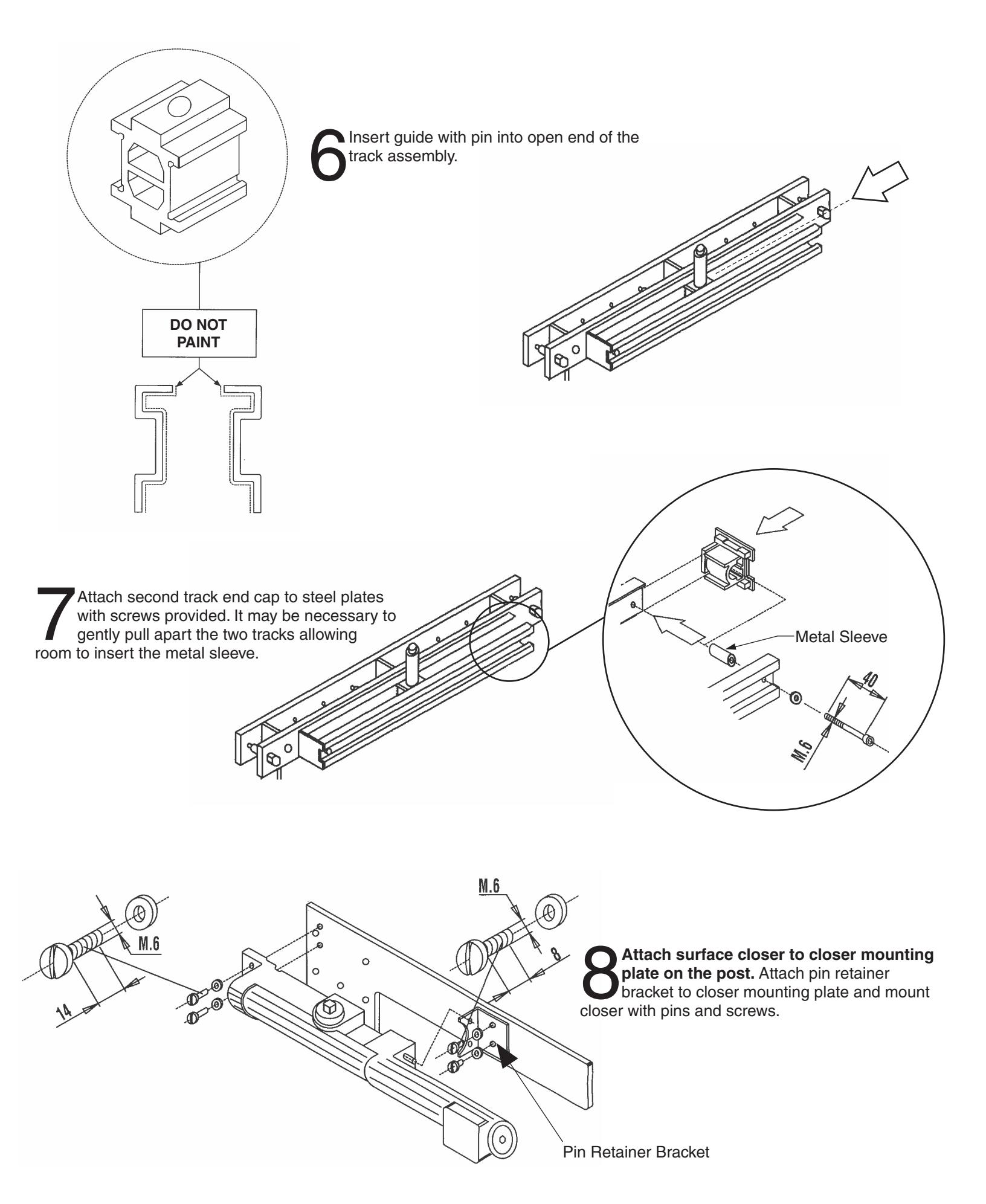

0

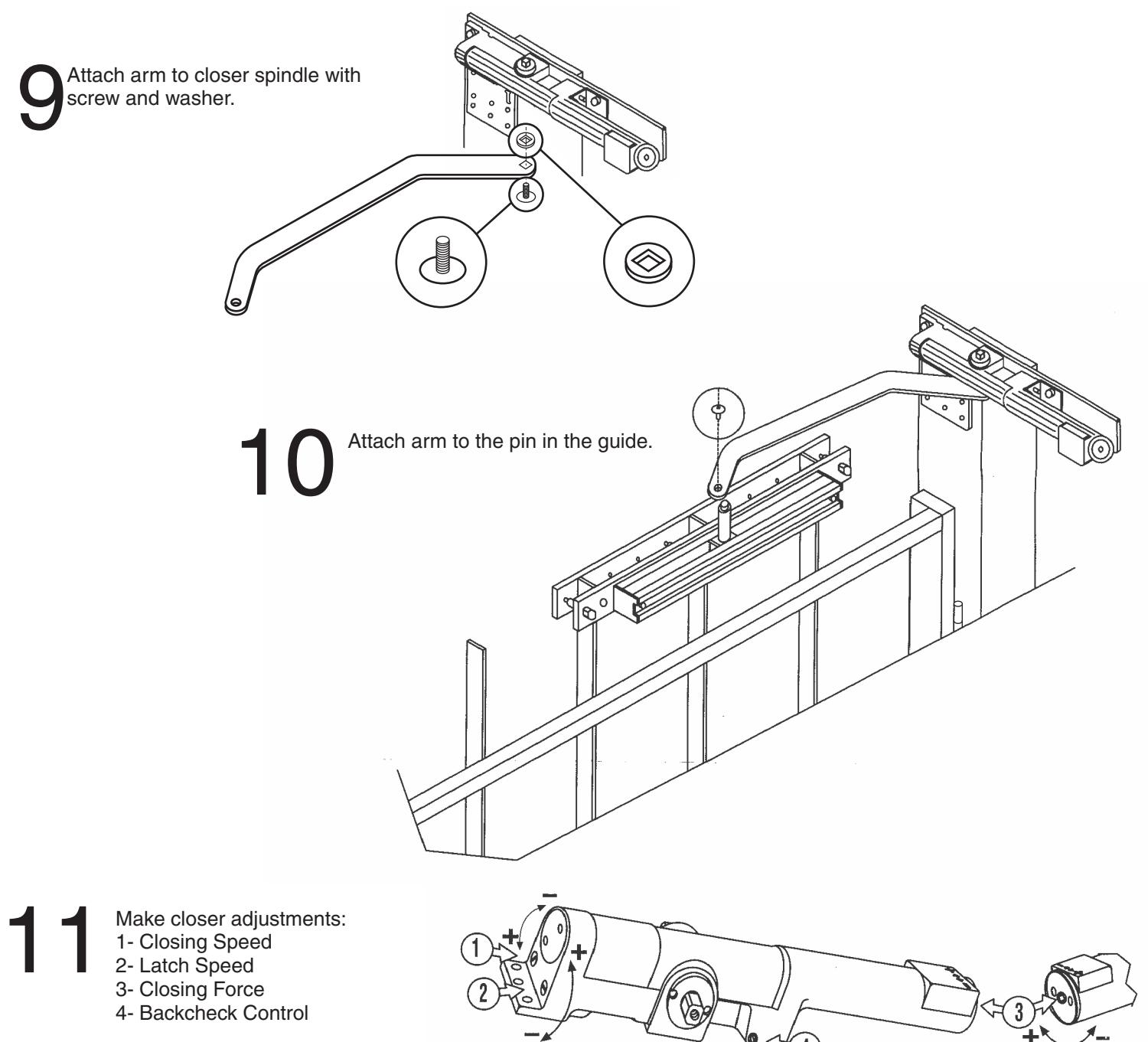

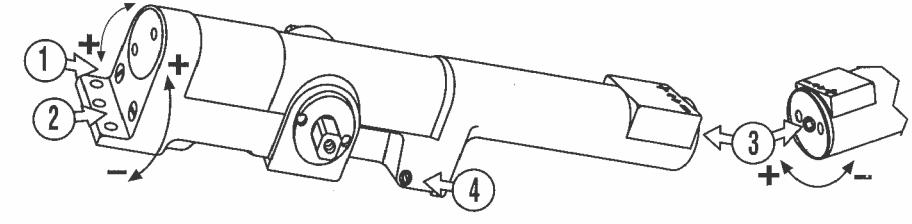

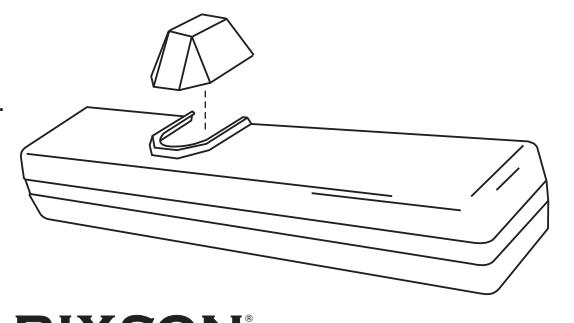

Snap on closer cover and cap. 12
