Rixson 1351 Gate Closer Installation Instructions

1351 Gate Closer Installation Instructions

1351IS (06-13)

Model 1351

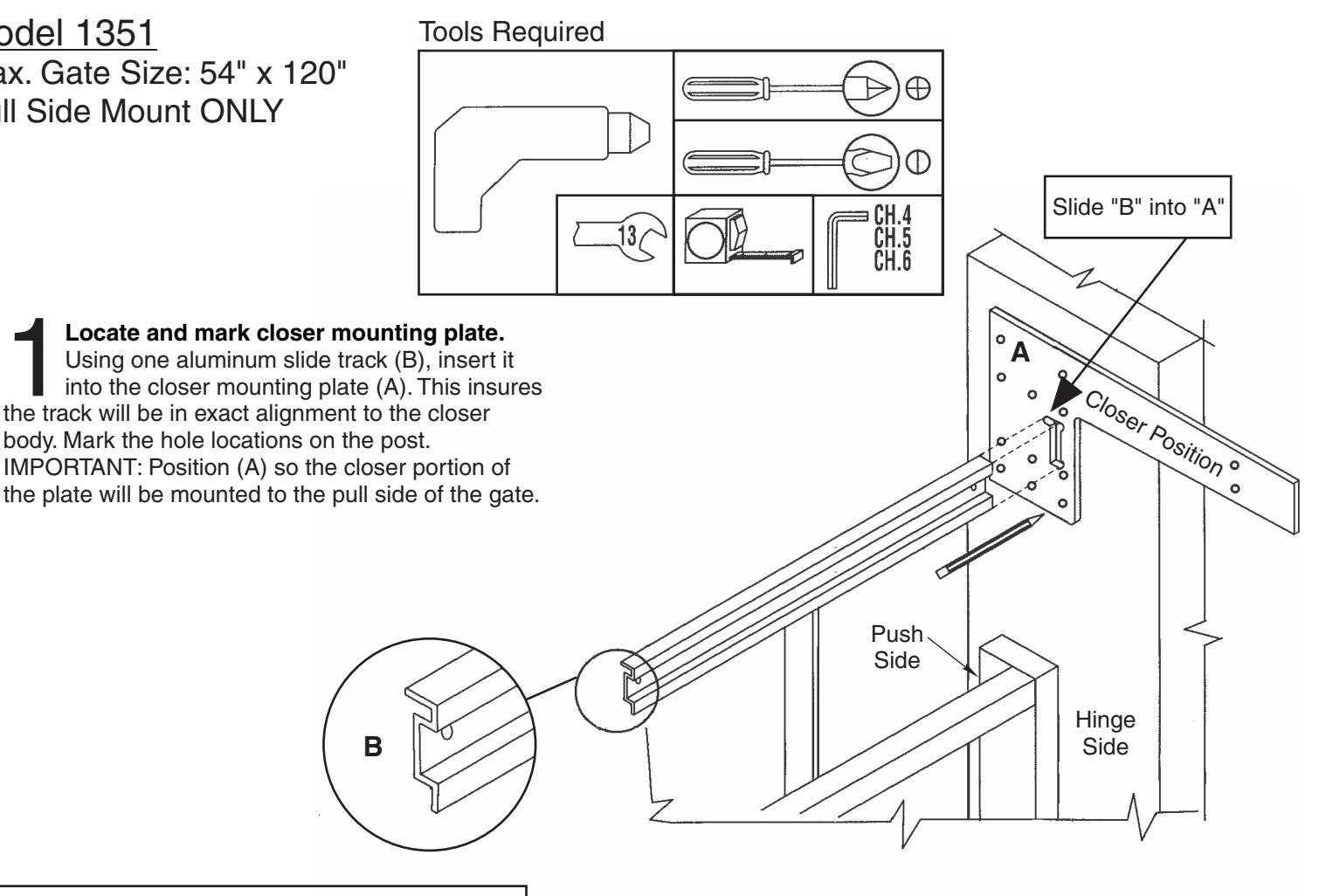

Max. Gate Size: 54" x 120" Pull Side Mount ONLY

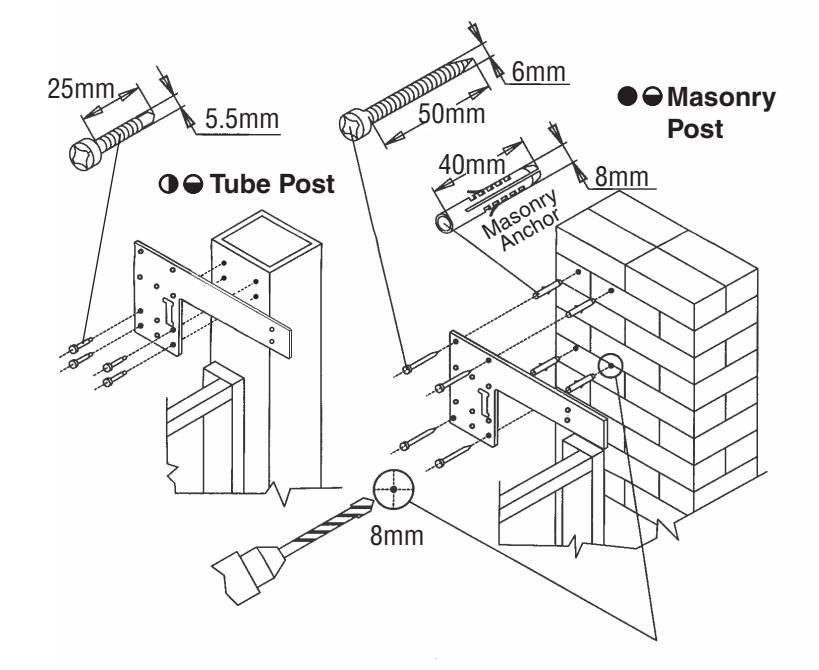

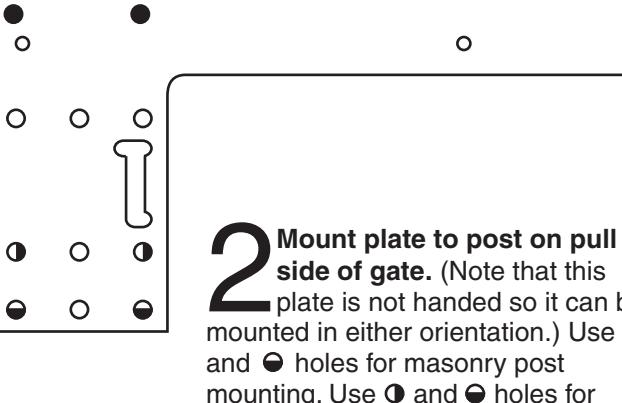

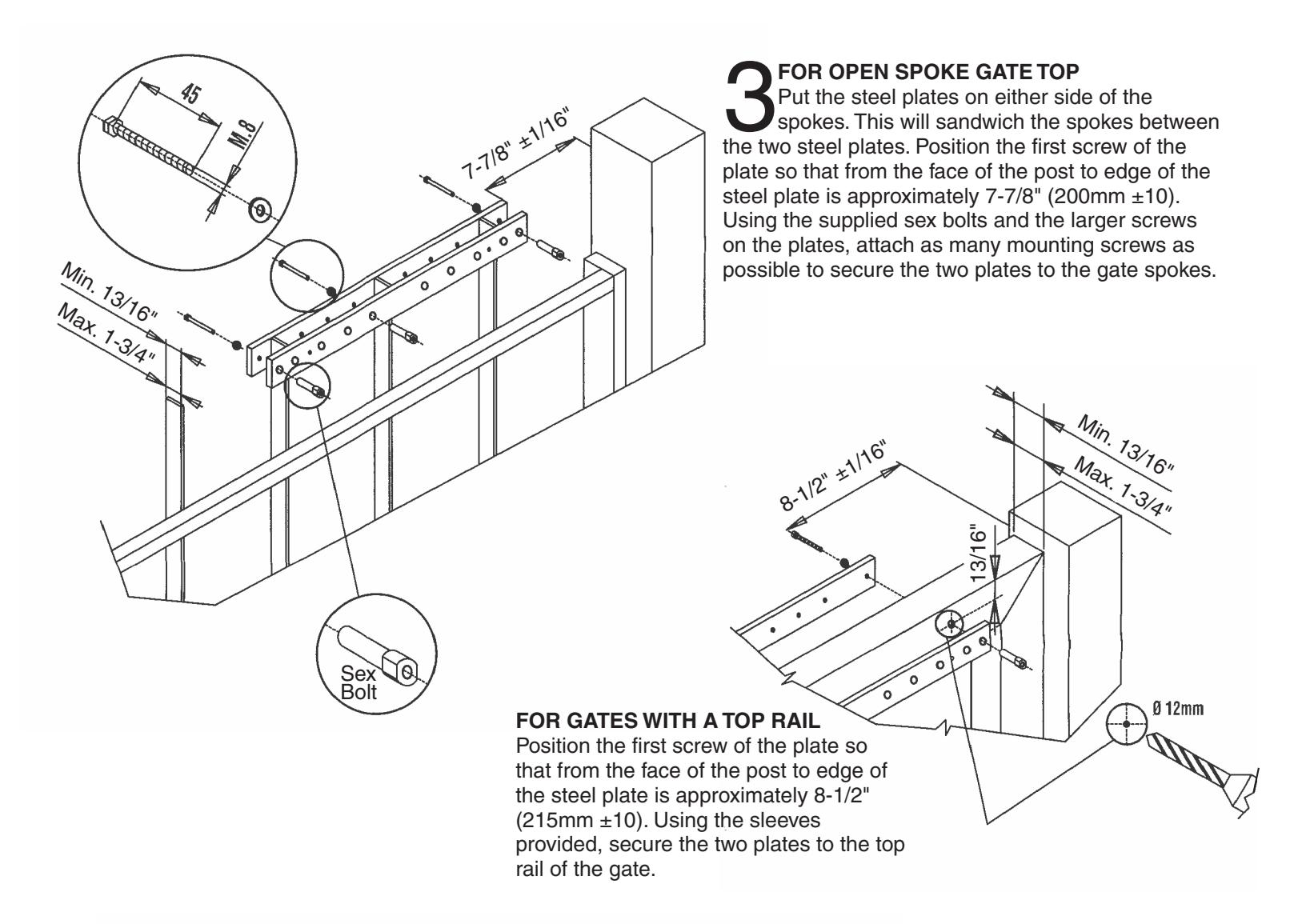

side of gate. (Note that this plate is not handed so it can be mounted in either orientation.) Use • and holes for masonry post mounting. Use ① and ④ holes for tubular post mounting. Attach (A) with four hex screws. If the gate post is masonry, use the longer screws with the anchors included in the package. If tube post extends above gate, use masonry hole locations.

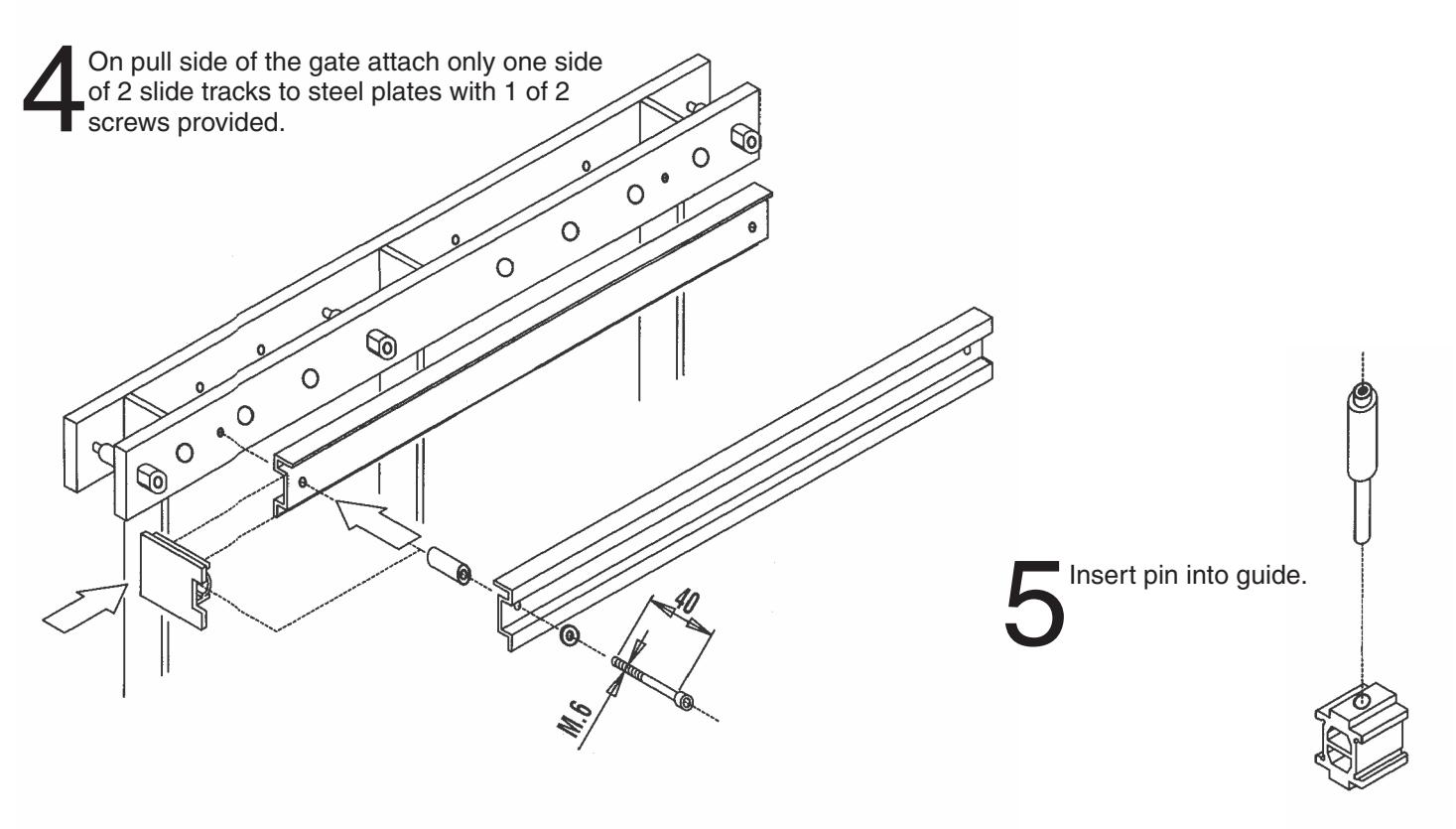

0

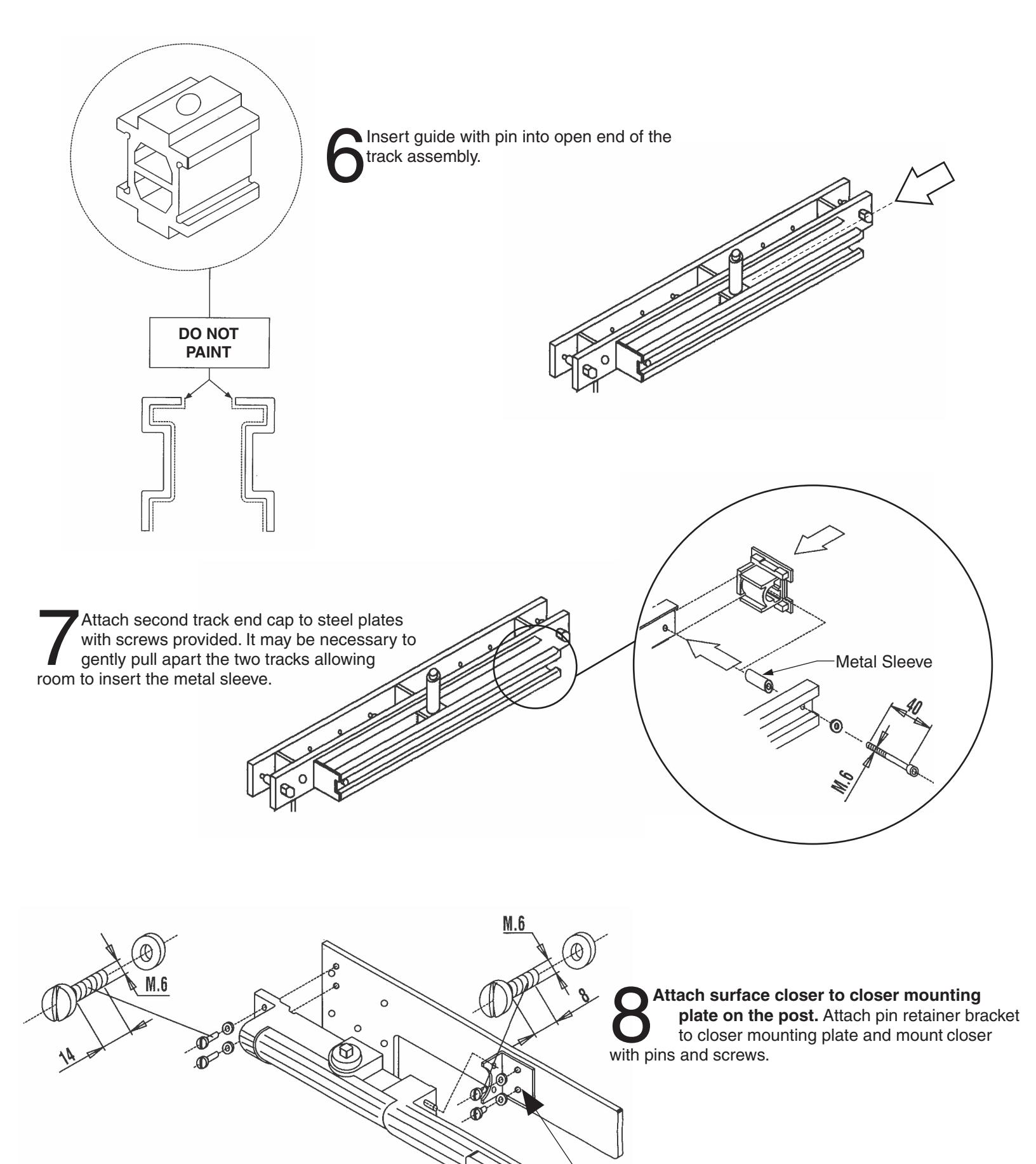

Pin Retainer Bracket

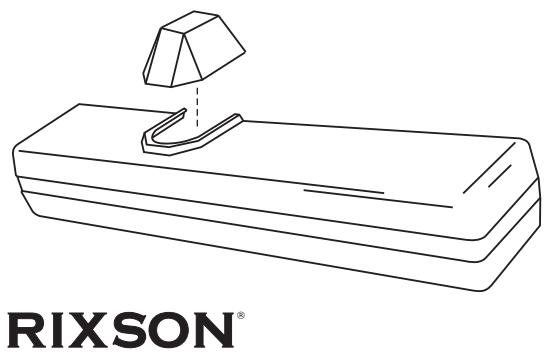

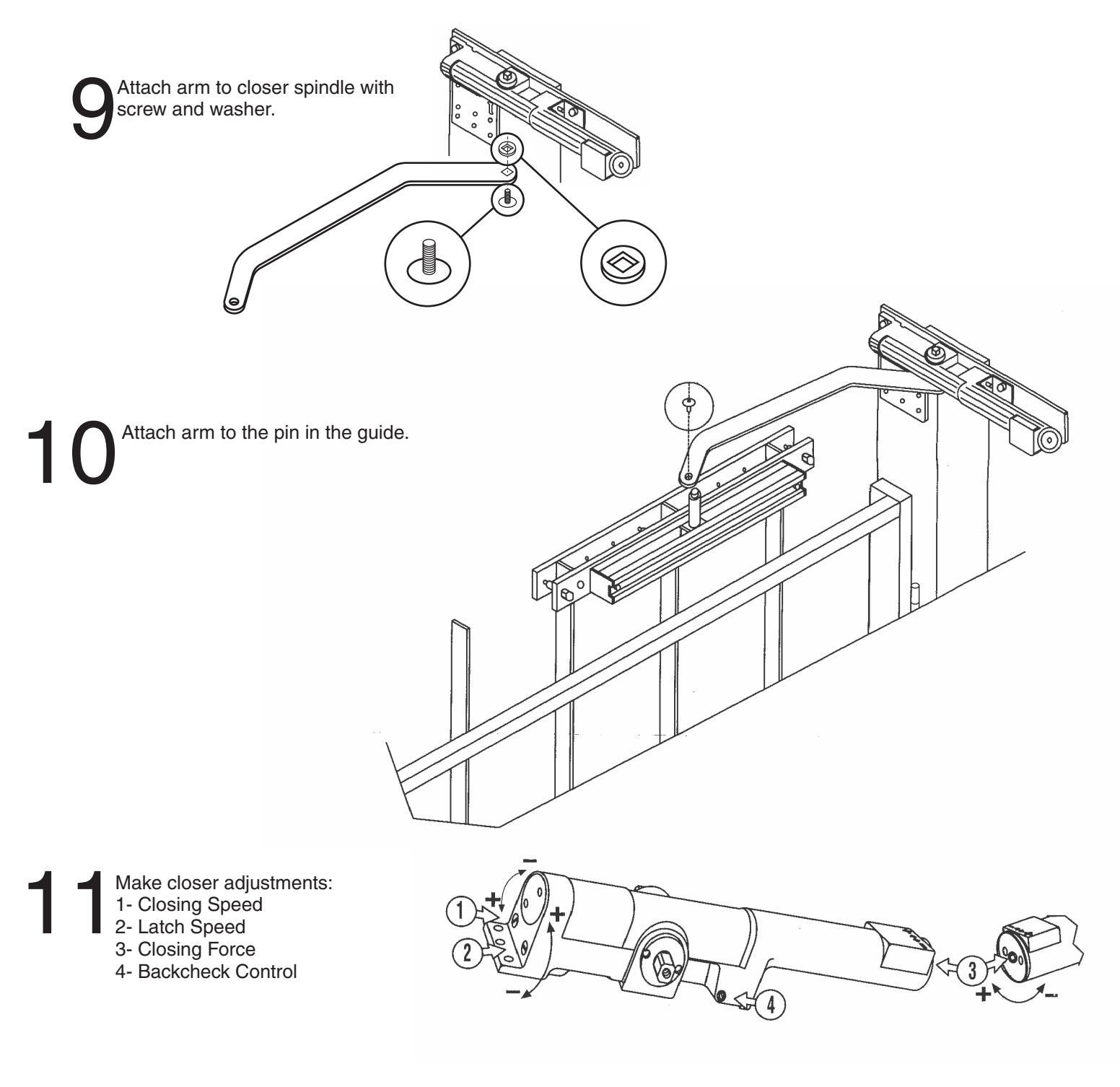

Snap on closer cover and cap.
