Rixson 127 Series Floor Closer 3_4 Offset Template

Open the original PDF document

View PDF

Notes:

  • 1. Do not scale drawing.
  • 2. Minimum backset or reveal of door is 1-5/8".
  • 3. All dimensions given in inches.

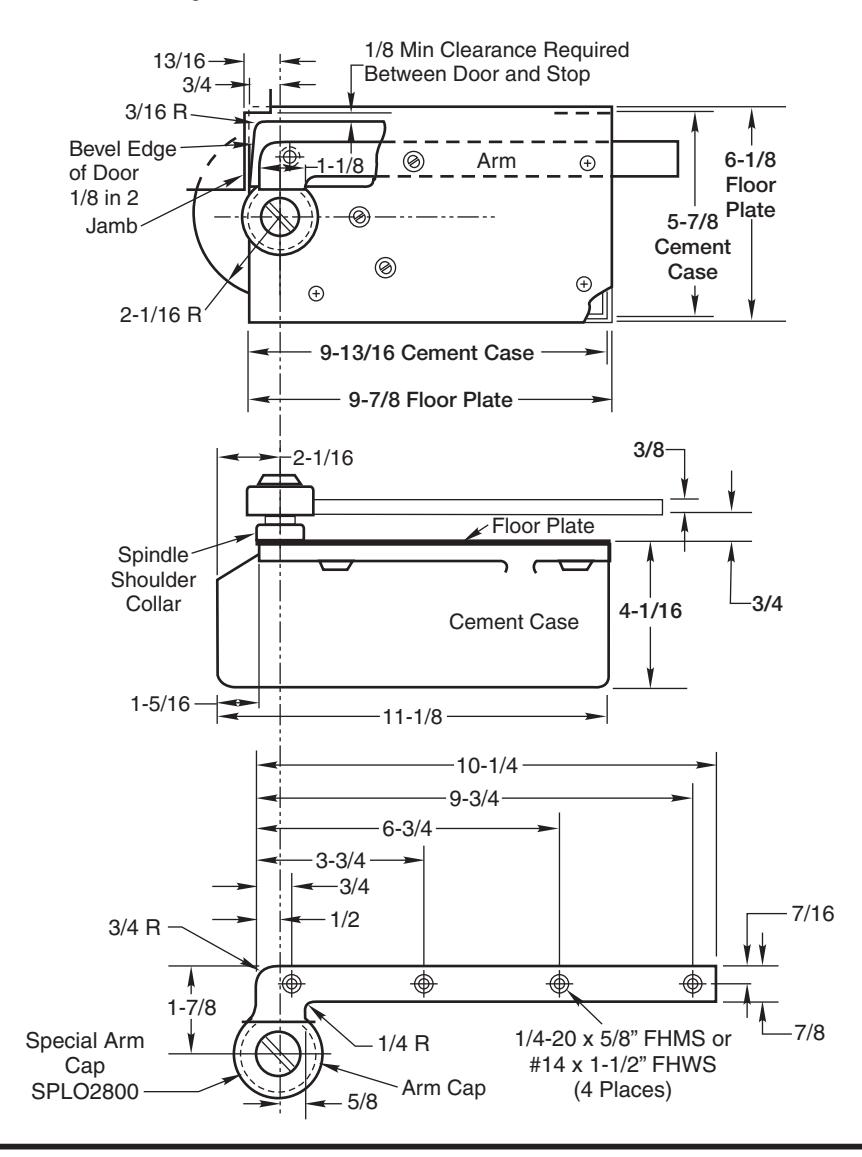

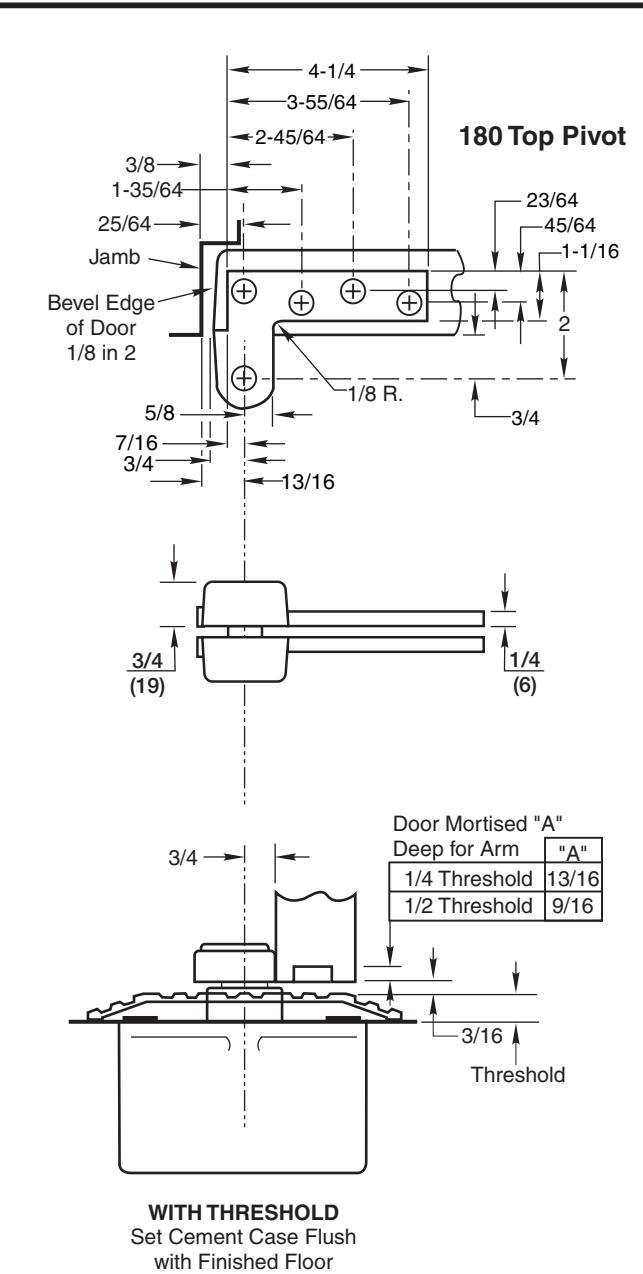

127 Floor Closer 3/4" Offset

ASSA ABLOY RIXSON ®

www.rixson.com

OS10110

TEMPLATE NUMBER DATE

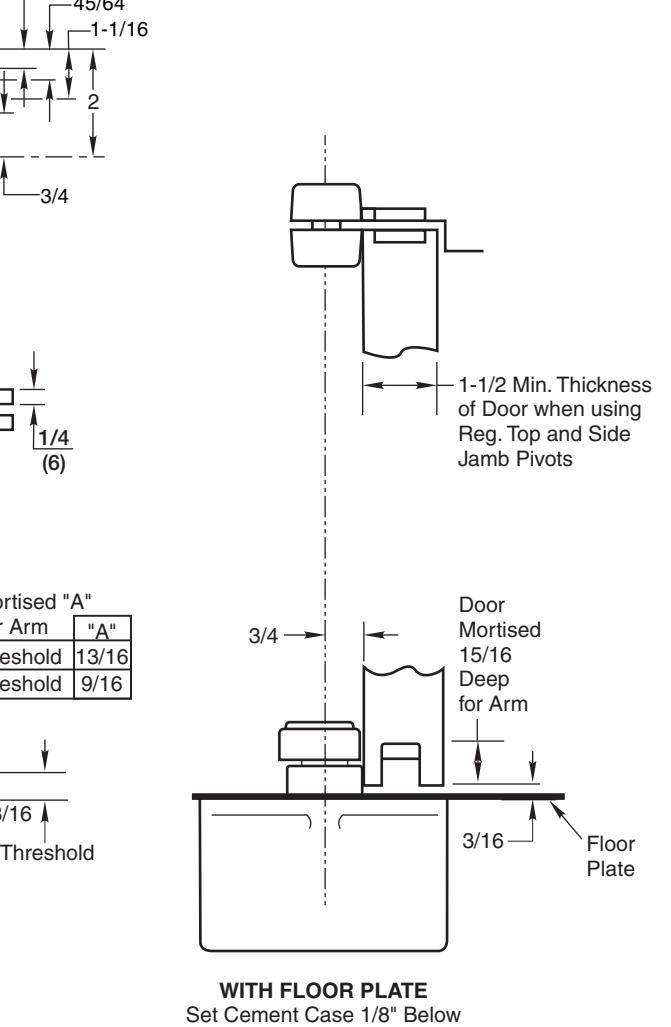

Surface of Finished Floor

12-08
