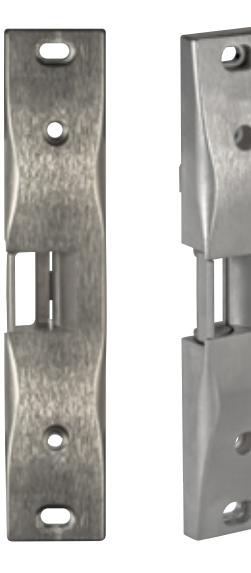

SURFACE MOUNTED ELECTRIC STRIKE

IDC-10STRIKE RE

RIM EXIT STRIKE

FEATURES

• • IDC-10STRIKE RE
• UL/ULC listed for up to 1500 lbs of static strength
• Conventional keeper design promotes even-load distribution in the event of a forced entry
• Reinforced housing reduces twisting on imperfect frames
• Brushed, US32D, stainless steel provides a complementary finish to existing door hardware.

FRAME MOUNTED LOCKING DEVICE

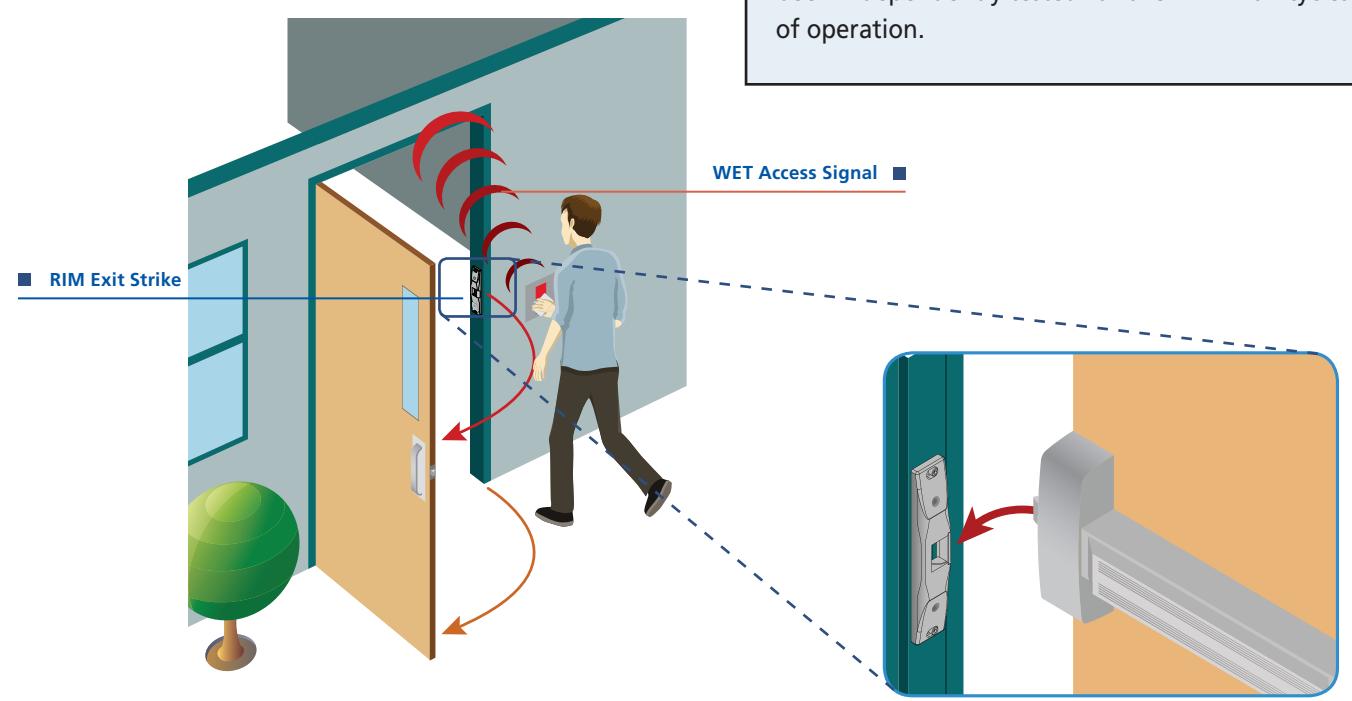

The Rim exit strike is designed specifically for rim exit devices. This strike is completely surface mounted, which eliminates the need to cut into the door frame. The Rim Exit strike has a 3-hour fire rating and has been independently tested for over 4 million cycles

West: 800-544-4422 • East: 800-225-6737

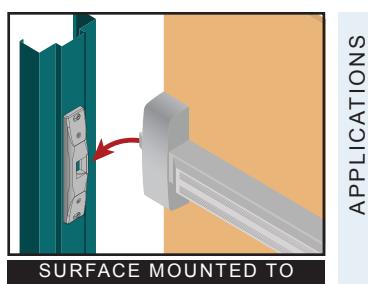

THE DOOR FRAME

ELECTRIC STRIKE

UL LISTED MAGLOCKS

ACCESS CONTROL

APPLICATIONS

• Healthcare
• Airports
• Retail / Wholesale

• Education
• Government
• Museums / Galleries

DOOR COMPATIBILITY

DOOR FRAME TYPE			DOOR LOCK TYPE
Narrowline Aluminum	Hollow Metal	Wood	Narrowline Aluminum	Cylindrical	Mortise	Rim Exit Device

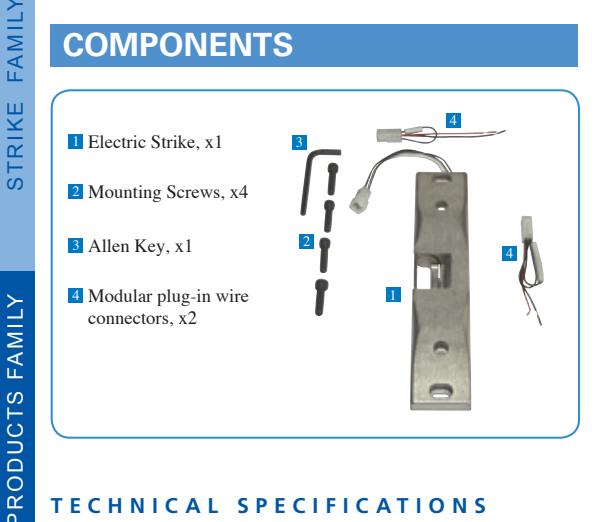

COMPONENTS

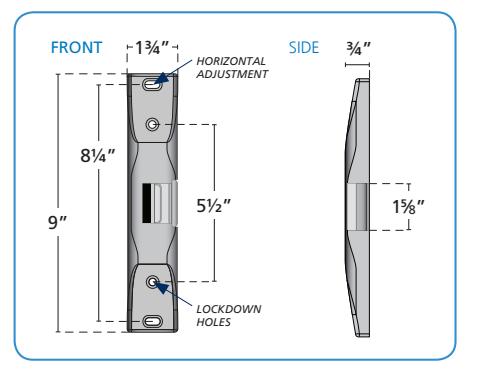

PRODUCT SPECS

TECHNICAL SPECIFICATIONS

MODE	VOLTAGE	DUTY	SOUND	AMPS †	OHMS‡
Fail Safe	12 VAC 12 VDC	Intermittent Continuous	Buzz Silent	0.30 0.50	22 22
Fail Safe	24 VAC 24 VDC	Intermittent Continuous	Buzz Silent	0.64 0.24	22 89
Fail Safe	11 VAC 16 VDC	Intermittent Intermittent	Buzz Buzz	0.28 0.50	22 22
Intermittent Duty with duty ratio 1:5	– Energized less than	1 minute	† Amp ratings are based on maximum current draw at +50°F and include initial power-up current
Continuous Duty	- Energized 1 minute	or more	‡ Nominal resistance at +77°F ±7% tolerance

Specifications are subject to change without prior notice.
