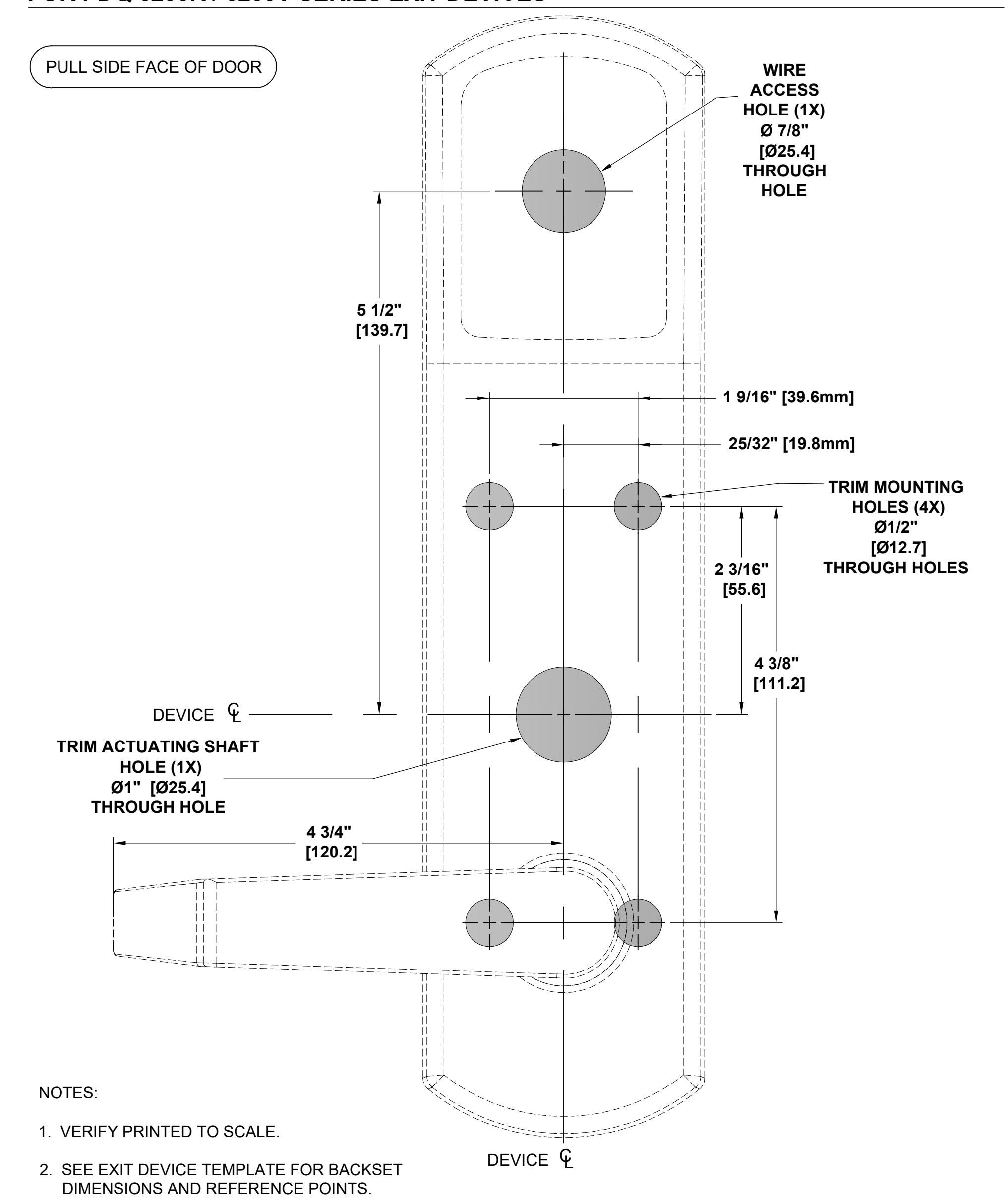

6EWS ESCUTCHEON TRIM

ALL 6EWS

FOR PDQ 6200R / 6200V SERIES EXIT DEVICES

TEMPLATE: 629321 REV. 2 2-18-2020

3. DIMENSIONS IN INCHES[mm].

4. HEIGHT OF ESCUTCHEON = 11-25/32" [299.2].

• 5. WIDTH OF ESCUTCHEON = 2-31/32" [75].
• 6. PROJECTION OF ESCUTCHEON = 15/16" [23.8] (EXCLUDING LEVER & CYLINDER COLLAR).
• 7. TOTAL TRIM PROJECTION = 3-1/8" [79.4].

PAGE 1 OF 2

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 866-874-3662 www.pdqlocks.com

6EWS ESCUTCHEON TRIM

ALL 6EWS

FOR PDQ 6200R / 6200V SERIES EXIT DEVICES

φ DEVICE

TEMPLATE: 629321 REV. 2 2-18-2020

866-874-3662

www.pdqlocks.com

BATTERY BOX PREP BATTERY BOX PREP FOR 6200 RIM DEVICE TRIM FOR 6200 SURFACE VERTICAL ROD DEVICE TRIM BATTERY BOX 2 3/16" [55.4mm] → BATTERY BOX MOUNTING MOUNTING HOLES (2X) HOLES (4X) SEE TABLE "A" SEE TABLE "A" 2 5/8" [66.7mm] 2 3/4" [69.9mm] 8 7/8" [225.4mm] 6 7/16" [163.5mm] ₽ DEVICE TABLE "A" METAL DOORS: USE 7/64" [2.8] PILOT DRILL WOOD DOORS: USE 1/8" [3.2] PILOT DRILL € DEVICE PAGE 2 OF 2 PUSH SIDE FACE OF DOOR PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603
