Rescue Stop & Center Hung Pivot Set Combos
Combine an ABH center hung pivot set with a doublelipped strike and rescue stop combo as a complete package.
Available in US32D, US32, US10B, US10, US3 and US4
1. Choose from one of the following pivot sets:
- 0127 Center Hung Pivot Set, Medium Duty, Side Jamb Mount
- 0128 Center Hung Pivot Set, Medium Duty, Floor Mount
2. Choose from one of the following double-lipped strike and rescue stop combos:
| Half-Moon Style | |||||
|---|---|---|---|---|---|
|
Rescue Stop &
Strike Combo |
Frame
Size |
Latch Type | Door Inset | ||
| CR4550 | 5-¾" | Cylindrical | Center Hung | ||
| CR4560 | 6-¾" | Cylindrical | Center Hung | ||
| CR4570 | 5-¾" | Cylindrical | ⅛" Inset | ||
| CR4580 | 6-¾" | Cylindrical | ⅛" Inset | ||
| Flipper Style | |||||
|---|---|---|---|---|---|
|
Rescue Stop &
Strike Combo |
Frame
Size |
Latch Type | Door Inset | ||
| CR4591 | 5-¾" | Cylindrical | Center Hung | ||
| CR4592 | 6-¾" | Cylindrical | Center Hung | ||
| CR4594 | 5-¾" | Cylindrical | ⅛" Inset | ||
| CR4593 | 6-¾" | Cylindrical | ⅛" Inset | ||
|
Model
Number |
= |
Center Hung
Pivot Set |
+ |
Rescue Stop &
Strike Combo |
|---|---|---|---|---|
| 012750 | = | 0127 | + | CR4550 |
| 012760 | = | 0127 | + | CR4560 |
| 012770 | = | 0127 | + | CR4570 |
| 012780 | = | 0127 | + | CR4580 |
| 012850 | = | 0128 | + | CR4550 |
| 012860 | = | 0128 | + | CR4560 |
| 012870 | = | 0128 | + | CR4570 |
| 012880 | = | 0128 | + | CR4580 |
| 012791 | = | 0127 | + | CR4591 |
| 012792 | = | 0127 | + | CR4592 |
| 012793 | = | 0127 | + | CR4593 |
| 012794 | = | 0127 | + | CR4594 |
| 012891 | = | 0128 | + | CR4591 |
| 012892 | = | 0128 | + | CR4592 |
| 012893 | = | 0128 | + | CR4593 |
| 012894 | = | 0128 | + | CR4594 |

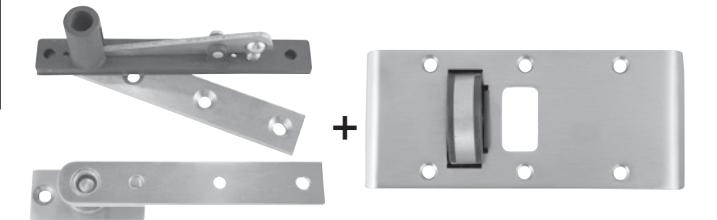

012850 - Rescue Stop & Pivot Set Combos

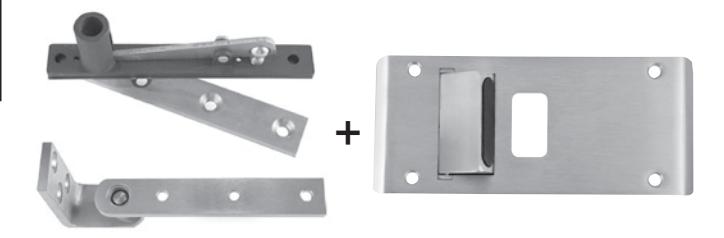

012792 - Rescue Stop & Pivot Set Combos
