PRICE LIST 2018
| ELECTROMAGNETS | 1 |
| ELECTRIC STRIKES | 10 |
| EXIT DEVICES | 16 |
| MISC. ACCESS CONTROL | 20 |
| BLUETOOTH | 22 |
| TERMS & CONDITIONS | 23 |
ROFU's Shear Lock range includes 8031-002 Monitored Shear Lock and 8035 &
8035-002 Mini Shear Lock . All of which are fail safe and 12/24 VDC selectable, designed for dual swinging interior doors and can be installed in horizontal or vertical position. Both 8031-002 and 8035-002 feature monitoring and bond sensor functions.
| MODEL | DESCRIPTION | HOLDING FORCE | UL | MOUNTING | PRICE |
|---|---|---|---|---|---|
| 8031-002 | Shear Lock, Monitored | 2200LB | Mortise | 800 | |
| 8035 | Mini Shear Lock | 1200LB | SECURITY | Mortise/Surface | 550 |
| 8035-002 | Mini Shear Lock, Monitored | 1200LB | SECURITY | Mortise/Surface | 650 |

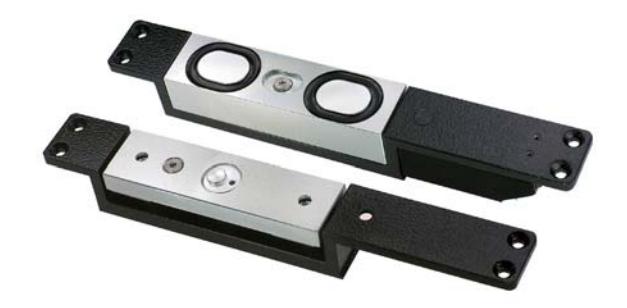

8031-002

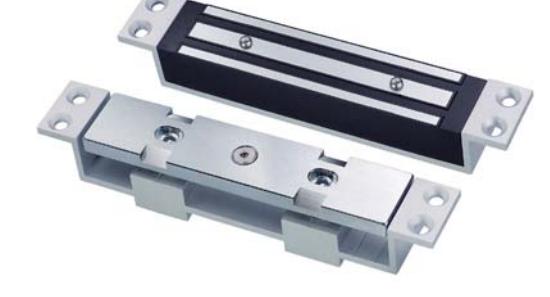

8035

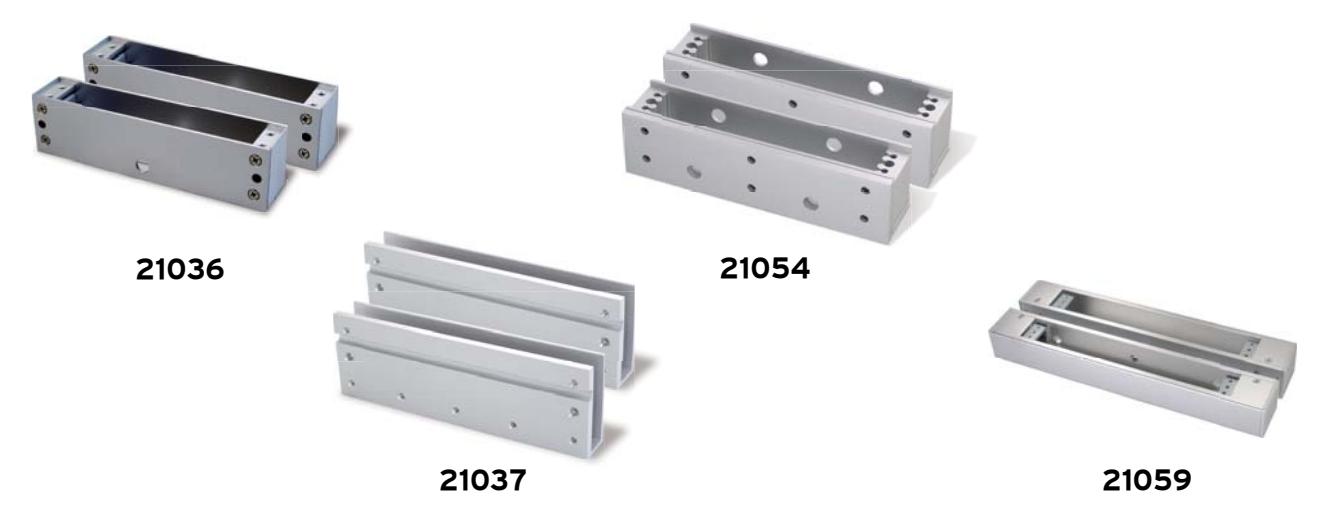

OPTIONAL BRACKETS
| MODEL | DESCRIPTION | FOR MODEL | PRICE |
|---|---|---|---|
| 21036 | Surface Mount Housings (Pair) | 8035/-002 | 150 |
| 21037 | U-Brackets (pair) for use with 21036 | 8035/-002 | 120 |
| 21054 | Tamperproof Housings (Pair) | 8035/-002 | 150 |
| 21059 | Surface Mount Housings (Each) | 8031-002 | 150 |
All Prices in U.S. Dollars

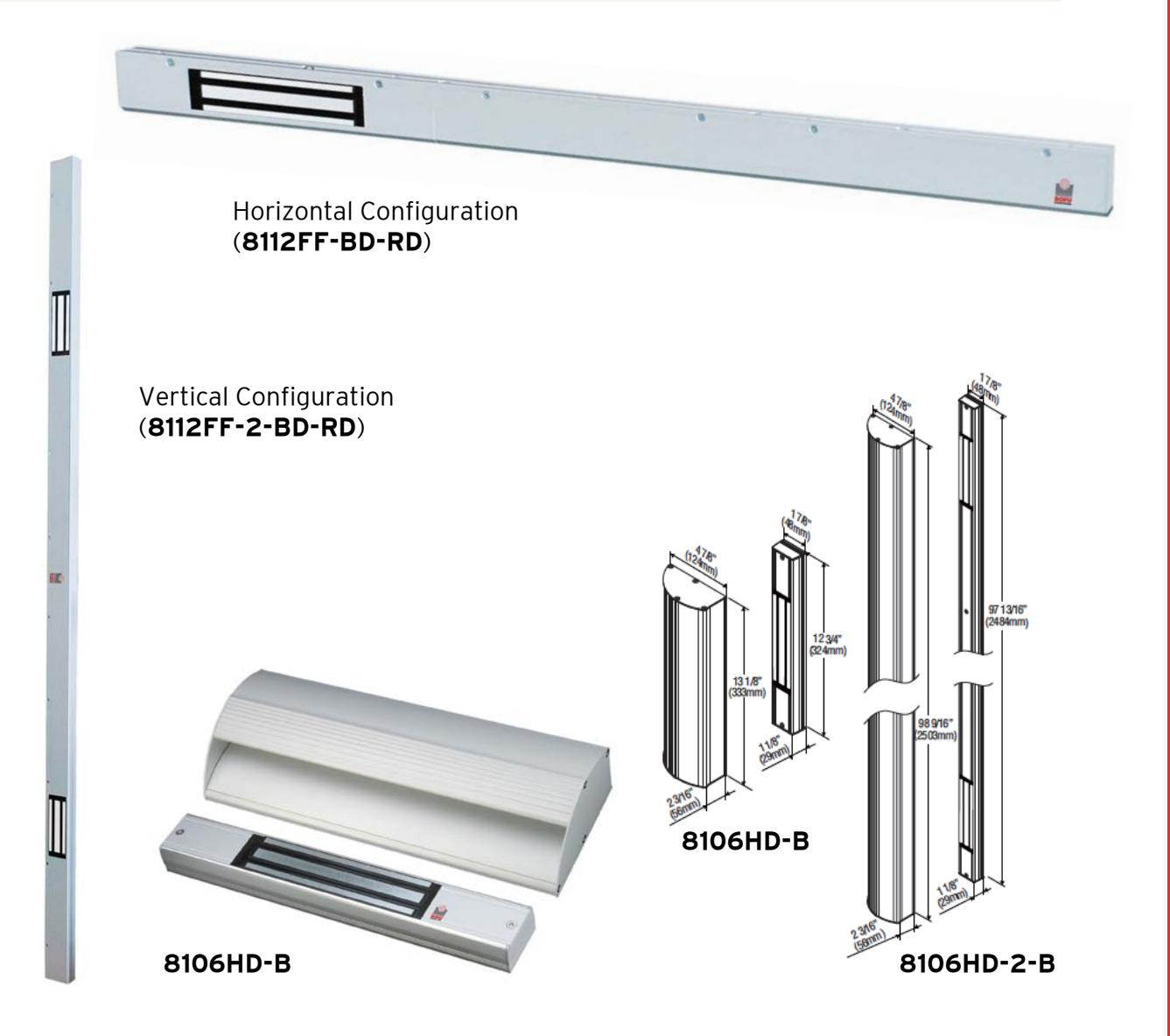

HANDLE & FULL LENGTH LOCKS
8106HD Models feature a new design which encloses armature plate in a door handle. The series offers single and double magnet options, both with a holding force of 600LB per single magnet.
8122FF Full Length Electromagnets are equipped with a base board and a security cover. Single magnet 8122FF-BD-RD is 45" in length for horizontal configuration with handings that can easily be reversed. Double magnet 8122FF-2-BD-RD is 96" in length and is for vertical configuration. Both magnets have a holding force of 1200LB per single magnet.
| MODEL | DESCRIPTION | HOLDING FORCE | PRICE |
|---|---|---|---|
| 8106HD-B | Single Magnet with Handle | 600LB | 480 |
| 8106HD-2-B | Double Magnet with Handle | 2X600LB | 1600 |
| 8112FF-BD-RD | Full Length Single Magnet | 1200LB | 690 |
| 8112FF-2-BD-RD | Full Length Double Magnet | 2X1200LB | 1400 |

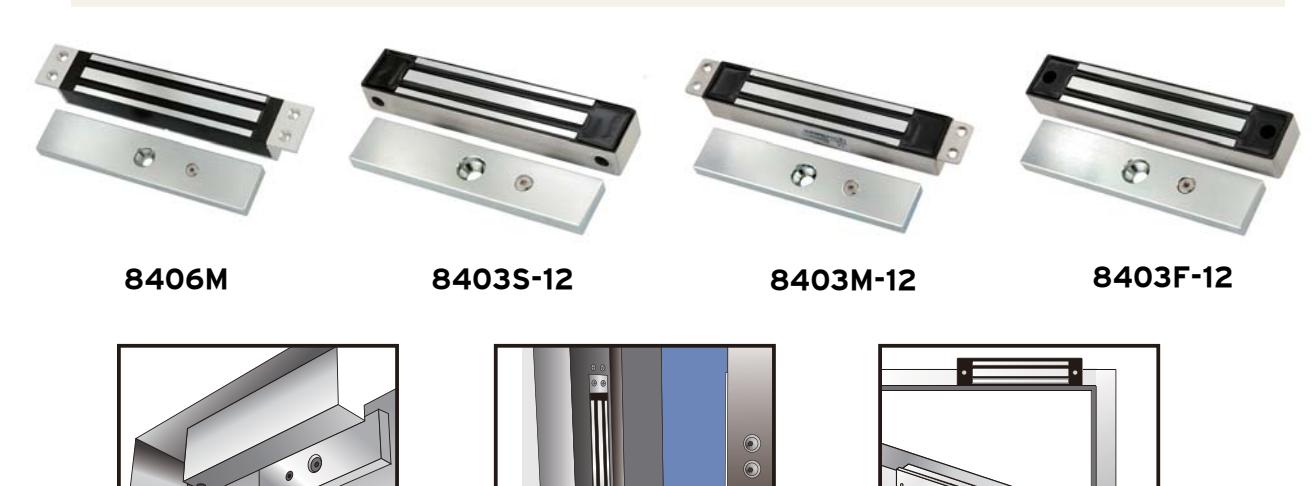

MICRO & MINI ELECTROMANETS
8406M Mini Sliding Door Magnets (formerly known as 8000) is fail safe and 12/24VDC selectable. It is designed for indoor use and for mortise installation into the jamb.
8403 Micromagnets (formerly known as 8003) is fail safe, designed for indoor use and available in 3 different mounting versions. Housing of the magnet is made of nickel plated steel to withstand heavy duty use.
| MODEL | DESCRIPTION | HOLDING FORCE | MOUNTING | PRICE |
|---|---|---|---|---|
| 8406M | Sliding Door Magnet | 600LB | Mortise | 300 |
| 8403S-12 | Micro Magnet | 300LB | Standard | 240 |
| 8403M-12 | Micro Magnet | 300LB | Mortise | 240 |
| 8403F-12 | Micro Magnet | 300LB | Front | 240 |
OPTIONAL BRACKETS
| MODEL | DESCRIPTION | FOR MODEL | PRICE |
| 20918 | Mounting Plate for 8403S-12 | 8403S-12 | 30 |
| 20925 | Armature Mounting Bracket for Wood Jambs | 8406M | 40 |
| 21100 | Magnet Mounting Housing | 8406M | 160 |
| 21110 | Armature Plate Mounting Housing | 8406M | 200 |
8403S-12 8403M-12 8403F-12
KEYHOLE MOUNTING
The 8500 Series Electromagnets replace 8011 Series while offering the same functionality.
All of the magnets in the range are 12/24VDC selectable, fail safe, suitable for indoor use, featuring anti-residual magnetism design and keyhole mounting for ease of installation.
| MODEL | DESCRIPTION | HOLDING FORCE | PRICE |
|---|---|---|---|
| 8512-LC | Standard Single Magnet | 1200LB | 330 |
| 8512-LC US40 | Standard Single Magnet (US40) | 1200LB | 370 |
| 8512-20993 | Oklahoma Special w/ Specifically Designed PC Board | 1200LB | 350 |
| 8512-B | Standard Single Magnet, Bond Sensor | 1200LB | 380 |
| 8512-2-B | Standard Double Magnet, Bond Sensor | 2X1200LB | 720 |
| 8512-2-B US40 | Standard Double Magnet, Bond Sensor (US40) | 2X1200LB | 760 |
| 8512-DE | Standard Single Door, Delayed Egress | 1200LB | 700 |
8512-LC
8512-LC US40
OPTIONAL BRACKETS
| MODEL | DESCRIPTION | FOR MODEL | PRICE |
|---|---|---|---|
| 20915 | Split Armature Plate (Pair) | 8512-LC | 95 |
| 20930 | 1/4" Spacer / Replacement Mounting plate | 8512 Models | 44 |
| 20931 | 1/4" Spacer / Replacement Mounting plate (US40) | 8512 Models | 44 |
| 20932 | 1/4" Spacer / Replacement Mounting plate | 8512-2-B | 88 |
| 20933 | 1/4" Spacer / Replacement Mounting plate (US40) | 8512-2-B | 88 |
| 20936 | Stainless Steel Mounting Plate | 8512 Models | 62 |
| 20934 | 1/2" Spacer | 8512 Models | 50 |
| 21031 | Z-Brackets for 8512 Models | 8512 Models | 150 |
| 21031 US40 | Z-Brackets for 8512 Models (US40) | 8512 Models | 150 |
| 21033 | Z-Brackets for 8512-2-B | 8512-2-B | 300 |
| 21033 US40 | Z-Brackets for 8512-2-B (US40) | 8512-2-B | 300 |

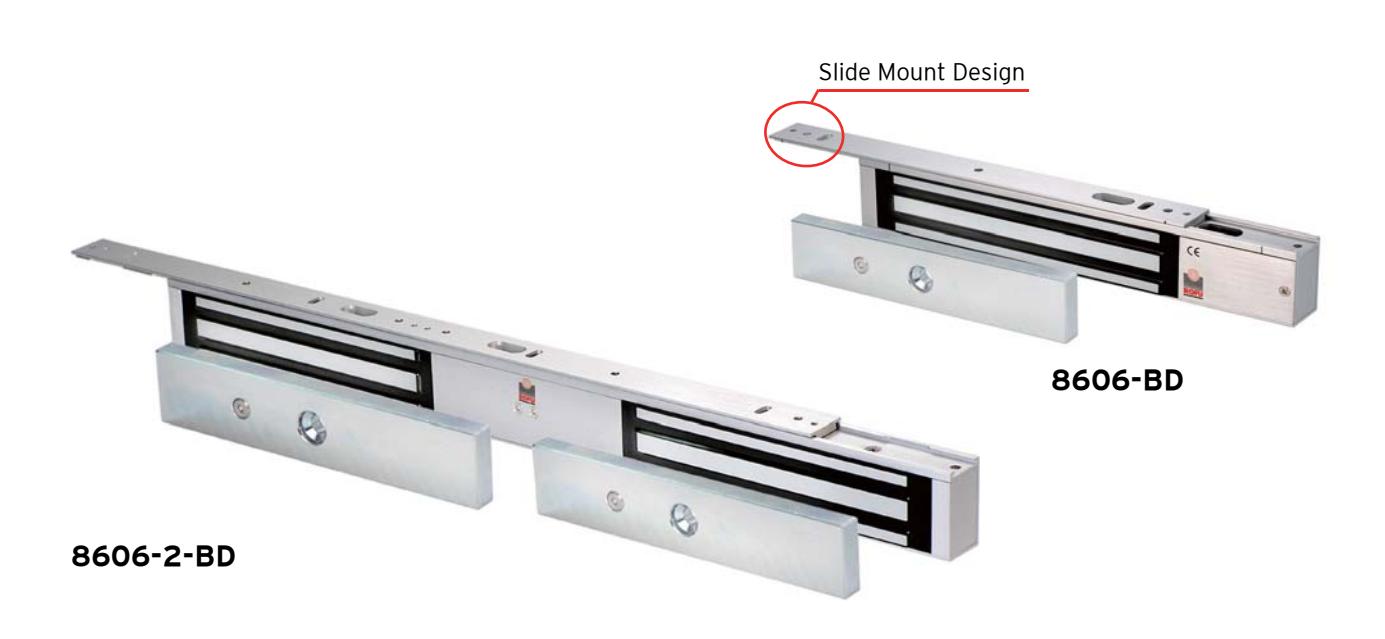

SLIDE MOUNT ELECTROMAGNETS
The 8600 Series Electromagnets feature a patented design for safer installation and are UL listed for use with a fire rating of 3/4 hours on swinging type fire doors.
All in the range are 12/24VDC selectable, fail safe, suitable for indoor use with anti-residual magnetism design. The range also offers optional bond sensor and door status features.
| MODEL | DESCRIPTION | HOLDING FORCE | UL | PRICE |
|---|---|---|---|---|
| 8606-BD | Mini Single Magnet, Bond Sensor & Door Status | 600LB | R | 370 |
| 8606-BD US40 | Mini Single Magnet, Bond Sensor & Door Status (US40) | 600LB | R | 410 |
| 8608-BD | Midi Single Magnet, Bond Sensor & Door Status | 800LB | R | 400 |
| 8612-LC | Standard Single Magnet | 1200LB | R | 360 |
| 8612-LC US40 | Standard Single Magnet (US40) | 1200LB | R | 400 |
| 8612-BD | Standard Single Magnet, Bond Sensor & Door Status | 1200LB | R | 450 |
| 8612-BD US40 | Standard Single, Bond Sensor & Door Status (US40) | 1200LB | R | 490 |
| 8606-2-BD | Mini Double Magnet, Bond Sensor & Door Status | 2X600LB | R | 740 |
| 8606-2-BD US40 | Mini Double, Bond Sensor & Door Status (US40) | 2X600LB | R | 780 |
| 8608-2-B | Midi Double Magnet, Bond Sensor | 2X800LB | R | 710 |
| 8608-2-BD | Midi Double Magnet, Bond Sensor & Door Status | 2X800LB | R | 800 |
| 8612-2-BD | Standard Double Magnet, Bond Sensor & Door Status | 2X1200LB | R | 900 |
| 8612-2-BD US40 | Standard Double, Bond Sensor & Door Status (US40) | 2X1200LB | R | 980 |
OPTIONAL BRACKETS
Optional brackets & accessories compatible with 8600 Series Electromagnets .
| MODEL | DESCRIPTION | FOR MODEL | PRICE |
| 20915 | Split Armature Plate (Pair) | 8612-LC | 95 |
| 20921 | 1/2" Spacer | 8606-BD | 50 |
| 20934 | 1/2" Spacer | 8612 Models | 50 |
| 21030N | Z-Brackets for 8606-BD | 8606-BD | 120 |
| 21031N | Z-Brackets for 8612 Models | 8612 Models | 150 |
| 21031N US40 | Z-Brackets for 8612 Models (US40) | 8612 Models | 180 |
| 21032N | Z-Brackets for 8606-2-BD | 8606-2-BD | 250 |
| 21033N | Z-Brackets for 8612-2-BD | 8612-2-BD | 300 |
| 21033N US40 | Z-Brackets for 8612-2-BD US40 | 8612-2-BD US40 | 320 |
| 21038N | Z-Brackets for 8608-B/BD | 8608-B/BD | 120 |
1/2" Spacer (20921 & 20934)

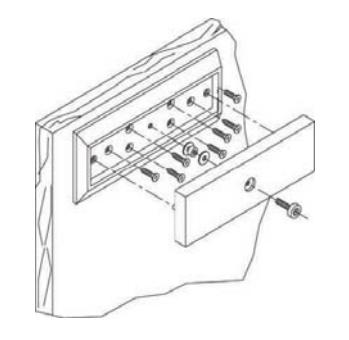

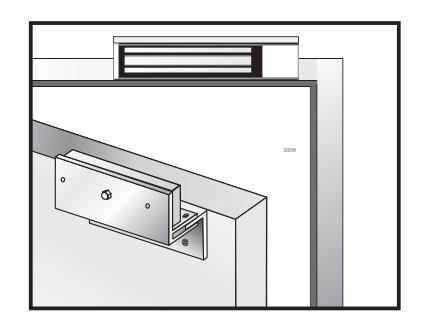

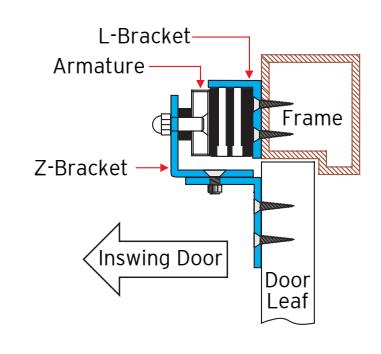

Installation of Z-Brackets (21030N, 21031N & 21038N)
Split Armature Plate, 20915 (Includes Hardware Pack)

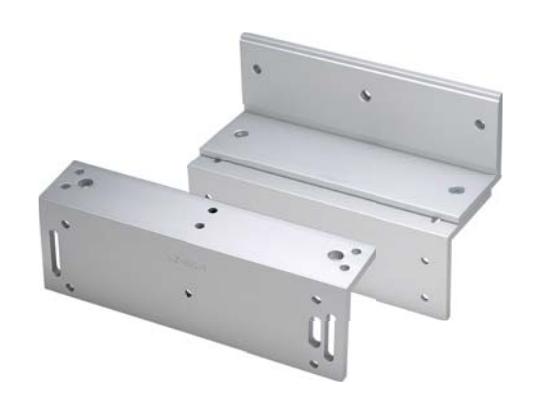

Z-Bracket Sets (21030N, 21031N & 21038N)
ELECTROMAGNETIC GATE LOCKS
8700 Series Gate Lock with Conduit Fitting (formerly known as 8040 Models) are fail safe, dual voltage (12/24VDC) with optional monitoring functions (8706FT-B and 8712FT-B). The gate locks are suitable for indoor and outdoor use.
Optional brackets are available for both 8706FT and 8712FT Models.
| MODEL | DESCRIPTION | HOLDING FORCE | UL | PRICE |
|---|---|---|---|---|
| 8706FT-B | Gate Magnetic Lock (Monitored, 12/24VDC) | 600LB | UL) US | 370 |
| 8712FT | Gate Magnetic Lock (12/24VDC) | 1200LB | UL) US | 400 |
| 8712FT-B | Gate Magnetic Lock (Monitored, 12/24VDC) | 1200LB | UL) US | 420 |
| 21034F | L-Brackets (Pair) for Slide Gate Installation for 8706 Mode | els | 120 | |
| 210345 | L-Bracket for Face Mount Installation for 8706 Models | 60 | ||
| 21035FS | L-Brackets (Pair) for 8712 Models | 140 |
8706FT-B
8712FT / 8712FT-B
21034 & 21035
MAGNETIC DOOR HOLDERS
8900 Series Magnetic Door Holders come in 3 configurations and are voltage specific (12 or 24 VAC/VDC).
| MODEL | DESCRIPTION | HOLDING FORCE | UL | PRICE |
|---|---|---|---|---|
| 8900-12 | 12V - Flush Mount | 80LB | UL) US | 130 |
| 8900-24 | 24V - Flush Mount | 80LB | UL) US | 130 |
| 8910-12 | 12V - Wall Mount | 80LB | UL) US | 190 |
| 8910-24 | 24V - Wall Mount | 80LB | UL) US | 190 |
| 8920-12 | 12V - Floor Mount | 80LB | UL) US | 240 |
| 8920-24 | 24V - Floor Mount | 80LB | UL) US | 240 |
| 8999 | Spacer Kit | 40 | ||
| 20916 | Replacement Armature Plate & Swivel | 40 |
8900
8910
8920

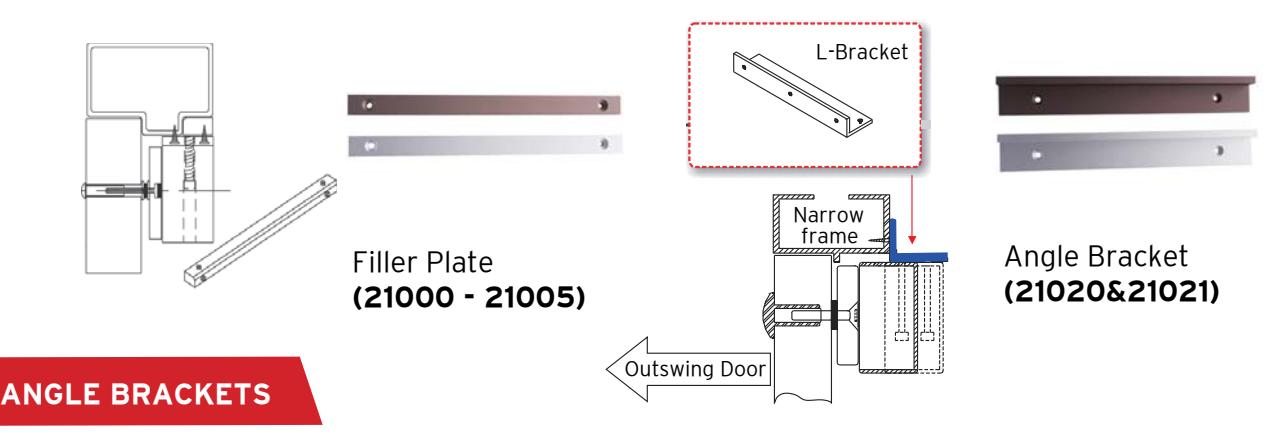

FILLER PLATES
| MODEL | DESCRIPTION | FINISH | FOR MODEL | PRICE |
|---|---|---|---|---|
| 21000 | 1/2" x 3/4" (order a pair for double) | US40 | 8512/8612 Models | 35 |
| 21001 | 1/2" x 3/4" (order a pair for double) | 8512/8612 Models | 35 | |
| 21004 | 5/8" x 3/4" (order a pair for double) | US40 | 8512/8612 Models | 35 |
| 21005 | 5/8" x 3/4" (order a pair for double) | 8512/8612 Models | 35 |
| MODEL | DESCRIPTION | FINISH | FOR MODEL | PRICE |
|---|---|---|---|---|
| 21020 | 1" x 1 1/2" x 5'16" (order a pair for double) | US40 | 8512/8612 Models | 60 |
| 21021 | 1" x 1 1/2" x 5'16" (order a pair for double) | 8512/8612 Models | 60 |
ARMATURE PLATES & HOUSINGS
| MODEL | DESCRIPTION | FINISH | FOR MODEL | PRICE |
|---|---|---|---|---|
| 20915 | Split Armature Plate Kit (Pair) | 8512/8612 (LC only) | 95 | |
| 21050 | Armature Mounting Bracket | 8512/8612 Models | 40 | |
| 21070 | Armature Housing | 8606-BD | 100 | |
| 21071 | Armature Housing | US40 | 8606-BD | 100 |
| 21080 | Armature Housing | 8512/8612 (LC Only) | 100 | |
| 21081 | Armature Housing | US40 | 8512/8612 (LC Only) | 100 |

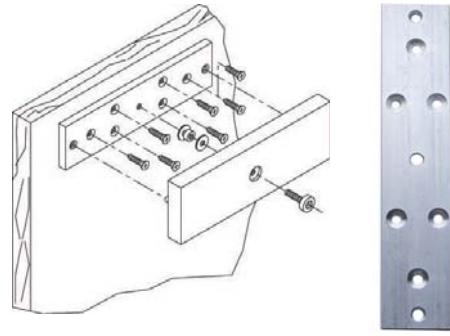

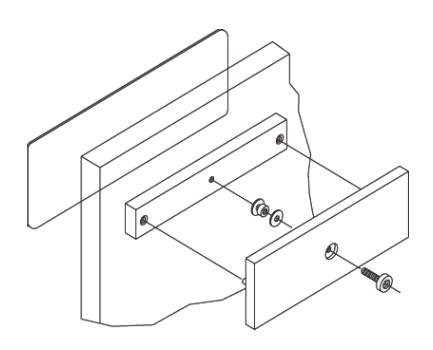

Armature Mounting Bracket (21050) Armature Housing (21070&21080)
GLASS DOOR INSTALLATIONS
| MODEL | DESCRIPTION | FINISH | FOR MODEL | PRICE |
| 21055 | Armature Mounting Bracket | 8606/8512/8612 | 50 | |
| 21056 | Armature Mounting Bracket | US40 | 8606/8512/8612 | 70 |
| 21047 | Armature Housing for Glass Door | 8606-BD | 100 | |
| 21048 | Armature Housing for Glass Door | US40 | 8606-BD | 100 |
| 21057 | Armature Housing for Glass Door | 8512/8612 Models | 125 | |
| 21058 | Armature Housing for Glass Door | US40 | 8512/8612 Models | 140 |
| 21076 | U-Bracket for Armature Plate over Glass Door | 8606-BD | 80 | |
| 21077 | U-Bracket for Armature Plate over Glass Door | 8512/8612 Models | 80 | |
| 21095N-In | 2-U-Bracket&Z-Bracket for Full Glass Door | 8606-BD | 350 | |
| 21095N-Out | 2-U-Bracket&L-Bracket for Full Glass Door | 8606-BD | 200 | |
| 21990 | Glue Kit for Glass Door Installation | 200 |

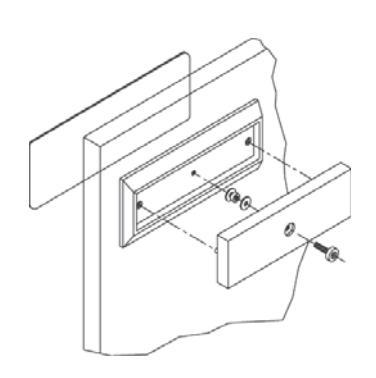

Armature Mounting Bracket for Glass Doors (21055&21056)
Armature Mounting Housing for Glass Doors (21047, 21048, 21057&21058)
U-Bracket for Installation of Armature Plate Over Glass Door (21076N & 21077)

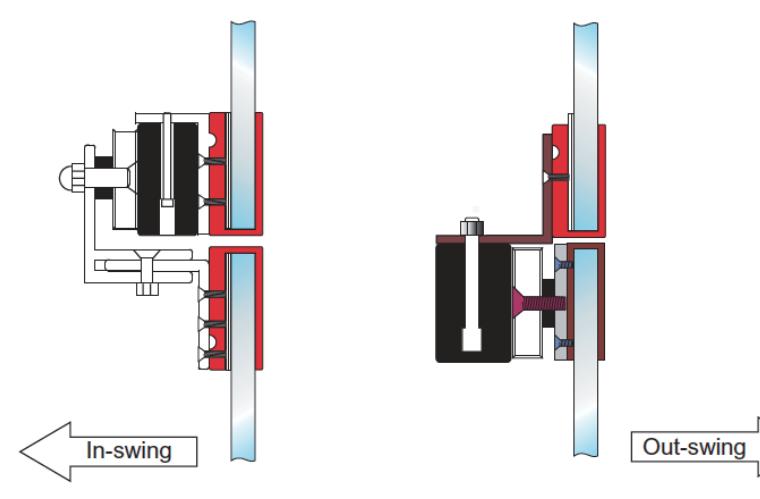

Bracket Kit for Mounting Mini Magnetic Lock on Full Glass Door and Frame.
(21095N-In & 21095N-Out)

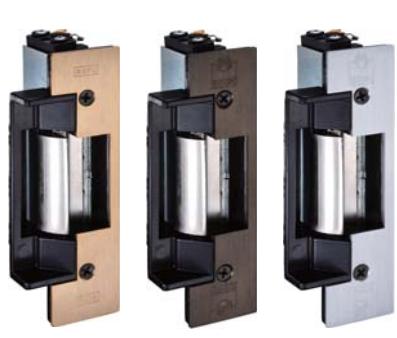

1500 STRIKES
1500 Series Strikes are standard duty, fail secure electric strikes, ideal for cylindrical locksets for commercial and residential use, new and retrofit installation.
Please Specify Voltage and Finish (e.g. 1501-08 US4)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
|---|---|---|---|---|
| 1501 | 1 1/4" x 5 7/8", Offset Opening | US26D or US4 | Wood | 130 |
| 1505 | 1 1/4" x 5 7/8", Offset Opening | US28 or US4 | Wood | 130 |
| 1506 | 1 1/8" x 2 3/4", Center Opening | US32D | Metal/Alum. | 110 |
| 1506 KIT | 1 1/8" x 2 3/4", Center Opening | US28/US32D | Metal/Alum. | 120 |
| 1507 | 1 1/8" x 2 3/4", Center Opening | US28 or US4 | Metal/Alum. | 110 |
| 1508 | 1 1/8" x 5 7/8", Center Opening | US28 | Metal/Wood/Alum. | 120 |
| 1509 | 1 7/16" x 7 15/16", Center Opening | US28 | Metal/Wood/Alum. | 120 |
| 1512 | Side Mount | Gray | Metal/Wood/Alum. | 120 |
| 1512F | Front Mount | Gray | Metal/Wood/Alum. | 120 |

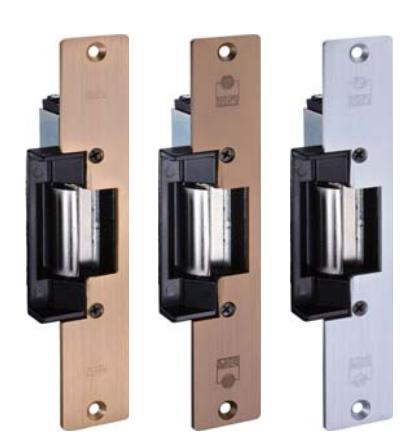

Solenoid mounts to faceplate from front with separate spacers (1501 US4 & US26D)
Solenoid mounts to faceplate from side with integrated spacers (1505 US4 & US28)
(1507 US4 & US28)

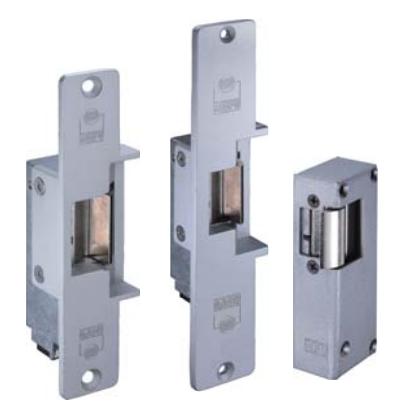

1508 (Left) 1509 (Middle) 1512 (Right)

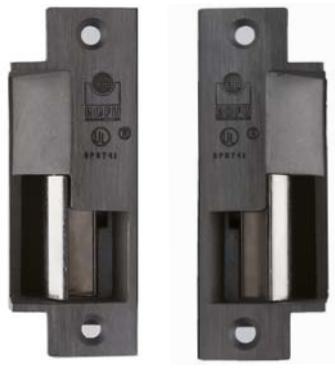

1506
(No cut) (Low cut)
1506KIT (Includes both faceplates)
1500 SOLENOIDS ONLY
Replacement Solenoids
| MODEL | DESCRIPTION | PRICE |
| 1500-01 | 8-16VAC / 3-6VDC, Intermittent Duty, Solenoid Only | 100 |
| 1500-05 | 12VAC / VDC, Solenoid Only | 100 |
| 1500-08 | 24VAC / VDC ,Solenoid Only | 100 |

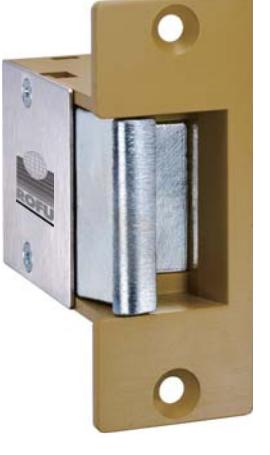

1400 STANDARD DUTY STRIKES
1400 Series Standard Duty Electric Strikes are fail secure and for use with mortise and cylindrical locksets, for commercial and residential, new and retrofit uses.
Please Specify Voltage and Finish (e.g. 1401-05 US26)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
|---|---|---|---|---|
| 1401 | 1 1/4" x 5 7/8" | US26D or US4 | Wood | 140 |
| 1402 | 1 1/4" x 4 7/8" | US28, US4 or US10B | Metal/Wood/Alum. | 140 |
| 1403 | 1 1/4" x 6 7/8" | US28 or US10B | Metal/Alum. | 140 |
| 1404 | 1 7/16" x 7 15/16" | US28, US4 or US10B | Metal/Wood/Alum. | 140 |
1401/3401/1701 (US4 & US26D)
1402/3402/1702 (US4, US10B & US26D)
1403/3403/1703 (US10B & US26D)
1404/3404/1704 (US4, US10B & US26D)

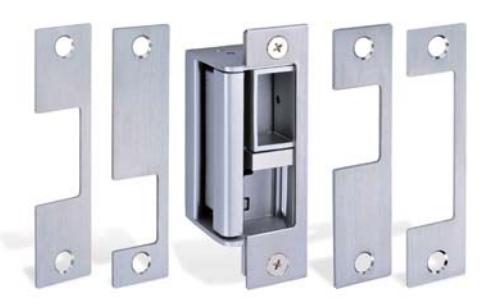

1430/3430LH & RH 1440/3440LH & RH

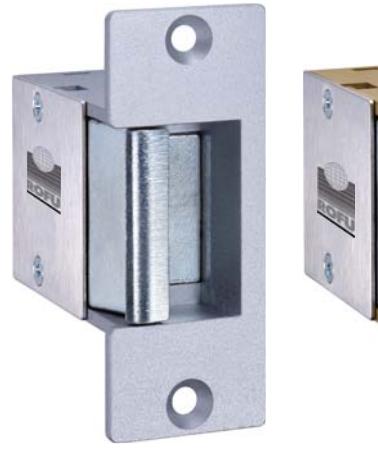

1400 HIGH SECURITY STRIKES
1400 Series High Security Electric Strikes are fail secure and for use with mortise locksets, for commercial and residential, new and retrofit uses.
Please Specify Handing, Voltage and Finish (e.g. 1430-05/LUS32, or 1470-01B/LUS10)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
| 1430 LH/RH | 1 1/4" x 4 7/8", Handed | US32D, US4 or US10B | Metal/Alum. | 380 |
| 1440 LH/RH | 1 1/4" x 4 7/8", Handed | US32D, US4 or US10B | Metal/Alum. | 380 |
| 1450 | 1 1/4" x 4 7/8", Centerline Opening | US32D, US4 or US10B | Metal/Alum. | 380 |
| 1460 | 1 3/8 x 9", Centerline Opening | US32D | Metal/Wood/Alum. | 420 |
| 1460 | US10B or US4 | 450 | ||
| 1460B/ LH/RH | 1 3/8 x 9", w/Bolt Cut Out | US32D | 460 | |
| 1460B/ LH/RH | US10B | 490 | ||
| 1470 | 1 3/8 x 9", Centerline Keeper Opening | US32D | Metal/Wood/Alum. | 420 |
| 1470 | US10B or US4 | 450 | ||
| 1470B/ LH/RH | 1 3/8 x 9", w/Bolt Cut Out | US32D | 460 | |
| 1470B/ LH/RH | US10B | 490 |
1450 1460/3460 & 1460/3460B/LH 1470/3470B/LH & RH
1400 SOLENOIDS ONLY
Replacement Solenoids (please specify handing or centerline)
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 1400-01LH/RH | 8-16VAC / 3-6VDC Solenoid Only (Left or Right Hand) | 120 |
| 1400-05LH/RH | 12VAC / VDC Solenoid Only (Left or Right Hand) | 120 |
| 1400-08LH/RH | 24VAC / VDC Solenoid Only (Left or Right Hand) | 120 |
| 1400-01G | 8-16VAC / 3-6VDC Solenoid Only (Centered) | 120 |
| 1400-05G | 12VAC / VDC Solenoid Only (Centered) | 120 |
| 1400-08G | 24VAC / VDC Solenoid Only (Centered) | 120 |
3400 STANDARD DUTY STRIKES
3400 Series Standard Duty Electric Strikes are fail safe and for use with mortise and cylindrical locksets, for commercial and residential, new and retrofit uses.
Please Specify Voltage and Finish (e.g. 3401-06 US26)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
|---|---|---|---|---|
| 3401 | 1 1/4" x 5 7/8" | US26D or US4 | Wood | 160 |
| 3402 | 1 1/4" x 4 7/8" | US28, US4 or US10B | Metal/Wood/Alum. | 160 |
| 3403 | 1 1/4" x 6 7/8" | US28 or US10B | Metal/Alum. | 160 |
| 3404 | 1 7/16" x 7 15/16" | US28, US4 or US10B | Metal/Wood/Alum. | 160 |
3400 HIGH SECURITY STRIKES
3400 Series High Security Electric Strikes are fail safe and for use with mortise locksets, for commercial and residential, new and retrofit uses.
Please Specify Handing, Voltage and Finish (e.g. 3450-06 US4 or 3460-06B/LUS10)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
| 3430 LH/RH | 1 1/4" x 4 7/8", Handed | US32D, US4 or US10B | Metal/Alum. | 380 |
| 3440 LH/RH | 1 1/4" x 4 7/8", Handed | US32D, US4 or US10B | Metal/Alum. | 380 |
| 3450 | 1 1/4" x 4 7/8", Centerline Opening | US32D, US4 or US10B | Metal/Alum. | 380 |
| 3460 | 1 3/8 x 9", Centerline Opening | US32D | Metal/Wood/Alum. | 420 |
| 3460 | US10B or US4 | 450 | ||
| 3460B/ LH/RH | 1 3/8 x 9", w/Bolt Cut Out | US32D | 460 | |
| 3460B/ LH/RH | US10B | 490 | ||
| 3470 | 1 3/8 x 9", Centerline Keeper Opening | US32D | Metal/Wood/Alum. | 420 |
| 3470 | US10B or US4 | 450 | ||
| 3470B/ LH/RH | 1 3/8 x 9", w/Bolt Cut Out | US32D | 460 | |
| 3470B/ LH/RH | US10B | 490 |
3400 SOLENOIDS ONLY
Replacement Solenoids
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 3400-06L | 12VDC Solenoid Only (Left Hand) | 150 |
| 3400-06R | 12VDC Solenoid Only (Right Hand) | 150 |
| 3400-09L | 24VDC Solenoid Only (Left Hand) | 150 |
| 3400-09R | 24VDC Solenoid Only (Right Hand) | 150 |
The 1700 Series Strikes are fail secure featuring adjustable keepers, suitable for cylindrical locksets only. The 1700 Series shares the same faceplates as the 1400/3400 Series.
Please Specify Voltage and Finish (e.g. 1701-05 US26)
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | PRICE |
|---|---|---|---|---|
| 1701 | 1 1/4" x 5 7/8" | US26D or US4 | Wood | 140 |
| 1702 | 1 1/4" x 4 7/8" | US28, US4 or US10B | Metal/Wood/Alum. | 140 |
| 1703 | 1 1/4" x 6 7/8" | US28 or US10B | Metal/Alum. | 140 |
| 1704 | 1 7/16" x 7 15/16" | US28, US4 or US10B | Metal/Wood/Alum. | 140 |
1700 SOLENOID ONLY
Replacement Solenoids
| MODEL | DESCRIPTION | PRICE |
| 1700-01 | 8-16VAC / 3-6VDC Solenoid Only | 120 |
| 1700-05 | 12 VDC Continuous, Solenoid Only | 120 |
| 1700-07 | 24 VAC/VDC Intermitten, Solenoid Only | 120 |
| 1700-08 | 24 VDC Continuous, Solenoid Only | 120 |
| 1700-14 | 48 VDC Continuous, Solenoid Only | 120 |
1106 SERIES GATE LOCK
| MODEL | DESCRIPTION | FINISH | PRICE |
|---|---|---|---|
| 1106-01 | Gate Electric Strike for Gate, 8-16VAC | US28/US4 | 120 |
| 1106-02 | Gate Electric Strike for Gate, 12/24 VAC / VDC | US28 | 120 |
1106 Series Strikes are ROFU's latest weatherproof, fail secure electric strike for gate locks. One piece strike body made of cast zinc alloy, suitable for cylindrical and mortise locksets as well as hollow metal and wood frame doors.
The strike can be powered by VDC (continuous) and VAC (intermittent use, not exceeding 10 seconds).
2400 STRIKES
2400 Standard Duty / High Security Strikes
2400 Kit is field reversible from fail secure to fail safe, field selectable of 12VDC or 24VDC. 2400 Kit comes with two US32D faceplates: 11/4" x 47/8" and 17/16" x 7 15/16". Low profile depth of 11/4" overall with static strength of 1000LB.
| MODEL | DESCRIPTION | UL | PRICE |
| 2400 KIT | 12/24 VDC Electric Strike Kit | SECURITY ULSTED | 180 |
| 2402 JIG | Jamb Preparation for ANSI Sized Strike | 74 | |
| 5525 | 1" Lip Extension for 2400 Strikes | 35 | |
| 5550 | 2" Lip Extension for 2400 Strikes | 40 |
2400 Kit
2402 Jig
5525 5550
SPECIAL FEATURE STRIKES
| MODEL | DESCRIPTION | FINISH | DOOR TYPE | UL | PRICE |
|---|---|---|---|---|---|
| 2420 | No Cut Strike, 12/24 VDC | US32D | Metal/Wood/Alum |
SECURITY
UL LISTED |
180 |
| 2435 KIT | 12/24 VDC Strike Kit for Mortise Locks | US32D | Metal/Wood/Alum |
UL
UL USTED |
425 |
| 2460 | Rim Mount Strike, 12~28 VAC/VDC | Black | Metal/Alum | SECURITY | 480 |
| 2470 | Rim Mount Strike, 3/4" Pullman Latch | US32D | Metal/Alum |
SECURITY
UL LISTED |
450 |
| 2490 | Rim Mount Strike, 1/2" Pullman Latch | US32D | Metal/Alum | SECURITY | 475 |
2435 Kit, complete with five heavy duty stainless steel faceplates, is designed for mortise and cylindrical locksets. It is reversible for left hand or right hand installation.
2470
2420 No Cut Electric Strike, is designed with a special ramp that helps guide the latch in position. The strike is non-handed, dual voltage (12/24VDC), and field reversible from fail-secure to fail-safe.
2470 & 2490 Rim Mount Strike, are fully surface mount, fail-safe and fail-secure selectable on site, dual voltage (12/24 VDC) and for indoor use only.
9200 Series
Key Switches (SPDT) without Cylinder. All cover plates are 1/4" thick aluminum and supplied with 2 "Snake Eyes" security screws and wrench. UL Recognized Components.
Rating: 10A / 250V ; 15A / 125V Please Specify US28 or US40
| MODEL | STANDARD PLATE (3'' x 4 3/4'') | PRICE |
| 9200 | Momentary | 100 |
| 9201 | Momentary w/Bi-Colored LED | 110 |
| 9202 | w/ Pneumatic Time Delay | 320 |
| 9210 | Maintained | 100 |
| 9211 | Maintained w/Bi-Colored LED | 110 |
| MODEL | NARROW PLATE (1 5/8" x 4 3/4") | PRICE |
| 9220 | Momentary | 100 |
| 9221 | Momentary w/Bi-Colored LED | 110 |
| 9222 | w/ Pneumatic Time Delay | 320 |
| 9230 | Maintained | 100 |
9200 Series
9220 Series
9300 Series
Request to Exit (REX) Switches (DPDT). All cover plates are 1/4" thick aluminum and supplied with 2 "Snake Eyes" security screws and wrench. UL Recognized Components.
Please Specify US28 or US40
| MODEL | STANDARD PLATE (3'' x 4 3/4'') | PRICE |
|---|---|---|
| 9300 | Momentary, 1 Blue Button | 100 |
| 9301 | Momentary, 2 Blue Button | 130 |
| 9302 | Momentary, 3 Blue Button | 160 |
| 9303 | Momentary, 1 Blue Button w/ Time Delay Jumper(9965) | 140 |
| 9310 | Maintained, 1 Blue Button | 100 |
| 9350 | Illuminated w/9 Inserts, SPDT | 120 |
| MODEL | NARROW PLATE (1 5/8" x 4 3/4") | |
| PRICE | ||
| 9320 | Momentary, 1 Blue Button | 100 |
| 9321 | Momentary, 2 Blue Button | 130 |
| 9322 | Momentary, 3 Blue Button | 160 |
| 9323 | Momentary, 1 Blue Button w/ Time Delay Jumper(9965) | 140 |
9300
9350
Time Delay Jumper
ROFU
PRICE LIST 2018
1 1/2'' Red Mushroom (SPST) Buttons. All cover plates are 1/4'' thick aluminum and supplied with 2 ''Snake Eyes'' security screws and wrench. UL Recognized Components.
Please Specify US28 or US40
| MODEL | STANDARD PLATE (3'' x 4 3/4'') | PRICE | |
| 9400 | N/O Momentary | 150 | |
| 9401 | N/C Momentary | 150 | |
| 9410 | N/O Maintained | 200 | |
| 9411 | N/C Maintained | 200 | |
| MODEL | NARROW PLATE (1 5/8" x 4 3/4") | PRICE | |
| 9420 | N/O Momentary | 150 | |
| 9421 | N/C Momentary | 150 | |
| 9430 | N/O Maintained | 200 | |
| 9431 | N/C Maintained | 200 | |
9600 Series
2 3/8'' Red Mushroom (SPST) Buttons. All cover plates are 1/4" thick aluminum and supplied with 2 "Snake Eyes" security screws and wrench. UL Recognised Components.
Please Specify US28 or US40
| MODEL | STANDARD PLATE (3'' x 4 3/4'') | PRICE | |
|---|---|---|---|
| 9600 | N/O Momentary | 160 | |
| 9601 | N/C Momentary | 160 | |
| 9600-01 | N/O & N/C Momentary | 200 | |
| MODEL | NARROW PLATE (1 5/8" x 4 3/4") | PRICE | |
| 9620 | N/O Momentary | 160 | |
| 9621 | N/C Momentary | 160 | |
9700 Series
1 1/4" Red Flushed Head (SPST) with Metal Surround . All cover plates are 1/4" thick aluminum and supplied with 2 "Snake Eyes" security screws and wrench. UL Recognized Components.
Please Specify US28 or US40
| MODEL | STANDARD PLATE (3" x 4 3/4") | PRICE |
|---|---|---|
| 9700 | N/O Momentary | 120 |
| 9701 | N/C Momentary | 120 |
| MODEL | NARROW PLATE (1 5/8" x 4 3/4") | PRICE |
|---|---|---|
| 9720 | N/O Momentary | 120 |
| 9721 | N/C Momentary | 120 |
9800 Series

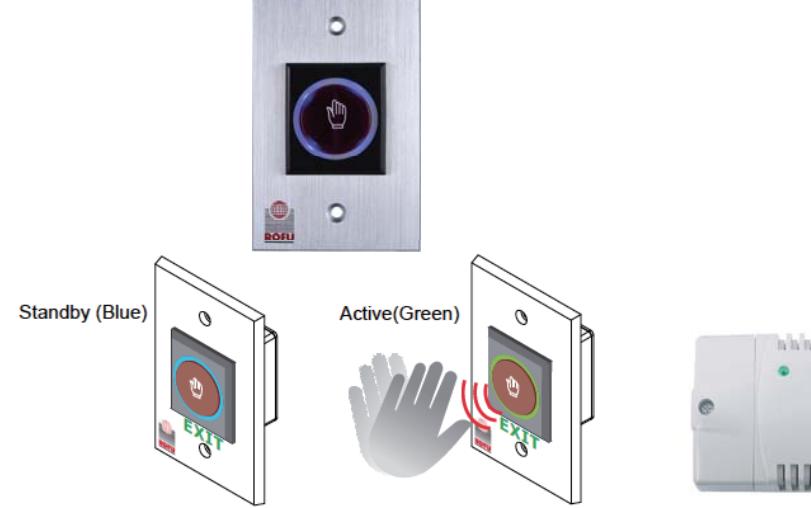

9800 Infrared Sensor Exit Button is a dual LED illuminated exit device that can directly control electromagnets or eletric strikes.

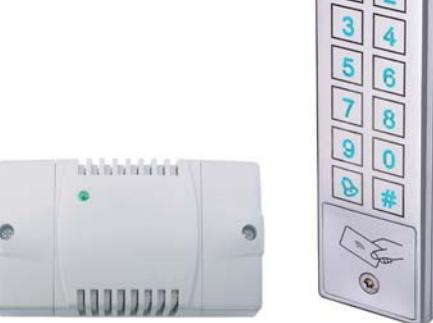

9860 Standalone Proximity Reader is a keypad and reader device which is complete with ROFU 9126T plug-in mini power supply. 9860 has 2 LEDs with 4 colors and a built-in buzzer.
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 9800 | Infrared Sensor Exit Button | 100 |
| 9860 | 12-24 VDC, Standalone Proximity Reader/Keypad with Power Supply | 350 |
| 9860 Card | Proximity Cards | 5 |
9500 Series

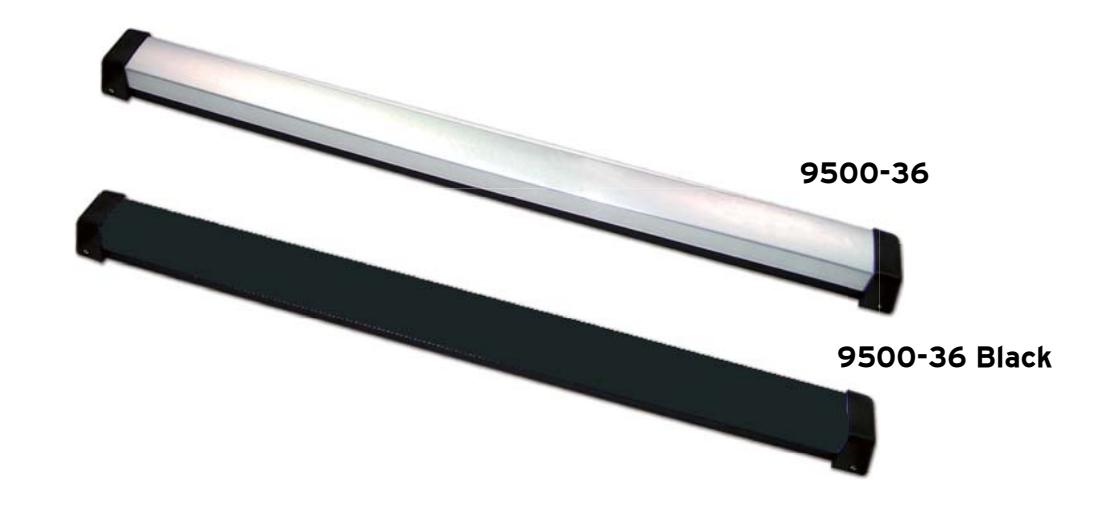

9500 Series Micro Switch Bar is non-latching and designed to release a magnetic lock when the bar is depressed.
Actual dimensions are 34 1/2" X 2 11/16" X 2 1/4", designed for a 36" door.
| MODEL | DESCRIPTION | PRICE |
| 9500-36 | Micro-Switch Bar US28 | 230 |
| 9500-36 Black | Micro-Switch Bar in Black | 230 |
| 9500X99 | Replacement End Caps Set (Top & Bottom) | 36 |
| 9500XPCB | Replacement PC Board | 36 |
| 9500 Cover | Replacement Top Cover | 75 |
| 9500-36DE | Micro-Switch Bar with Delay Egress Function | 520 |

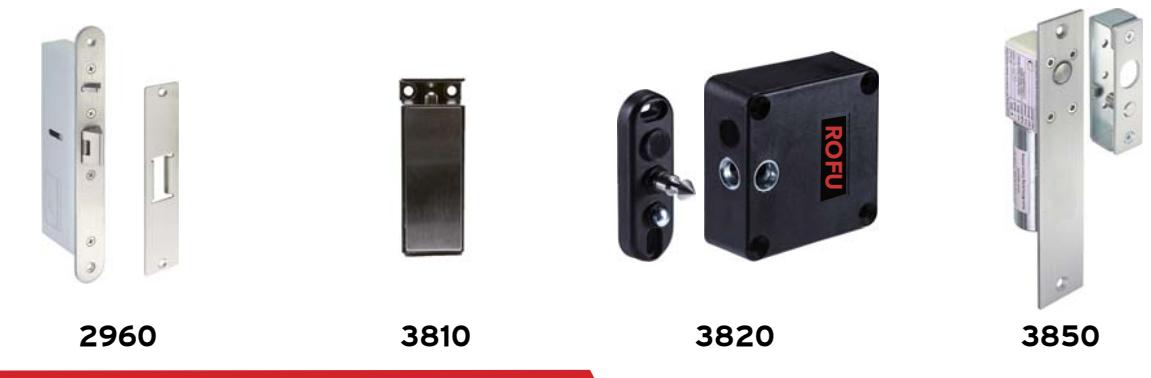

CABINET LOCK & OTHERS
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 2960 | Fail-Safe/Secure, 12/24VDC Electromechanical Mortise Lock | 290 |
| 3810 | Fail-Safe/Secure Cabinet Lock, 12/24VDC, Field Selectable with Monitoring Function | 96 |
| 3820 | Fail-Secure 12~28VAC/VDC Motorized Cabinet Lock | 120 |
| 3850 | Fail-Safe Dropbolt, 12VDC, Monitored, Bolt Throw of 2/3" | 290 |

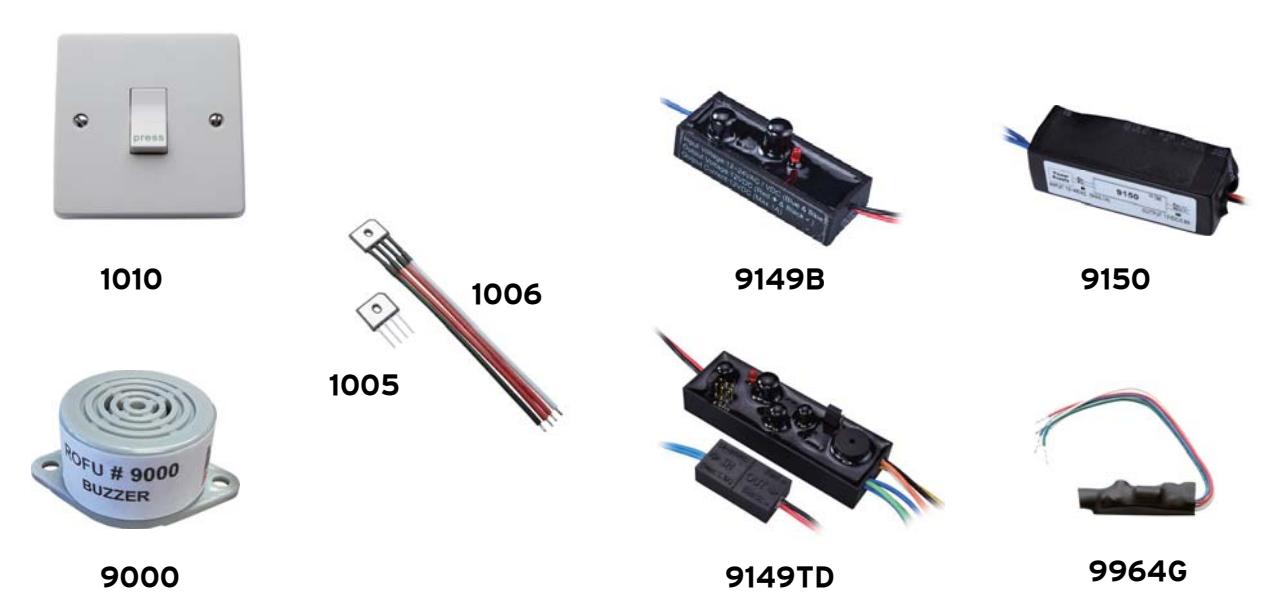

CONVERTERS / MISC. ACCESSORIES
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 1010 | Momentary Under the Desk Switches | 40 |
| 1004 | Full Wave Bridge Rectifier (up to 1.5A) | 8 |
| 1005 | Full Wave Bridge Rectifier, Converts AC to DC (up to 10A) | 8 |
| 1006 | Full Wave Bridge Rectifier with 6" Leads | 15 |
| 9000 | Electric Buzzer, Rated for 7-30 VDC | 22 |
| 9149B | Inline Controller with Buzzer, drops from 24 VAC/VDC to 12VDC | 45 |
| 9149TD | Inline Controller with Buzzer and Time Delays (5/15/30/60s) | 75 |
| 9150 | Inline Controller, drops from up to 48VAC to 12 VDC | 120 |
| 9964G | ElectronicTime Delay 0-60sec | 55 |
TRANSFORMERS / POWER SUPPLY UNITS
| MODEL | DESCRIPTION | PRICE |
| 10306-LA | 3-Pin Power Transfer | 55 |
| 9112 | Plug In Transformer, 12 VAC / 1.25A | 32 |
| 9112D | Plug In Transformer, 12 VDC / 1.0A | 40 |
| 9116 | Plug In Transformer, 16 VAC / 0.7A | 32 |
| 9124 | Plug In Transformer, 24 VAC / 0.42A | 32 |
| 9124D | Plug In Transformer, 24 VDC / 1.1A | 50 |

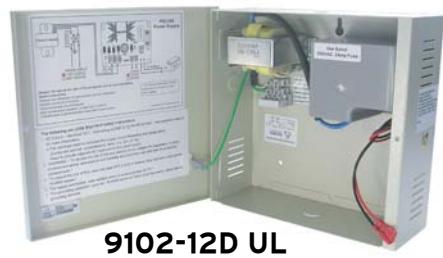

| 9102-12D UL | 12 VDC, 2.0A Power Supply, UL Listed (USA&Canada) | 180 |
| 9102-24D | 24 VDC, 1.0A, Power Supply | 150 |
| 9126T | Plug In Mini Power Supply, 12 VDC / 1.5A with Time Delay | 100 |
DOOR CORDS
| MODEL | DESCRIPTION | PRICE |
| 10318 | 16" Door Cord, 5/16" Inside Diameter | 30 |
| 10318-7 | 7 1/4" Door Cord, 1/4" Inside Diameter | 30 |
| 10320HD US28 | Heavy Duty Stainless Steel Door Cord (US28) | 50 |
| 10320HD US40 | Heavy Duty Stainless Steel Door Cord (US40) | 55 |
| 10320HD PCB US28 | Heavy Duty Stainless Steel Door Cord with PC Board (US28) | 90 |
| 10320HD PCB US40 | Heavy Duty Stainless Steel Door Cord with PC Board (US40) | 95 |
10318
10320HD US28 & US40
10320HD PCB US28 & US40
POWER SUPPLY + BLUETOOTH
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| 9112-BT Kit | Power Supply + Bluetooth | 290 |
BLUETOOTH + KEYPAD
ROFU 3000 Series Bluetooth Access Control Readers
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| BK-3000B | Bluetooth keypad standalone, 12-24 VDC | 225 |
| BK-3000S | Bluetooth keypad standalone, outdoor 12-24 VDC | 225 |
BK-3000B BK-3000S
BLUETOOTH + KEYPAD + CARD READER
ROFU 5000 Series Bluetooth Access Control Readers
| MODEL | DESCRIPTION | PRICE |
|---|---|---|
| BKC-5000B | Bluetooth keypad + card reader standalone, 12-24 VDC | 325 |
| BC-5900B | Bluetooth reader + card reader standalone, 12-24 VDC | 275 |
BKC-5000B BC-5900B
• Credit Terms
Credit terms are net thirty (30) days from date of invoice to customers with approved credit. Interest at the rate of 1.5% per month (APR 18%) may be charged on all past due accounts. In the event of failure to pay any amount due ROFU® Security International Corporation, all collection costs and/or attorney's fees incurred in attempts to collect any such amounts shall be paid by the customer.
• Title / Liability
Title passes to the customer upon delivery of merchandise to the carrier. Loss and/or damage claims must be filed with the delivering carrier within 48 hrs. of delivery. Packaging & packing material must be retained for use with the claims.
• Return of Defective Items
A Return Authorization Number (RA#) must be obtained from ROFU® before any item(s) can be returned. The original invoice number and purchase order number is required for all returns. Additional information may be required and will be determined at the time of the request. The RA# must be clearly marked on the outside of the box. Customer must prepay shipping charges and insurance on all returned items. The RA# is good for 30 days after authorization. Once received by ROFU the returned items will be evaluated and either repaired (if possible) or replaced (when necessary) and shipped back to the customer. If it is determined that there is no defect or that the defect is the cause of misuse or damage caused after sale, the item(s) will be returned as-is. No credits will be issued for defective returns.
• Return of Unused Items for Credit
All new/unused items returned for credit must be done within 90 days of purchase. The original invoice and purchase order number is required for all returns. The minimum restocking fee is 30%; additional fees may apply and will be determined upon evaluation. Items returned must be in brand-new, unused and re-sellable condition or credit will not be issued.
• Special Order Returns
Return of Special or Customized Orders will not be authorized. These include, but are not limited to, special finishes or modifications that alter the original interior or exterior of the item(s).
• Credit Balance
All credits issued will result in a credit balance on a customer's account and must be used as credit against future purchases. No check will be issued to pay off a credit balance.
• Minimum Orders
A handling fee of $20.00 will be added to all orders under $100.00.
• Product Change
ROFU® reserves the right to discontinue and/or make modifications to any of its products at any time without notice and without incurring any obligations on models built prior to the change. We will do our best to inform of any major changes at the time a purchase order is received.
• Pricing
ROFU® reserves the right to change pricing on any item(s) without prior notice. Orders will be billed at the prices in effect at the time of shipment, except when a valid written quote is in place.
• Quotes
All requests for quotation of price and availability of products will be issued a written quote and remain in effect for 15 days.
• Deliveries
Delivery times is based on our best estimate, and cannot be guaranteed or legally binding.
• Trademark
ROFU® is a registered trademark of ROFU® Security International Corporation in many countries and may not be used without the prior written consent of ROFU® Security International Corporation.
ROFU® Electromagnetic Lock Limited Lifetime Warranty / ROFU Electric Strike Warranty
ROFU® Security International Corp. warrants its products to be free from defects in material and workmanship when they have been installed in accordance with ROFU's® instructions and maintained and used and not been modified or tampered with. ROFU® Security International Corp. does not assume any responsibility for damage to persons or property due to improper care, installation, storage, abuse, or acts of God. This warranty is limited to the original purchaser and is not transferable.
ROFU's® liability is limited to the repair or at ROFU's® option the replacement of the defective product or part thereof, providing said products are used within the specified ratings and applied in accordance with good engineering practice, and said products are proved by our examination to be defective and returned to us transportation prepaid. Any repaired or replaced product shall be warranted to the original purchaser only for the duration of the un-expired portion of the original warranty. ROFU® shall in no event be liable whether in contract, tort, or negligence for any direct, indirect, in contract, special, incidental, economic, consequential or collateral damages of any kind sustained from any cause. ROFU® is not responsible for any charges incurred for field service or installation. This warranty does not extend to any of our products which have been subject to misuse, neglect, accident, improper application or installation, nor shall it extend to material which has been altered or repaid outside the factory.
ROFU® ELECTROMAGNETIC LOCK LIMITED LIFETIME WARRANTY: ROFU® warrants only to the end user of the electromagnetic locks that the magnetic block will be free from defects in material and workmanship for the lifetime of such electromagnetic lock from the date of shipment.
ROFU® PC BOARD WARRANTY: ROFU® warrants only to the end user of electromagnetic locks that the PC Board will be free from defects in material and workmanship for a period of three years from the date of shipment. PC Board of delayed egress electromagnets are covered by a one-year warranty.
ROFU® ELECTRIC STRIKE & ACCESSORIES WARRANTY: ROFU's® warranty shall expire three years from the date of shipment for all electric strikes (except for 1500 Series Strikes) and one year from the date of shipment for 1500 Series Strikes and all other catalog items and for electronic components.
As a condition for the performance of this warranty, a purchaser shall upon first discovery of any claimed defect deliver the subject merchandise or part asserting a claim pursuant to this warranty within 30 days after first discovery of any claimed defect to: ROFU® Security International Corp. A Return Authorization Number (RA#) must be obtained from ROFU® before product can be returned. To obtain a Return Authorization Number (RA#) contact ROFU® at 800-255-7638.
Correction of defects in the manner and under the conditions stated above shall constitute fulfillment of all our obligations and liabilities to any person with respect to the covered products, whether based on contract, negligence, strict liabiltiy or otherwise. No person or entity is authorized to create on behalf of ROFU® any other obligation or liability to any person relating to the covered products.
ROFU® shall not be liable to the purchaser or anyone else for damages, including but not limited to consequential damages and damages by reason of injury to any person, due to any defect in or malfunction of the product or any part or parts thereof, or for any other reason.
EXCEPT AS STATED ABOVE, ROFU® MAKES NO WARRANTIES WHATSOEVER EITHER EXPRESS OR IMPLIED AS TO ANY MATTER INCLUDING WITHOUT LIMITATION THE CONDITION OF ITS PRODUCTS, THEIR MERCHANTABILITY OR THEIR FITNESS FOR ANY PARTICULAR PURPOSE. DISCLAIMERS / ROFU POLICIES
10029 South Tacoma Way, Suite E-11 LAKEWOOD, WA 98499 P (253) 922-1828 W www.ROFU.com E OrderEntry@ROFU.com
ROFU Security International Corp. © 2018 All Rights Reserved
