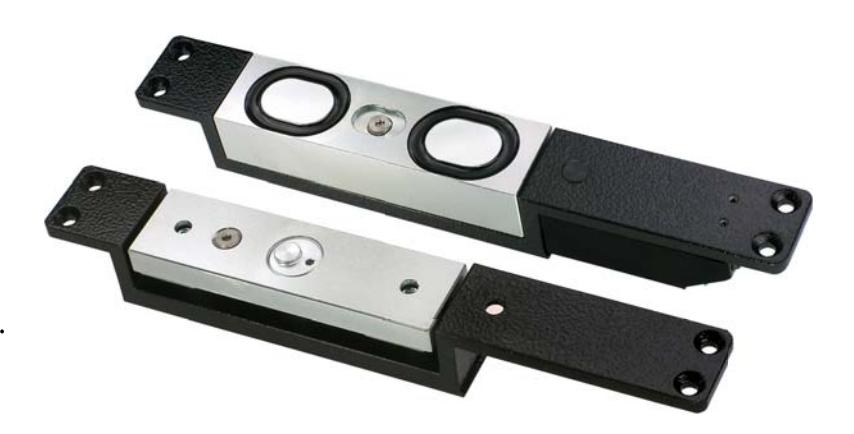

SHEAR LOCK

8031-002

ROFU's 8031-002 Shear Lock features 2200 LB holding force for enhanced security and SPDT relay output for remote monitoring. It is suitable for dual swinging doors, glass doors, in semi-surface and fully surface installation.

8031-002 features monitoring and bond sensor functions.

STANDARD FEATURES SPECIFICATION

• Door position sensor: dry reed contact and adjustable magnet
• Maximum gap (between magnet and armature plate): 1/8" or 3 mm
• Relock delay: 1~6 seconds, 3 seconds is default
• Fail-safe: releases instantly when power is disconnected with no residual magnetism
• Fail alarm: may be released upon activation of fire alarm
• Magnet and armature plate finish: zinc Housing: black powder coating
• Designed for dual swinging doors, suitable for narrow frames and glass doors installation
• Can be installed horizontally or vertically

HOLDING FORCE	2200 LB
VOLTAGE	12 to 24 VDC
CURRENT	Pull in: 1.85 A, Holding: 0.45 A/12 VDC Pull in: 1.1 A, Holding: 0.25 A/24 VDC
DIMENSIONS	Magnet: 10 1/2" x 1 3/8" x 1 5/16" Armature: 10 1/2" x 1 3/8" x 1 5/16"

OPTIONAL BRACKETS

MODELS	DESCRIPTION
	Surface Mount Housing (Each)
21059

APPLICATIONS

OUTSWING DOUBLESWING INSWING

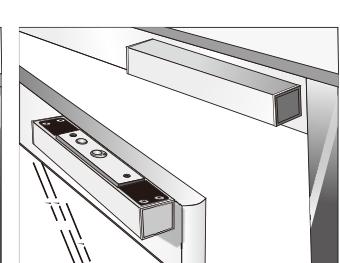

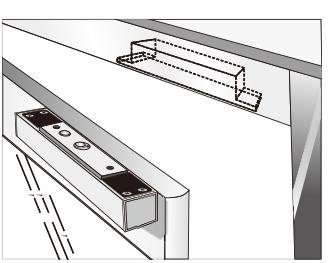

Semi-Surface Installation Surface Installation
