Handle Magnetic Locks

Introducing the 8106 Series

The 8106 HD Electromagnets feature a new stylish hidden design which encloses the armature plate in a door handle. Single and double options are available, with a holding force of 600 LB per single magnet. Safe and secure, with ease of installation in mind.

Features:

• Stylish hidden magnet design
• Dual voltage 12/24 VDC field selectable
• Field safe: releases instantly when power is disconnected
• Bond sensor: built-in hall effect sensors; detecting magnetic field strength from door position and voltage input
• Static strength 600 LB
• For inswing doors only
• Durable, high quality aluminum anodized finish, US28
• Screw pack, template, 12/24 VDC plugs and instruction manual included

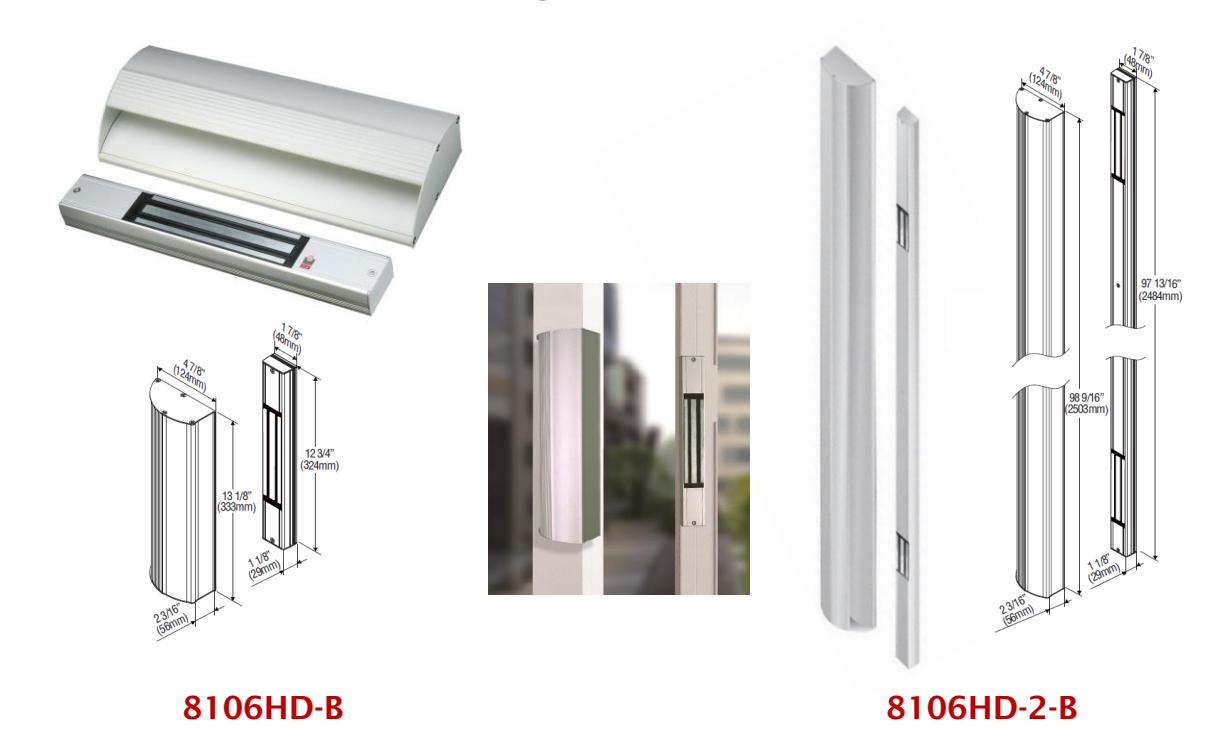

Dimensions:

8106HD-B

• Magnet: 12 3/4" × 1 1/8" × 1 7/8"
• Armature:13 1/8" × 2 3/16" × 4 7/8"

8106HD-2-B

• Magnet: 97 13/16" × 1 1/8" × 1 7/8"
• Armature:98 9/16" × 2 3/16" × 4 7/8"
