9400 SERIES

9400 REX switches feature 11/2" red mushroom buttons with durable and tamper-resistant, 1/4" thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

STANDARD FEATURES

• Standard Plate (4 3/4" x 3" x 1/4")
• Narrow Plate (4 3/4" x 1 5/8" x 1/4")
• UL Recognized Components.
• Rating: 3A/240V
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

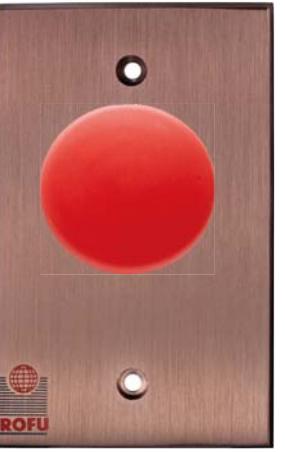

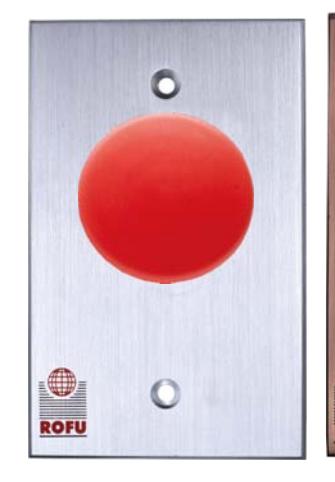

ROFU 9400 STANDARD US28 & US40

SPECIFICATION

MODELS	DESCRIPTION	MODE	RATING	FUNCTION
9400	11/2" Mushroom Cap	NO-Momentary	3A/240V	SPDT
9401	11/2" Mushroom Cap	NC-Momentary	3A/240V	SPDT
9410	11/2" Mushroom Cap	NO-Maintained	3A/240V	SPDT
9411	11/2" Mushroom Cap	NC-Maintained	3A/240V	SPDT

9400 OPTIONAL PARTS

PARTS	DESCRIPTION
9959	Pneumatic Time Delay Adjustable relocking time 2~60 seconds Rating: 10 A/120~240 VAC

ROFU 9400 NARROW US28 & US40

SPECIFICATION

MODELS	DESCRIPTION	MODE	RATING	FUNCTION
9420	11/2" Mushroom Cap	NO-Momentary	3A/240V	SPDT
9421	11/2" Mushroom Cap	NC-Momentary	3A/240V	SPDT
9430	11/2" Mushroom Cap	NO-Maintained	3A/240V	SPDT
9431	11/2" Mushroom Cap	NC-Maintained	3A/240V	SPDT
