9300 SERIES

9300 REX switches are blue colored DPDT push buttons with durable and tamper-resistant 1/4" thick aluminum cover plates. All are supplied with 2 snake eyes security screws and wrench.

STANDARD FEATURES

• Standard Plate (4 3/4" x 3" x 1/4")
• Narrow Plate (4 3/4" x 1 5/8" x 1/4")
• UL Recognized Components.
• Blue Colored Push Button
• Please Specify Finish: US28 (aluminum) or US40 (dark anodized bronze)

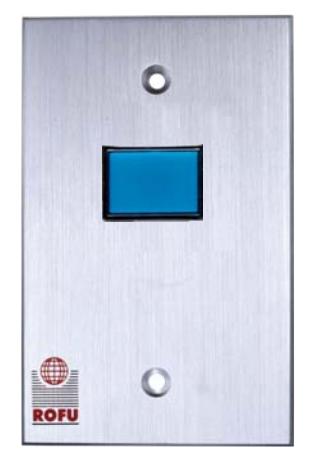

ROFU 9300 & 9350 STANDARD US28

SPECIFICATION

MODELS	DESCRIPTION	MODE	RATING	FUNCTION
9300	Single Push Button	Momentary	0.5A/250VAC	DPDT
9301	Double Push Button	Momentary	0.5A/250VAC	DPDT
9302	Triple Push Button	Momentary	0.5A/250VAC	DPDT
9303	Single Push Button	Time Delay (9965)	0.5A/250VAC	DPDT
9310	Single Push Button	Maintained	0.5A/250VAC	DPDT

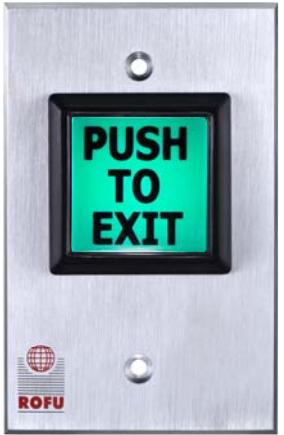

9350	Illuminated w/ 9 Inserts

OPTIONAL FEATURES

• Time Delay: Electronic Time Delay adjustable relocking time 1~30 seconds
• LED Indicator for On/Off Position (specify per optional parts below)
• Optional Push Button Colors: (please specify) Red for MOM, or Red, Orange and Green for MAIN

9300 OPTIONAL PARTS

PARTS	DESCRIPTION
9990i	12V Light Bulb for Momentary Switches
9990e	12V Light Bulb for Maintained Switches
9991i	24V Light Bulb for Momentary Switches
9991e	24V Light Bulb for Maintained Switches

SPECIFICATION

MODELS	DESCRIPTION	MODE	RATING	FUNCTION
9320	Single Push Button	Momentary	0.5A/250VAC	DPDT
9321	Double Push Button	Momentary	0.5A/250VAC	DPDT
9322	Triple Push Button	Momentary	0.5A/250VAC	DPDT
9323	Single Push Button	Time Delay	0.5A/250VAC	DPDT
9330	Single Push Button	Maintained	12/24VDC	DPDT
9370	Illuminated w/ 9 Inserts	Momentary
