Installation Instructions ROFU Electromagnetic Door Holder / Releases 8900, 8910 and 8920 Series

ROFU Security International Corp. 10029 S. Tacoma Way, E-11 Lakewood, WA 98499 USA 1-800-255-7638 (1-800-ALL-ROFU) www.ROFU.com OrderEntry@ROFU.com

Electromagnetic door holders are designed for use with self-closing devices for any remote door release applications. They usually hold doors open in any areas where access is essential, such as schools, hospitals, nursing homes and public buildings. When the door holders are de-energized by the fire alarm system, the door is released to a closed position, providing a barrier for fire and smoke. When power is restored, the magnets will-reenergize, enabling the door to be held open again by the holders. ROFU Electromagnetic Door holders are available in floor-mounted or wallmounted models. Fail-safe operation, and swivel armature plate allows for easy and flexible installation.

Features

• Voltage 12 or 24VDC/VAC
• Floor and wall mounted models available
• Fail-safe operation; power failure releases door to close
• Positive release button initiates closing motion
• 50 to 75 lbs holding force
• No residual magnetism
• Swivel armature plate reduces installation time and adjusts to door alignment changes

Specifications

Model	8900	8910	8920
Operating Voltage	12 or 24 VDC/VAC
Current Draw	120mA/12VDC, 60mA/24VDC
Holding Force	50 to 75 lbs
Mount	Wall, Flush	Wall, Surface	Floor
Release Button	_	_	/
Finish	Stainless steel	Stainless steel	Black powder coated

Option Available

Optional Spacer Kit (#8999) to extend armature plate from 1/2" up to 1 1/2"

Parts List

• 1 x Door Holder, 1 x Armature Plate, 1 x Back Box (8910 only),
• 1 x Armature Plate Holder (8920 only), 1 x Manual,
• 2 x Butt Splice Connectors

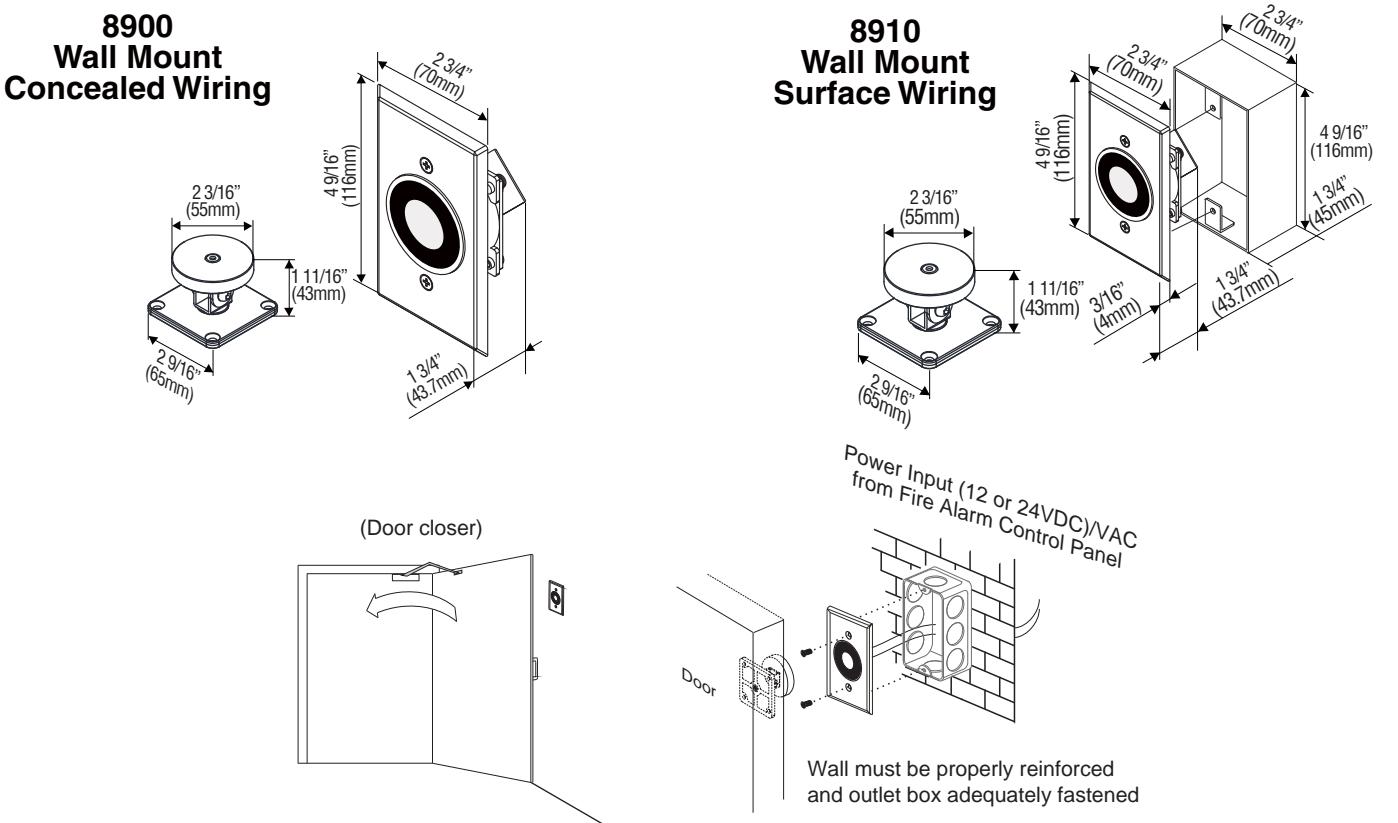

Model 8900 & 8910

8900, 8910 and 8920 Series Installation Instructions ROFU Electromagnetic Door Holder / Releases

ROFU Security International Corp. 10029 S. Tacoma Way, E-11 Lakewood, WA 98499 USA 1-800-255-7638 (1-800-ALL-ROFU) www.ROFU.com OrderEntry@ROFU.com

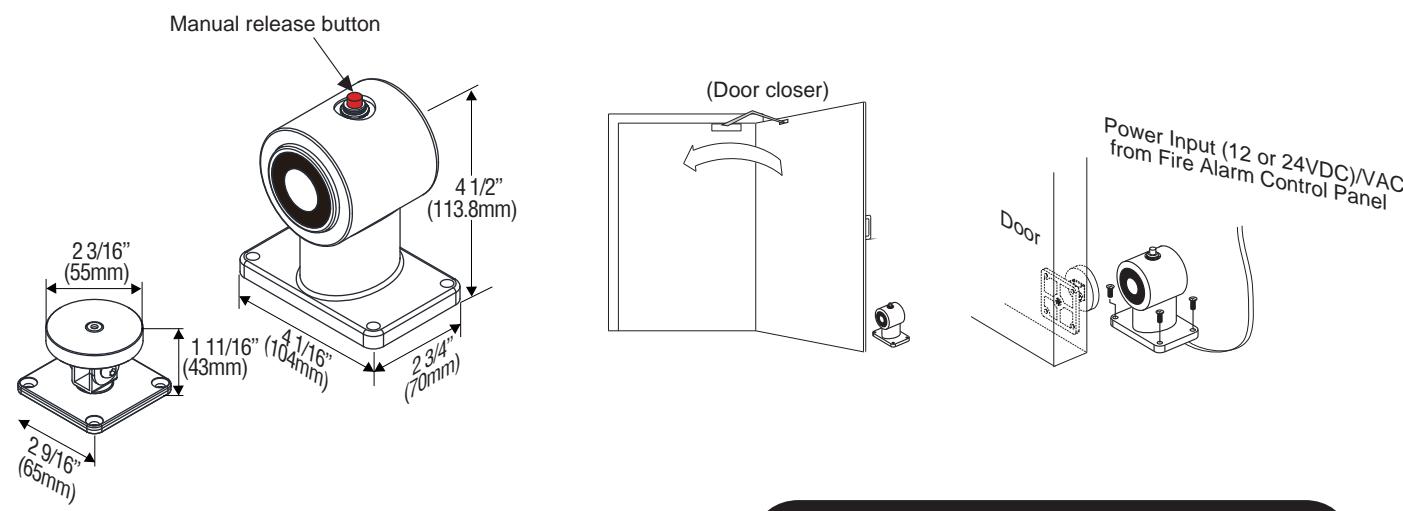

Model 8920 Floor Mounted

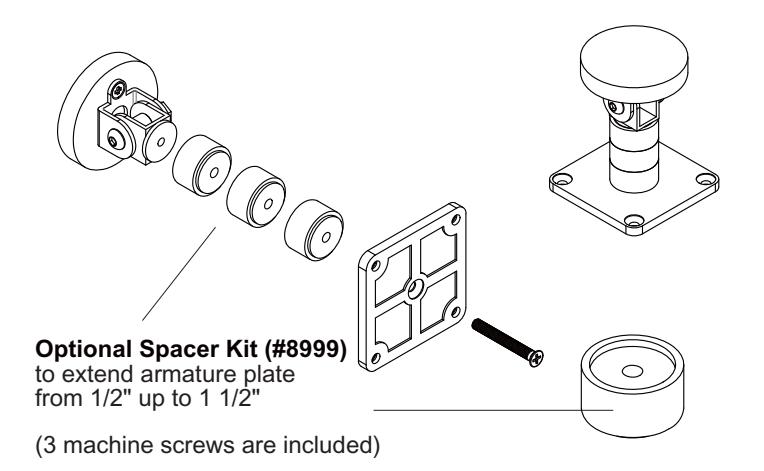

Optional Spacer Kit (#8999)

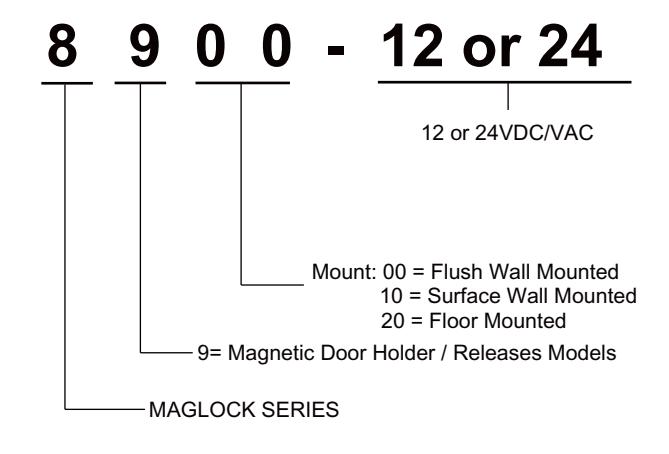

ROFU Electromagnetic Door Holder / Releases Models

Armature Plate Adjustment

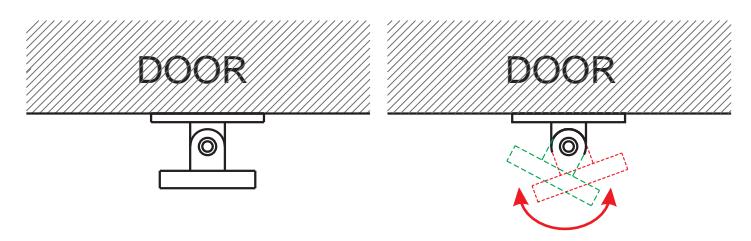

The armature plate can be adjusted to the desired angle.

Installing Butt Splice (IDC) Connector

Using crimper or pliers and pressing the header of connector down to even position.
