ROFU Electric Strike 1509G Wood, Hollow Metal or Aluminum Jamb

ROFU Security International Corp. 6818 S 220th ST

Kent. WA 98032

(253) 922-1828 www.ROFU.com

Installation Instructions

• 1. Prepare door jam per drawing
• 2. Connect wires coming from the low voltage side of the transformer to terminal block of
• 3. Attach faceplate using M4 x 10 screws furnished.
• 4. Install electric door strike to jamb by attaching with #10 wood screws.

Note:

For Mortise Lockset with auxiliary deadlatch: To insure that the latchbolt falls properly into the keeper, the centerline of the auxiliary deadlatch must be 1-1/8" above (or below when applicable) the centerline of the strike.

Note:

Template dimensions (not to scale) and technical data are subject to change without notice. Dimensions in inches and millimeters

Copyright © ROFU Security International Corp. All rights reserved. ROFU-1509G Published on: 2019.03.08

ROFU Electric Strike 1509G Wood, Hollow Metal or Aluminum Jamb

ROFU Security International Corp. 6818 S 220th ST

Kent, WA 98032 (253) 922-1828 www.ROFU.com

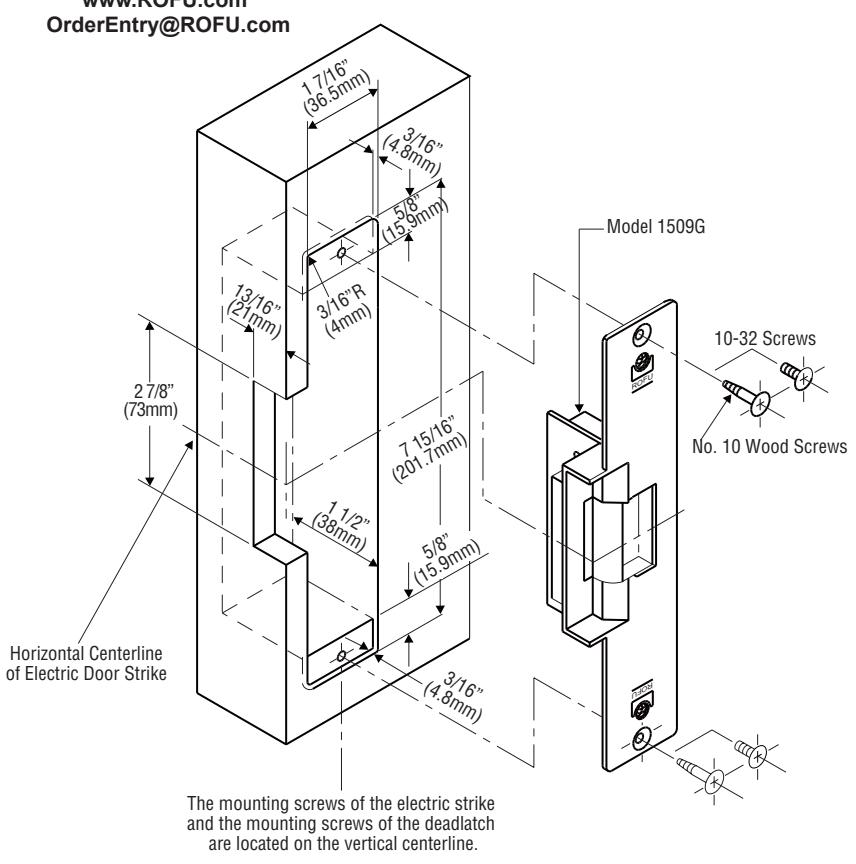

OrderEntry@ROFU.com 7116"m Model 1509G 10-32 Screws 2 7/8" (73mm) No. 10 Wood Screws Horizontal Centerline of Flectric Door Strike

The mounting screws of the electric strike

and the mounting screws of the deadlatch

are located on the vertical centerline

Installation Instructions

• 1. Prepare door jam per drawing
• 2. Connect wires coming from the low voltage side of the transformer to terminal block of door strike.
• 3. Attach faceplate using M4 x 10 screws furnished.
• 4. Install electric door strike to jamb by attaching with #10 wood screws.

Note:

For Mortise Lockset with auxiliary deadlatch: To insure that the latchbolt falls properly into the keeper, the centerline of the auxiliary deadlatch must be 1-1/8" above (or below when applicable) the centerline of the strike.

Note:

Template dimensions (not to scale) and technical data are subject to change without notice. Dimensions in inches and millimeters.
