ROFU Electric Strike 1508G Wood Hollow Metal or Aluminum Jamb Installation Instructions

ROFU Electric Strike 1508G Wood, Hollow Metal or Aluminum Jamb

ROFU Security International Corp. 10029 S. Tacoma Way, E-11

Installation Instructions

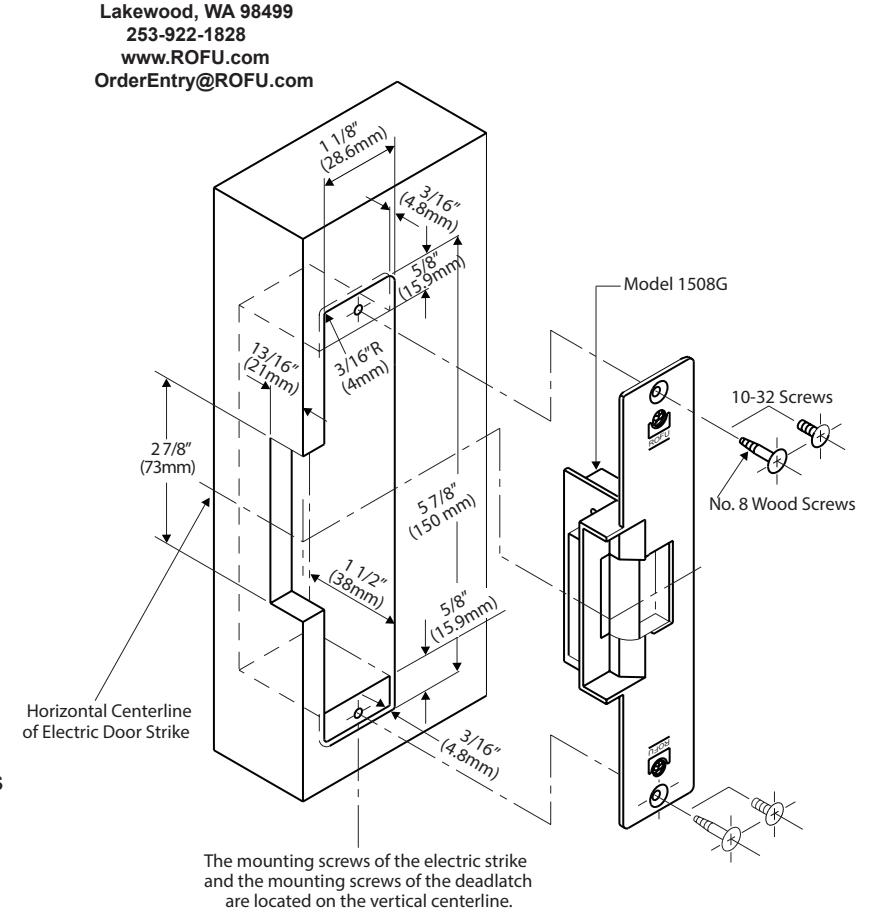

• 1. Prepare door jam per drawing
• Connect wires coming from the low voltage side of the transformer to terminal block of door strike.
• 3. Attach faceplate using M4 x 10 screws furnished.
• 4. Install electric door strike to jamb by attaching with #8 wood screws.

Note:

Template dimensions (not to scale) and technical data are subject to change without notice. Dimensions in inches and millimeters.
