HANDLE MEGNETIC LOCKS

8106HD SERIES

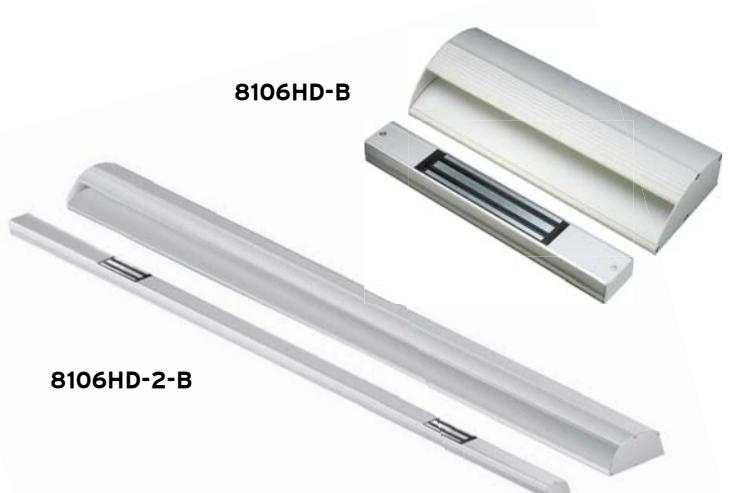

The 8106HD Electromagnets feature a new design which encloses the armature plate in a door handle. Single and double magnets options are available, with a holding force of 600 LB per single magnet.

STANDARD FEATURES

• Stylish hidden magnet design safe and secure
• Dual voltage 12/24 VDC field selectable
• Durable, high quality aluminum anodized finish
• Fail-safe: releases instantly when power is disconnected. No residual magnetism
• No residual magnetism
• For inswing doors only
• Bond sensor (B): built-in hall effect sensors, detecting magnetic field strength from door position and voltage input

SPECIFICATION

MODELS	8106HD-B	8106HD-2-B
HOLDING FORCE	600 LB	600 LB x2
VOLTAGE	12/24 VDC
CURRENT	500 mA/12 VDC , 250 mA/24 VDC

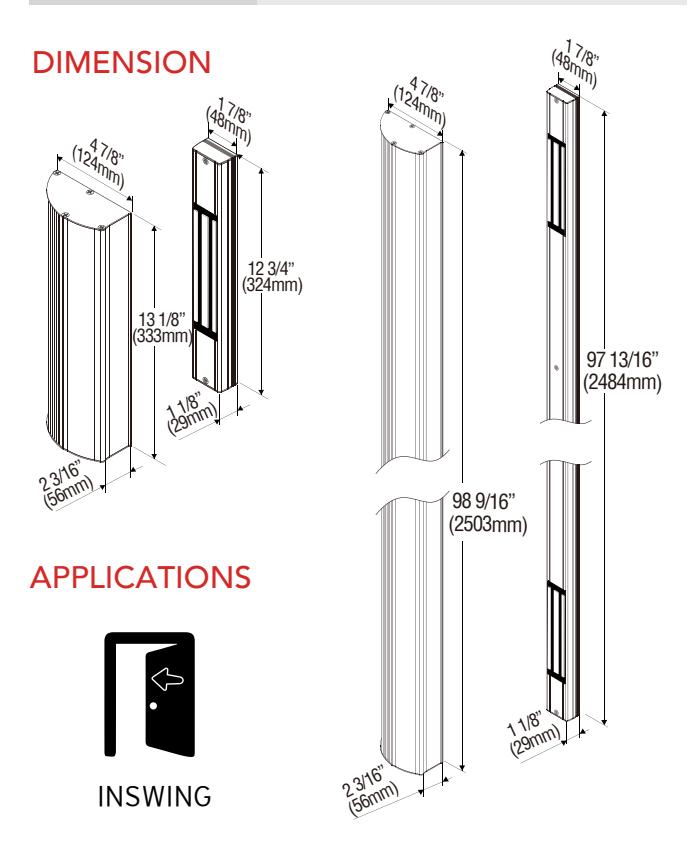

DIMENSIONS	8106HD-B Magnet: 12 3/4" x 11/8" x 17/8" Armature: 13 1/8" x 2 3/16" x 4 7/8" 8106HD-B Magnet: 97 13/16 x 11/8" x 17/8" Armature: 98 9/16" x 2 3/16 " x 4 7/8"

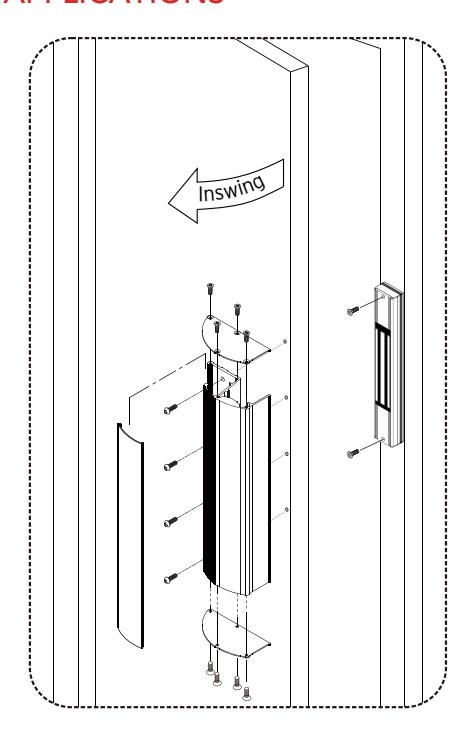

APPLICATIONS
