ROFU Bluetooth Keypad Card Reader 5900B Control Access Wiring Diagram

Open the original PDF document

View PDF

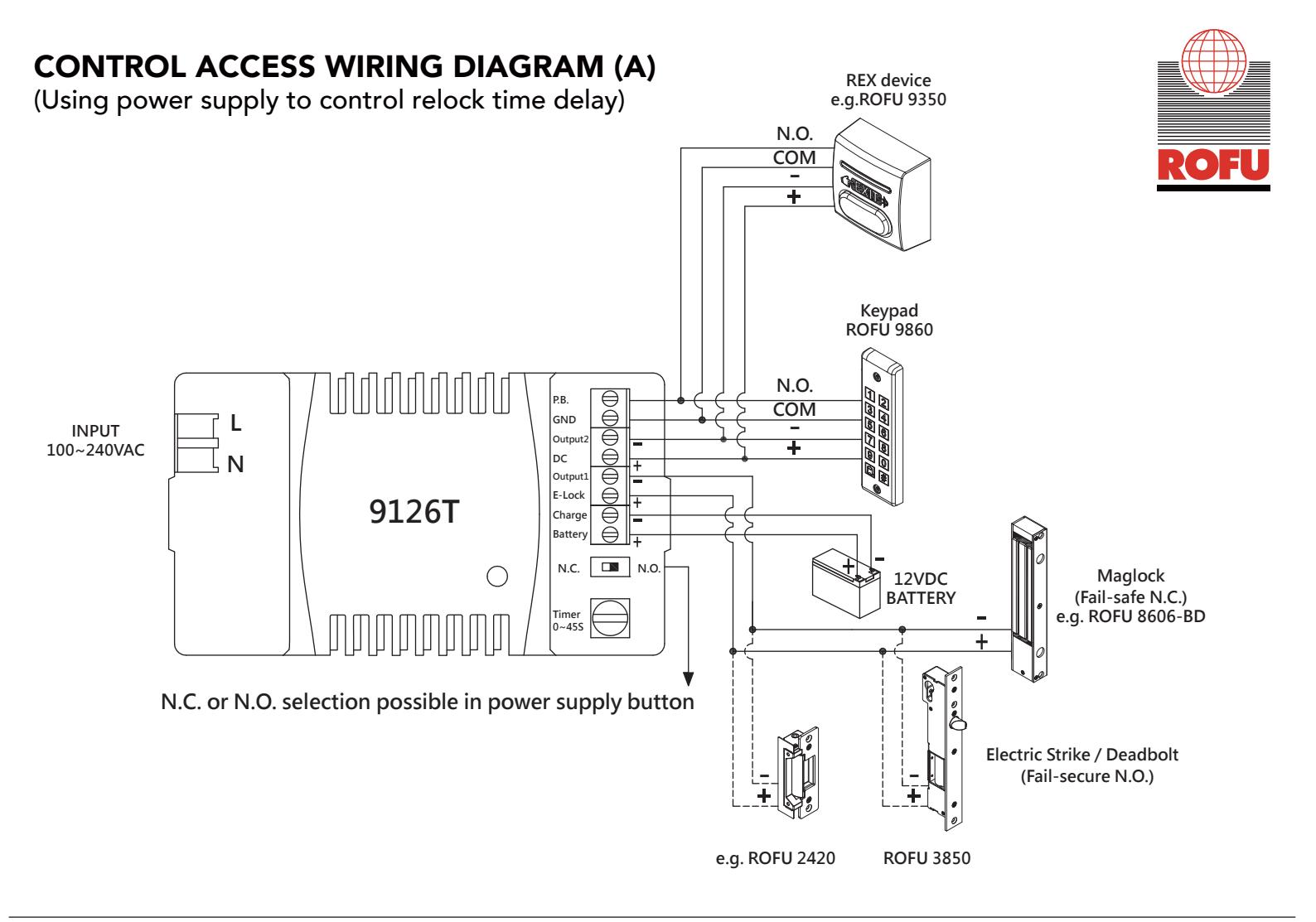

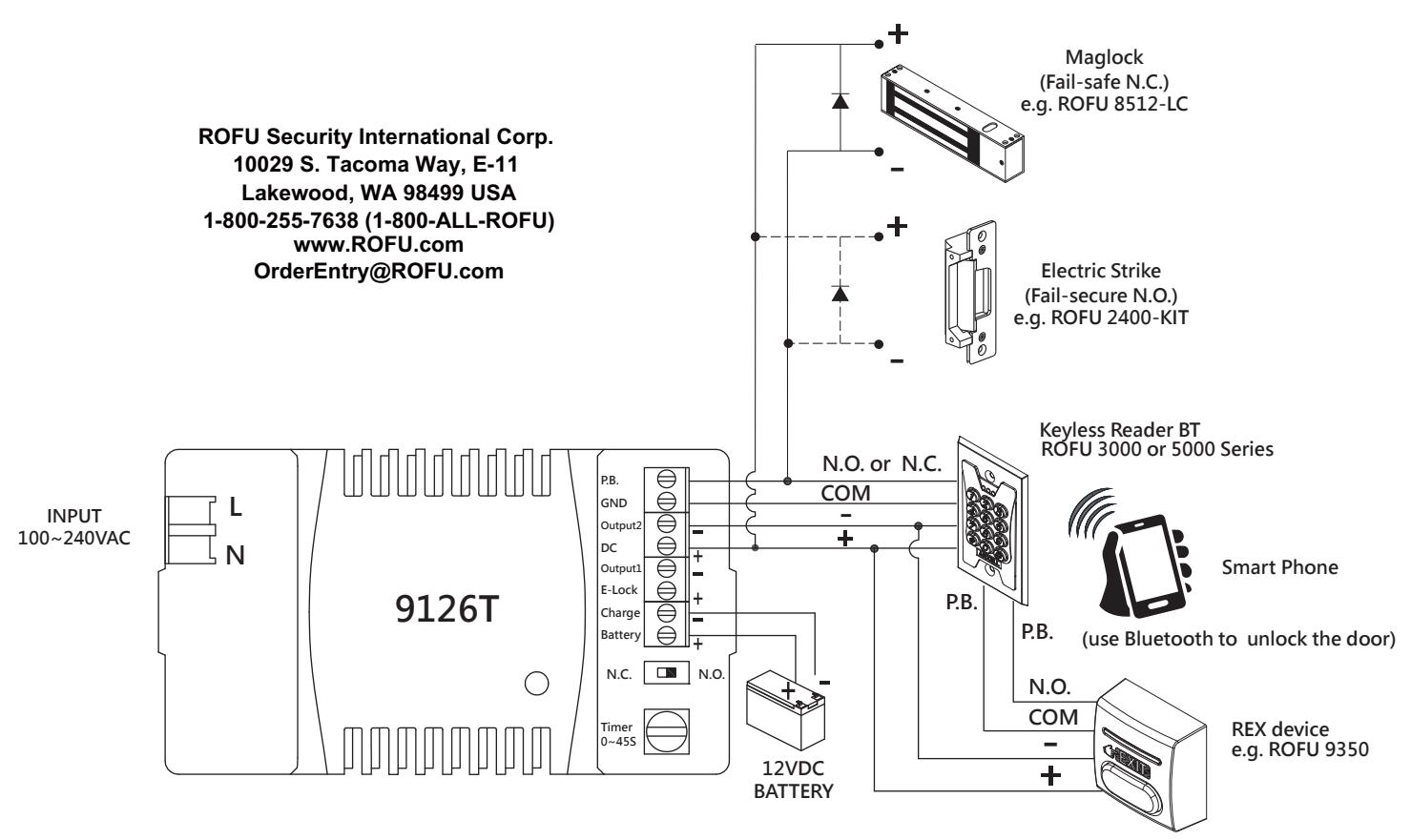

CONTROL ACCESS WIRING DIAGRAM (B)

(Using Keyless Reader App to control relock time delay)
