MAGNETIC DOOR HOLDERS

8900 SERIES

FOR USE ON SELF-CLOSING FIRE AND/OR SMOKE BARRIER DOORS

8900 Flush Mount Stainless Steel Plate

8910 Wall Mount Stainless Steel Box

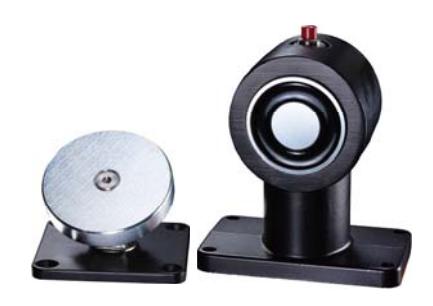

8920 Floor Mount Cast Iron Housing with Reset Button

STANDARD FEATURES

• Fail-safe: releases instantly when power is disconnected. No residual magnetism
• Available in 12 VAC/VDC or 24 VAC/VDC
• Holding force: 80 LB
• Fail alarm: will release upon activation of fire alarm
• Current draw: 120 mA at 12 VDC 60 mA at 24 VDC
• Adjustable swivel armature for ease of alignment
• Limited warranty: 36 Months

SPECIFICAIONS / OPTIONS

• Specify Voltage: 12 VAC/VDC or 24 VAC/VDC
• Optional 3 spacers for armature plate, 1/2" thick each ( 8999 )

OPTIONAL ACCESSORIES

MODELS	DESCRIPTION
8999	Spacer Kit 3 Spacers for Armature Plate, 1/2" Thick Each
	Replacement Armature Plate/ Oversized Swivel
20916

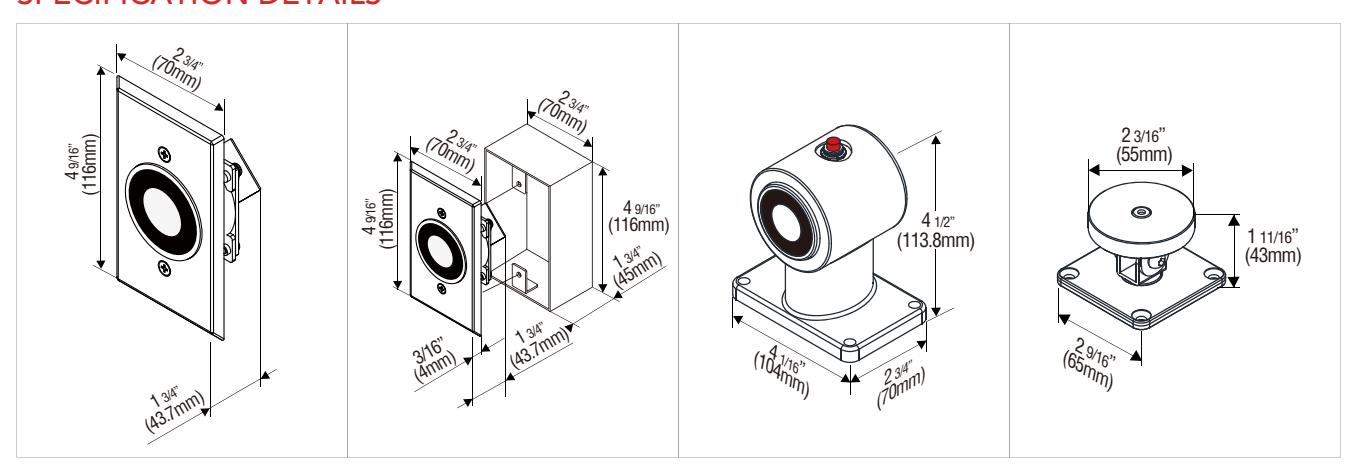

SPECIFICATION DETAILS
