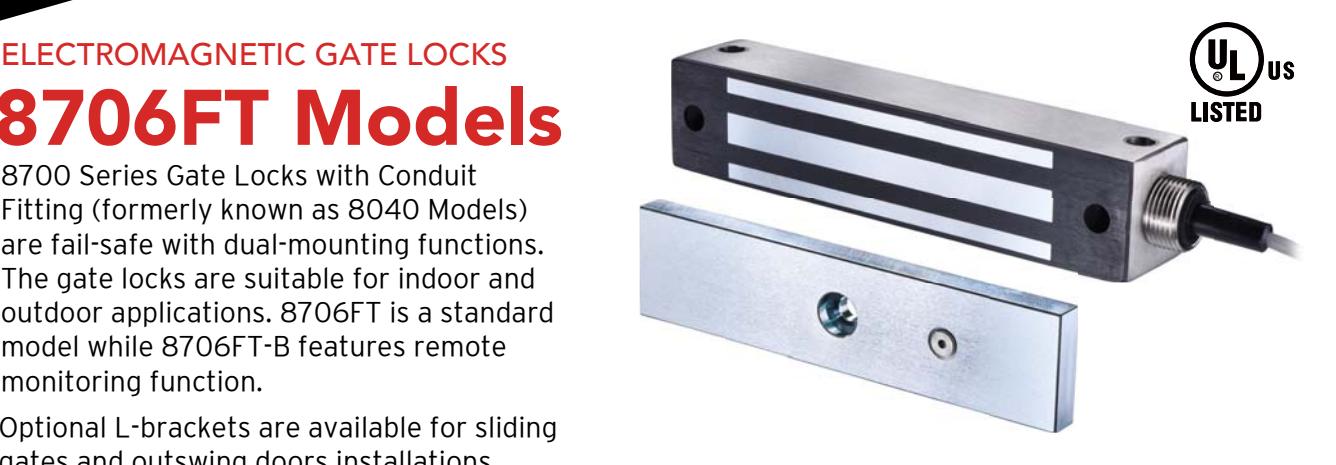

8706FT Models

8700 Series Gate Locks with Conduit Fitting (formerly known as 8040 Models) are fail-safe with dual-mounting functions. The gate locks are suitable for indoor and outdoor applications. 8706FT is a standard model while 8706FT-B features remote monitoring function.

Optional L-brackets are available for sliding gates and outswing doors installations.

STANDARD FEATURES

• Weatherproof, stainless steel housing, suitable for indoor and outdoor application
• Both face and surface mount, suitable for a range of sliding and swinging electric gates.
• Dual voltage 12/24 VDC selectable
• Dual-threaded conduit fitting 8706 SERIES MODELS
• Fail-safe: releases instantly when power is disconnected, no residual magnetism
• Conforms in accordance with Standard UL 10B, UL 10C, listed under file GWXT.R16728
• Fire rating: up to and including 1-1/2 hours
• Built-in MOV spike and surge protection

OPTIONAL BRACKETS

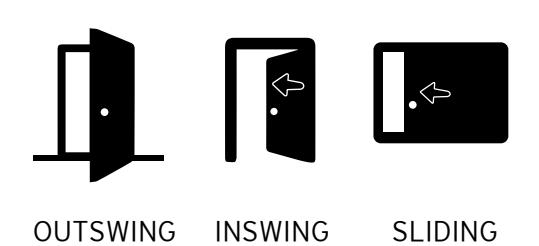

APPLICATIONS

SPECIFICATION

HOLDING FORCE	600 LB
VOLTAGE	12/24 VDC
CURRENT	500 mA/12 VDC 250 mA/24 VDC
DIMENSIONS	Magnet: 8"x 1 11/16" x 1 9/16" Armature: 7 1/4" x 1 3/4" x 9/16"

MODELS
8706FT	Standard 600 LB Gate Magnetic Lock
8706FT-B	Monitored 600 LB Gate Magnetic Lock

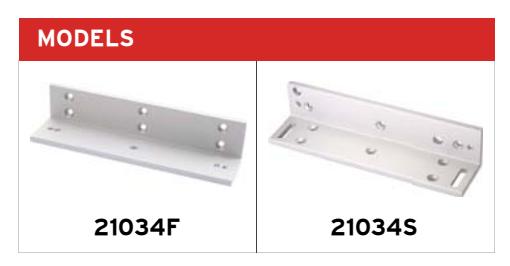

21034F	L-Brackets for Front Mount Installation
21034S	L-Bracket for Surface Mount Installation

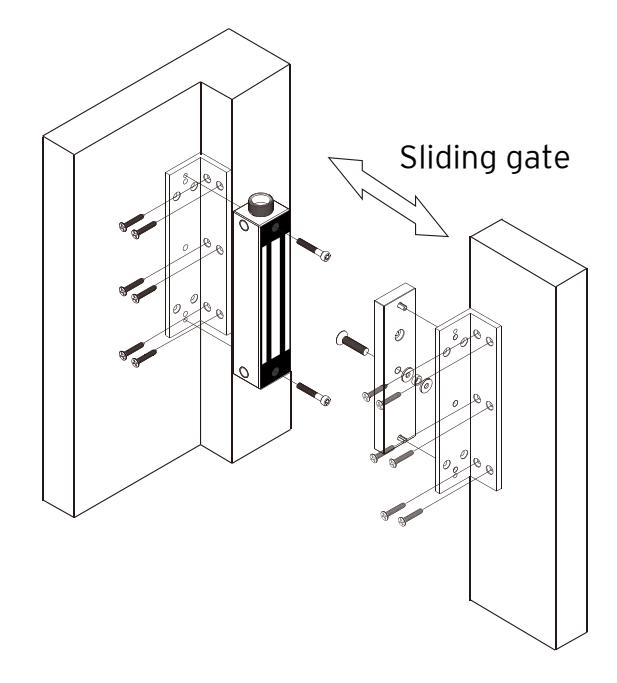

SLIDING GATE INSTALLATION
