Installation Instructions for Slide Mount Magnetic Locks

8606, 8608 and 8612 Series *See page 2 for model specifications

ROFU Security International Corp. 10029 S. Tacoma Way, E-11 Lakewood, WA 98499 USA 1-800-255-7638 (1-800-ALL-ROFU) www.ROFU.com OrderEntry@rofu.com

For Outswing Doors

Find the paper installation template included with the magnet (you will need this).

Fold it on the dotted line.

Place the folded template in the proper position on the door/jamb and mark the holes you will cut for your magnet and armature plate. (Using tape will help)

Drill the holes according to the marks you made.

(Check Twice! Drill Once!)..

Install the armature plate as shown in the drawing to the left.

The actual dimensions of the holes are illustrated below.

Hollow Metal Door Solid Door

Drill a 5/16" (8mm) hole through the door for the armature side.

For the sexnut side (secure side), enlarge the hole to

1/2" (12.7mm) for the width of the sexnut.

On wood doors the depth of the sexnut is 1 7/16" (36mm).

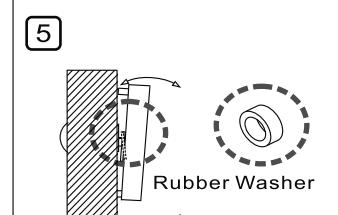

The rubber washer helps the armature plate to pivot s it should NOT be tightened all the way to door.

Attach the mounting plate with the provided Phillips screws. Then the position of the mounting plate should still be adjustable.

(Sample drawing as 8612 series mounting plate)

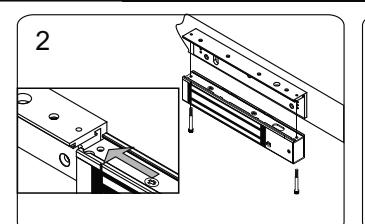

Attach the mounting plate to the jamb with included mounting Phillips screws as shown.

(Sample drawing as 8612 series magnet & mounting plate)

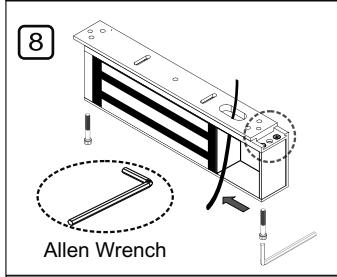

Use the Allen wrench and thru-bolts to tighten the magnet to the mounting plate.

Connect the power and test the holding force. Add washers if there is still a gap between the magnet and armature plate.

(Sample drawings above as 8612 series magnet & mounting plate)

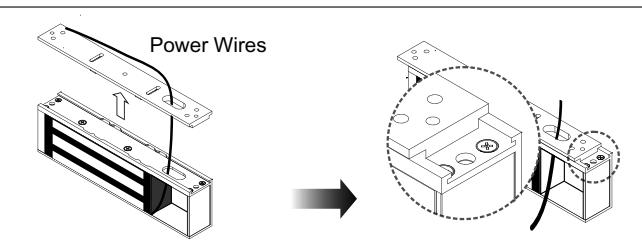

• (1) Pass the wiring through the mounting plate and into the wiring hole at the top of the magnet and into the PCB area.
• (2) Slide the magnet onto the mounting plate.

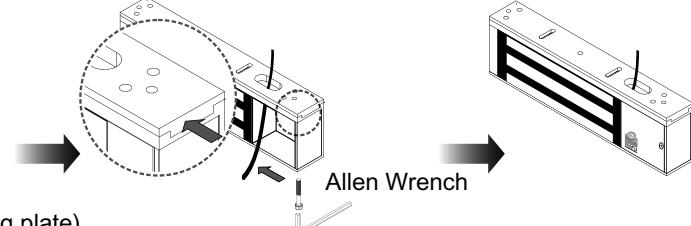

• (3) Once into proper position, tighten the thru-bolts from the bottom of the magnet into the mounting plate using the included Allen wrench.

ROFU Z-bracket for Inswing Doors

Find the correct mounting position on the door jamb for the L-bracket. Ensure that the door still closes with it in position.

Use the thru-bolt to install the magnet onto the L-bracket.

Assemble the Z-bracket, but not too tight as it needs to remain adjustable for now.

Insert the roll pins into the armature plate.

Attach the armature plate and washers to the Z-bracket assembly.

Close the door and connect the power.

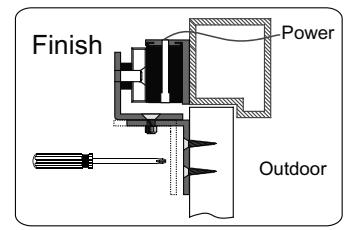

After the magnet engages the armature plate, you can now adjust the Z-bracket, and attach to the door.

Ensure all screws of Z-bracket are tighten to door.

We encourage the use of thread locker (LocTite).

Specifications

■ Voltage: 12/24 VDC Selectable

Current Draw: 500 mA /12VDC, 250 mA / 24VDC

■ Holding Force: 600 lbs, 600lbs x 2, 800lbs,

800lbs x 2, 1200 lbs, 1200 lbs x 2

Dimensions:

8606-B/BD: (600 lbs)

Magnet: 9 13/16" x 1 13/16" x 1" (250 x 45.5 x 25mm) Armature Plate: 7 1/4" x 1 1/2" x 1/2" (185 x 38 x 12mm)

8606-2-BD: (600 lbs x 2)

Magnet: 19 11/16" x 1 13/16" x 1" (500 x 45.5 x 25mm)

Armature Plates (each side): 7 1/4" x 1 1/2" x 1/2" (185 x 38 x 12mm)

8608-LC/B/BD: (800 lbs)

Magnet: 10 7/16" x 2 1/16" x 1 1/8" (265 x 52 x 29mm) Armature Plate: 7 1/4" x 1 3/4" x 9/16" (185 x 45 x14mm)

8608-2-B/BD: (800 lbs x 2)

Magnet: 20 7/8" x 2 1/16" x 1 1/8" (530 x 52 x 29mm)

Armature Plates (each side): 7 1/4" x 1 3/4" x 9/16" (185 x 45 x14mm)

8612-LC/B/BD (1200 lbs)

Magnet: 10 1/2" x 2 13/16 "x 1 9/16" (267 x 71 x 40mm) Armature Plate: 7 1/4" x 2 3/8" x 5/8" (185 x 61x 16mm)

8612-2-B/BD: (1200 lbs x 2)

Magnet: 21" x 2 13/16" x 1 9/16" (533 x 71 x 40mm)

Armature Plates (each side): 7 1/4" x 2 3/8" x 5/8" (185 x 61x 16mm)

Model Changes to ROFU Electromagnetic Locking Devices

86 XX - 2 - (LC/BD/B) - (US28/40)(12/24)

12/24: 12/24 VDC Selectable Finish: US28 Satin Aluminum or

US40 Duronatic / Dark Anodized Bronze

(Limited Availability for US40)

Functions:

LC = Low cost (NO MONITORING)

BD = Bond sensor, LED & Door status

B = Bond sensor & LED only

-2 = Double Magnet OR NOTHING THERE

-Holding Force: 06 = 600 lbs (Mini)

08 = 800 lbs (Midi)

12 = 1200 lbs (Standard)

6 = Slide mounting plate magnetic lock series

-MAGLOCK SERIES

8600 Series

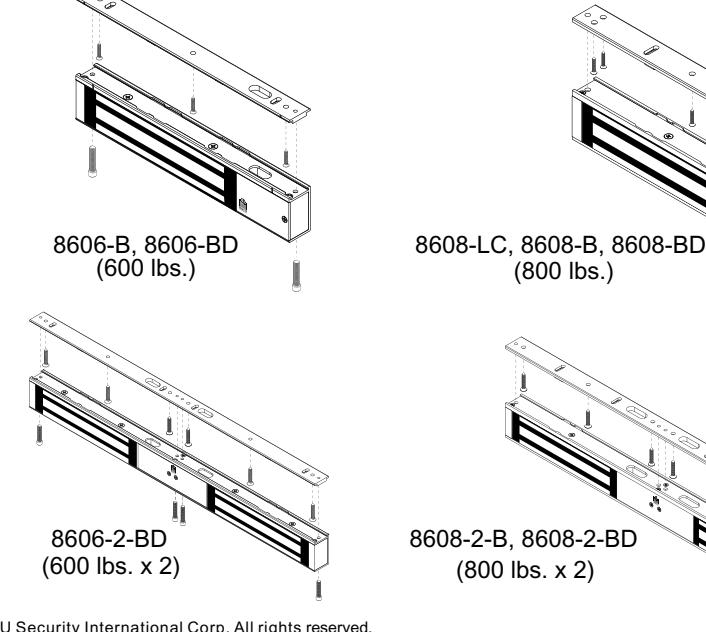

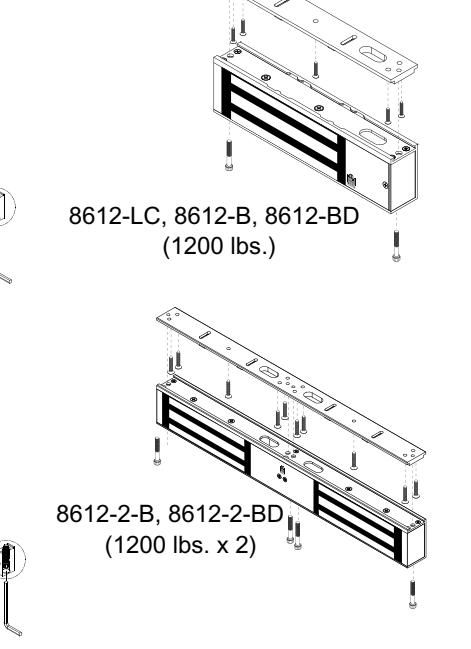

Diagrams of Magnets & Mounting Plates

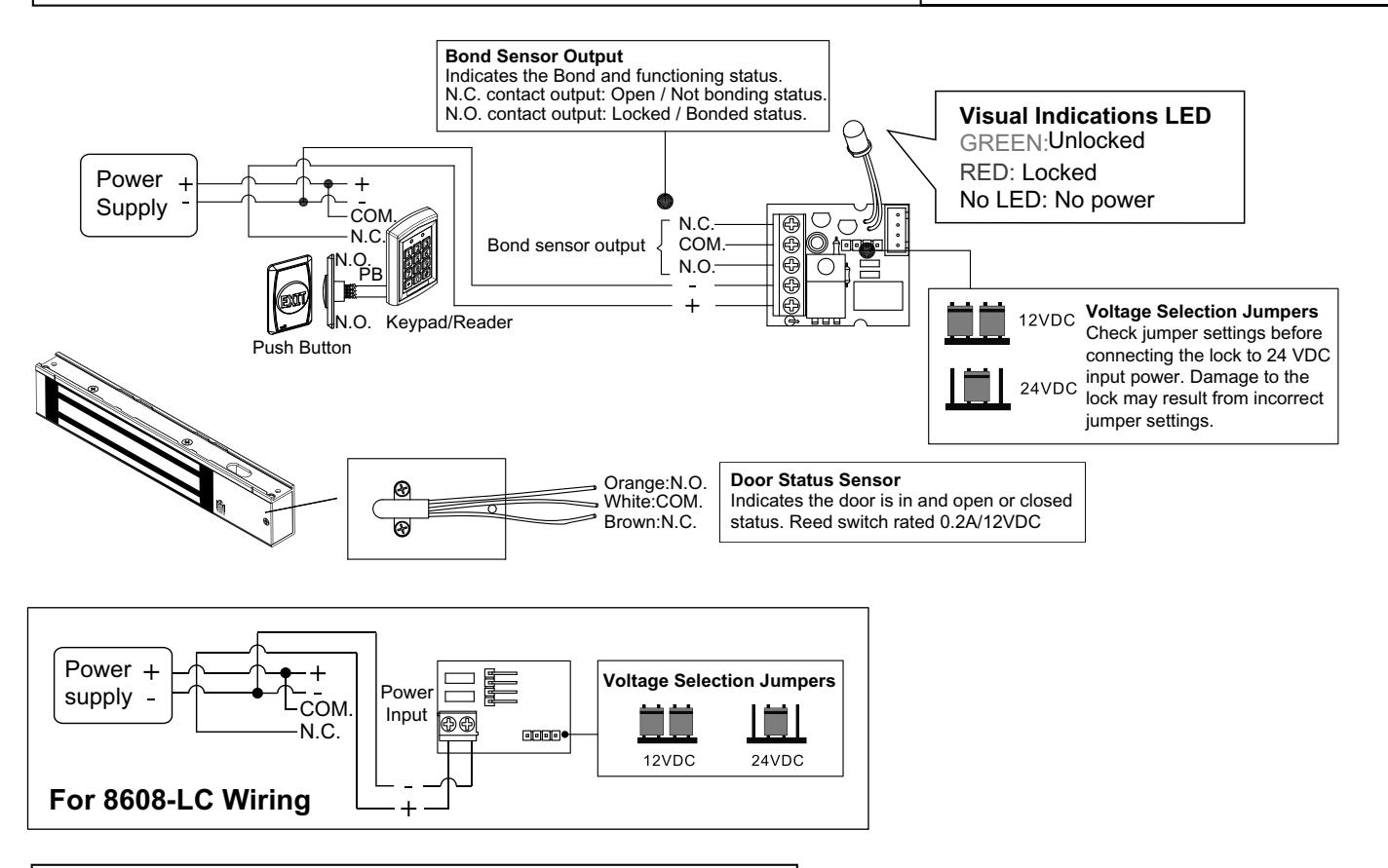

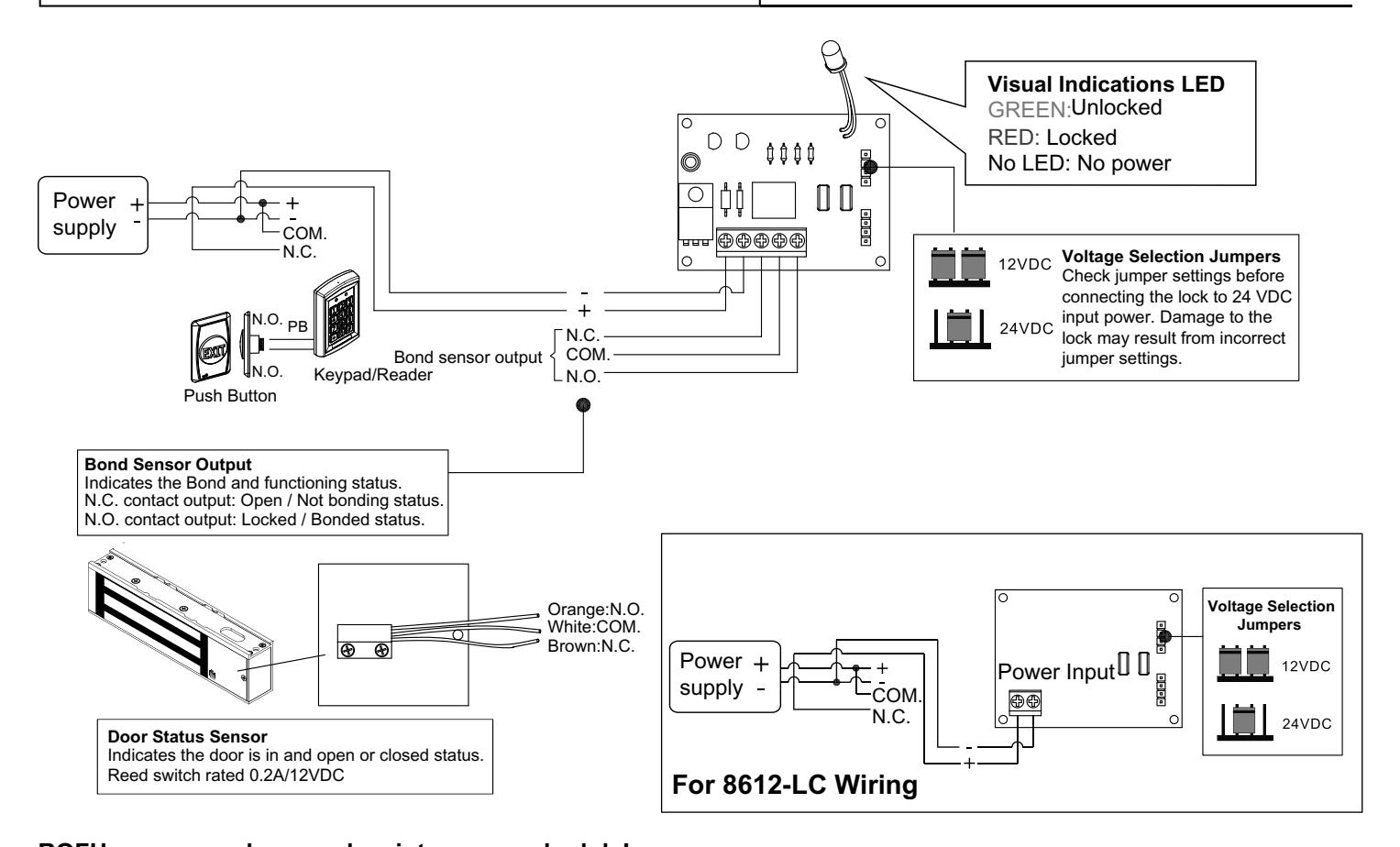

Wiring Diagram for 8606 and 8608 Series Single Magnet Models

Wiring Diagram for 8612 Series Single Magnet Models

• ROFU recommends a good maintenance schedule!
• Please ensure all armature bolts and mounting bolts are checked quarterly.
• ROFU recommends using Loctite (Thread locker) on ALL bolts during installation.
• Current Draw: 500 mA /12VDC, 250 mA / 24VDC per block

ROFU Security International Corp. 10029 S. Tacoma Way, E-11 Lakewood, WA 98499 USA 1-800-255-7638 (1-800-ALL-ROFU) www.ROFU.com OrderEntry@rofu.com

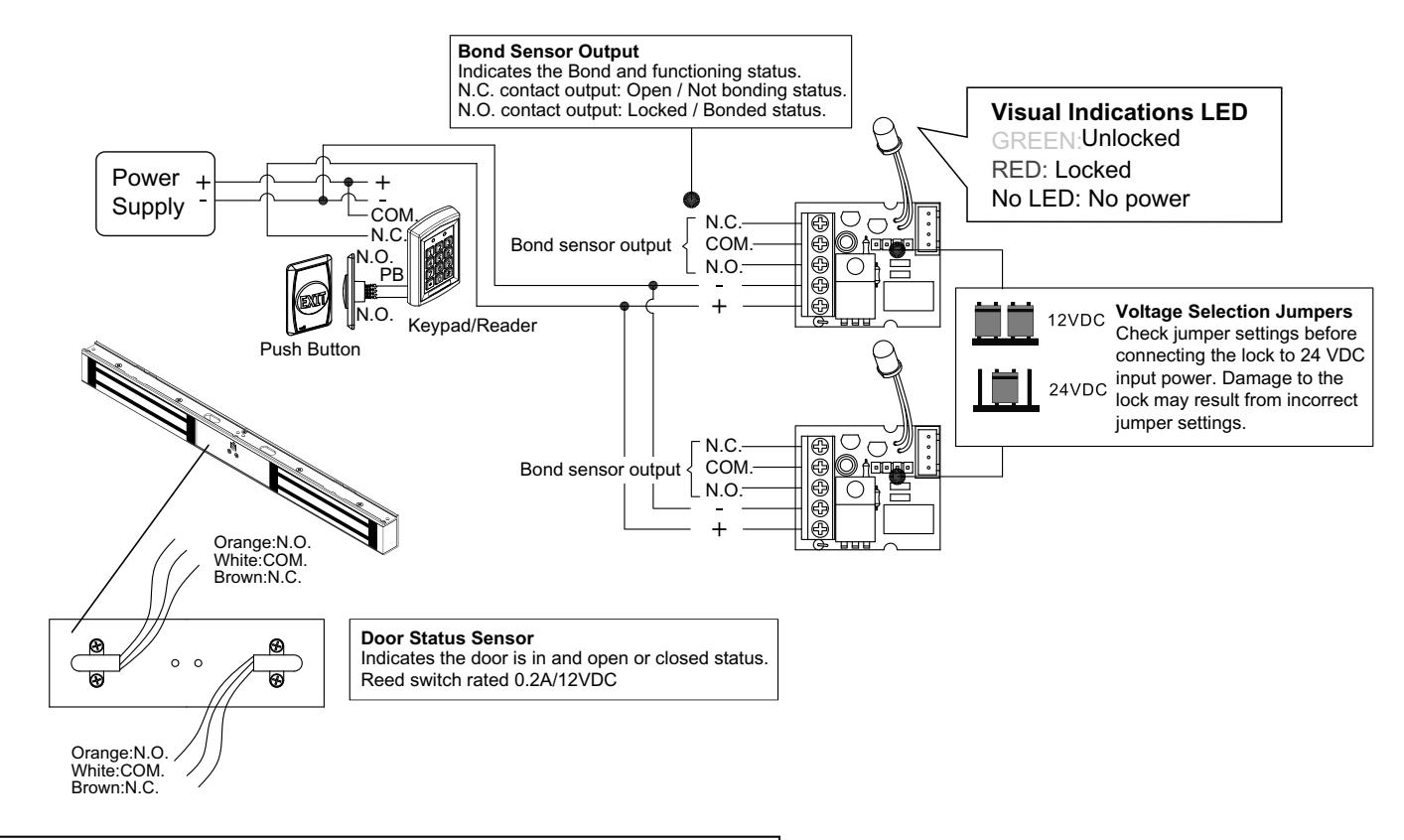

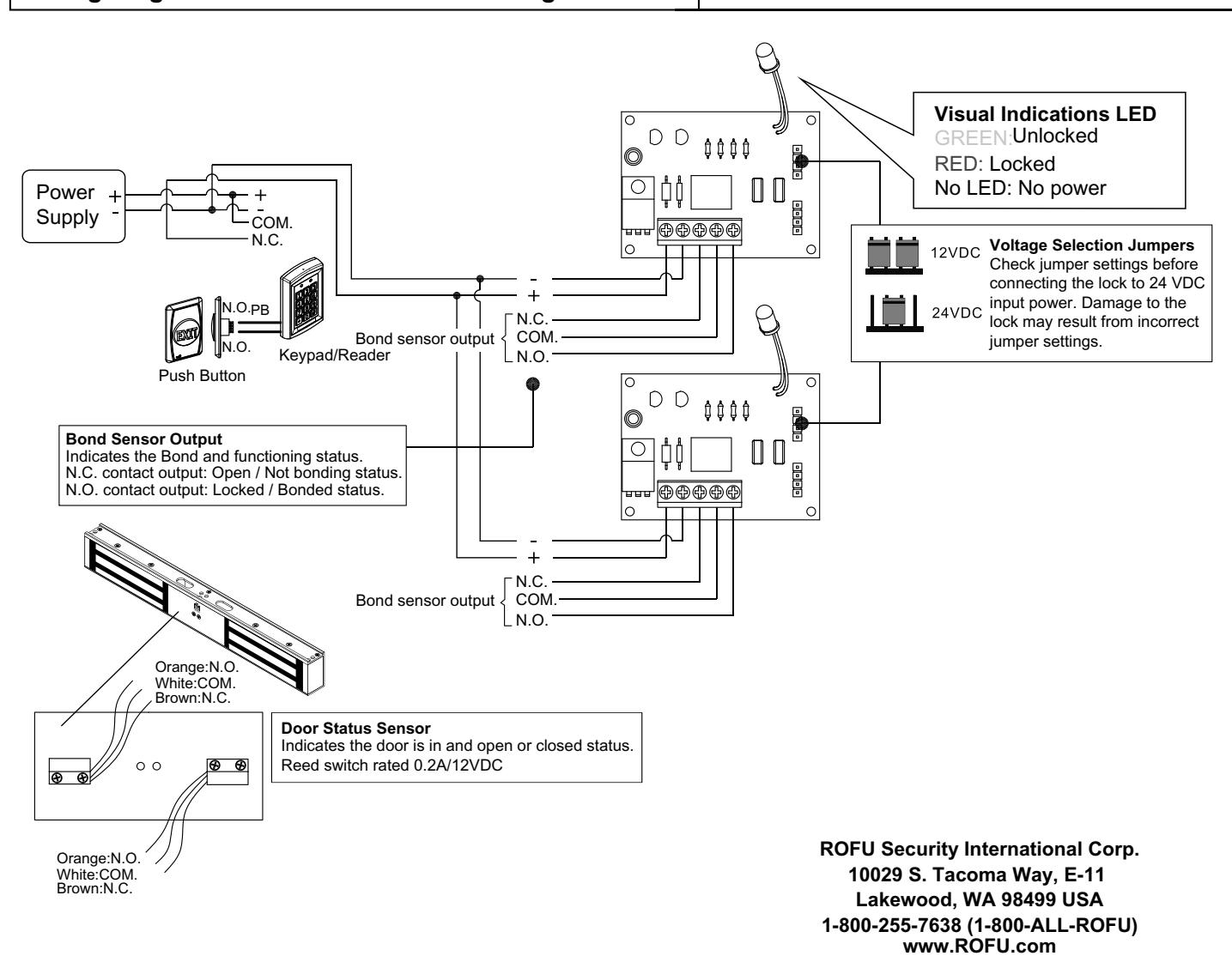

Wiring Diagram for 8612-2-B/BD Double Magnet Models

OrderEntry@rofu.com

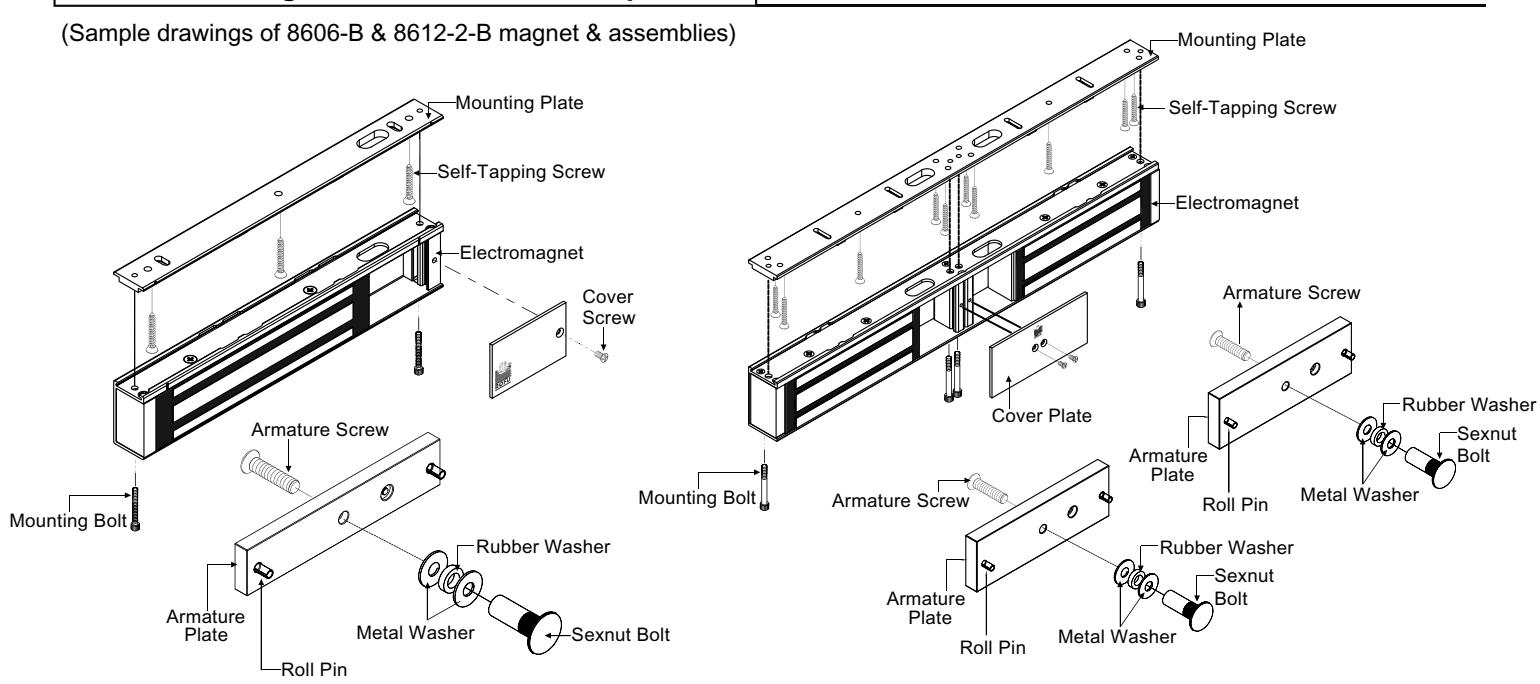

Installation Diagram & Screw Pack Components

Components	8606-B	8608-B 8608-LC	8612-B 8612-LC	8608-2-B	8612 -2-B
Roll Pin	x 2 (3/16" x 5/8")			x 4 (3/16" x 5/8")
Thru-Bolts	x 2 (5/32"x25/32")	_	x 2 (1/4" x 1 21/32")	_	x 4 (1/4" x 1 21/32")
Rubber Washer	x 1 (11/32" x19/32"x 5/32")			x 2 (11/32" x19/32"x 5/32")
Phillips Flat Head Screws	x 5 (5/32" x 1")	x 5 (3/16" x 1 1/4")	x 5 (3/16" x 1 1/4") x 2 (3/16" x 5/8")	× 10 (3/16" × 1 1/4")	x 10 (3/16" x 1 1/4") x 4 (3/16" x 5/8")
Allen Flat Head Screw	x 1 (5/16" x 1 3/8")	x 1 (5/16" x 1")	x 1 (5/16" x 1 3/8")	x 2 (5/16" x 1")	x 2 (5/16" x 1 3/8")
Metal Washer	x 2 (5/16" x 7/8")			x 4 (5/16" x 7/8")
Hexagon Key (Allen Wrench)	x1 (1/8") x1 (3/16")	x1 (5/32") x1 (3/16")	x1 (3/16")	x2 (5/32") x2 (3/16")	x1 (3/16")
Sexnut Bolt	x 1 (1/2" x 1 9/16")			x 2 (1/2" x 1 9/16")

Installation Diagram & Screw Pack Components

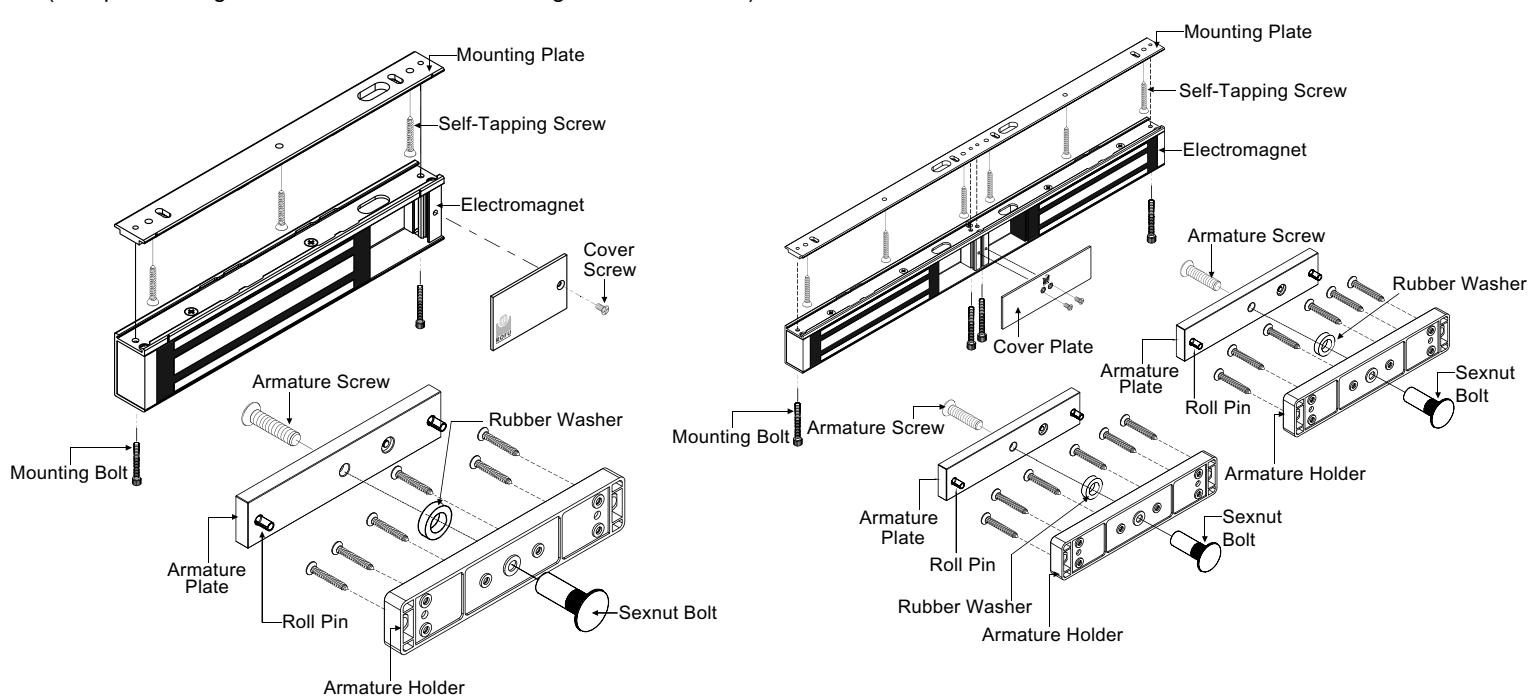

(Sample drawings of 8606-BD & 8606-2-BD magnet & assemblies)

	I	T	т.	Т.
Components	8606-BD	8608-BD	8612-BD	8606-2-BD	8608-2-BD	8612-2-BD
Roll Pin	x 2 (3/16" x 5/8")			x 4 (3/16" x 5/8")
Thru-Bolts	x 2 (5/32"x25/32")	_	x 2 (1/4" x 1 21/32")	x 4 (5/32" x 25/32")		x 4 (1/4" x 1 21/32")
Rubber Washer	x 1 (11/32" x19/32"x 5/32") x 1 (9/16" x 1 3/16" x 5/32")			x 2 (11/32" x 19/32" x 5/32") x 2 (9/16" x 1 3/16" x 5/32")
Phillips Flat Head Screws	x 5 (5/32" x 1") x 6 (3/16" x 1 1/4")	x 11 (3/16" x 1 1/4")	x 11 (3/16" x 1 1/4") x 2 (3/16" x 5/8")	x 10 (5/32" x 1") x 12 (3/16" x 1 1/4")	x 22 (3/16" x 1 1/4")	x 22 (3/16" x 1 1/4") x 4 (3/16" x 5/8")
Allen Flat Head Screw	x 1 (5/16" x 1 3/8")	x 1 (5/16" x 1")	x 1 (5/16" x 1 3/8")	x 2 (5/16" x 1 3/8")	x 2 (5/16" x 1")	x 2 (5/16" x 1 3/8")
Metal Washer		x 2 (5/16" x 7/8")		x 4 (5/16" x 7/8")
Hexagon Key (Allen Wrench)	x1 (1/8") x1 (3/16")	x1 (5/32") x1 (3/16")	x1 (3/16")	x1 (1/8") x1 (3/16")	x2 (5/32") x2 (3/16")	x1 (3/16")
Sexnut Bolt	x 1 (1/2" x 1 9/16")			x 2 (1/2" x 1 9/16")
