ELECTROMAGNETS

8606 SERIES

STANDARD FEATURES

• Slide-in mounting plate design for easy and secure installation
• Dual voltage 12/24 VDC field selectable
• Built-in MOV spike and surge protection
• No residual magnetism
• Aluminum alloy casing
• Bond sensor & door status monitoring
• UL Listed for auxiliary locks under file GWXT.R16728

APPLICATIONS

INSWING

DOUBLE DOOR

SPECIFICATION

MODELS	HOLDING FORCE	STANDARD FEATURE	CURRENT DRAW	DIMENSIONS

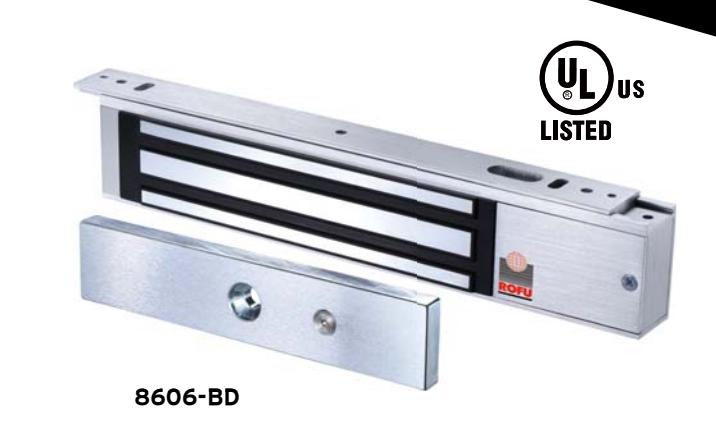

8606-BD	600 LB	Bond sensor & Door status	500 mA/12 VDC 250 mA/24 VDC	Magnet: 9 13/16" x 1" x 1 13/16" Armature Plate: 7 1/4" x 1/2" x 1 1/2"
8606-BD US40	600 LB	Bond sensor & Door status	500 mA/12 VDC 250 mA/24 VDC	Magnet: 9 13/16" x 1" x 1 13/16" Armature Plate: 7 1/4" x 1/2" x 1 1/2"

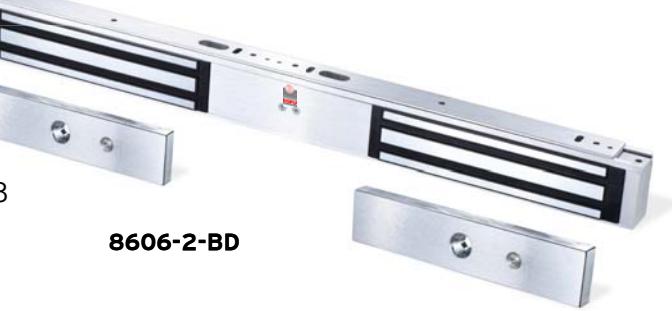

8606-2-BD	600 LB x2	Bond sensor & Door status	500 mA/12 VDC 250 mA/24 VDC	Magnet: 19 11/16" x 1" x 1 13/16" Armature Plate: 7 1/4" x 1/2" x 1 1/2" x2
8606-2-BD US40	600 LB x2	Bond sensor & Door status	500 mA/12 VDC 250 mA/24 VDC	Magnet: 19 11/16" x 1" x 1 13/16" Armature Plate: 7 1/4" x 1/2" x 1 1/2" x2

OPTIONAL BRACKETS

Optional brackets & accessories compatible with 8606 Series Electromagnets

MODELS	DESCRIPTION	MODELS	DESCRIPTION
20921	1/2" Spacer	21030N	Z-Brackets (For 8606-BD)
	(For 8606-BD)	21032N	Z-Brackets (For 8606-2-BD)
