ELECTROMAGNETS

8403 SERIES

8403S-12 8403M-12 8403F-12

ROFU 8403 Micro Electromagnets are designed for compact applications such as small cabinets, drawers, lockers and safes.

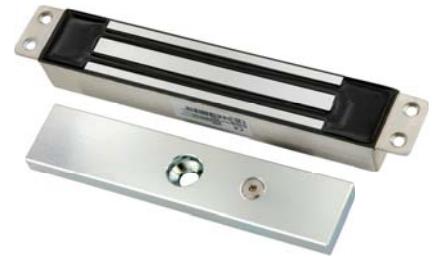

8403M-12 is designed for mortise installation on sliding doors.

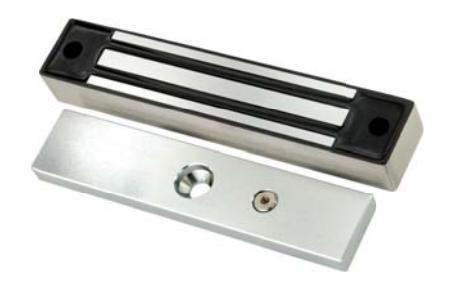

8403F-12 is for front or top mount installation.

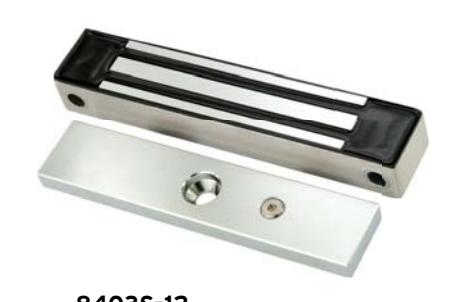

8403S-12 is supplied with a mounting plate and is for standard surface mount installation.

STANDARD FEATURES

• Fail-safe: releases instantly when power is disconnected
• No residual magnetism
• Weather resistant cable connection
• This model is not recommended for life safety or high security applications
• Housing: attractive, heavy duty nickel plated steel

SPECIFICATION

HOLDING FORCE	300 LB
VOLTAGE	12 VDC
CURRENT	300 mA/12 VDC
DIMENSIONS	8403S-12 Magnet: 6 11/16" x 1 1/4" x 15/16" Armature Plate: 6" x 1 1/4" x 3/8" 8403M-12 Magnet: 7 7/8" x 1 1/4" x 15/16" Armature Plate: 6" x 1 1/4" x 3/8" 8403F-12 Magnet: 6 11/16" x 1 1/4" x 15/16" Armature Plate: 6" x 1 1/4" x 3/8"

OPTIONAL BRACKETS

MODELS	DESCRIPTION
	Mounting Plate for 8403S-12
20918

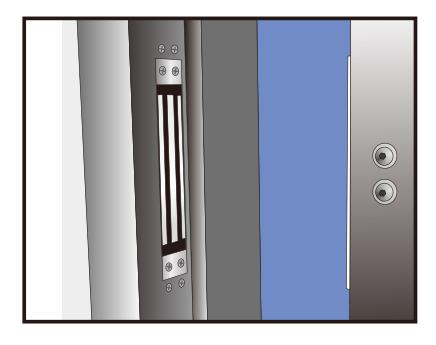

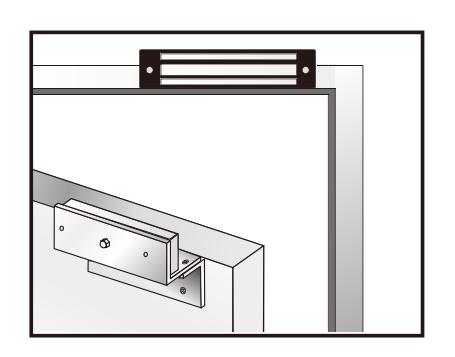

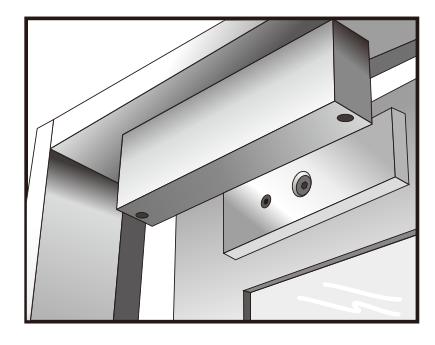

APPLICATIONS

8403S-12 8403M-12 8403F-12
