FULL LENGTH MAGNETIC LOCKS

8112FF SERIES

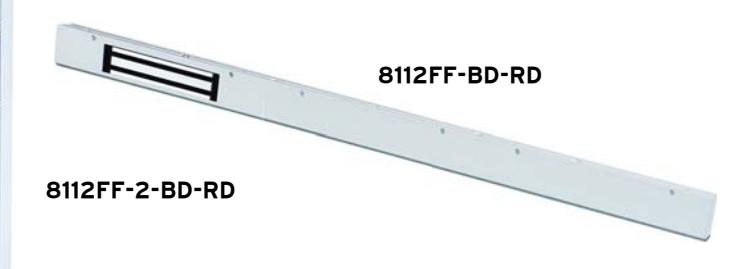

8112FF Full Length Electromagnets are equipped with a base board and a security cover. Single magnet 8112FF-BD-RD is 45" in length for a horizontal configuration and the handings can easily be reversed. Double magnets 8112FF-2-BD-RD is 96" in length for a vertical configuration. Both models have a holding force of 1200 LB per single magnet.

STANDARD FEATURES

• Fail-safe: releases instantly when power is disconnected. No residual magnetism
• Fail alarm: may be released upon activation of the fire alarm
• Housing: satin aluminum
• Bond sensor (B): built-in hall effect sensors, detecting magnetic field strength from door position and voltage input
• Door status (D) function works in conjuction with the bond sensor
• Relock time delay (RD): Timer can be adjusted to relock after 1~80 seconds
• LED: Bi-colored red/green

APPLICATIONS

INSWING

SPECIFICATION

MODELS	8112FF-BD-RD	8112FF-2-BD-RD
HOLDING FORCE	1200 LB	1200 LB x2
VOLTAGE	12/24 VDC
CURRENT	500 mA/12 VDC , 250 mA/24 VDC
DIMENSIONS	8112FF-BD-RD 45" x 1 9/16" x 3 5/16" 8112FF-2-BD-RD 96" x 1 9/16" x 3 5/16"

APPLICATIONS

Single Door Vertical Configuration Single Door Horizontal Configuration (Right Hand Reverse)

Single Door Horizontal Configuration (Left Hand Reverse)
