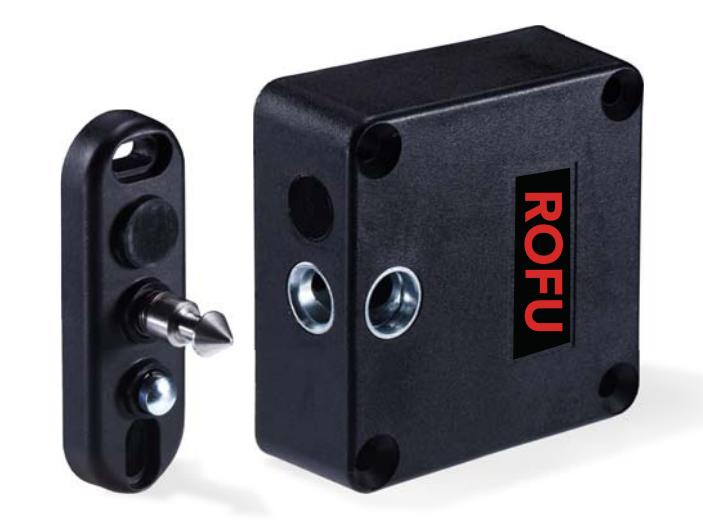

APPLICATIONS

• Fail-secure operation
• Surface & side mount compact electric lock, suitable for cabinets and gym lockers.
• Motor operated, low energy consumption
• Stainless steel lokcing pin assembly
• Field adjustable relock time delay
• Lock or door status monitoring

VOLTAGE	12 ~ 28 VAC/VDC
CURRENT DRAW	Standby: 69 mA/12 VDC, 69 mA/24 VDC Active: 165 mA/12 VDC, 165 mA/24 VDC
MODE	Fail secure
OPERATION	Motor
DIMENSION	2 3/8" (L) x 2 3/8" (W) x 7/8" (H) 2 3/8" (L) x 13/16" (W) x 1/4" (H)

3850

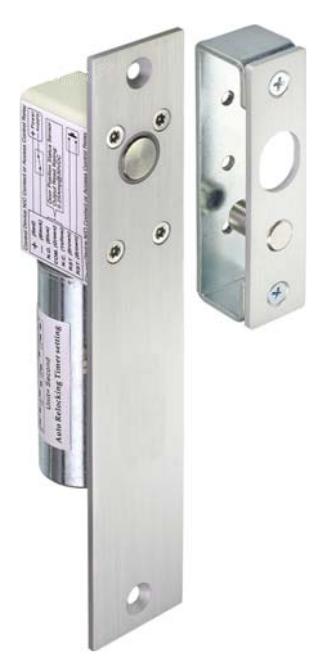

FUNCTION

• Fail-safe operation
• Magnetic bolt status output
• Relock time delay (0/3/6/9 seconds)
• Built-in logical circuitry and door position sensor
• Can be installed in horizontal or vertical position
• Net weight: 1.2 KG
• Tested to 500,000 cycles

SPECIFICATION

VOLTAGE 12 VDC CURRENT DRAW Pull in: 0.9 A; Holding: 0.3 A 8" (L) x 1 1/2" (W) x 1 9/16" (D) DIMENSION 8 15/16" (L) x 1 1/16" (W) x 1 1/8" (D) OPERATING TEMP. 14°F to 113°F (-10°C~+45°C) BOLT MONITORING SPDT rated 0.25 A/30 VDC
