ROFU 3810 Series Cabinet Locks Strikes Data Sheet
Open the original PDF document
View PDF2960

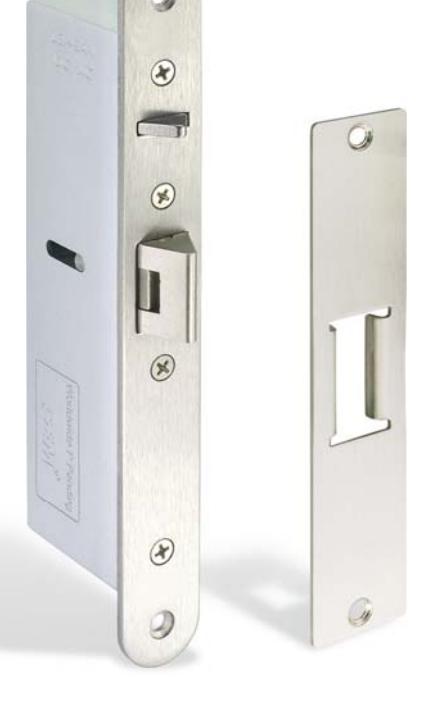

STANDARD FEATURES
- Field reversible: fail-safe or fail-secure
- Dual voltage 12/24 VDC field selectable
- Stainless steel faceplate
- Suitable for narrow frames
- Changeable nib to suit single or double swing doors
- Can be installed in horizontal or vertical position
- Tested to 1,000,000 cycles
SPECIFICATION
| VOLTAGE | 12/24 VDC |
|---|---|
| CURRENT DRAW | 280 mA/12 VDC, 140 mA/24 VDC |
| LOCK MONITORING | SPDT rated 3 A/125 VAC |
| DIMENSION |
8 1/4" x 1" x 1 3/4"
5 15/16" x 1 3/16" x 1/16" |
| OPERATING TEMP. | 14°F to 113°F (-10°C~+45°C) |
OUTSWING INSWING DOUBLESWING

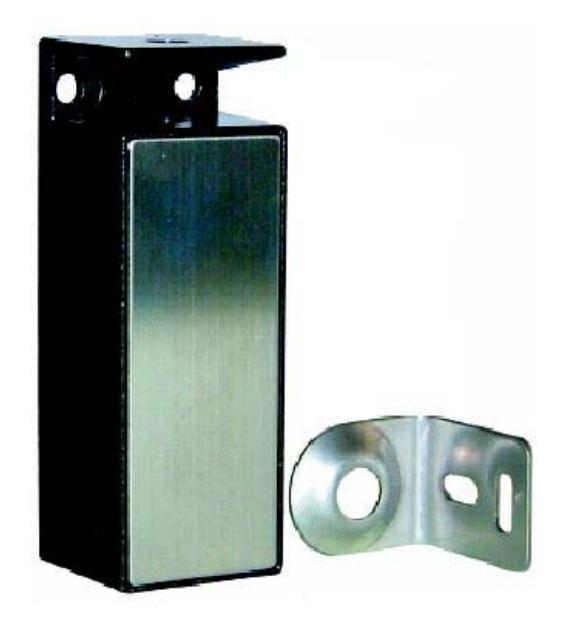

3810
STANDARD FEATURES
- Field reversible: fail-safe or fail-secure
- Dual voltage 12/24 VDC field selectable
- Door/drawer position monitoring, with built-in reed switch bolt monitoring
SPECIFICATION
| VOLTAGE | 12/24 VDC |
|---|---|
| CURRENT DRAW | 300 mA/12 VDC, 150 mA/24 VDC |
| DIMENSION | 3 3/16" (H) x 1 1/8" (W) x 1 1/8" (D) |
| HOLDING FORCE | 500 LB |
