ROFU 2460 Series Rim Mount Strike Electric Strike Installation Instructions

ROFU Security International Corp. 6818 S 220th ST Kent, WA 98032 (253) 922-1828 www.ROFU.com OrderEntry@ROFU.com

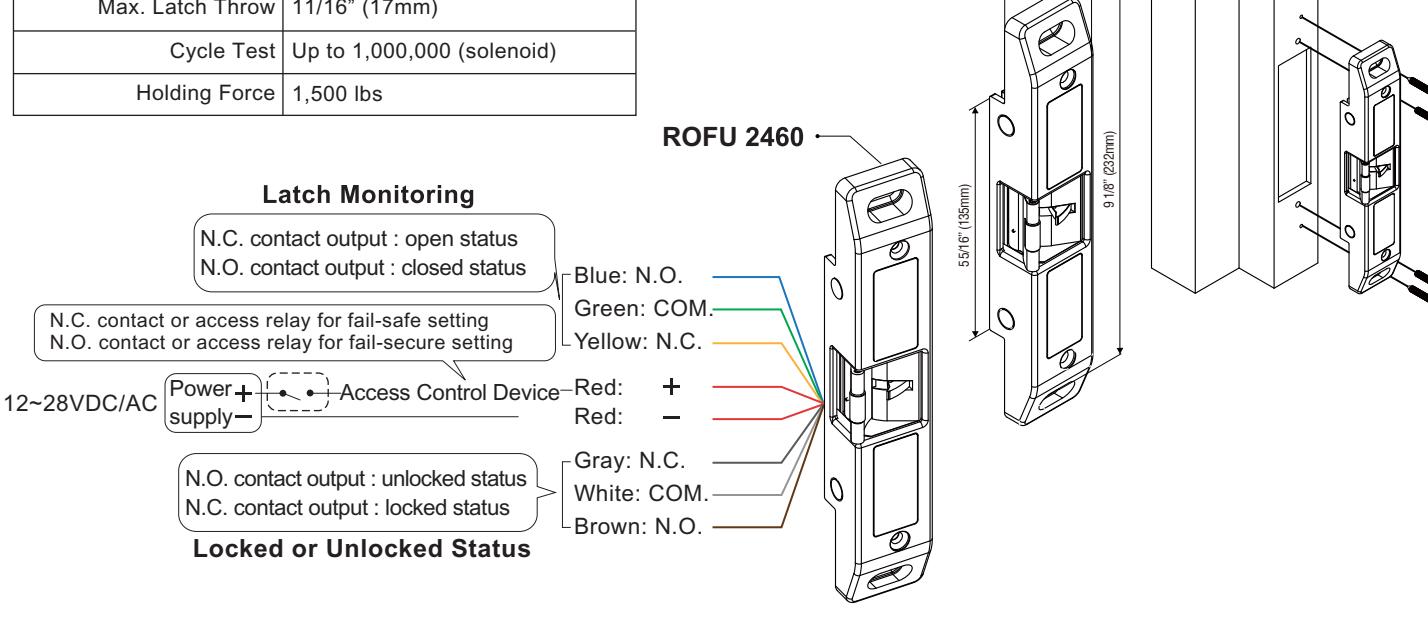

Wiring Diagram

T
12-28VAC/VDC
±15%
230mA/12VDC ;140mA/28VDC 440mA/12VAC ; 230mA/28VAC
14°F to 113°F (-10°C to +45°C)
0~95% non condensing
11/16" (17mm)
Up to 1,000,000 (solenoid)
1,500 lbs

The ROFU 2460 Series Rim Mount strike for crash bars. Designed for doors with crash bars requiring a rim mount strike. The 2460 offers latch monitoring and strike locked/unlocked status monitoring. This electric strike lock can easily be reversed from fail-safe to fail-secure modes.

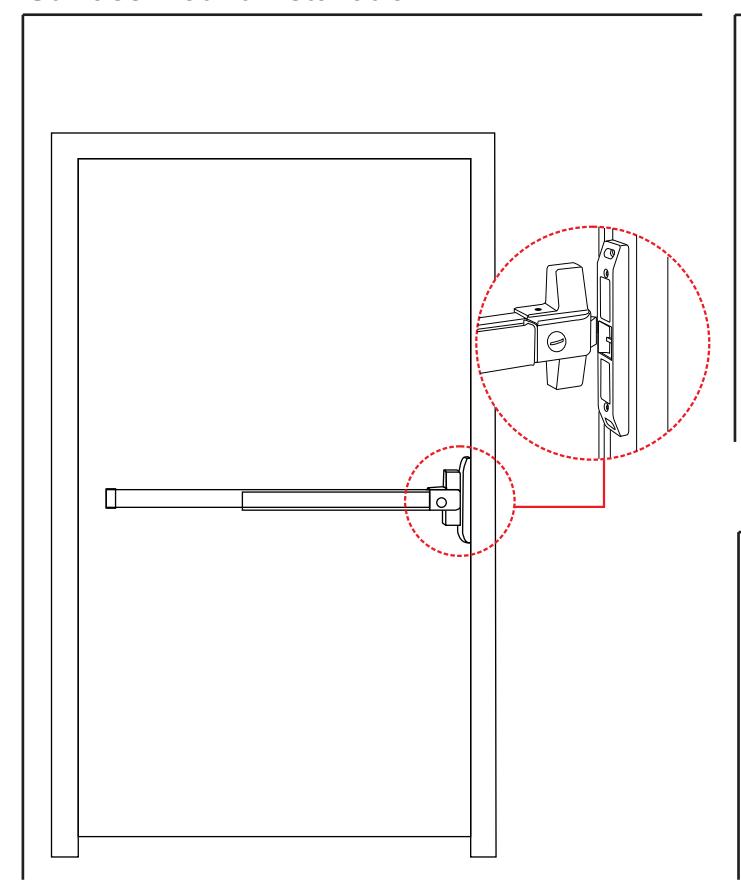

Surface Mount Installation

Reversible from Fail Secure to Fail Safe

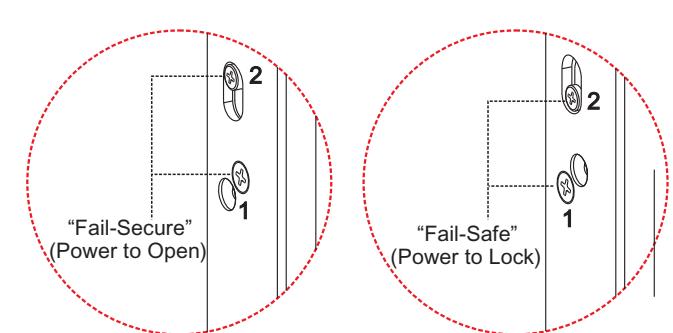

Loosen screw #1 first. Loosen screw #2 and fix it to the other end. Fix screw #1 next to its original place.

Butt Splice (IDC) Connector

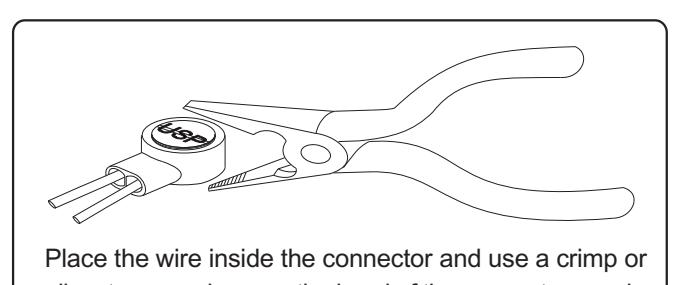

pliers to press down on the head of the connector evenly.
