2435 KIT

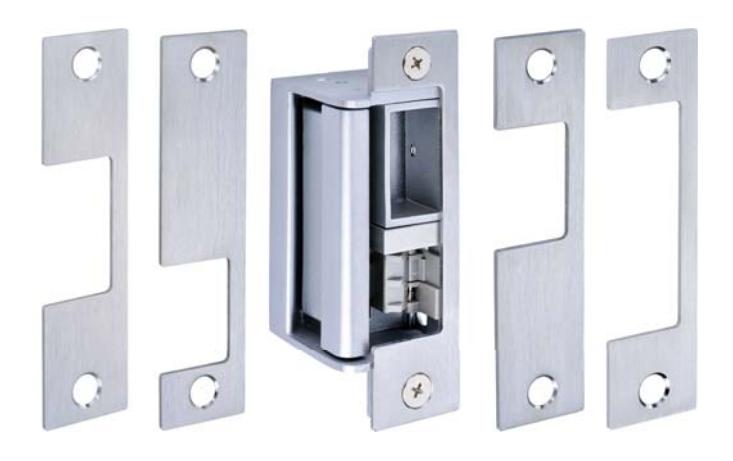

2435 Kit, completes with five heavy duty stainless steel faceplates, is designed for mortise and cylindrical locksets. It is reversible for left hand or right hand installation and operates at 12 and 24 VDC.

STANDARD FEATURES

• Heavy duty stainless steel construction
• Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches
• Dual voltage 12/24 VDC (VAC for intermittent use, not exceeding 10 seconds)
• Sliding keeper shim design for up to 1/8" (3 mm) adjustment for misaligned frames
• Endurance testing: 1,000,000 cycles tested

SPECIFICATION

VOLTAGE 12/24 VDC CURRENT 250 mA/12 VDC, 150 mA/24 VDC STATIC STRENGTH 1000 LB (454 KG) DYNAMIC STRENGTH 33-ft-lbs. (4.56 m-kgs) DIMENSION 3 5/16" (4 5/8") x 1 5/8" x 1 13/16" Latch Throw 1" max with 1/8" door gap

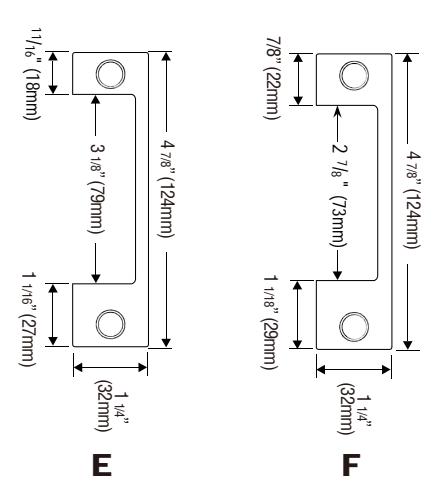

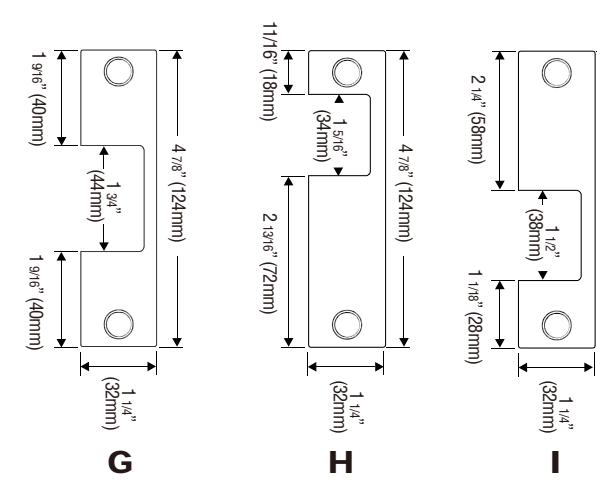

Faceplates Dimensions

Deadbolt Latch Installation

Latchbolt Installation

Changing Fail-Safe / Fail-Secure

2435 Kit is field reversible for fail-safe or fail-secure by changing the position of screws.

Fail-Secure (Power to Open):
