ROFU 21095N-IN Full Frameless Door Instructions.

For Full Frameless Glass Door

21095N-Out

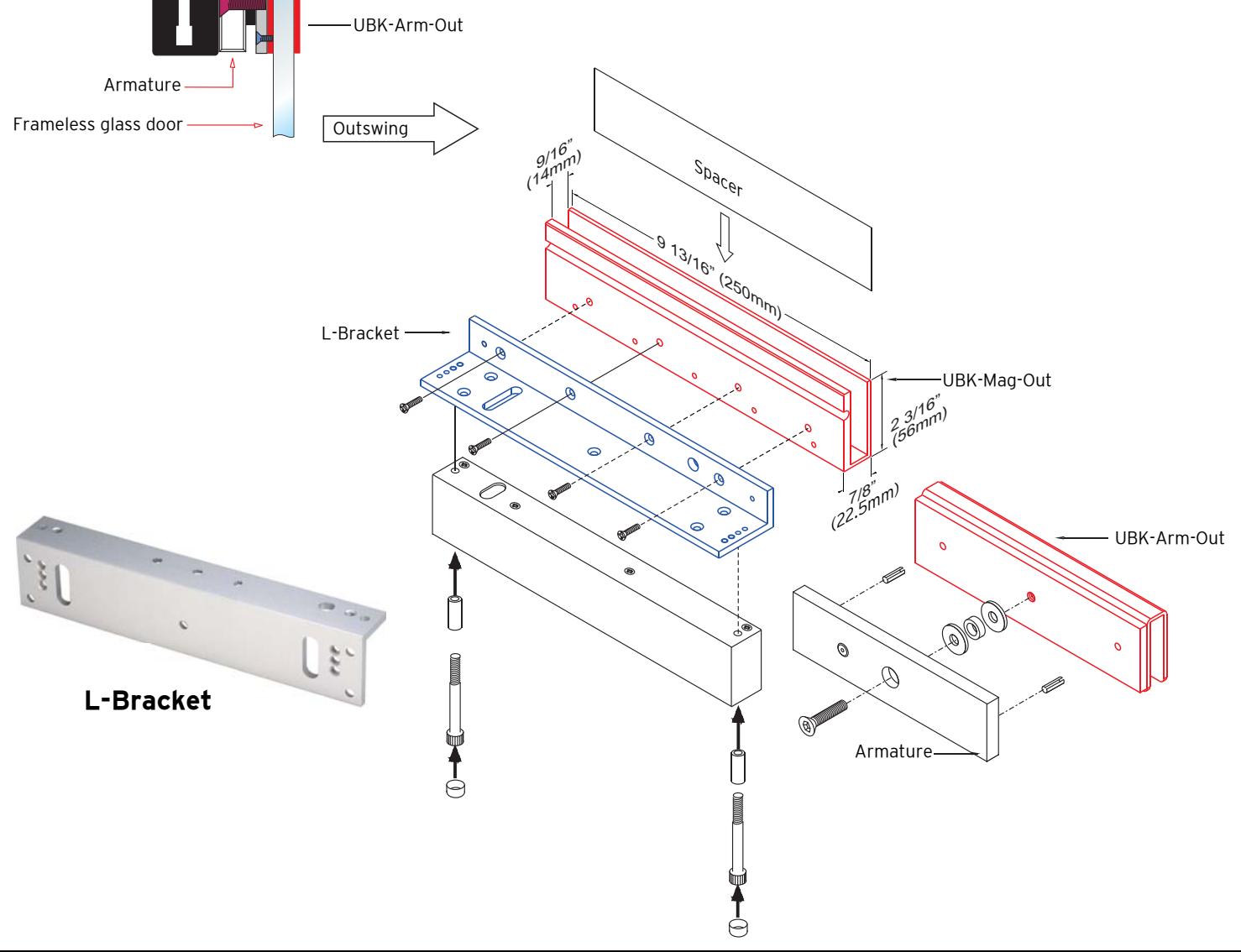

UBK-Mag-Out bracket is to be screwed and attached with the L-bracket provided while the UBK-Arm-Out bracket is to be assembled with the armature plate. The bracket allows for installation on 10~13 mm (3/8" ~ 1/2") thickness of glass doors and frames.

Application of Electromagnet: 8606-BD & 8606-2-BD
