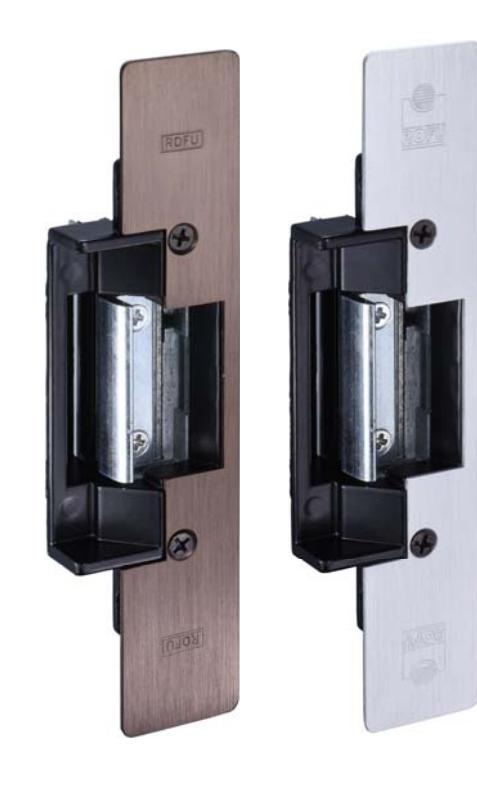

1703

STANDARD FEATURES

• Fail-secure, faceplate size 1 1/4" x 6 7/8"
• Anodized aluminum faceplate, suitable for hollow metal, aluminum or wood frames
• Adjustable keeper, depth 1/2" max latch projection possible with 1/8" door/frame clearance - 3/4"
• Reversible non-handed
• Limited warranty 36 months

SPECIFICATION

TAMPER STRENGTH	1000 LB (454 KG)
VOLTAGE	1703-01 8-16 VAC/3-6 VDC 1703-05 12 VAC/VDC 1703-07 24 VAC/VDC 1703-08 24 VDC
FINISH	US28 or US10B

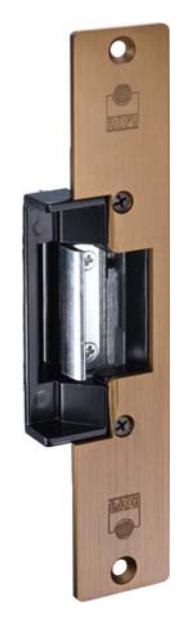

1704

STANDARD FEATURES

• Fail-secure, faceplate size 1 7/16" x 7 15/16"
• Anodized aluminum faceplate, suitable for hollow metal, aluminum or wood frames
• Adjustable keeper, depth 1/2" max latch projection possible with 1/8" door/frame clearance - 3/4"
• Reversible non-handed
• Limited warranty 36 months

SPECIFICATION

TAMPER STRENGTH	1000 LB (454KG)
VOLTAGE	1704-01 8-16 VAC/3-6 VDC 1704-05 12 VAC/VDC 1704-07 24 VAC/VDC 1704-08 24 VDC
FINISH	US28, US4 or US10B
