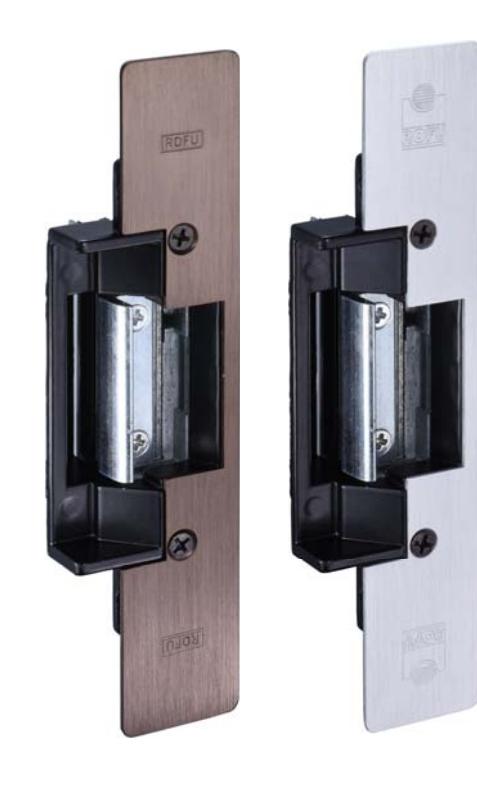

ROFU 1703 Series Adjustable Keeper Strikes Data Sheet
Open the original PDF document
View PDF1703
STANDARD FEATURES
- Fail-secure, faceplate size 1 1/4" x 6 7/8"
- Anodized aluminum faceplate, suitable for hollow metal, aluminum or wood frames
- Adjustable keeper, depth 1/2" max latch projection possible with 1/8" door/frame clearance - 3/4"
- Reversible non-handed
- Limited warranty 36 months
SPECIFICATION
| TAMPER STRENGTH | 1000 LB (454 KG) |
|---|---|
| VOLTAGE |
1703-01 8-16 VAC/3-6 VDC
1703-05 12 VAC/VDC 1703-07 24 VAC/VDC 1703-08 24 VDC |
| FINISH | US28 or US10B |

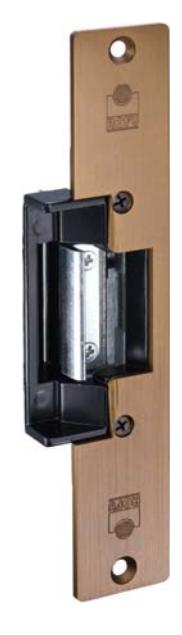

1704
STANDARD FEATURES
- Fail-secure, faceplate size 1 7/16" x 7 15/16"
- Anodized aluminum faceplate, suitable for hollow metal, aluminum or wood frames
- Adjustable keeper, depth 1/2" max latch projection possible with 1/8" door/frame clearance - 3/4"
- Reversible non-handed
- Limited warranty 36 months
SPECIFICATION
| TAMPER STRENGTH | 1000 LB (454KG) |
|---|---|
| VOLTAGE |
1704-01 8-16 VAC/3-6 VDC
1704-05 12 VAC/VDC 1704-07 24 VAC/VDC 1704-08 24 VDC |
| FINISH | US28, US4 or US10B |
