ROFU 1701 Series for Wood Jamb Installation Instructions
Open the original PDF document
View PDF
ROFU 1701 Series for Wood Jamb
Installation Instructions

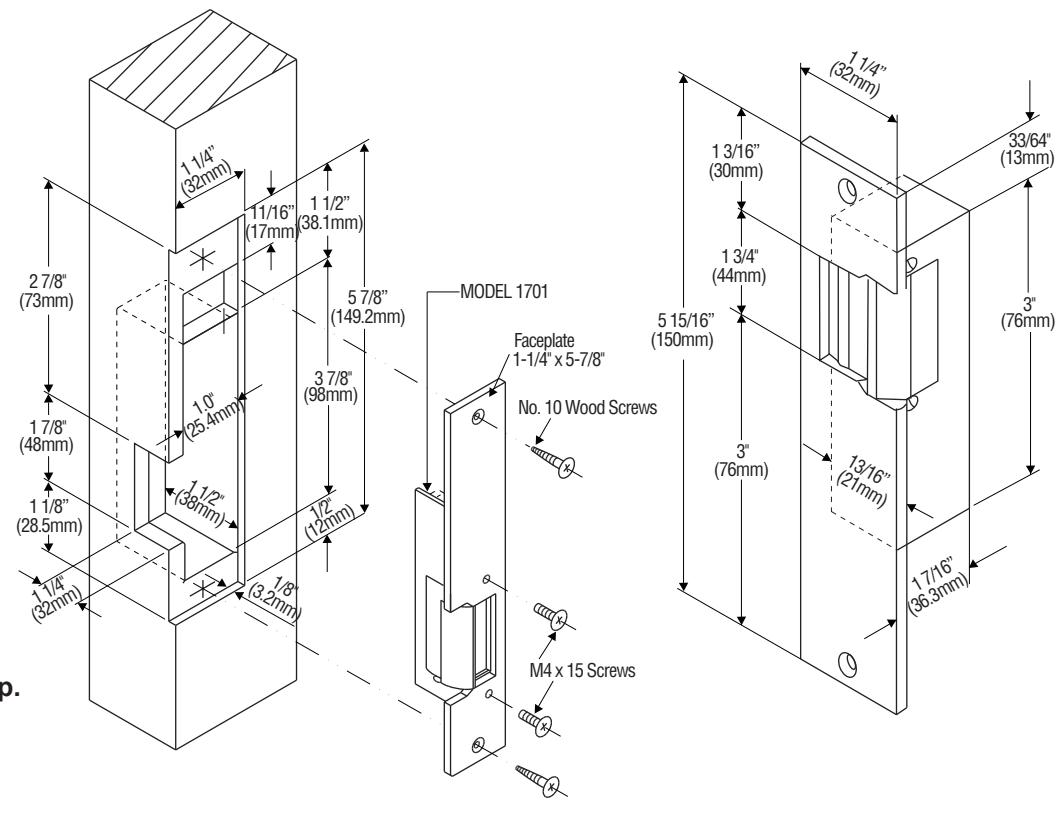

- 1. Prepare door jamb per drawing.
- 2. Connect wires coming from the low voltage side of the transformer to terminal block of door strike.
- 3. Install electric door strike to jamb by attaching with #10 screws.
ROFU Security International Corp. 6818 S 220th ST Kent, WA 98032 (253) 922-1828 www.ROFU.com OrderEntry@ROFU.com
Copyright © ROFU Security International Corp. All rights reserved. ROFU-1505G Published on: 2019.03.08
Note: Template dimensions (not to scale) and technical data are subject to change without notice. Dimensions in inches and millimeters
ROFU 1701 Series for Wood Jamb
Installation Instructions

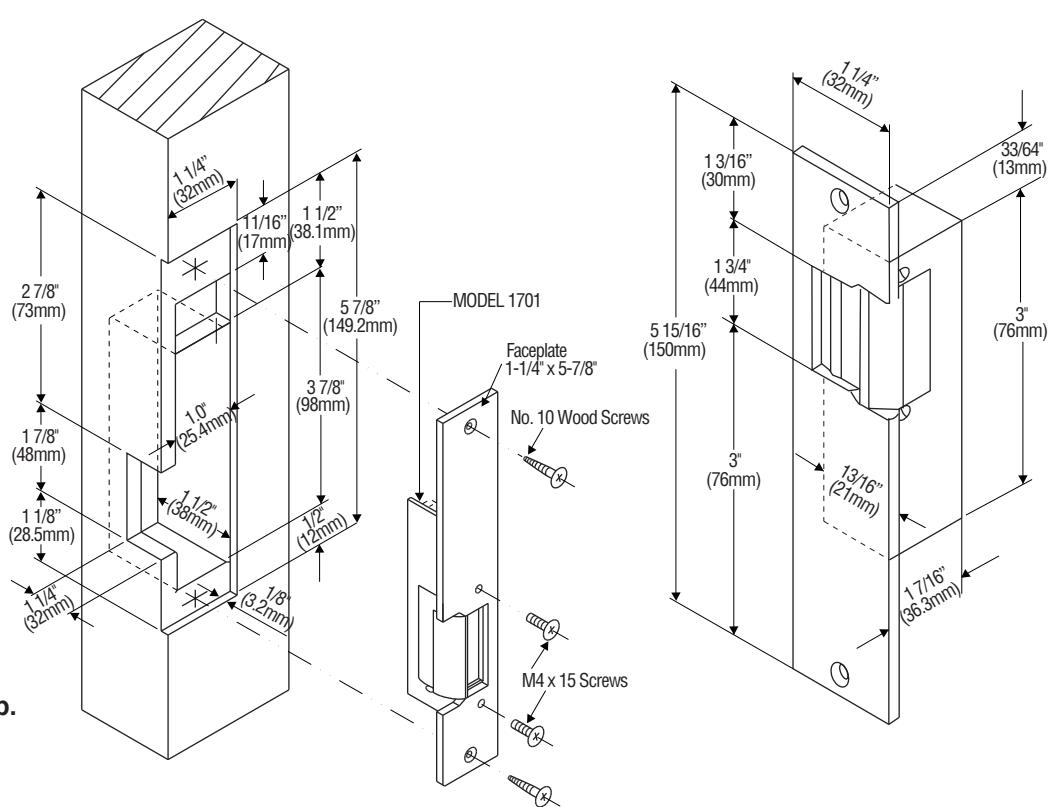

- 1. Prepare door jamb per drawing.
- 2. Connect wires coming from the low voltage side of the transformer to terminal block of door strike.
- 3. Install electric door strike to jamb by attaching with #10 screws.
ROFU Security International Corp. 6818 S 220th ST Kent, WA 98032 (253) 922-1828 www.ROFU.com OrderEntry@ROFU.com
Note: Template dimensions (not to scale) and technical data are subject to change without notice. Dimensions in inches and millimeters.
