ROFU 1509 Series Economy Line Strikes Data Sheet

Open the original PDF document

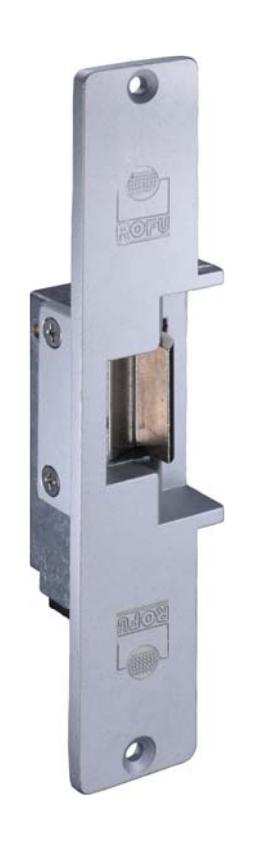

1509

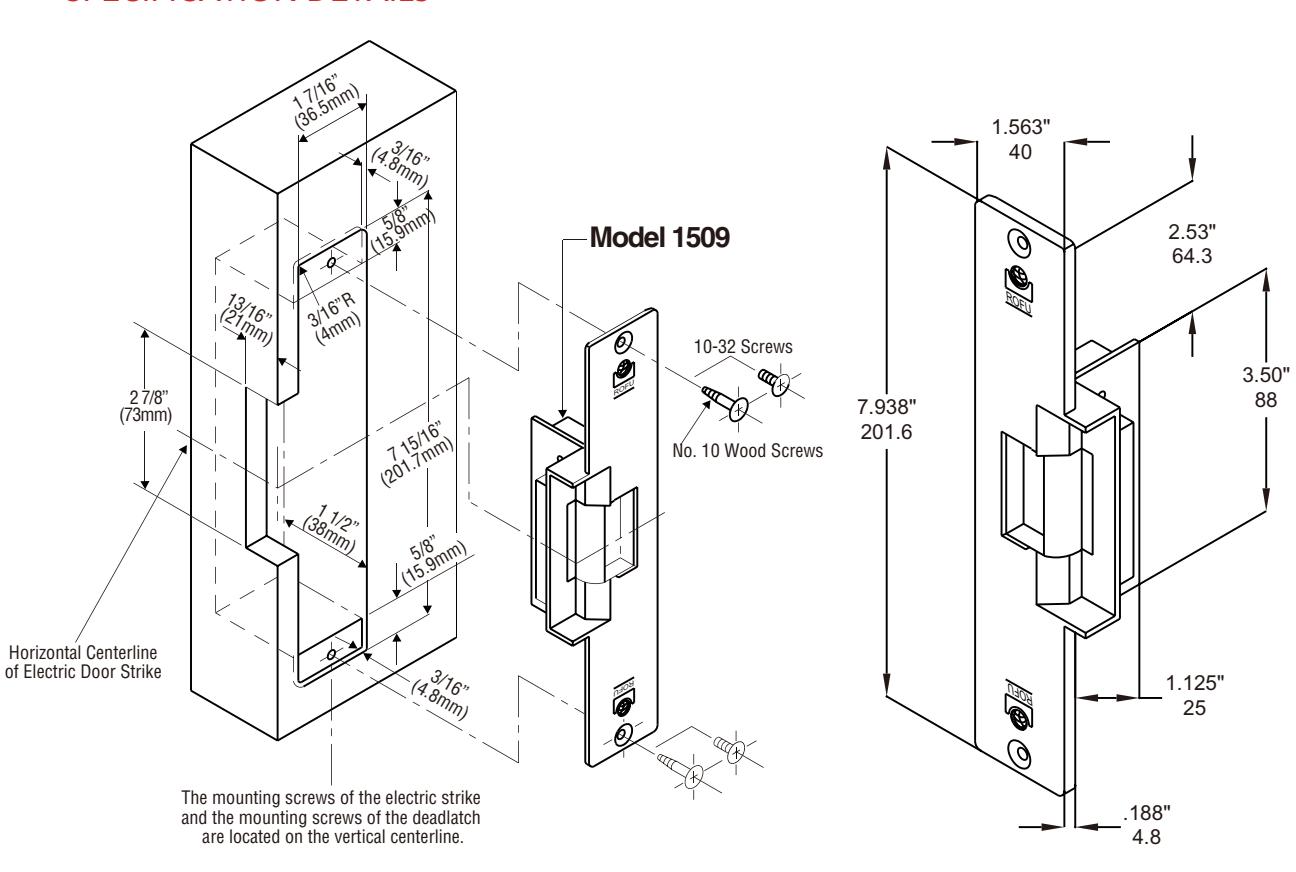

Fail-secure, faceplate size 7 15/16" x 1 7/16"
Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance 3/4"
Zinc/Aluminum alloy faceplate, suitable for hollow metal, aluminum or wood frames
Reversible non-handed
Limited warranty 12 months

TAMPER STRENGTH	1000 LB (454 KG)
VOLTAGE	1509-01 8-16 VAC/3-6VDC 1509-05 12 VAC/VDC 1509-08 24 VAC/VDC
FINISH	US28
