1508

STANDARD FEATURES

• Fail-secure, faceplate size 5 7/8" x 11/8"
• Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4"
• Zinc/Aluminum alloy faceplate, suitable for hollow metal, aluminum or wood frames
• Reversible non-handed
• Limited warranty 12 months

SPECIFICATION

TAMPER STRENGTH	1000 LB (454 KG)
VOLTAGE	1508-01 8-16 VAC/3-6VDC 1508-05 12 VAC/VDC 1508-08 24 VAC/VDC
FINISH	US28

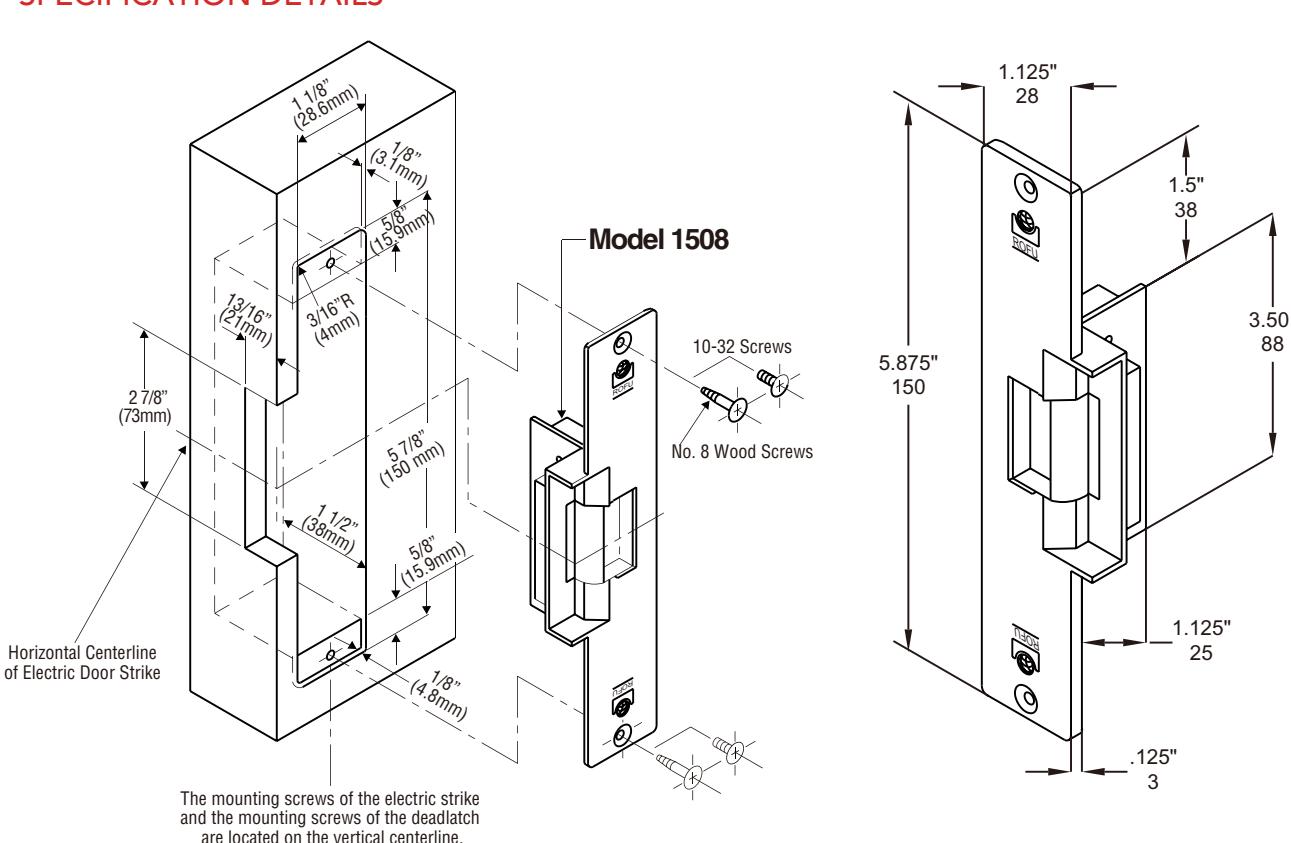

SPECIFICATION DETAILS
