ROFU 1506 Kit Series Economy Line Strikes Data Sheet
Open the original PDF document
View PDF

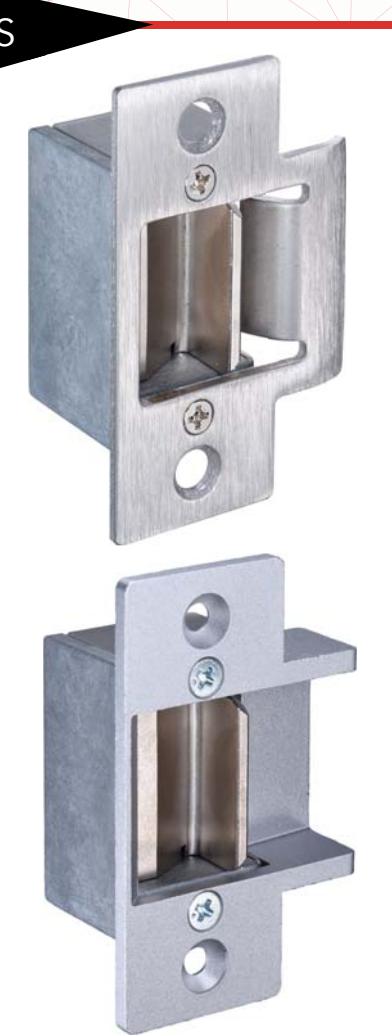

MODEL 1506
STANDARD FEATURES
- Fail-secure, faceplate size 11/8" x 2 3/4"
- Accommodates 1/2" latchbolt

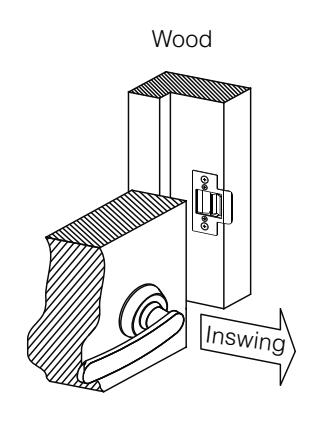

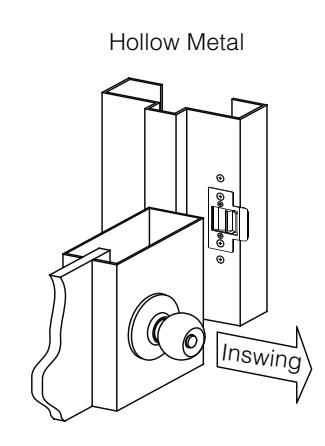

- Brushed stainless steel faceplate, suitable for hollow metal, aluminum or wood frames
- Limited warranty 12 months
SPECIFICATION
| TAMPER STRENGTH | 1000 LB (454 KG) |
|---|---|
| VOLTAGE |
1506-01G 8-16 VAC/3-6VDC
1506-05G 12 VDC 1506-08G 24 VDC |
| FINISH | US26D |

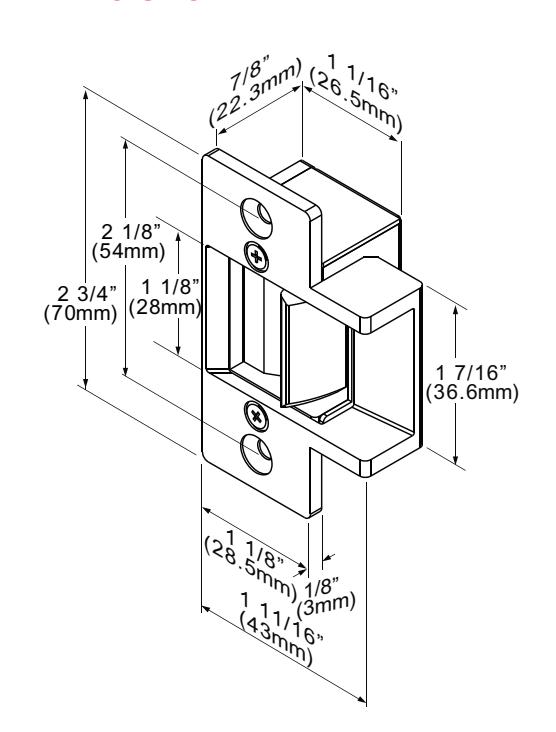

DIMENSIONS
