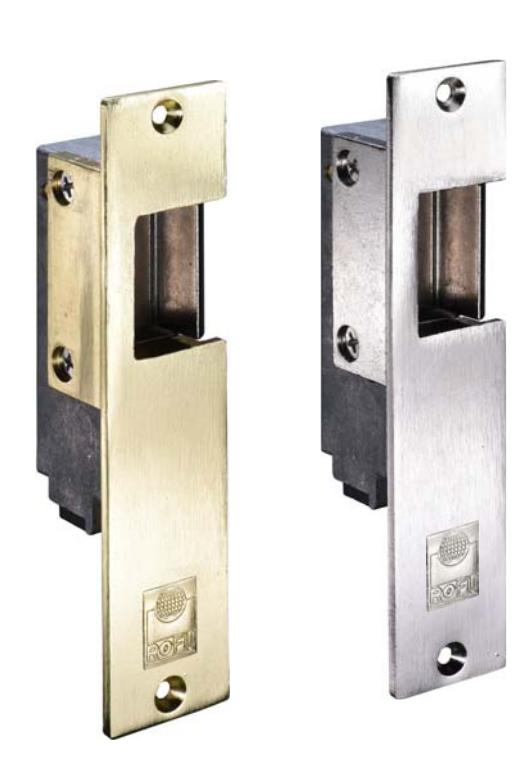

MODEL 1505
STANDARD FEATURES
- Fail-secure, faceplate size 5 7/8" x 11/4"
- Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance 3/4"
- Steel faceplate, suitable for wood frames
- Integrated spacers, solenoid mounts to faceplate from side
- Limited warranty 12 months
SPECIFICATION
| TAMPER STRENGTH | 1000 LB (454 KG) |
|---|---|
| VOLTAGE |
1505-01 8-16 VAC/3-6 VDC
1505-05 12 VAC/VDC 1505-08 24 VAC/VDC |
| FINISH | US28 or US4 |

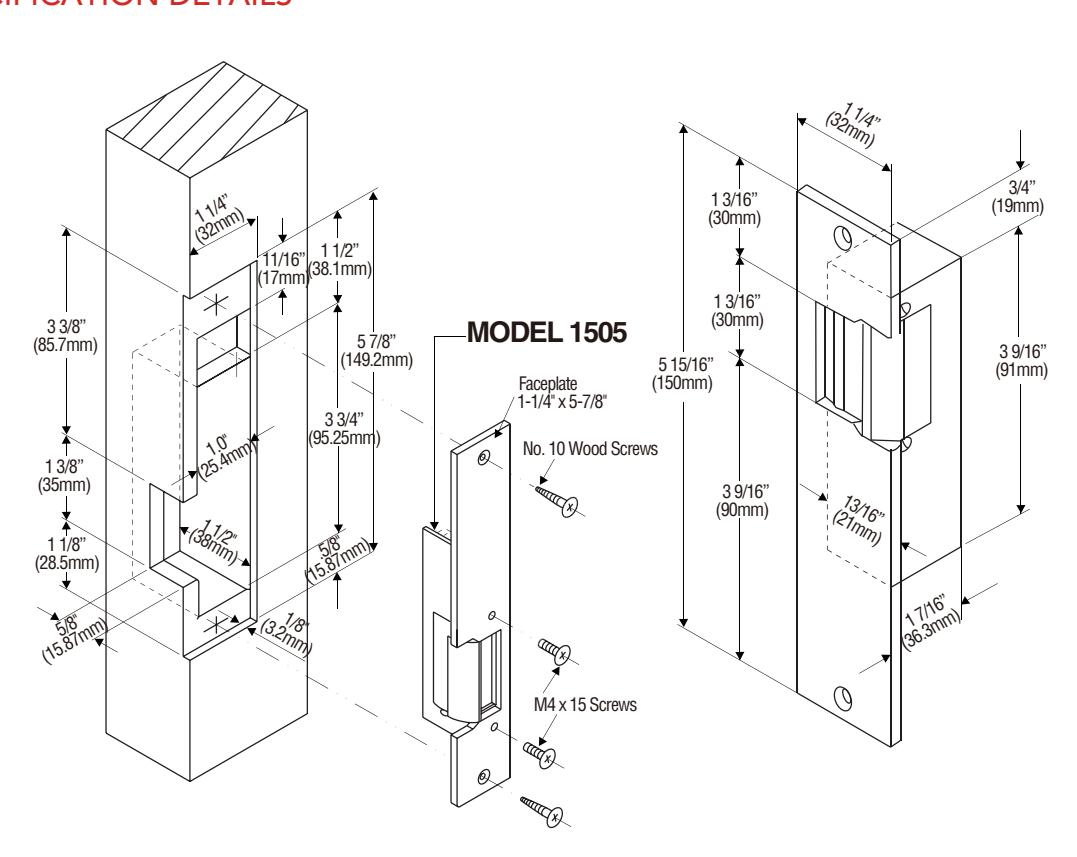

SPECIFICATION DETAILS
