ROFU 1501 Series Economy Line Strikes Data Sheet

Open the original PDF document

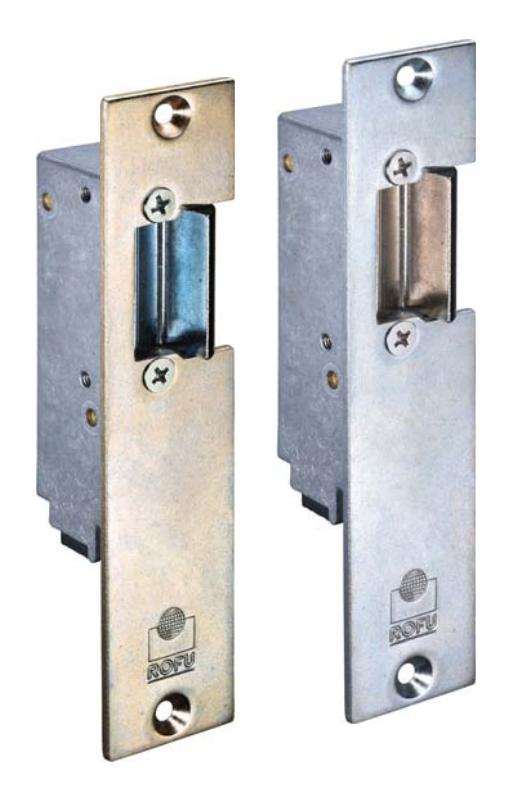

MODEL 1501

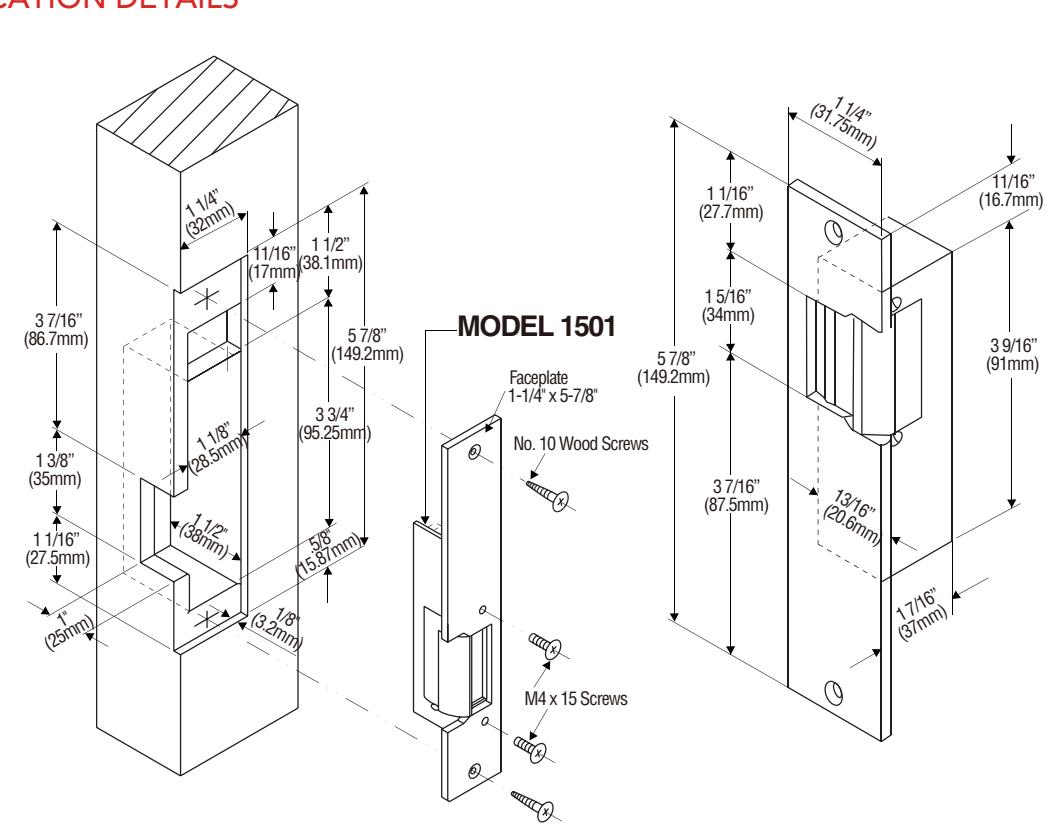

Fail-secure, faceplate size 5 7/8" x 11/4"
Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance 3/4"
Steel faceplate, suitable for wood frames
Separate spacers, solenoid mounts to faceplate from front
Limited warranty 12 months

TAMPER STRENGTH	1000 LB (454 KG)
VOLTAGE	1501-01 8-16 VAC/3-6 VDC 1501-05 12 VAC/VDC 1501-08 24 VAC/VDC
FINISH	US26D or US4
