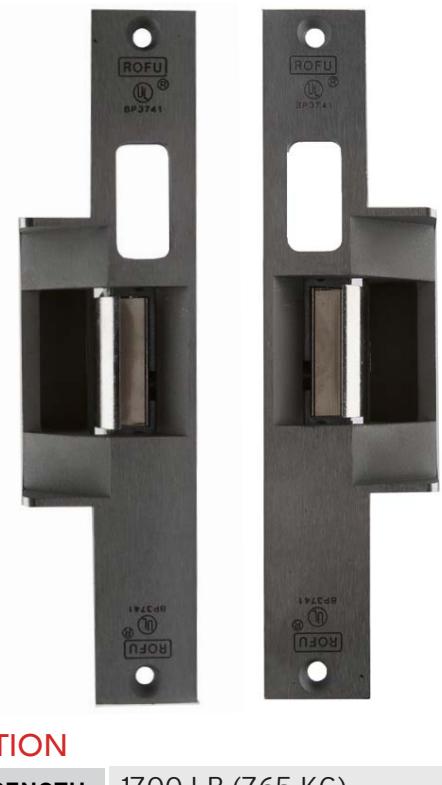

1470B/3470B

STANDARD FEATURES

• Model 1470 Fail-secure Model 3470 Fail-safe

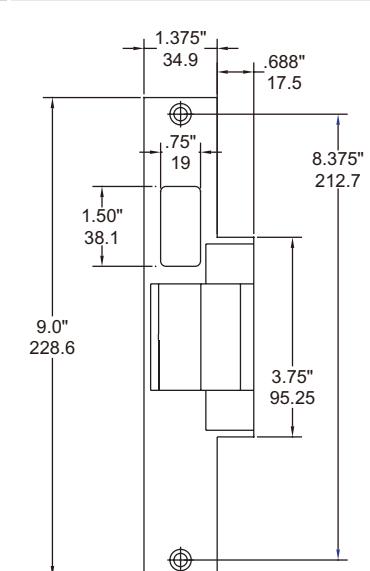

• Faceplate size 13/8" x 9"
• Stainless steel, corrosion-resistant faceplate, suitable for hollow metal, aluminum or wood frames
• Keeper depth 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4" Keeper opening starts at center line
• Cutout for deadbold (Specify 1470B-LH or 1470B-RH, 3470B-LH or 3470B-RH)
• Fully tamper proof horizontal adjustment

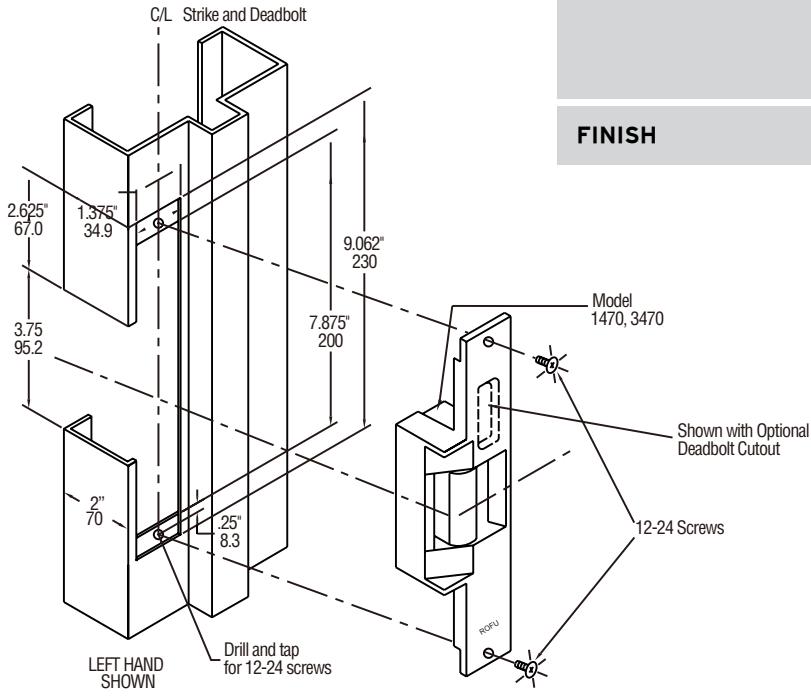

• 2" jamb modification
• Limited warranty 36 months

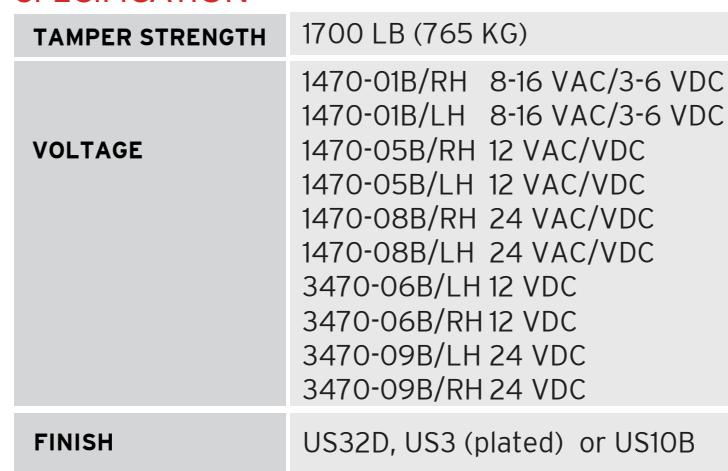

SPECIFICATION DETAILS

SPECIFICATION

35
